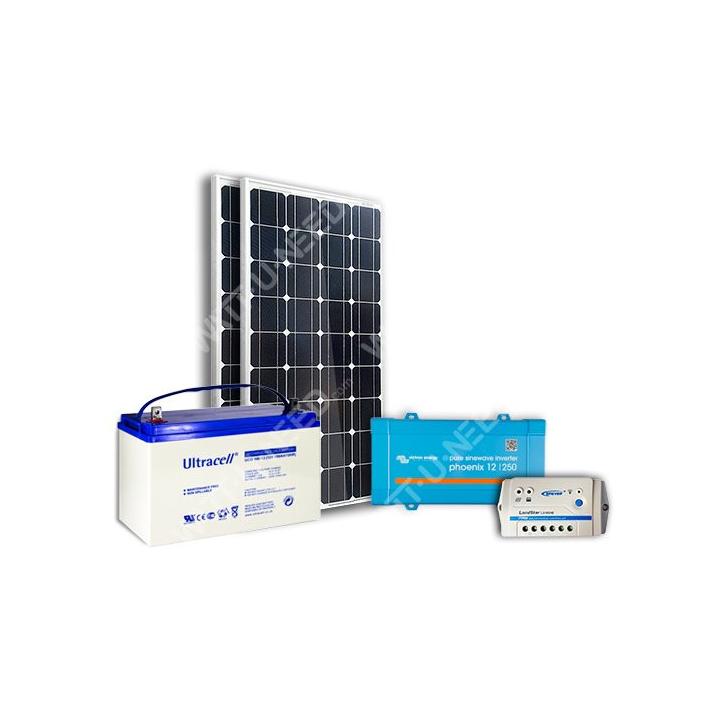

Kit solar 200Wc mono - 100Ah - 250VA
665,39 €
Inklusive Steuer
10081
0712971136441
Dieser Bausatz enthalt
- 2X12V 100Wp monokristallines Solarpanel
- 1XSolarregler SRNE SHINER MPPT 12/24V 30A SHINER2430-B
- 1XVictron Phoenix VE. Direkt 12V / 24V / 48V - 250VA
- 1X2X4mm2 solar cable with Type MC4 (sold by -5m)
- 1XDouble type MC4-like connector male & female
- 1XUltracell 12V 100Ah GEL-Batterien
- 1XBattery cable 2x4mm² - 2m
Wählen Sie Produkte aus den folgenden Abschnitten
Composition of the Kit solar 100pw Mono - 100Ah - 250 will

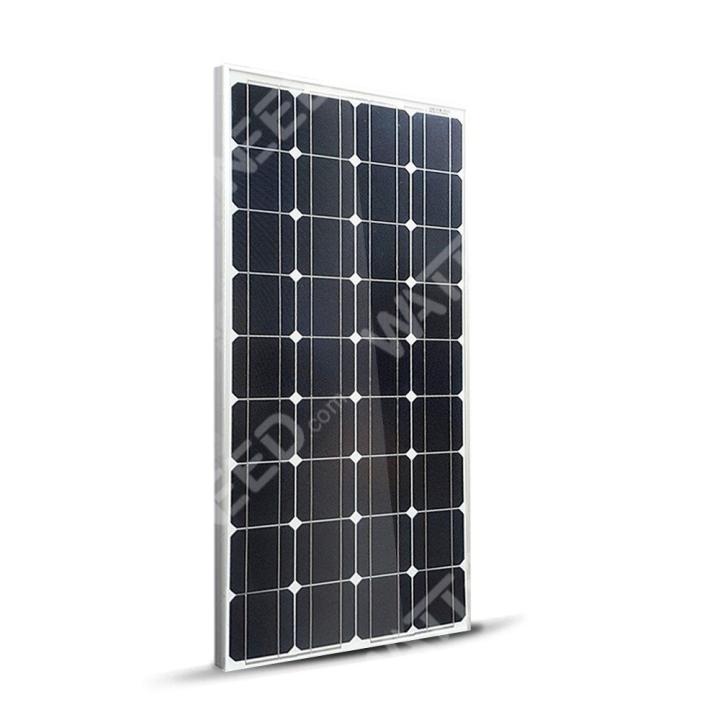

Monocrystalline solar panel 12V - 100pw
This module integrates discreetly and easily thanks to its small size
The small size of this Panel (54cm x 121cm) and weight make it ideal for mobile applications (camping, boat...).
It is suitable for installation on the roof of a vehicle, for example.
The frame is anodized weatherproof. The Panel provides a mechanical stability particularly strong to ensure ease of installation and transport.
The connection is simple and fast (60cm cable with MC4).
Features
Cells | Monocrystalline |
Maximum power (Pmax) (W) | 100 W |
Maximum peak (Imp) current (A) | 5.83 HAS |
Maximum peak voltage (Vmpp) (V) | 17.18 V |
Voltage in open circuit (Voc) (V) | 22.08 V |
Short circuit (Isc) current (A) | 6.03 HAS |
Operating temperature (° C) | -40 to + 85 |
Max (A) inverse overcurrent protection | 15 |
Output power tolerance (%) | 0 + 3 |
Maximum system voltage (Vdc) | 1000 |
Dimensions (mm) | 1185 x 545 x 35 |
Weight (kg) | 8 |
Performance of the cell | 18.8% |
Performance of the module | 15.6% |
Material | White Tedlar |
Framework | Aluminum anodized |
Thickness of the framework | 35 mm
|
Charge controller Epever LS2024 Landstar PWM 12V / 24V - 20 Ah
> model 20A (LS2024B) can accommodate up to 500 watts of solar panels *.
-Capacity: 20 amps.
-Voltage: 12v or 24V
-Temperature compensation
-Guarantee 2 years.
-Technology: PWM.
-Fully programmable if used with its display
All charging voltages can be changed from 9 to 17V (X 2 for 24V), disconnection voltage also
Programming of output consumer according to a day/night or a time mode
* in a 24V system
Features
| Model | LS2024B |
| Nominal voltage of the system | 24VDC12/12/24VDC |
| Nominal current from the battery | 20A |
| Maximum PV input voltage | 50V |
| Autocosommation | 8.4mA (12V)? 7.8mA (24V) |
| Temperature compensation | -3mV /? / 2V? 25? REF? |
| Equalizing charge voltage | Seal: 14.6V, open: 14.8V, user: 9 ~ 17V |
| Increase of the load voltage | Gel: 14.2V, sealed: 14.6V open: 14.8V, user: 9 ~ 17V |
| Floating charge voltage | Gel seal / open: 13.8V, user: 9 ~ 17V |
| Reconnection voltage | Gel seal / open: 12.6V, user: 9 ~ 17V |
| disconnect voltage | Gel seal / open: 11.1V, user: 9 ~ 17V |
| Dimensions | 159.6x81.4x47.8mm |
| Mounting holes | 147x50mm |
| Terminal | 10mm 2 |
| Weight | 0.3 kg |
| Operating temperature | -35? ~ + 55? |
| Storage temperature | -35? ~ + 80? |
| Moisture | ? 95% (NC) |
| Standard | IP30 |

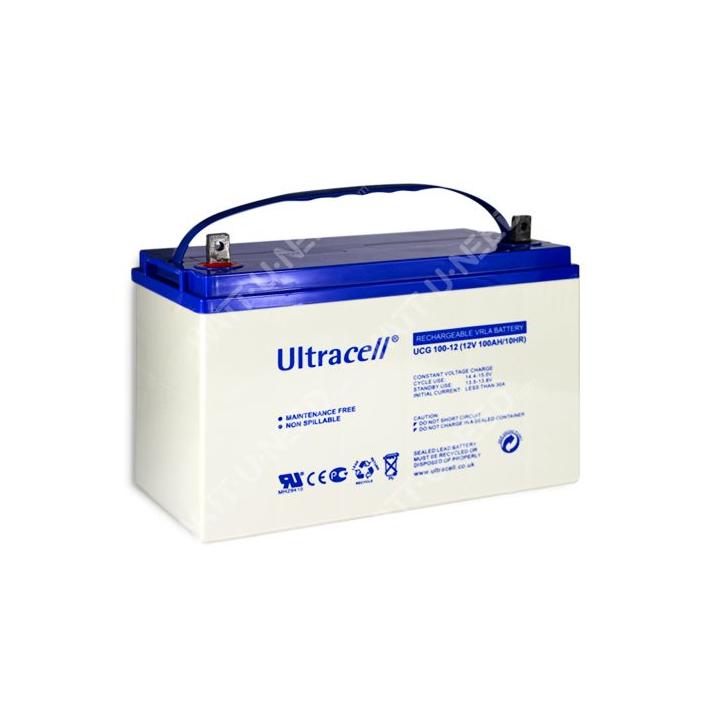

Ultracell Gel battery 12V 100Ah
Gel batteries are sealed batteries: no maintenance, no addition of distilled water. Strengthened compared to flooded batteries. Safety A gel battery to withstand the discharge to 100% and its rated capacity when discharged holding time is short. This series has a longer discharge time compared to other batteries. The special plate design increases the life of the battery and especially in warmer temperatures. A separator in the battery improves performance. It also has a longer retention time.
- rated voltage: 12V
- capacity : 100Ah
- Dimensions : 327 x 173 x 212 mm
- weight : 31 Kg

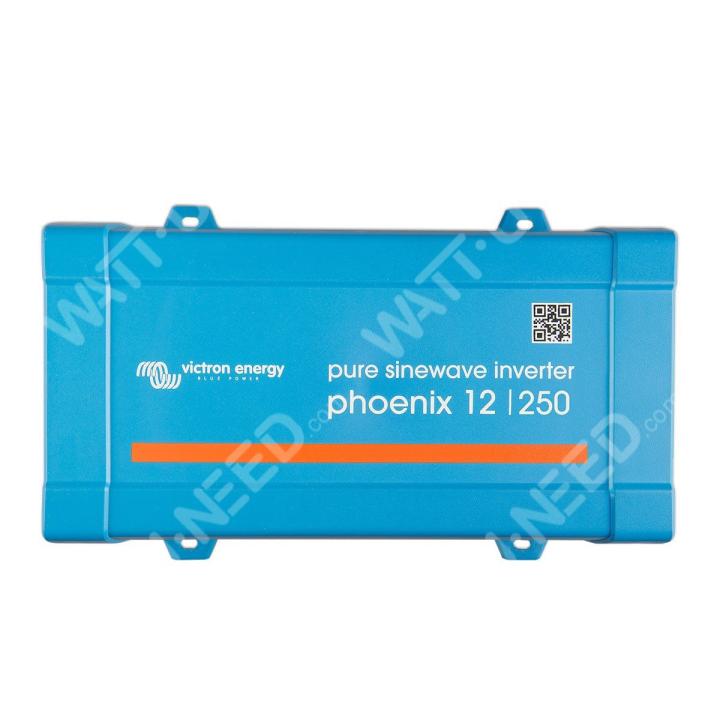

Victron 12V / 24V / 48V - 250VA
Developed for professional use, the range of the Phoenix converters is perfectly suited to applications the more various.
Completely configurable
• Levels of reset and the alarm in the event of low battery power
• Levels of restart and break in case of low battery power
• Output voltage 210 – 245V
• Frequency of 50 Hz or 60 Hz output
• Level of detection of the ECO mode and ECO-mode ignition/stop
Features
| Converter Phoenix 12/250 24/250 48/250 | |
| Power CA of the converter to 25 ° C (VA) (3) | 250 |
| Power of the converter to 25 ° C / 40 ° C (W) | 200 / 175 |
| Peak power (W) | 400 |
| Voltage / frequency AC (4) output | 230 v CA ±3% 50 Hz or 60 Hz ±0, 1% |
| Input voltage range (V DC) | 9.2-17 / 18,4-34.0 / 36.8-62.0 V |
| Alarm low battery (V DC) | 10.9 / 21.8 / 43.6 |
| Stop low battery (V DC) | 9.3 / 18.6 / 37.2 V |
| Detection of battery (adjustable) | 14,0 / 28.0 / 56.0 V |
| Maximum effective 12 / 24 / 48 V (%) | 87 / 88 / 88% |
| Use empty | 4.2 / 5.2 / 7, 9W |
| Empty by default by ECO(intervalle de nouvel essai par défaut: 2,5 s,réglable) consumption | 0.8 / 1.3 / 2.5 W |
| Starting power setting and judgment in ECO mode | Adjustable |
| Operating temperature | -40 to + 65 ° C (cooling fan) (Reduction 1,25% per ° C above 25 ° C) |
| Humidity (without condensation) | Max 95% |
Digital display MT50
Digital display back-lit allowing you to have accurate information when the tension panels/batteries. Compatible with controllers EpSolar PWM LS1024B, LS2024B and LS3024B and the MPPT draw 1215BN, 2215BN and 3215BN as well as the MPPT Tracer1210A, Tracer2210A, Tracer3210A, Tracer4210A.
Features
- Backlit digital display allowing you to have accurate information: tension panels / batteries, status and settings of the controller, error messages...
- Compatible with the entire range of regulator PWM Epsolar LS and the range MPPT Epsolar draw BN.
- Display form SOC (state load)
- Display of tensions and intensities to all terminals of the regulator.
- Select the type of battery and indicates its state of charge.
- 2 m cable supplied to connect to the controller.
- Choice of different modes of the 12/24V output control: manual ON / OFF light ON / OFF, ON light + Timer, only schedule
- All the tension of charge may change
- Real-time installation monitoring
- Weight: 190 grams
Dimensions: 114mm x 114mm
Use
2 panels of 100pw of very small dimensions, allowing you to feed small electric equipment.
This kit will produce in Paris on average 800 Wh/day in July and 200 Wh in December.
The battery has a useful capacity of 390W/h (at 50% of discharge to maximize its life - 1200 cycles).
The opinion of Wattuneed
This complete kit is oriented for garden lighting, pumps pond or small consumers in 230V such as computer, small TV, radio...
The small panel can either be used as a mobile application (camping), or be mounted on a roof or a structure.
10081
Datenblatt
- Leistung Wechselrichter
- - de 1000VA
- Spannung Ausgang des Sets
- 230V
- Art des Bedarfs
- Garden / Garden's hut
Off-grid - Lagerung des Akkus
- With storage
- Windkraftanlage
- Without
- Anzahl der Panels
- 2 panels
- Voltage
- 230V
- Akku
- Kit with battery
- Netzrückspeisung
- off-grid
