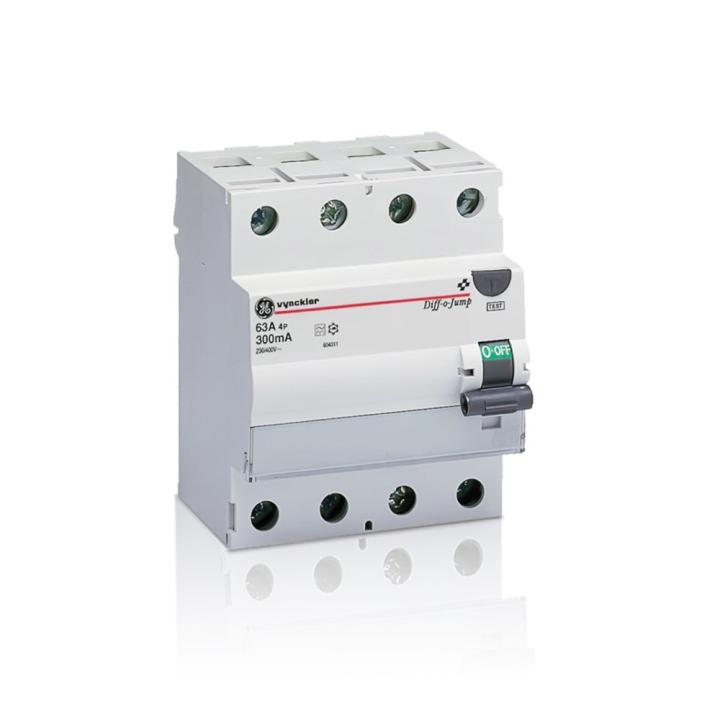

Differential switchesare devices thatare placedin front of themand protectagainstleakage currentstoearthunacceptable. They protect peopleagainst electric shock.
operation In case ofaleakage currentwitha residualpulsating direct current, an imbalanceappearsintheprimary coilof the toroid, thereby generatingaresidualmagnetic field in thecore.This residualmagnetic fieldin turn generatesa voltage and acurrent in thesecondarycoilwhichsolicitsover.The relayin turnsolicitsthe release deviceandopenthecontactsunderspring pressure.
Performances
Type A;Type AS
Innominalcurrent (A) 16, 25, 40, 63, 80, 100
Fault current(mA) 10, 30, 100, 300, 500, 1000
Voltage RatingA2P: 230 V;4P: 230/400V
Minimum operatingvoltageUBmin2P: 127V;4P: 190V
Lifetimemechanical / electrical20000/10000
IEC60068-2-28followingTropicalisation/2-30DIN4004695% RHunder55 °C
L'interrupteur différentiel (Diff-o-Jump type A et type S) sont conformes aux normes NBN EN 61008 et NBN 819 et ont reçu sur base des ces normes l'agrément CEBEC. Dans les normes NBN, un interrupteur différentiel porte la dénomination disjoncteur de terre à dispositif différentiel. Le Diff-o-Jump répond aux normes internationales IEC 1008 et EN61008.
