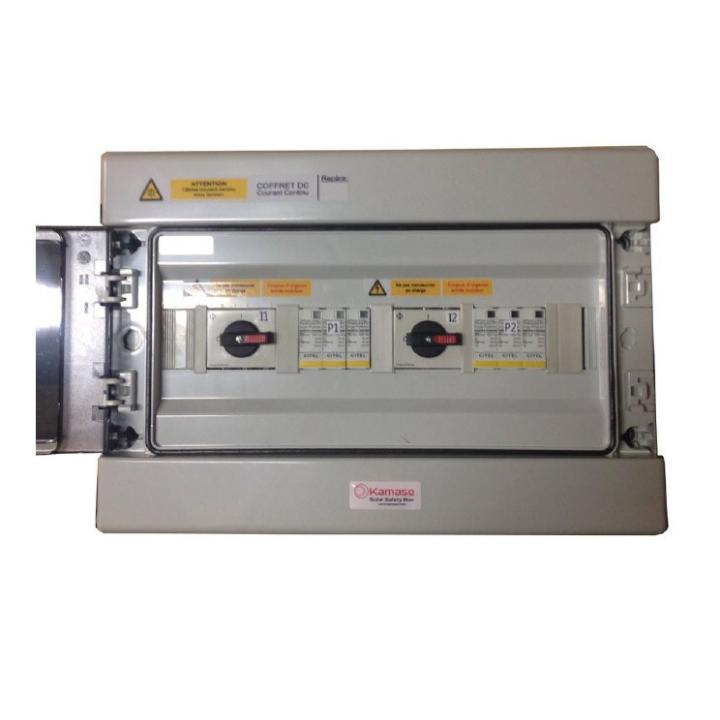

Double Cut-out and protection box specifically designed for residential photovoltaic systems.
Double Cut-out and protection box specifically designed for residential photovoltaic systems with 2 inverters :
• DC box equipped for 2 inverters with two switch disconnectors of the brand Kraus & Naimer. It is quick and convenient to install because it is equipped with Wago spring terminals that facilitate connection to the inverter. Two DC surge arrester protect the system.
Components | Features | Functions |
2 Switch Disconnectors | 3-pole 20A-1000V DC | Sectioning |
2 Surge Arresters | Type 2 photovoltaic 1000V DC In 15kA Imax 40A | Protects against surges |
4 pre-wired MC4 sockets | Allows the connection of 2 strings (1 string on each switch *) | Connection strings DC |
Terminal block | 3 inputs 16mm² / 2 inputs 10 mm² | Grounding |
Complies with C15-712-1
18 modules L270xl418xP148mm
IP 65 Outdoor Installation.
• Spring terminals 6 to 10mm2 for easy connection.
• Cable gland assembly.
• Single-line diagram
• Labeling according to UTE standards
• Individual cardboard packaging
