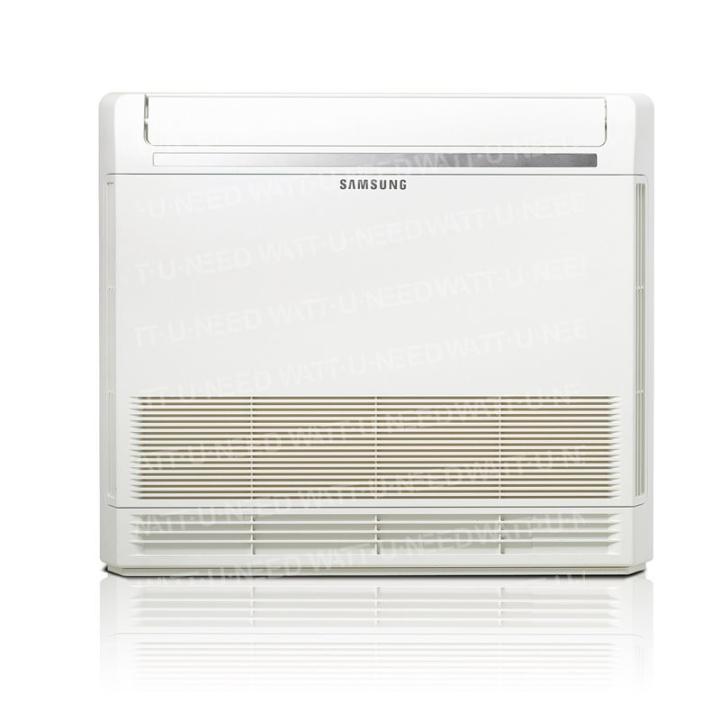

Samsung Free Joint Multi interior console from 2.6 to 5.2 kW
Samsung Free Joint Multi console from 2.6 to 5.2 kW
- Cool: top air pulse
- Heating: pulse of air from the bottom and top
- Command Easy touch on unity
- With SPi eroniseur (Doctor Virus)
- Prices including infrared telecomande
Samsung Multi-Split 5.2 kW console
- Unit Compact And Insert
- Air diffusion Bidirectional
Ultra-flat design
The façade design adds a touch of elegance, regardless of the room, and is easily built-in for perfect integration (depth of only 199mm). Moreover, by design, the front panel does not get dirty. It prevents dust from accumulating there, a guarantee of cleanliness for the Console as for the room.
Double-flow air broadcast
With two separate air outlets for cooling and heating, the Console unit ensures that each corner reaches the desired temperature in order to have a more pleasant and comfortable environment.
Silent operation
The Console is not only powerful and efficient but works as discreetly as possible, at only 23 dB. There are four different modes of operation, leaving users with a choice between high, medium, low and silent.
Characteristics
Model | Inner unit | AJ026TN1DKG/EU | AJ035TN1DKG/EU | AJ052TNJDKG/EU | |
Ability | |||||
Cooling | Kw | 2.6 | 3.5 | 5.2 | |
Chauffage@ 7c | Kw | 2.9 | 3.8 | 5.6 | |
Performance | |||||
Airflow | m3/h | 540/468/402 | 630/558/492 | 672/594/516 | |
Acoustic power | Cooling | dB(A) | 53 | 57 | 60 |
Acoustic pressure | H/M/B | dB(A) | 36/31/23 | 38/35/24 | 43/39/32 |
Installation data | |||||
Voltage | Φ, #, V, Hz | 1st, 220-240V, 50 Hz | 1st, 220-240V, 50 Hz | 1st, 220-240V, 50 Hz | |
Absorbed power | Cooling | W | 30 | 35 | 50 |
Heating | W | 30 | 35 | 50 | |
Nominal current | Cooling | Has | 0.25 | 0.29 | 0.29 |
Heating | Has | 0.25 | 0.29 | 0.29 | |
Size | |||||
Dimension (LxHxP) | Mr | 720x199x620 | 720x199x620 | 720x199x620 | |
Weight | Kg | 15.7 | 15.7 | 15.7 | |
Refrigerant | |||||
Piping connections | Liquid | Thumb | 1/4 | 1/4 | 1/4 |
Gas | Thumb | 3/8 | 3/8 | 1/2 | |
Evacuation hose | Mm | VP25 (OD 26, ID 25) | VP25 (OD 26, ID 25) | VP25 (OD 26, ID 25) |
