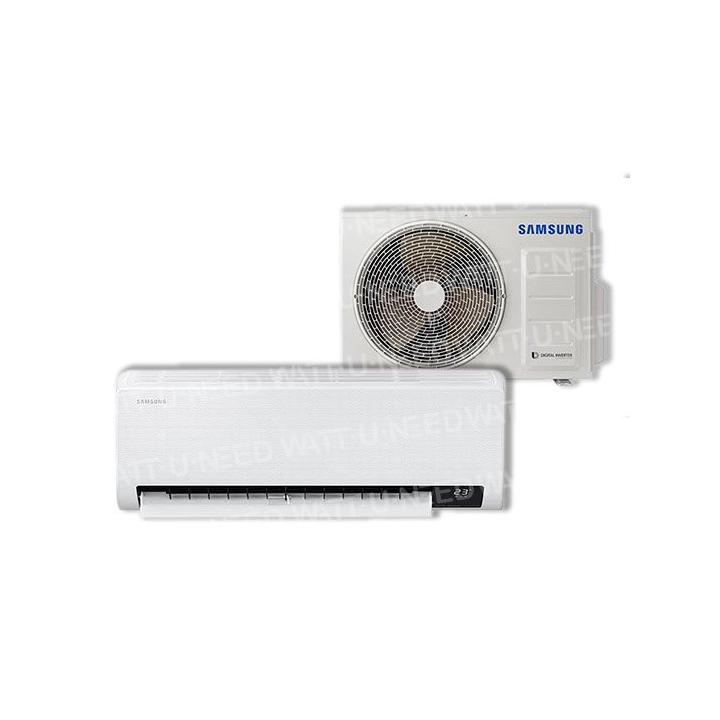

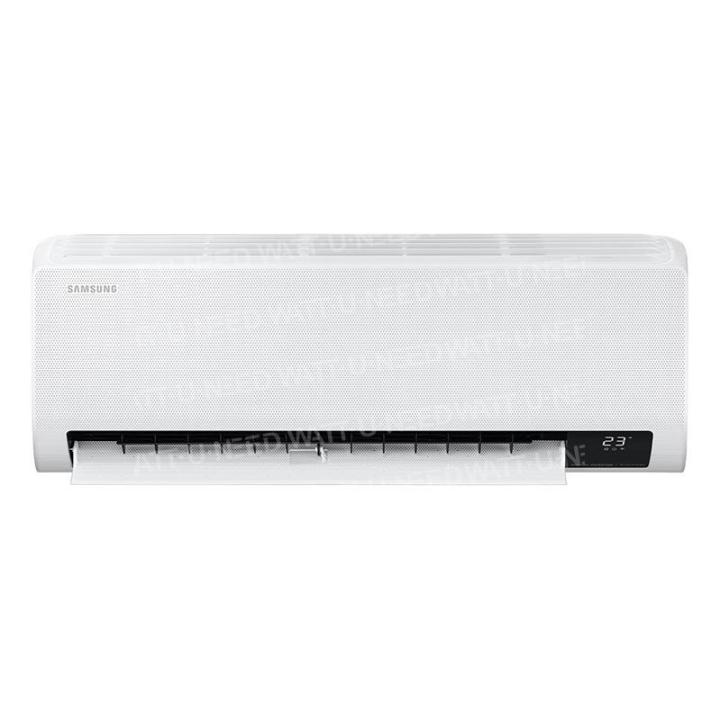

    Samsung Wind Free Elite heat pump of 2.5 and 3.5 kW
    Samsung Wind Free Elite heat pump of 2.5 and 3.5 kW
    Samsung Wind Free Elite heat pump of 2.5 and 3.5 kW
    Samsung Wind Free Elite heat pump of 2.5 and 3.5 kW
    Samsung Wind Free Elite heat pump of 2.5 and 3.5 kW
    Samsung Wind Free Elite heat pump of 2.5 and 3.5 kW
    Samsung Wind Free Elite heat pump of 2.5 and 3.5 kW

    Samsung Wind Free Elite heat pump of 2.5 and 3.5 kW

    2.834,09 €
    Inklusive Steuer
    WINDFREE-E09
    0712971127951

    The Samsung Wind Free heat pump is available from 2.5 to 3.5 kW provided cleaner, healthier air while eliminating drafts thanks to its micro-perforated design. It provides rapid heating or cooling and consumes little energy.

    Please choose your model opposite.

    CAP Samsung: WINDFREE-E09

    Leider sind keine Artikel mehr auf Lager.

    Samsung Wind Free Elite...

    2.834,09 €

    Stay cool comfortably with Wind-Free™ technology.


    Savings and performance thanks to the Digital Inverter



    Digital Inverter technology ensures high performance and energy efficiency by removing rotations from the compressor.
    By avoiding energy losses due to the Walk/Stop alternation and with improved control, the Samsung air conditioner allows you to significantly reduce energy waste.
    This Samsung air conditioner equipped with the Digital Inverter achieves exceptional energy efficiencies, while saving up to 60% of the energy used.




    Samsung Wind Free Elite heat pump of 2.5 and 3.5 kW





    Control your air conditioning systems remotelyControl your air conditioning systems remotely



    Control your Smart-WiFi remote air conditioning systems
    With the ability to control how your air conditioner works from your computer or smartphone, you'll never have to worry about forgetting to turn off your system: you can do it remotely! You can also turn it on when you leave your office, and find an already warm or refreshed environment when you get home.
    It is also possible to use your smartphone as a remote control, which allows the control of many parameters.






    Wind Free technology™



    Wind Free technology™



    Wind-Free™ technology is such that you may not even notice how it works. Once the desired temperature is reached, the system evenly distributes fresh air without creating unpleasant drafts.










    Stay cool all the time



    Stay cool all the time



    Samsung's Wind-Free™ air conditioning system uses 21,000 micro-perforations to gently and evenly propel air throughout the room. It thus maintains a comfortable level of freshness without any drafts.

    Samsung'™ Wind-Free system features a two-step automatic air conditioning system. The desired temperature is quickly reached in Fast Cooling mode, then maintained in Wind-Free™ mode, without drafts.

    The new Wind-Free™ Night Mode allows you to get the perfect temperature in your room, ensuring a peaceful sleep without feeling cold at night or when you wake up.










    Elimination of virusesElimination of viruses



    Virus Doctor and Easy Filter eliminate dust, dangerous contaminants and allergens in the air, as well as bacteria and other viruses, including influenza A and coronaviruses, first using a filter and then Virus Doctor. From then on, you will only breathe clean and healthy air, as certified by the BAF (British Allergy Foundation).








    Automatic mode change



    This command automatically changes the operating world of the air conditioner according to temperature parameters. When a temperature is chosen in automatic mode, the air conditioner heats or cools depending on the temperature indicated.



    Automatic mode change


    Easy maintenance



    The filter for the new walls in the A3050 range is now located outside the aircraft. This allows it to be removed, cleaned and put back in place easily and quickly.



    Easy maintenance



    Characteristics



    Kit name  WINDFREE-E09WINDFREE-E12
    Inner unit  AR09TXCAAWKNEUAR12TXCAAWKNEU
    Outdoor unit  AR09TXCAAWKXEUAR12TXCAAWKXEU
    Ability
    AbilityCooling (nominal)Kw2.53.5
    Cooling (Min-Max)Kw0.9-3.60.9-4.8
    Heating up -7 degrees CelsiusKw3.24.0
    Heating (Min-Max)Kw0.8-7.10.8-7.3
    Heating up --5CKw4.154.83
    Heating - 10 degrees CelsiusKw3.984.62
    Heating - 15 degrees CelsiusKw3.924.52
    Benefit
    Energy-efficient coolingSEERW/W8.8/A8.5/A
    Energy consumptionkWh/a99144
    PdesigncKw2.53.5
    EraW/W4.633.95
    Energy-efficient heatingScopW/W5.1/A5.1/A
    Energy consumptionkWh/a631659
    Pdesignh (medium)Kw2.32.4
    CopW/W4.744.26
    DehumidificationL/h1.01.5
    Maximum air volume (cooling)Inner unitm3/min11.112.1
    Outdoor unitm3/min45.045.0
    Acoustic powerInner unitdB(A)5658
    Outdoor unitdB(A)5962
    Acoustic pressureHigh/silent inner unitdB(A)39/1640/16
    High exterior unitdB(A)45.046
    Operating rangeCooling-10-46-10-46
    Heating-15-24-15-24
    Installation data
    VoltageΦ, V, Hz1st, 220-240V, 50 Hz1st, 220-240V, 50 Hz
    Type of compressorOutdoor unitTypeBLDC RotaryBLDC Rotary
    Energy consumptionCoolingW540885
    HeatingW675940
    RunningCoolingHas2.94.1
    HeatingHas3.44.4
    Size
    Net Dimensions (LxHxP)Inner unitMr889x299x215889x299x215
    Outdoor unitMr790x548x285790x548x285
    Net weightInner unitKg8.910.6
    Outdoor unit02/06/2023.032.5
    Refrigerant
    RefrigerantTypeR32 (these products contain R32. GWP-675)
    Pre-filling (for 5m)Kg0.970.97
    Co2 equivalent pre-filltCO2e0.650.65
    Recharging of refrigerantg/m1515
    Connecting the pipingLiquid pipingMm (inch)6.35(1/4)6.35(1/4)
    Gas pipelineMm (inch)9.52(3/8)9.52(3/8)
    Length of wiringMin/Max (inside to outside)Mr3/153/15
    Wiring heightMaxMr8.548.54
    Connecting the pipingEvacuation lineMm16.3, 550mm16.3, 550mm
