    EV Charger - Tiiger 11kW with or without screen
    EV Charger - Tiiger 11kW with or without screen
    EV Charger - Tiiger 11kW with or without screen

    Easee Home charging station 1.4-22KW

    1.350,21 €
    Inklusive Steuer
    10103
    0768563819025

    Easee Home is smart and adapts to all kinds of electric vehicles, voltages as well as the mains.
    The Robot Charger automatically detects whether the car supports three-phase or not. No need to worry about technical specifications, Easee Home always adapts to the needs of the car and delivers the maximum power available at home.

    Charging station: Without
    Charging cable: Without
    U-Hook for mounting: Without
    RFID key: Without

    Leider sind keine Artikel mehr auf Lager.

    Easee Home charging station...

    1.350,21 €

    Easee Home

    Future-oriented home charging

     Une recharge à domicile tournée vers l’avenir

    Benefits

    • Fully dynamic charging power 1.4–22 kW (1 and 3-phase charging)
    • Load balancing of up to 3 units per fuse without additional infrastructure (wireless)
    • Automatic queuing system
    • Load and phase balancing works offline
    • eSIM integrated in each box, free lifetime subscription
    • Wi-Fi connectivity
    • Permanent type 2 cable lock
    • Integrated Ground Defect Protection (RCD)
    • Integrated RFID reader (NFC / ISO 14443 and MIFARE Classic®)
    • Energy measurement (+/- 2%), for reading charge consumption
    • The box is 69% smaller than other solutions and does not
    • Weighs only 1.5 kg
    • 3-year warranty
    • Universal, suitable for all types of electric cars and power supplies
    • Full control with the Easee app or local Wi-Fi interface


    Full of power


    The charger can charge on both 1 and 3 phases and supports charging up to 22kW. It has a standard type 2 charging connector.


    Fast charging


    With Easee Home, you can charge up to 10 times* faster than with a regular plug. It recharges as quickly as possible in relation to the available capacity and
    Offers you the highest charging power. *10 times faster charging requires three-phase installation. With 1 phase, you will still get a charge 3 times faster.


    Optimized load effect


    You can have up to 3 Robots
    Chargers on a fuse. All connected cars can be charged at the same time and the available power is automatically and dynamically distributed between the vehicles. The total load will therefore never exceed the limit set for the fuse.


    Internet access


    All our Robot Chargers are connected to the Internet via a mobile network*. If you make your purchase now, you will receive free mobile Internet access for the life of the product.
    In order to get software updates and increased redundancy, we recommend installing a local Wi-Fi network if you do not have cellular coverage. The local Wi-Fi network must be connected to the Internet.
    *Assuming cellular coverage is available.


    Small


    The Robot Charger is 69% smaller and lighter than other electric chargers while having similar functionality.
    It weighs only 1.5 kg! This means that we save the environment from producing at least 4 kg of copper and plastic per charger produced.


    Always up to date


    The Robot Charger is constantly updated with new features. This way you can rest assured that you have purchased a safe and future-proof product.


    Guarantee


    As a customer, we want you to be sure that you have purchased a product of sustainable quality. Easee products are covered by a 3-year warranty*.
    *Some countries may have an extended warranty.


    Technical details



    General


    • Dimensions (mm) : H : 256 x W : 193 x D : 106
    • Wall mount (mm): c/c H: 160 x W: 125
    • Operating temperature: -30°C to +50°C
    • Weight: 1.5 kg

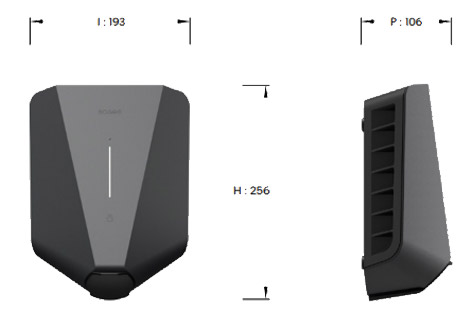

    Dimensions Easee Home


    Loading


    • Charging power: 1.4–22 kW
    • 6 A single phase - 32 A three-phase (automatically adjusted according to available capacity)
    • Up to 7.36 kW at 32 A single-phase
    • Up to 22 kW at 32 A three-phase (TN network)
    • Number of phases: 1 or 3 (fully dynamic)
    • Charging connector: Type-2, female (IEC 62196-2)
    • Voltage: 3 x 400 VAC / 230 VAC (±10%)
    • AC frequency: 50/60 Hz
    • Advanced load distribution
    • Up to 3 Charging Robots on the same circuit
    • Integrated energy meter (±2%)


    Connectivity


    • Integrated eSIM (LTE Cat M1 / 2G / GPRS)
    • 2.4GHz b/g/n Wi-Fi connection
    • Easee Link RFTM
    • Control the load with the Easee app
    • RFID/NFC reader
    • OCPP 1.6 via our AP


    Sensors and indicators


    • Light strip indicating the status of the charger
    • Touch key for manual adjustment
    • Temperature sensors in all main contacts


    Optional:

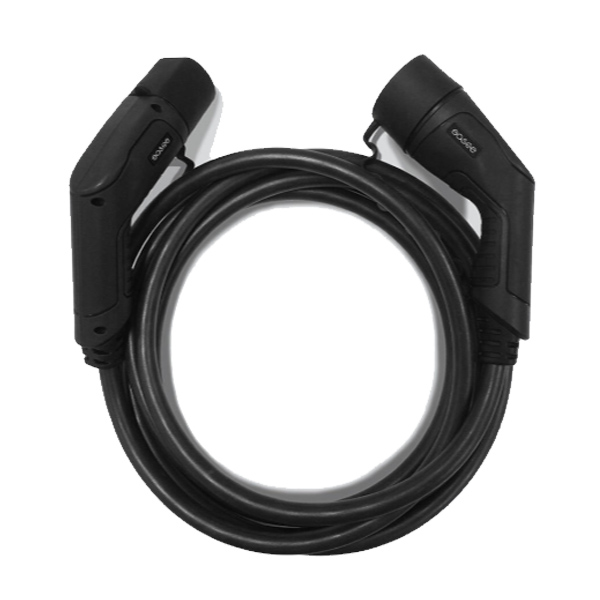

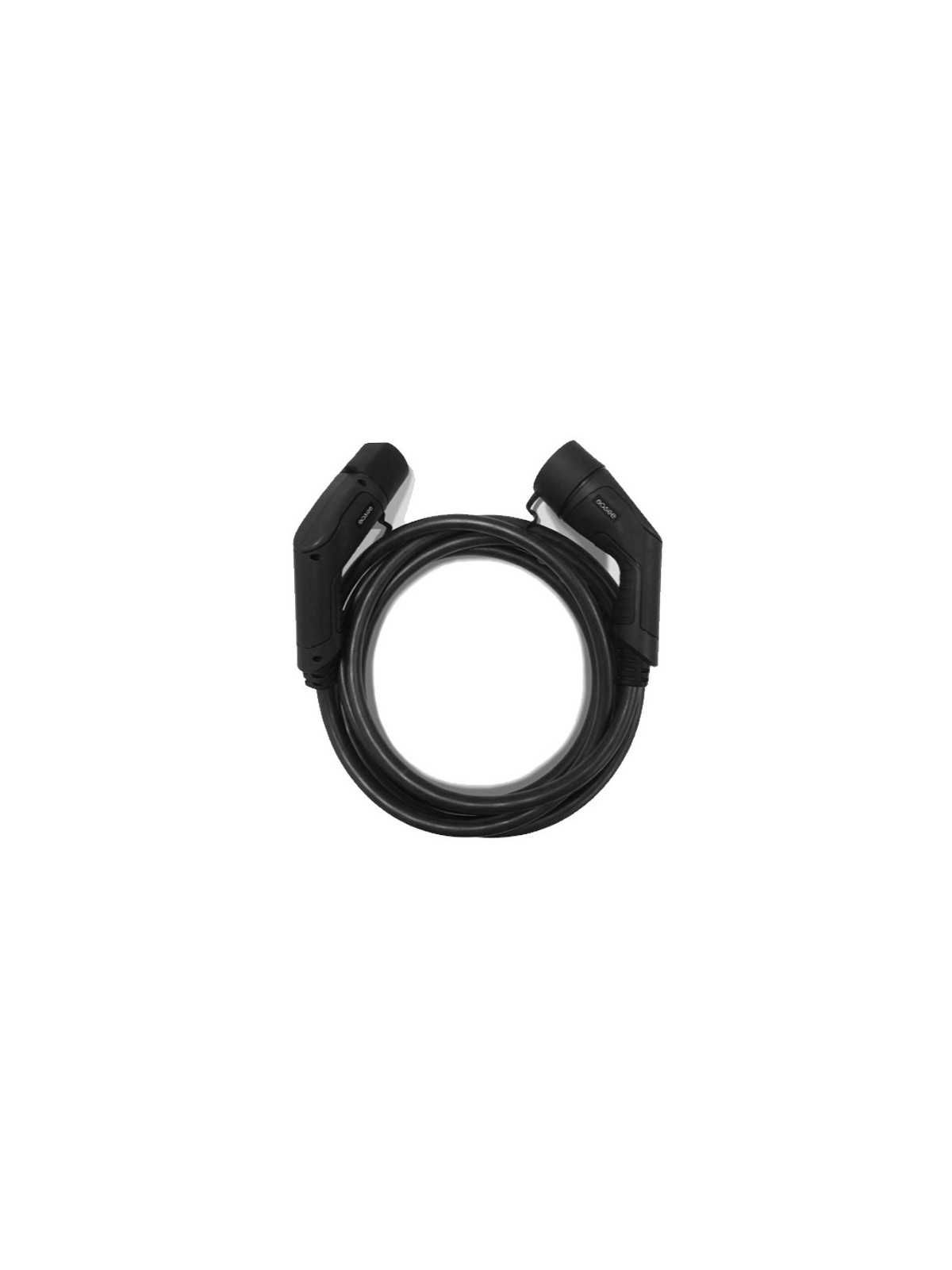

    Cable de charge





    • Type 2 charging cable available in 4 or 7.5 meters.

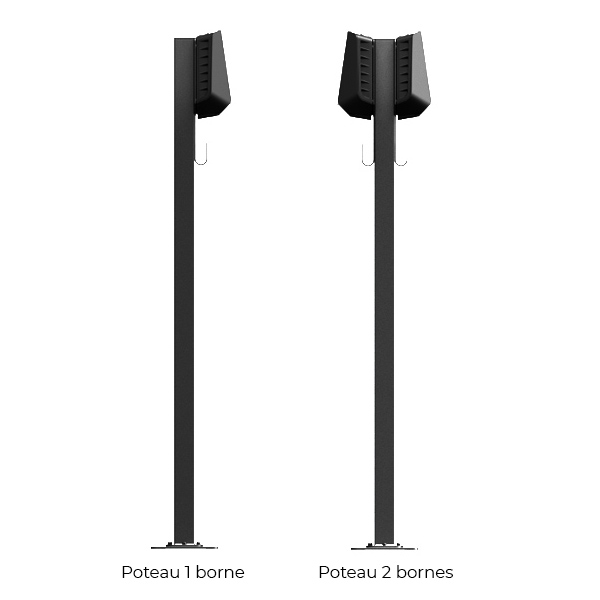

    Poteau de montage pour Home & Charge





    • Mounting pole for Home & Charge - 1 terminal or 2 terminals

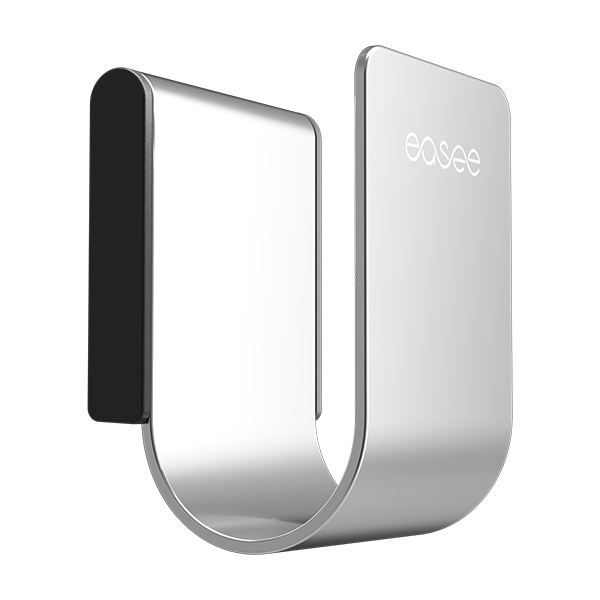

    U-Hook crochet de montage







    • Mounting hook

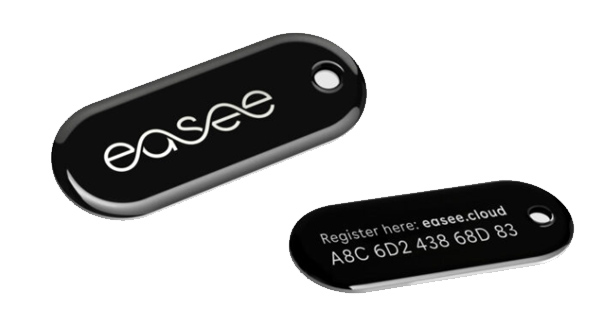

    Clé RFID



    • RFID key
