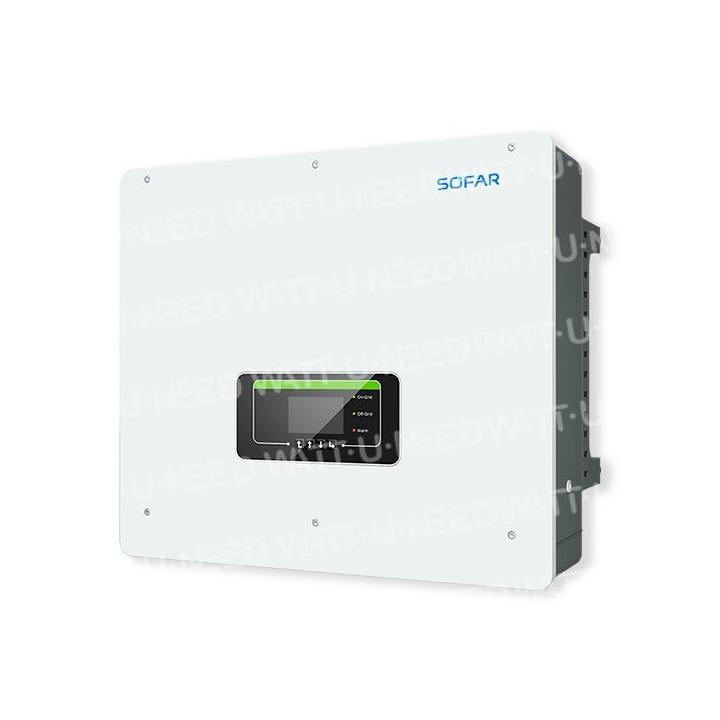

Sofar Solar three-phase hybrid inverter HYD8KTL-3PH
2.585,70 €
Inklusive Steuer
HYD8KTL-3PH
0768563820151
Sofar Solar 8 kVA: Ihre persönliche und flexible Energiezentrale
Entdecken Sie den dreiphasigen Hybrid-Wechselrichter Sofar Solar 8 kVA, die ideale Lösung zur Optimierung Ihrer Solarenergieproduktion und zur Reduzierung Ihrer Abhängigkeit vom Stromnetz. Mit seinen zahlreichen Funktionen und seiner Benutzerfreundlichkeit bietet er Ihnen Energieunabhängigkeit und erhebliche Einsparungen.
Warum Sofar Solar 8 kVA wählen?
- Maximale Flexibilität: Passt sich allen Konfigurationen von Solarsystemen an.
- Hohe Leistung: Maximiert die Solarenergieproduktion und optimiert die Speicherung.
- Zuverlässigkeit: Gewährleistet eine kontinuierliche Stromversorgung bei Netzunterbrechungen.
- Vereinfachte Installation: Schnelle und intuitive Einrichtung mit benutzerfreundlicher Oberfläche.
Wichtige Vorteile:
- Hybridmodus: Kombiniert Solarenergie, Netzstrom und Speicherung für optimales Management.
- Fernüberwachung: Steuern Sie Ihr System in Echtzeit über eine spezielle App.
- USV-Funktion: Gewährleistet eine kontinuierliche Stromversorgung für wesentliche Geräte bei Stromausfällen.
- Erweiterbarkeit: Möglichkeit, mehrere Wechselrichter parallel zu verbinden, um die Leistung zu erhöhen.
Ideal für:
- Einfamilienhäuser
- Kleine Unternehmen
- Landwirtschaftliche Anlagen
Bereit für Energieunabhängigkeit? Kontaktieren Sie uns, um Ihr Projekt zu besprechen und eine persönliche Beratung zu erhalten.
5 Artikel(n) auf Lager!
Sofar 8kVA Hybrid-Wechselrichter: Personalisieren Sie Ihre Energieerzeugung
the perfect solution to enable energy storage in your PV installation with on- and off-grid functions.
The HYD 5K... 20KTL-3PH is a multi-talented three-phase hybrid inverter for solar and storage applications. During network outages, it can provide up to 20 kW of unbalanced three-phase backup power (EPS) in 10ms thanks to its built-in EPS port.
Two MPPTs and two independent battery ports (on 10K to 20KTL models) allow multiple battery capacity configurations in 2.5kWh steps.
Up to 10 UPS can be connected in parallel to the EPS and AC port, making this device ideal for microgrid installations (on- or off-grid).
The integrated energy management system has several user-friendly modes, optimizing the user experience, including an automatic self-use mode. The user can also set different time and/or date ranges or rules for the day of the week.
All modes can be easily configured on the large LCD screen. This inverter is compatible with SofarSolar's AMASS Store high-voltage battery unit (GTX 3000-H). A WiFi stick comes with the inverter, to easily connect it to the Sofar monitoring portal.
Characteristics
| Model | HYD 8KTL-3PH |
| Battery input data | |
| Battery type | Lithium ion, lead acid |
| Number of batteries | 1 |
| Battery voltage range (V) | 180 – 800 |
| Battery voltage range for full charge (V) | 320-800 |
| Rated loading/unloading power (W) | 8000 |
| Max charge/discharge current (A) | 25 |
| Peak charge/discharge current, duration (A, s) | 40, 60 |
| Battery charging strategy | Self-adaptation to BMS (battery management system) |
| Interfaces de Communication | CAN (RS485) |
| PV string input data | |
| Recommended Max PV input power (Wp) | 12000 (6600 / 6600) |
| Max. DC voltage (V) | 1000 |
| Operating voltage at start-up (V) | 200 |
| MPPT voltage range (V) | 180 – 960 |
| Rated DC voltage (V) | 600 |
| Full MPPT power in voltage range (V) | 360 – 850 |
| Max. input current (A) | 12.5 / 12.5 |
| Max short current (A) | 15 / 15 |
| Number of MPP trackers | 2 |
| Number of strings per MPP tracker | 1 |
| AC output data (over network) | |
| AC Rated Power (W) | 8000 |
| Max. AC output power to power grid (VA) | 8800 |
| Maximum power of the electrical network (VA) | 16000 |
| Maximum AC current output to power grid (A) | 13 |
| Max AC current from power grid (A) | 24 |
| Rated network voltage | 3 / N / PE, 230 / 400 |
| Network voltage range | 184 – 276 Vac |
| Nominal network frequency | 50 / 60 Hz |
| Network frequency range | 45 – 55 Hz / 55 – 65 Hz |
| Output power factor | 1 default (+/-0.8 adjustable) |
| THDi output (at rated output) | < 3% |
| Power available for backup | |
| Rated output power (W) | 8000 |
| Max output power (VA) | 8800 |
| Peak output power, duration (VA, s) | 16000, 60 |
| Nominal output current (A) | 11,6 |
| Max. output current (A) | 13 |
| Peak output current, duration (A, s) | 24,6 |
| Nominal output voltage | 3 / N / PE, 230 / 400 |
| Nominal output frequency | 50 / 60 Hz |
| THDv output (at nominal output) | < 3% |
| Switching time | < 10 ms |
| Efficiency | |
| Effectiveness of MPPT | 99.9% |
| Euro yield | 97.5% |
| Max efficiency | 98.0% |
| Max. battery charge/discharge efficiency | 97.6% |
| Protection | |
| DC switch | Optional |
| PV module reverse polarity protection | Yes |
| Overcurrent output protection | Yes |
| Output surge protection | Yes |
| Protection against islanding | Yes |
| Residual current detection | Yes |
| Insulation resistance detection | Yes |
| Surge protection | PV: Type II standard, CA: Type II standard |
| Battery reversal protection | Yes |
| General data | |
| Dimensions (mm) | 571.4*515*264.1 |
| Weight (kg) | 33 |
| UPS topology | Without transformer |
| Self-consumption standby (W) | < 15 W |
| Operating temperature range | -30°C – 60°C |
| Relative humidity | 0 – 100% |
| Noise | < 45 dB |
| Operating altitude | < 4000 m |
| Cooling | Natural |
| Degree of protection | IP65 |
| Characteristics | |
| Terminal DC | MC4 |
| Network AC terminal | 5P connector |
| Standby AC terminal | 5P connector |
| Display | LCD |
| Control interfaces | Yes |
| Parallel operation | |
| Standard warranty | 5 years, optional: up to 20 years |
| Certifications & Standards | |
| EMC (electromagnetic compatibility) | EN 61000-6-1, EN 61000-6-3 |
| Safety | IEC 62109-1, IEC 62109-2, IEC 62040 – 1 |
| Grid | VDE V 0124-100, V0126-1-1, VDE-AR-N 4105, IEC 0-16 / IEC 0-21, EN 50549, G98 / G99, UTE C15-712-1 |
HYD8KTL-3PH
Datenblatt
- Leistung Wechselrichter
- 8000VA
- MPPT/PWM
- MPPT
- Phase
- Triphasé
- Anzahl der MPPTs
- 2 MPPT
- Breite
- 515 mm
- Höhe
- 571,4 mm
- Dicke
- 264.1 mm
- Art des Wechselrichters
- Hybride
- Gewicht
- 37 kg
