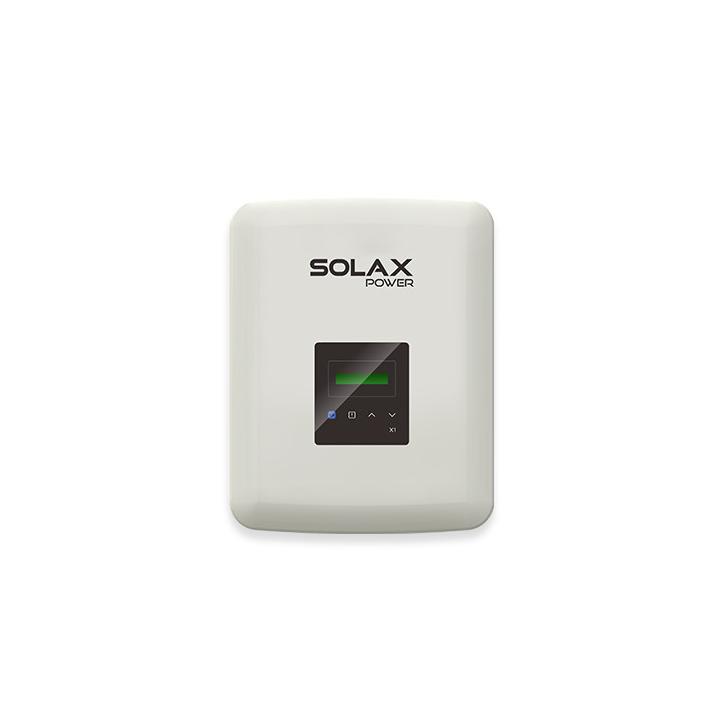

Single-phase inverter SolaX X1 Boost 3.3T X1-3.3-T-D
863,60 €
Inklusive Steuer
X1-3.3-T-D
0712971136502
Einphasiger Wechselrichter SolaX X1 Boost 3,3 kVA: Optimieren Sie Ihre Solarenergieproduktion
Der SolaX X1 Boost 3,3 kVA Wechselrichter ist die ideale Lösung für Wohn-Photovoltaikanlagen. Dank seines robusten Designs und seiner außergewöhnlichen Leistung garantiert er eine maximale Stromerzeugung aus Solarenergie und eine hohe Flexibilität im Betrieb.
Warum den SolaX X1 Boost 3,3 kVA Wechselrichter wählen?
- Maximale Effizienz: 97,8% Wirkungsgrad, erweiterter MPPT-Bereich.
- Vollständige Flexibilität: 2 MPPT-Tracker, geeignet für alle Konfigurationen.
- Einfache Installation: Plug & Play, IP66.
- Vernetzte Überwachung: Kompatibel mit Smart Plug.
- Garantierte Zuverlässigkeit: Lüfterlos, lange Lebensdauer.
Wichtige Vorteile:
- Steigern Sie Ihre Energieproduktion: Maximieren Sie die Leistung Ihrer Solarmodule.
- Vereinfachen Sie Ihre Installation: Einfache und intuitive Einrichtung.
- Anpassungsfähigkeit: Passt sich Ihren Bedürfnissen und Ihrer Umgebung an.
- Zuverlässigkeit: Robustes Design für Langlebigkeit.
Ideal für:
- Personen, die ihren Eigenverbrauch optimieren möchten.
- Wohn-Photovoltaikanlagen mit komplexen Konfigurationen.
- Nutzer, die nach einer zuverlässigen und leistungsstarken Lösung suchen.
Erleben Sie den Unterschied mit dem SolaX X1 Boost 3,3 kVA Wechselrichter.
Fordern Sie jetzt Ihr persönliches Angebot an und entscheiden Sie sich für Spitzenleistung in der Solarenergie.
Leider sind keine Artikel mehr auf Lager.
Solar-Wechselrichter SolaX X1 Boost: Effizienz für Ihre Solarenergie
SolaX has developed a range of single-phase inverters unmatched in the industry for their quality, reliability and efficiency. SolaX single-phase inverters have a wide MPPT voltage range that allows for greater energy recovery and a maximum input voltage of 600 V, with a maximum efficiency of 97.8%. In addition, SolaX single-phase inverters comply with the IP66 standard, have no internal fan and are equipped with an optional "plug & play" WIFI system. The "Boost" range with dual MPPT is also compatible with the new "Smart Plug" from SolaX that allows remote control of devices.
Perfect for residential photovoltaic panels
The X1 Boost is the ultimate residential solar inverter, perfectly designed for homes with solar panels on different sides of the roof. With two MPPT trackers, the X1 Boost can be connected to two separate panel boards, our X1 Boost is also RATED IP66, which means it can be installed outdoors.
Installation PLUG & PLAY
The X1 Boost is the ultimate residential solar inverter, perfectly designed for homes equipped with solar panels on different sides of the roof. With two MPPT trackers, the X1 Boost can be connected to two separate panel boards. The X1 Boost is also IP66 compliant, which means it can be installed outdoors.
Simple, Reliable, Effective
The SolaX X1 Boost is one of the most efficient residential branch-up solar inverters available on the market today, with a massive efficiency of 97.8% and a maximum DC voltage of 600 V, you can be sure to get the most out of your solar energy.
Install indoors or outdoors
The X1 Boost is rated IP66, which means it can be installed indoors or outdoors, giving you the option to choose where to install the system.
Characteristics
Password to enter the settings: 2014
| ENTRANCE | |
| Max. power of photovoltaic panels (Wc) | 4950 |
| Max. Dc Power Recommended (W) | A: 3300 B: 3300 |
| Max DC voltage (V) | 600 |
| Nominal DC working voltage (V) | 360 |
| Input current max. (A) | 12/12 |
| Short circuit current max. (A) | 14/14 |
| MPPT voltage range (V) | 70-580 |
| Startup service voltage (V) | 100 |
| # of MPP/MPPT follow-ups / Channels by MPP/MPPT follow-up | 2(1/1) |
| AC OUTPUT | |
| Rated AC Power (VA) | 3300 |
| Max AC power (VA) | 3630 |
| Rated electrical network voltage (AC voltage range) (V) | 220/230/240; 180~280 |
| Frequency/Rated Range of the Power Grid (Hz) | 50/60; ±5 |
| Rated AC current (A) | 14,3 |
| Current AC max. (A) | 15,8 |
| Displacement power factor | 0.8 capacitive – 0.8 inductive |
| THDi, rated power(%) | <2 |
| YIELD | |
| MPPT Performance (%) | 99,9 |
| European yield (%) | 97,0 |
| Max yield (%) | 97,8 |
| POWER ABSORBED | |
| Standby (night) consumption (W) | <0.5 |
| STANDARDS | |
| Surge protection | Yes |
| Overcurrent protection | Yes |
| DC Insulation Resistance Monitoring | Yes |
| Ground Fault Current Monitoring | Yes |
| DC injection monitoring | Yes |
| Differential circuit breaker protection | Yes |
| Security | IEC 62109-1/-2 |
| EMC | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 |
| Certification | VDE4105, G98, G99, AS4777, EN50549, IEC 0-21 |
| ENVIRONMENTAL LIMITS | |
| Degree of protection (according to IEC 60529) | IP66 |
| Operating temperature range (°C) | -25 to + 60 (downgrading to 45) |
| Max operating altitude (m) | <2000 |
| Humidity(%) | 0 to 100 (condensation) |
| Storage temperature (°C) | -25~60 |
| Typical sound level (dB) | 25 |
| DIMENSIONS AND WEIGHT | |
| Dimensions (W x W x D) (mm) | 430 x 341.5 x 143 |
| Weight (kg) | 13,5 |
| Type of cooling | Natural |
| Topology | Non-isolated |
| Communication interfaces | Pocket Wi-Fi (optional) Pocket LAN (optional) Pocket GPRS (optional) Counter (optional) SR485 DRM USB for update |
| LCD | Yes |
| Standard warranty (years) | 10 |
X1-3.3-T-D
Datenblatt
- Leistung Wechselrichter
- 3300VA
- MPPT/PWM
- MPPT
- Phase
- Monophasé
- Anzahl der MPPTs
- 2 MPPT
- Youtube-Video 1 - ID
- Et8WfdYeiiA
- Youtube-Video 2 - ID
- iwpoiiiMDOo
Spezifische Referenzen
Neu
