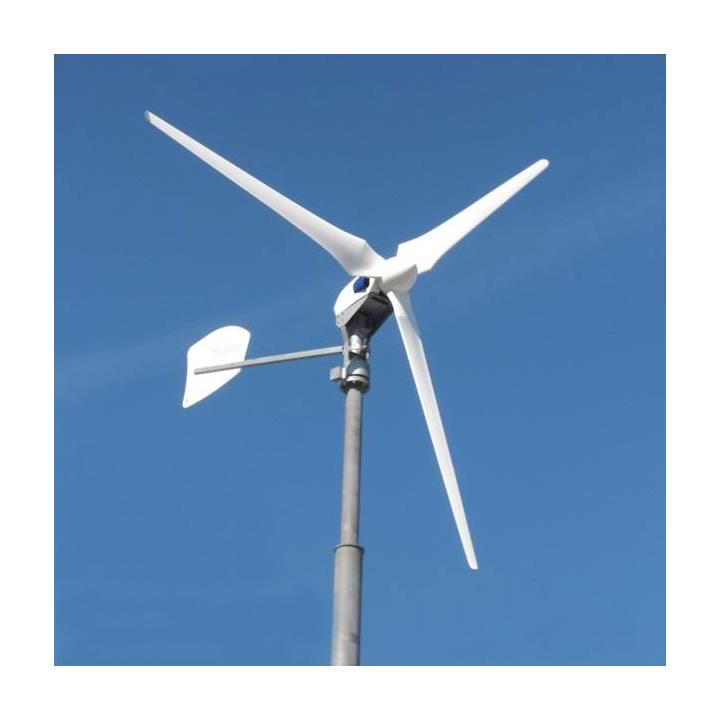

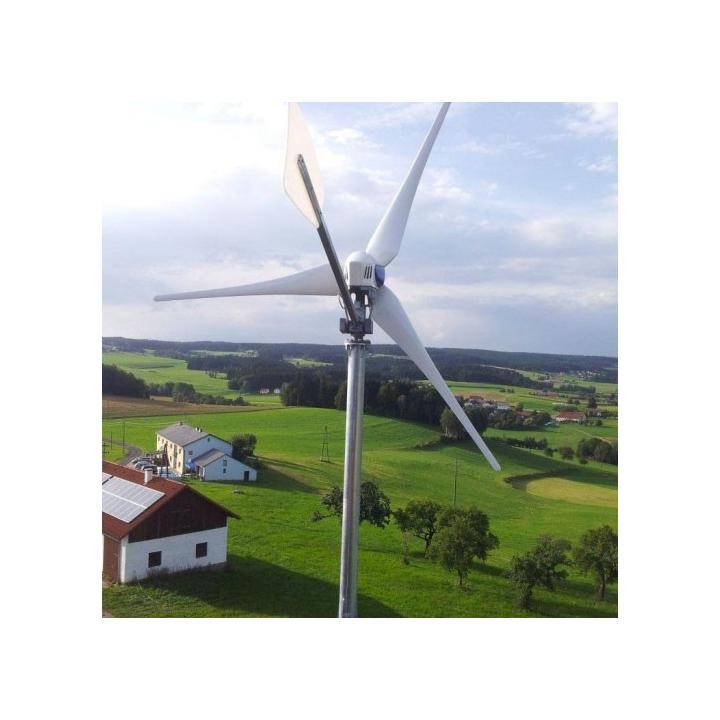

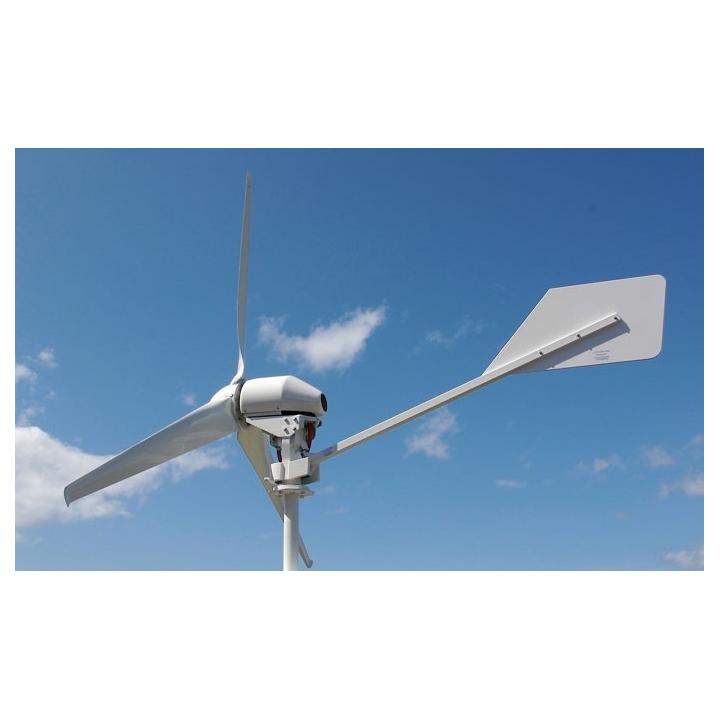

    Wind turbine ANTARIS 3.5 kW for standalone site

    14.540,17 €
    Inklusive Steuer
    0288
    0712971129252

    Die leistungsstarke Antaris 3,5Kw-Windkraftanlage wurde in Deutschland entwickelt.

    Sie eignet sich hervorragend für eine Hausinstallation

    Wind turbine ANTARIS 3.5 kW...

    14.540,17 €

    Unabhängige Windkraftanlage von Braun: 3.5 kW Leistung

    Wind turbine ANTARIS 3.5 kW for standalone site

    The Antaris wind turbine is specially adapted to sites inland. It can charge a battery pack in 24 VDCs or 48 VDCs and power heating systems. Because of its robust design, the Antaris wind turbine is also suitable for storm-prone locations.



    The rotor blades are laminated by hand and benefit from a computer-designed aerodynamic profile, they are also balanced statically and dynamically. Each blade has an identification number and comes with its appropriate documentation. The highest importance has been to ensure the speed and simplicity of installation of this wind turbine.



    Thanks to its robust and careful design, the antaris wind turbine has an excellent efficiency and is offered at a highly attractive price.  It starts very quickly (starting already at a wind speed of 2.2 m/s) and operates silently (43 dB). This wind turbine can therefore be installed in residential areas.





    Technical features



    Generic

    Generic



    • Permanent magnet rotor without brooms and gears. Doesn't require maintenance!
    • NdFeBo permanent magnets very powerful for great efficiency, resists up to 150oC
    • Phase
    • Separate lifter
    • Rotation in both directions
    • Tension 0-1000 V
    • Starts production at about 100 t/mn
    • Power: 6000 watts at 380 t/mn and 400V
    • Linear power curve
    • Weight: 31kg
    • Carter aluminum, cooling of the surface and the fastening base
    • Protection IP56

    Rotor



    Rotor
    • Connection hubs with aluminum strap and overpressure plate
    • Stainless steel fitting screws and counter-nuts
    • Fiberglass rotor blades and laminated carbon fiber
    • Computer-designed aerodynamic profile
    • Noise reduction on the end of the blades
    • 4m in diameter
    • Blade weight: 4.3 kg
    • Dynamically balanced
    • Anti-clockwise rotational sense
    • Rotation speed up to 300 t/mn
    • GRP spinner cap
    • The colour of the rotor of your choice

    Chassis



    • Weather-resistant HDPE Girouette
    • Support element: stainless steel square tube
    • All threaded fittings are made of stainless steel and equipped with nuts
    • Steel support for the generator, configured for plug-in in the azimut bearing frame, fully galvanized
    • Protected by a patented rotor-blade positioning system
    • Mast adapter with bridle connector (114.3 mm tube)

    Storm protection



    • Switching the pale rotor to the "helicopter" position
    • Electronic control of turbines

    Control cabinet



    • Control system with voltage monitor
    • Electronic control of turbines with regulator
    • Connector protections against polarity inversions
    • Controlling the phases of the alternator during the turbine mode
    • Emergency shutdown switch
    • Key switch re-initializer (removable)
    • 2 x 3 Kw braking resistance

    Monitoring the battery charger in 48 VDC

    Monitoring the battery charger in 48 VDC


    Smart Power Electronics inverterSmart Power Electronics inverter



    MODERN - FLEXIBLE - POWERFUL

    Max. 20 kW wind turbine load (SW-10)
    Pairing the three-phase network with 10 kW (SW-10)
    Flexible and intelligent management of clean power, heating, battery and discharge charges through 4 separate CC energy outlets
    Energy counter for power and heating
    Control of reactive power
    Battery buffer interface - optional



    PROFITABLE - SURE

    Built-in control functions for a wind turbine Intelligent and finely resolute control of the characteristic curve for optimal wind use
    Characteristic curve freely selectable depending on voltage or speed
    Many monitoring functions, such as wind speed or speed
    Switch to shut down KWEA with other safety features



    Compact

    Direct connection of the particle generator without additional equipment
    Wide range of input voltage for particle generators
    Compact design of the case with a separate aperture connection area
    Passive convection cooling on a wide range of performance
    Integrated network/system protection (NA protection according to VDE AR-N 4105)



    Communicative

    Built-in graphic display
    Built-in web server
    Practical PC Smart!wind Explorer use and set-up interface



    APPLICATION AREAS

    Small wind turbines
    Small hydroelectric power plants
    Mini-cogeneration


    wind turbine diagram wind speedwind turbine operation diagram
