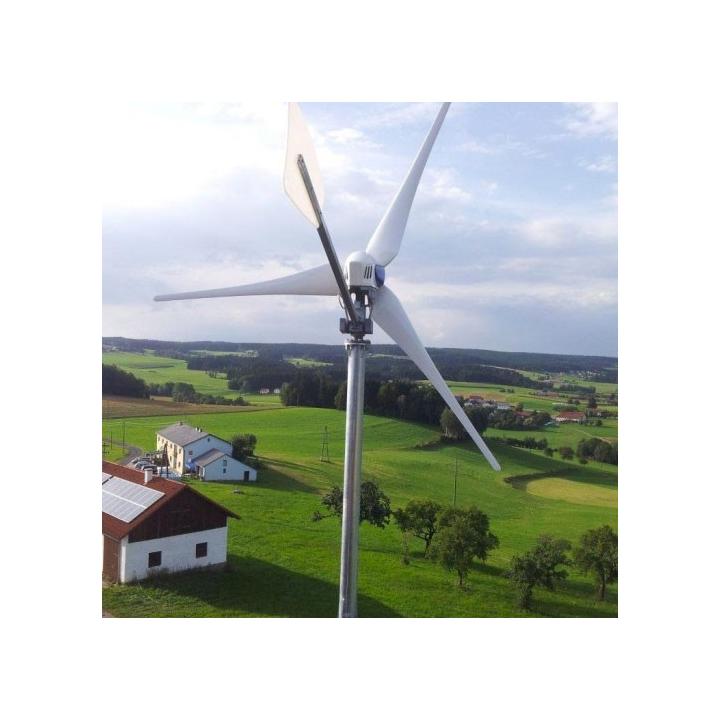

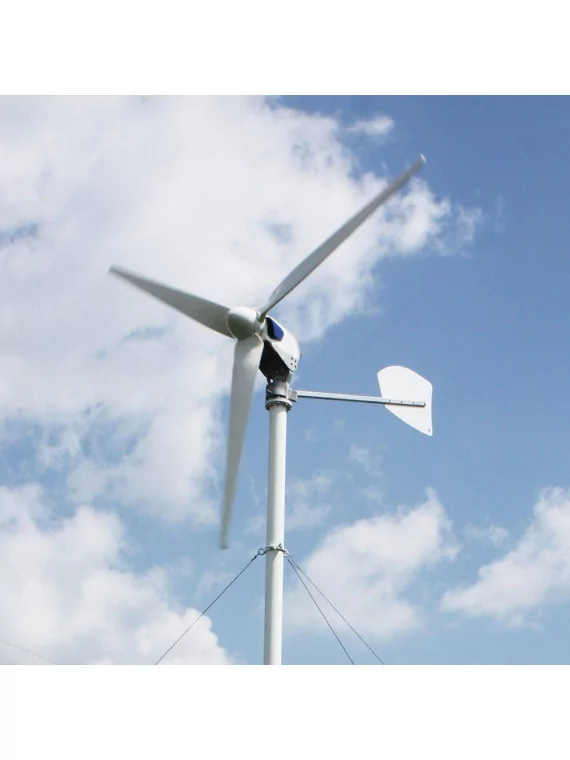

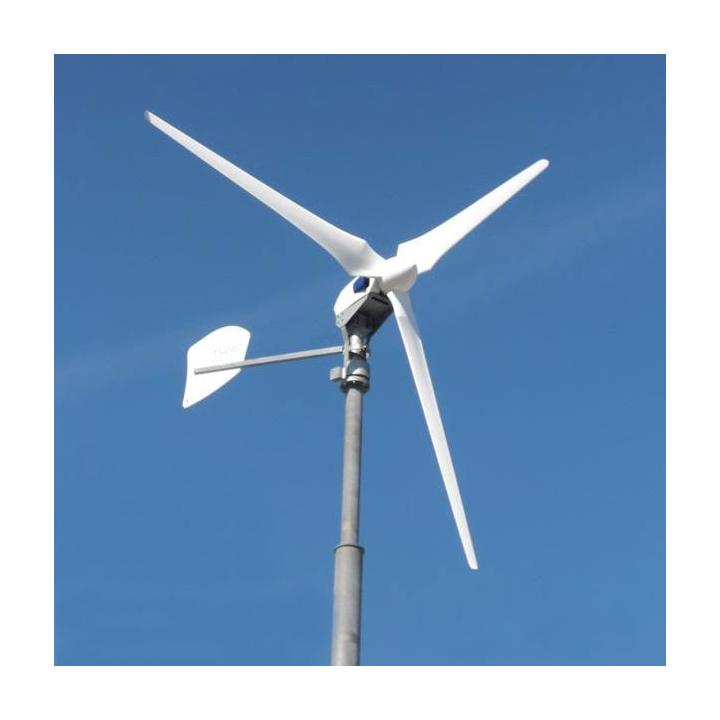

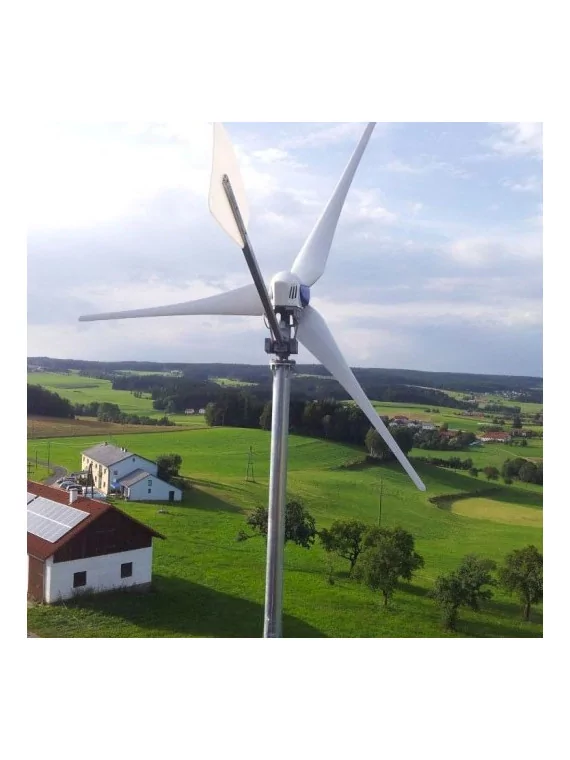

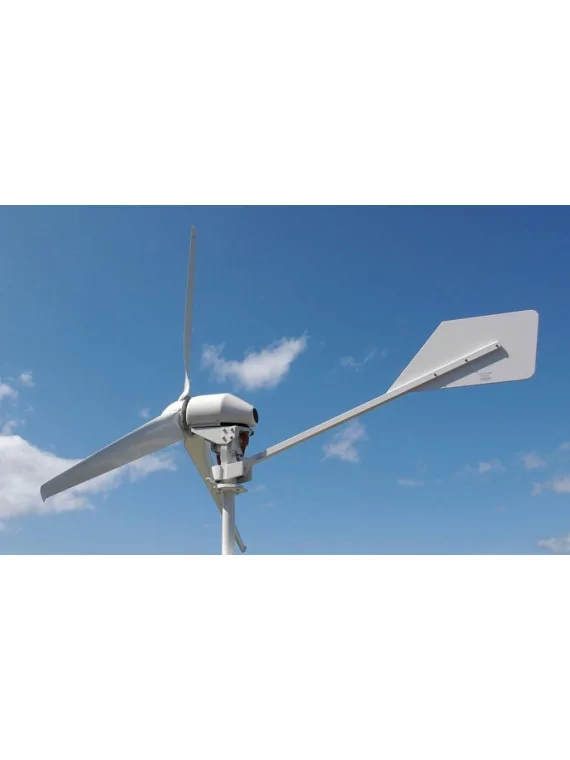

Wind turbine ANTARIS 3.5 kW connected to the grid
17.282,03 €
Inklusive Steuer
0289
0768563821486
The high-performance Antaris 3.5Kw wind turbine is designed in Germany.
It's perfect for a home installation
Antaris 3.5 kW: Windenergie zum Greifen nah
The Antaris wind turbine is specially adapted to sites inland. It is specially designed for network connection, charging batteries (24VDC / 48 VDC etc.) and powering heating systems. Because of its robust design, the Antaris wind turbine is also suitable for storm-prone locations.
The rotor blades are laminated by hand and benefit from a computer-designed aerodynamic profile, they are also balanced statically and dynamically. Each blade has an identification number and comes with its appropriate documentation. The highest importance has been to ensure the speed and simplicity of installation of this wind turbine.
Thanks to its robust and careful design, the Antaris wind turbine has excellent efficiency and is offered at a highly attractive price. It starts very quickly (starting already at a wind speed of 2.2 m/s) and operates silently (43 dB). This wind turbine can therefore be installed in residential areas.
The connection to the network requires the use of two inverters programmed specifically to operate with Antaris wind turbines as well as according to local wind conditions. In less windy areas, it is possible to connect the wind turbine to the grid via a single inverter. The inverters come with a declaration of compliance. The ENS (Electronic grid guard system) is integrated into the inverter.
Technical features
Generator
- Permanent magnet rotor without brooms and gears. Doesn't require maintenance!
- NdFeBo permanent magnets very powerful for great efficiency, resists up to 150oC
- Phase
- Separate lifter
- Rotation in both directions
- Tension 0-1000 VDC
- Starts production at about 100 t/mn
- Power: 6000 watts at 380 t/mn and 400V
- Linear power curve
- Weight: 31kg
- Carter aluminum, cooling of the surface and the fastening base
- Protection IP56
Rotor
- Connection hubs with aluminum strap and overpressure plate
- Stainless steel fitting screws and counter-nuts
- 3 Carbon rotor blades
- Computer-designed aerodynamic profile
- Noise reduction on the end of the blades
- 4m in diameter
- Blade weight: 3.3 kg
- Dynamically balanced
- Anti-clockwise rotational sense
- Rotation speed up to 300 t/min
- GRP spinner cap
- The colour of the rotor of your choice
Chassis
- Weather-resistant HDPE Girouette
- Support element: stainless steel square tube
- All threaded fittings are made of stainless steel and equipped with nuts
- Steel support for the generator, configured for plug-in in the azimut bearing frame, fully galvanized
- Protected by a patented rotor-blade positioning system
- Mast adapter with bridle connector (114.3 mm tube)
Storm protection
- Switching the pale rotor to the "helicopter" position
- Electronic control of turbines
Control cabinet
- Control system with voltage monitor
- Electronic control of turbines with regulator
- Connector protections against polarity inversions
- Controlling the phases of the alternator during the turbine mode
- Emergency shutdown switch
- Key switch re-initializer (removable)
- 2x 3 kW braking resistance
 |  |
Wechselrichter Smart wind 5kW
Dreiphasiger Stromrichter für kleine Windkraftanlagen
MODERN - FLEXIBEL - LEISTUNGSSTARK
Max. 20 kW Windkraftanlagen-Ladung (SW-10)
Dreiphasige Netzkopplung mit 10 kW (SW-10)
Flexibles und intelligentes Management von sauberem Strom, Heizung, Batterie und Entladung durch 4 separate CC-Energieabgänge
Energiezähler für Strom und Heizung
Blindleistungsregelung
Batteriepuffer-Schnittstelle - optional
Kompakt
Direkter Anschluss des Partikelgenerators ohne Zusatzgeräte
Großer Eingangsspannungsbereich für Partikelgeneratoren
Kompaktes Gehäusedesign mit separatem Blendenanschlussbereich
Passive Konvektionskühlung in einem weiten Leistungsbereich
Integrierter Netz-/Anlagenschutz (NA-Schutz nach VDE AR-N 4105)
RENTABEL - SICHER
Eingebaute Regelungsfunktionen für eine Windkraftanlage Intelligente und fein abgestimmte Kennlinie für optimale Windnutzung
Kennlinie frei wählbar in Abhängigkeit von Spannung oder Drehzahl
Viele Überwachungsfunktionen, wie Windgeschwindigkeit oder Drehzahl
Schalter zum Abschalten der KWEA mit weiteren Sicherheitsfunktionen
Kommunikativ
Eingebautes Grafikdisplay
Eingebauter Webserver
Smart!wind Explorer PC's komfortable Bedien- und Einstelloberfläche
ANWENDUNGSBEREICHE
Kleine Windkraftanlagen
Kleinwasserkraftwerke
Mini-Blockheizkraftwerke
Characteristics
| General data | SW-5.5 |
| Size | 656 x 472 x 234 mm |
| Weight | 42 kg |
| Protective class | IP54 |
| Cooling | Passive air/fan controlled according to demand |
| How it works in the temperature range | -25 degrees Celsius ... -40 degrees Fahrenheit - automatic decommissioning |
| Global efficiency | No more than 94%. |
| Clean consumption | 18 W - Waiting |
| 83 W - Active offer | |
| Entry generator side | |
| Generator type | excited constantly / 3 phases |
| Generator-side lifter | B6 |
| Entry voltage range (driver-driver) | 60...500 VLL |
| Entry current (nominal value) | 180 ... 500 VLL - for a total power of 5.5 kW |
| Entry power | 600 VLL - maximum |
| Maximum value limited by load resistance | 20 A - face value |
| Frequency of entry | 40 A - max. 5 s |
| Monitoring generators | 12 kW - face value |
| 24 kW - max. 5 s | |
| Exit sector side | 0 Hz ... 150 Hz |
| Inverter sector side | Isolation control |
| Number of phases | Temperature control |
| Output power (nominal value) | Speed control |
| Exit tension | |
| Inverter sector side | IGBT B6 |
| Number of phases | 3 |
| Output power (nominal value) | 5.5 kW |
| Exit tension | 400 VLL - face value |
| 318 ... 460 VLL - eligible reach | |
| Outfed current (nominal value) | 0 ... 8 A |
| Exit frequency | 0 Hz ... 150 Hz |
| Separation concept | without transformer - no galvanic insulation |
| Current distortion factor | 3% |
| Power factor - cos | regulated to 1 - regulation according to VDE AR-N 4105 |
| Resistance to short circuits | Current control |
| Network/system protection - ENS | VDE AR-N 4105 |
