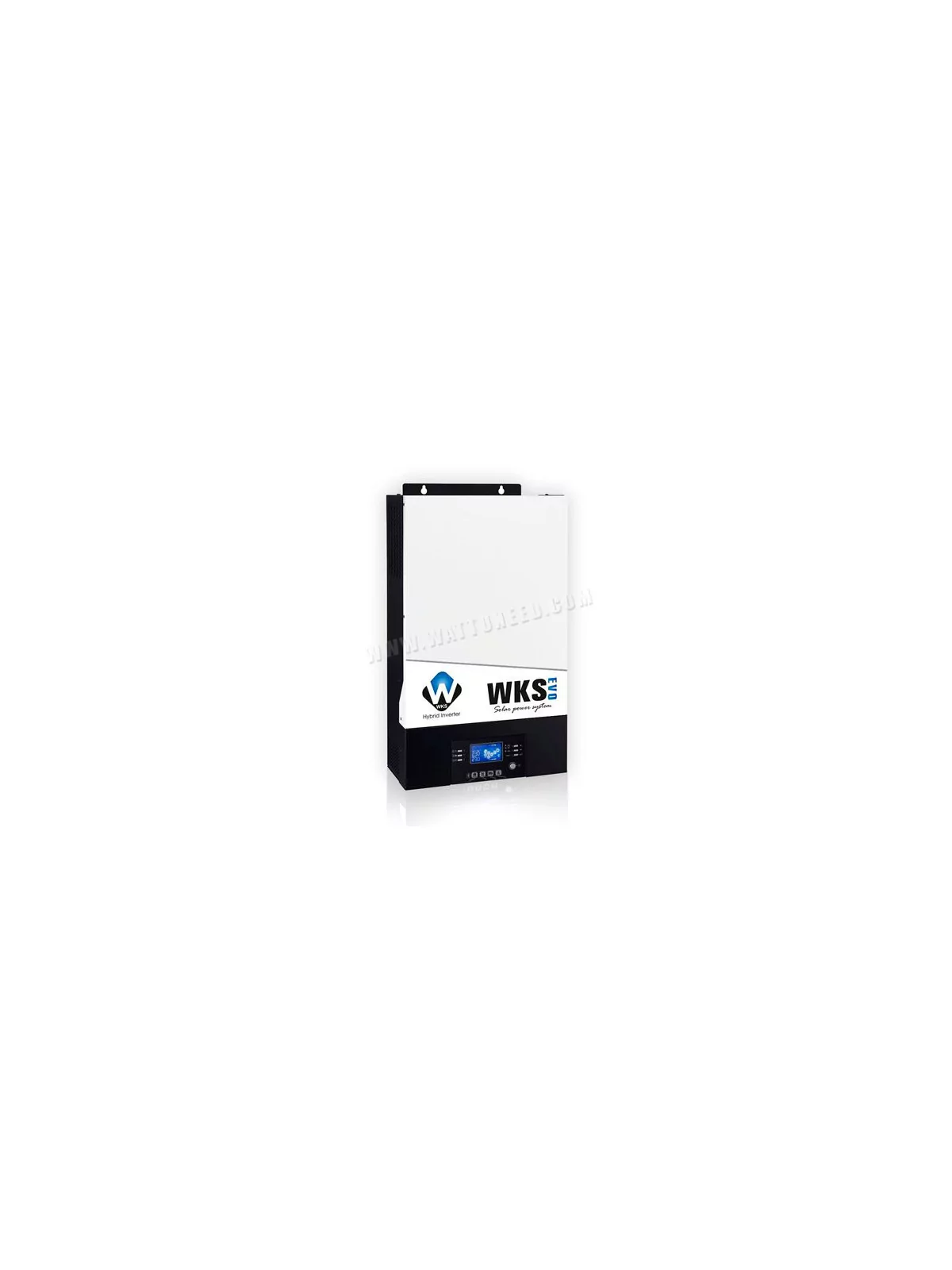

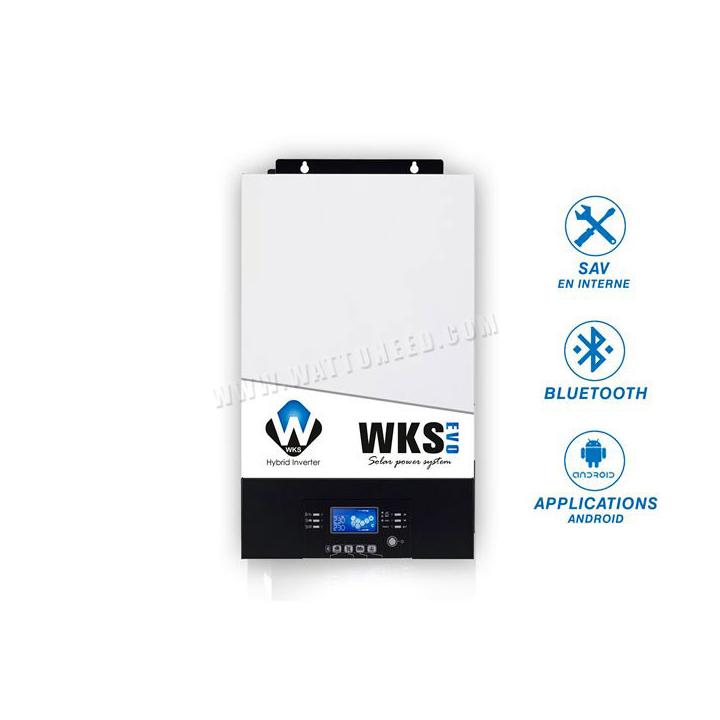

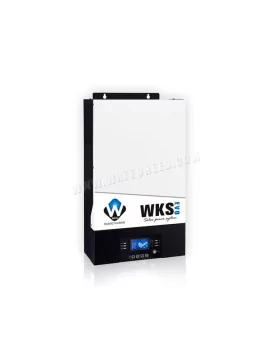

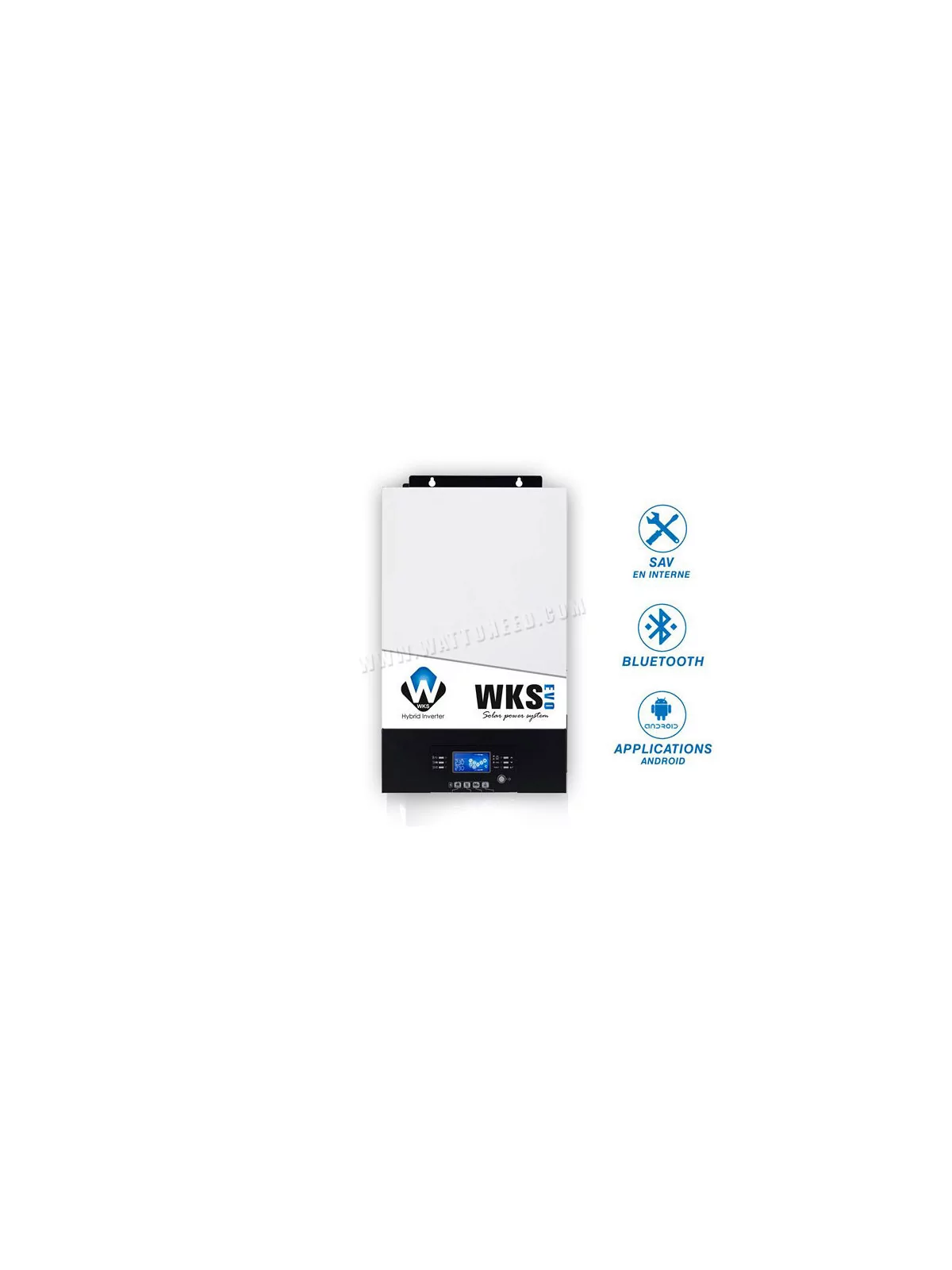

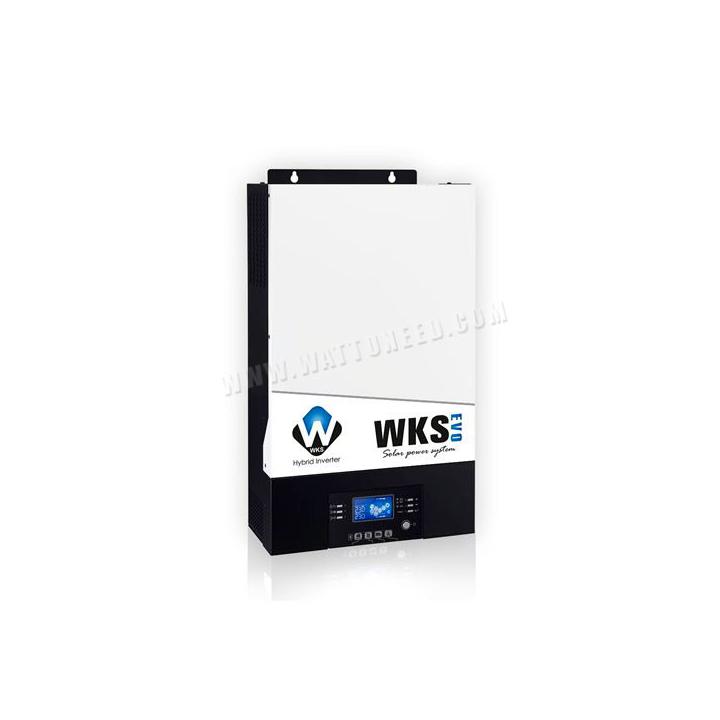

WKS Evo 3kVA 24V hybrid inverter

€907.50

Tax included

Reference: WKS-EVO-3KVA

EAN13: 0712971139954

WKS hybrid inverters are the ideal solution for self-consumption of a home or for making an isolated site self-sufficient.

This inverter can supply consumers up to 3000W
The integrated 60A MPPT charge controller can supply up to 1500Wp of panels
Can be connected to the public grid or a generator to recharge batteries

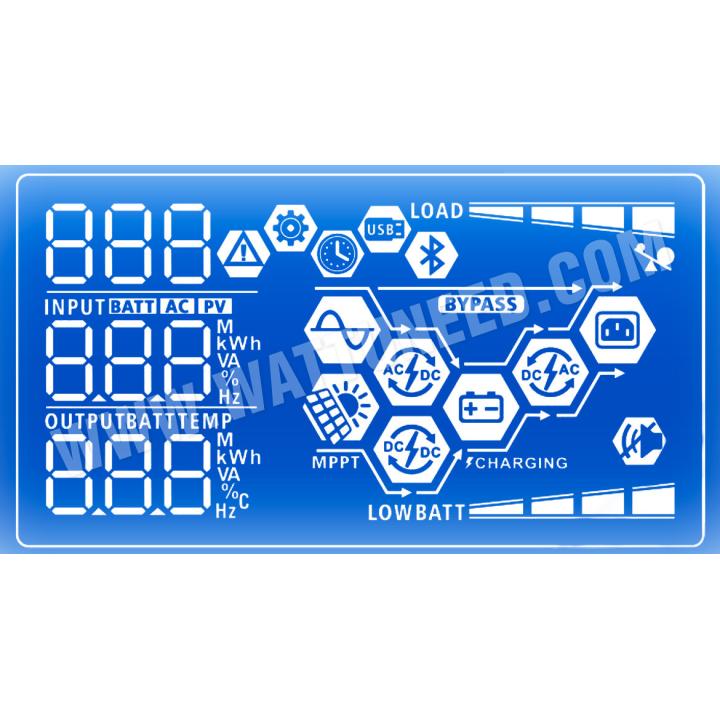

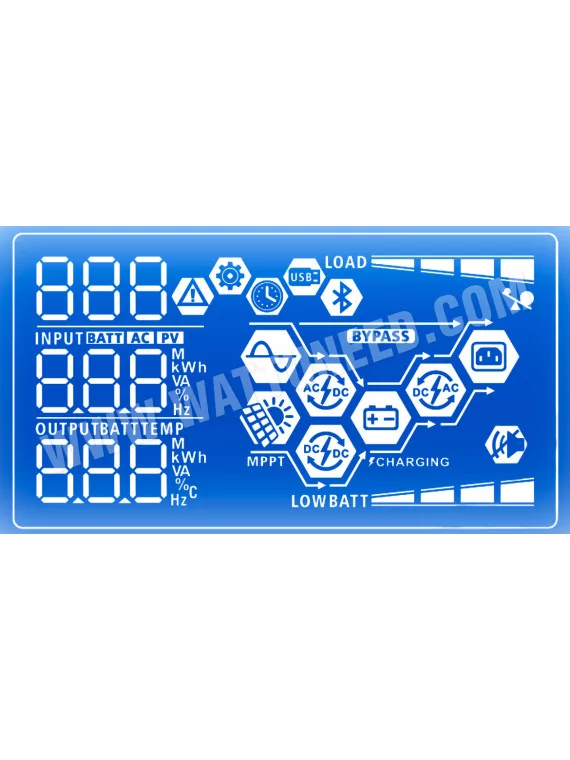

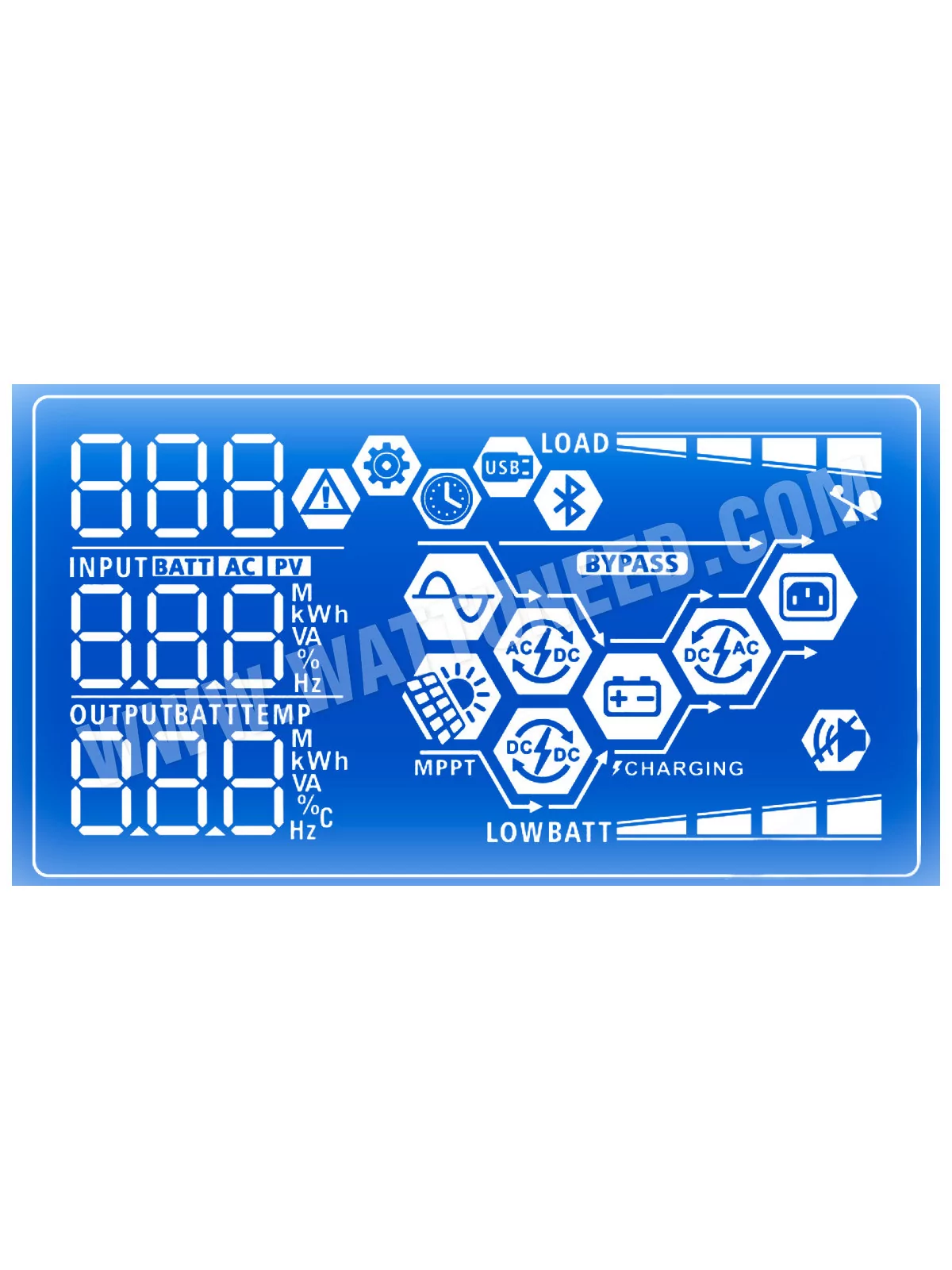

Fully configurable via the inverter's LCD screen
In-house after-sales service, spare parts available.

Integrated Bluetooth application, Android application (WatchPower) available and removable LCD control module with multiple communications.

Sorry, there are no more items in stock.

La solution idéale pour vos projets en autoconsommation ou en site isolé

WKS EVO is designed for zero transfer time

Zero transfer time to protect critical loads such as servers and ATMs.
Removable LCD control module with multiple communications ports: dry contact, micro-USB, RS-232
Integrated Bluetooth for mobile monitoring (Android App is available)
Supports USB On-the-Go
Dedicated communications port for BMS (RS485, CAN-BUS or RS232)
Configurable AC / PV output usage timer and prioritization
Optional parallel operation of up to 9 units: 3 x 3 units in parallel for three-phase installation or up to 45 kVA single-phase.

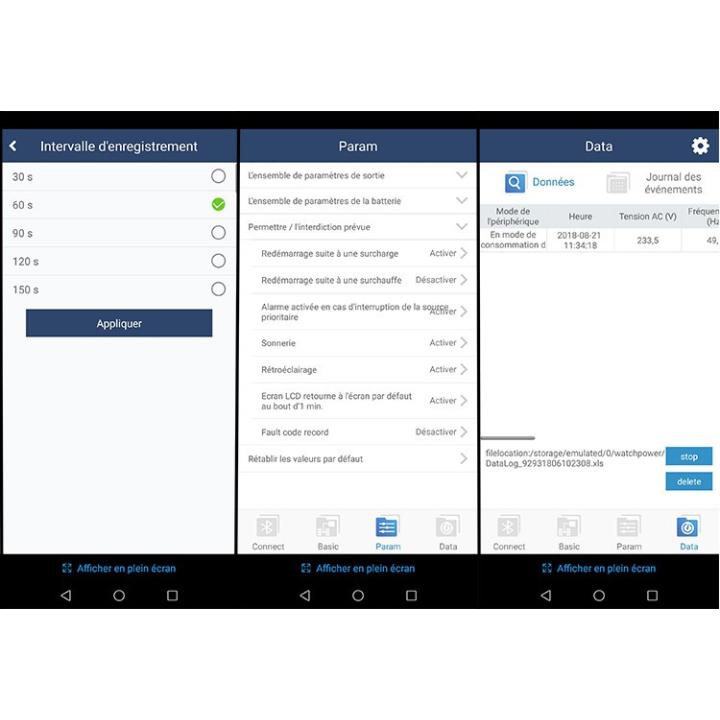

Communication Bluetooth (WatchPower)

Bluetooth communication (WatchPower)

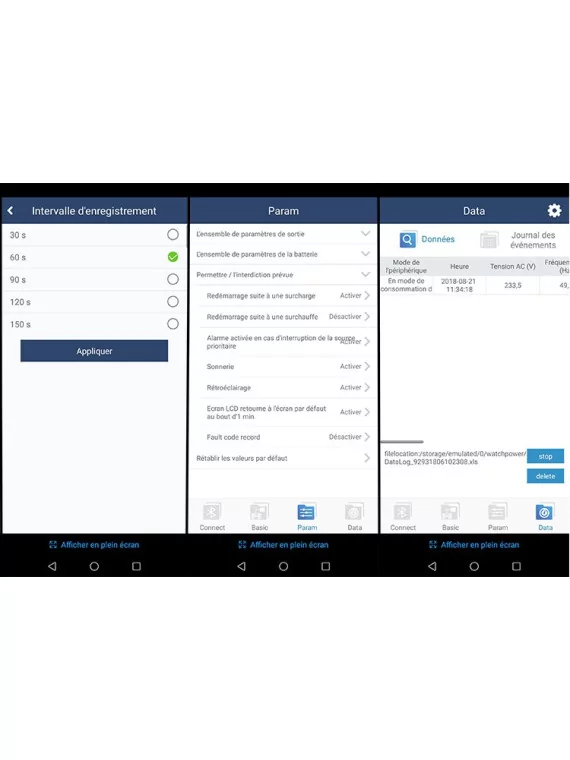

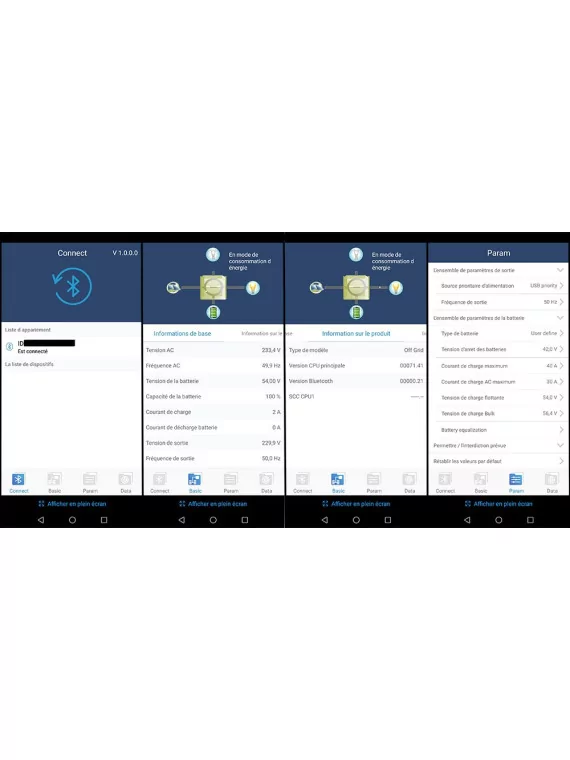

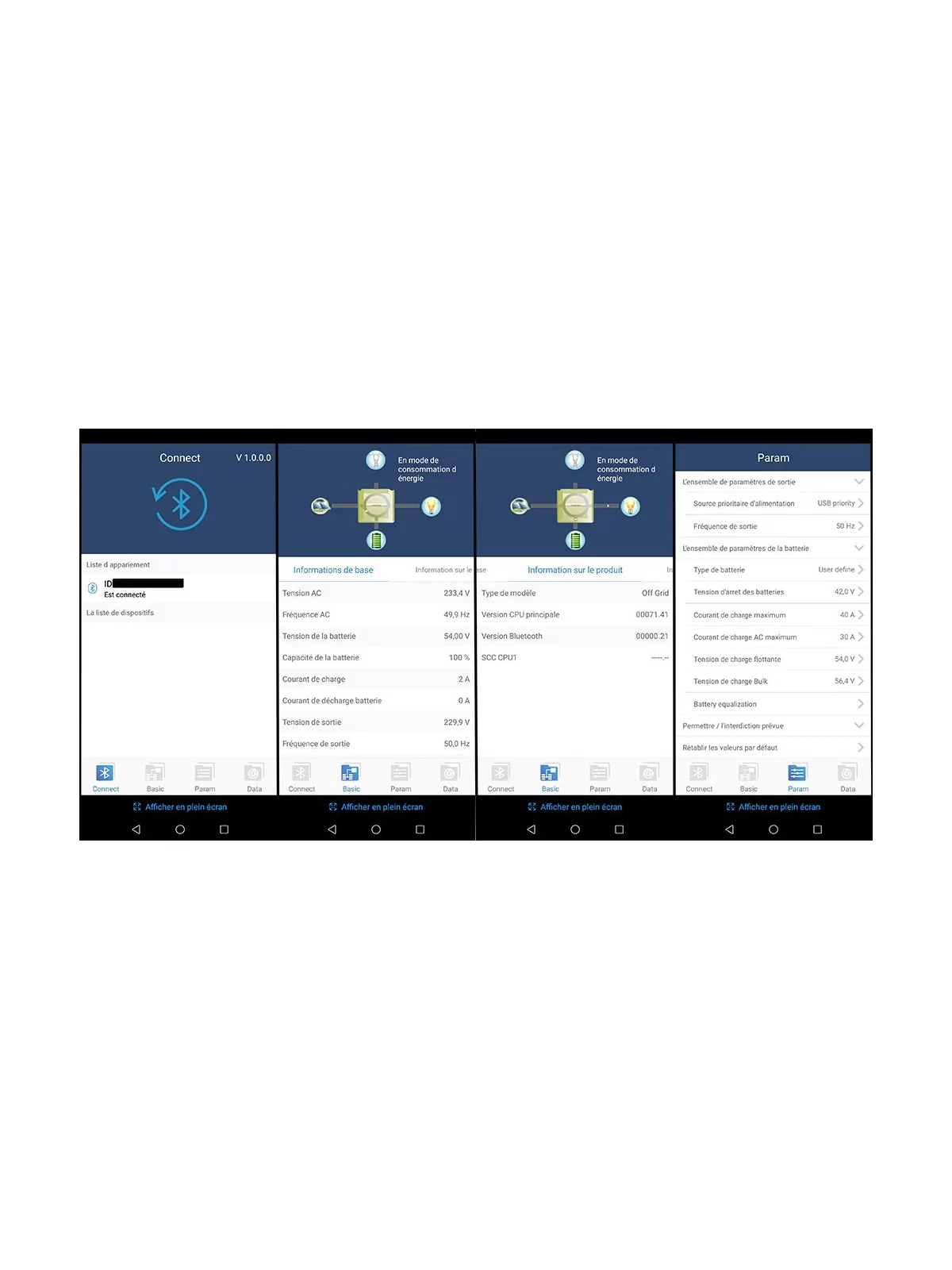

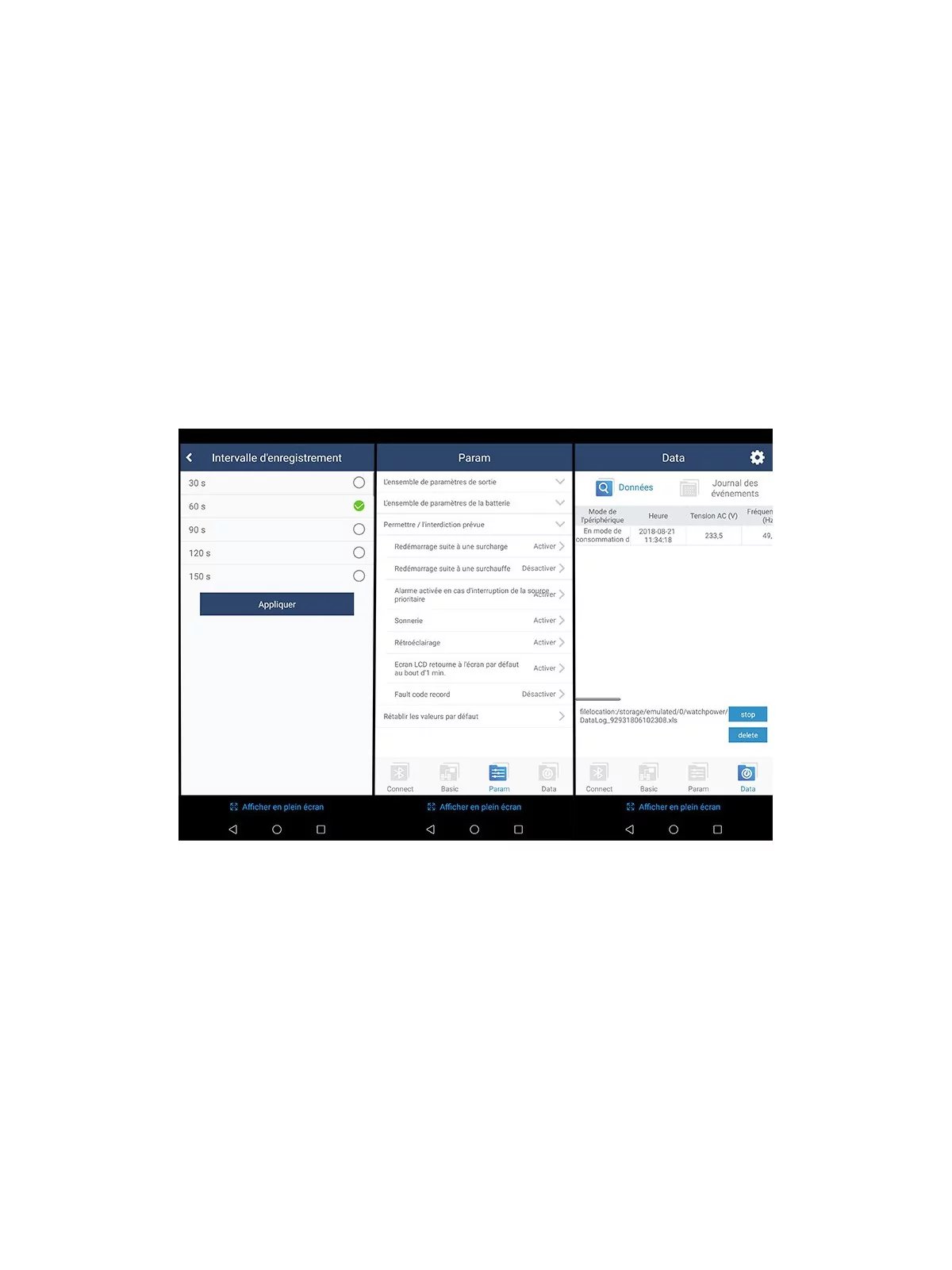

Parameterize your inverter and your system, check your production and record your data from your smartphone!

The WKS Evo's Bluetooth app gives you easy access to all your system information.

The new-generation inverter

Benefit from continuous, reliable power, whether the grid is available or not. The energy produced by WKS inverters is directed and used intelligently for optimum performance. All priorities can be set by the user: use of batteries, solar or AC source (grid or generator). In self-consumption, the energy produced by your panels fluctuates and does not correspond to consumption. The WKS inverter stores part of the solar output in the batteries for later use during the evening or night. On isolated sites, the WKS inverter can be connected to a generator to charge the batteries if they are empty and solar production is insufficient. This inverter is capable of working with several different energy sources, such as :

public grid
photovoltaic panels
thermal generator
batteries

Microprocessor-based management directs energy according to production, consumption needs and battery state-of-charge. Real-time monitoring can be carried out locally or remotely. The WKS inverter does not feed power back into the grid.

Schéma de principe avec l'onduleur WKS EVO

3 operating modes

Solar priority
Backup
Solar and grid

- Battery charging current adjustment

- Possibility of limiting or prohibiting charging via the grid

- Input voltage from 110 to 280V (useful for fluctuating networks)

- Economy mode (self-consumption limitation)

- Fine-tuning of battery charging characteristics

- Automatic restart in the event of overload or overtemperature

- Possibility of limiting battery discharge to preserve battery life

- Configurable return voltage to battery mode

- Overload bypass (to switch to mains supply in the event of peak consumption)

- Low battery protection

Multi-energy power supply

Example: for a consumption requirement of 3kW, you could have a configuration:

1 kW supplied by solar energy 2
kW supplied by batteries

This multi-supply technique greatly reduces the number of batteries required, and extends their lifespan.

This inverter accepts up to 1500 W of photovoltaic panels and can be connected to the grid or to another renewable energy source if solar production is insufficient.

Applications :

Residential, commercial and telecommunications
Areas with unstable electricity supplies
Areas not connected to the grid

Use in back-up mode

The inverter can be used as a back-up without photovoltaic panels. In this mode, the UPS takes on the role of UPS, protecting your appliances from grid outages.

The UPS protects computers and audio-visual equipment, or any other sensitive load, by supplying a stable current. It guarantees uninterrupted power supply to consumers.
The electricity produced by these pure sinusoidal inverters is stable.

You can protect one or more rooms in your home via the distribution box.

Utilisation en mode Off-grid (hors réseau)

Off-grid operation

In this configuration, the inverter uses the panels to power consumers and charge batteries when the sun is shining. The inverter draws power from the batteries to ensure energy distribution at night.

A generator can be added to the inverter's AC input to provide emergency power.

Utilisation en mode hybride

Hybrid operation

The inverter takes power from the grid only if the batteries are empty and solar production was not sufficient to cover consumption.

The inverter never feeds power back into the grid.

As with the "back-up" mode, you can connect only part of your domestic installation to the inverter. Consumers connected to the inverter will still be powered, even in the event of a mains power cut. What's more, they'll be supplied free of charge!

Convertisseur Pure Sinus

Pure Sine converter

The WKS is a pure sinusoidal voltage inverter that reproduces a power quality similar to that of the public grid. It can be used to power all types of appliance.

Maximum load current 60A

The WKS integrates an MPPT charge controller developing a maximum charge current of 60A.

Régulateur MPPT

MPPT controller

The WKS also features MPPT (Maximum Power Point Tracking) technology, i.e. it constantly searches for the maximum power point, enabling the best performance from photovoltaic panels. As well as providing a boost in power to an installation, it optimizes battery charging and extends their lifespan. It scans the panel voltage to find the maximum power output point, and is able to adapt the voltage supplied by the panel to match the voltage the battery can receive.
