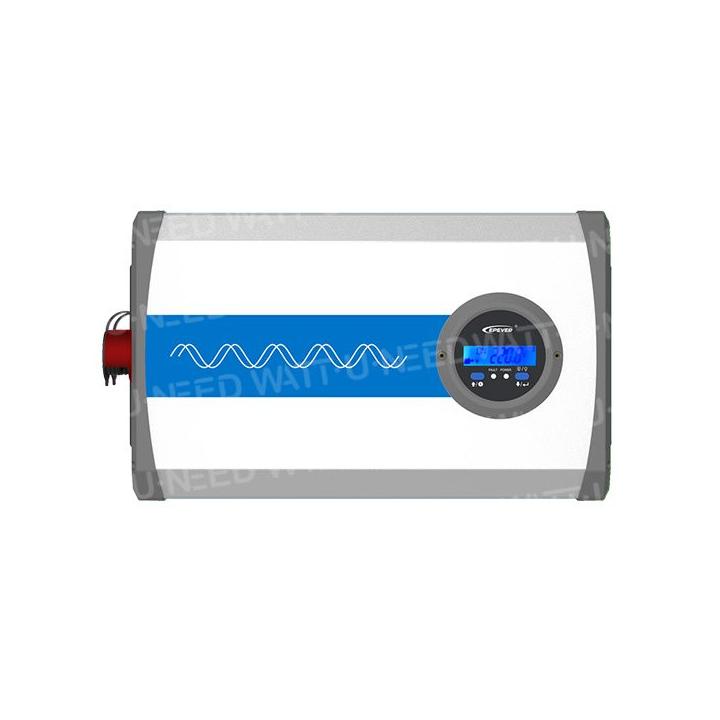

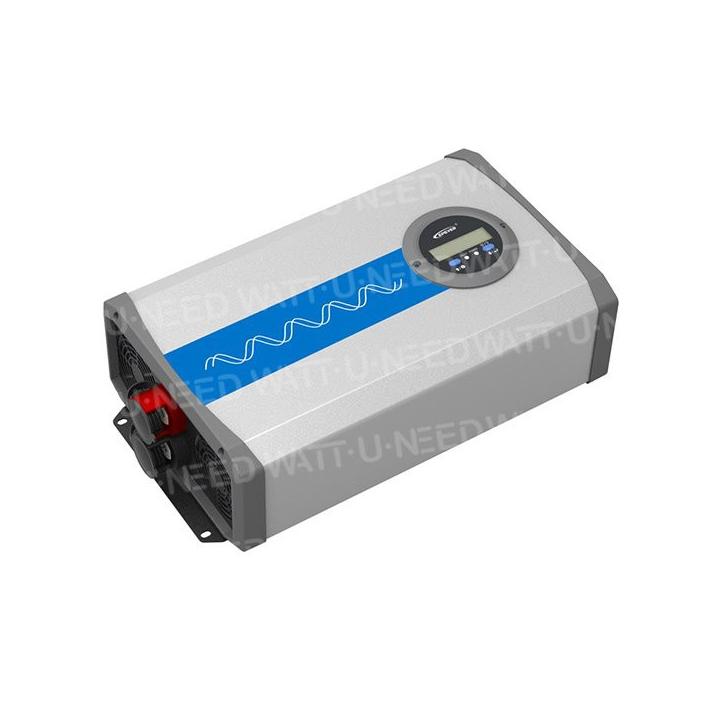

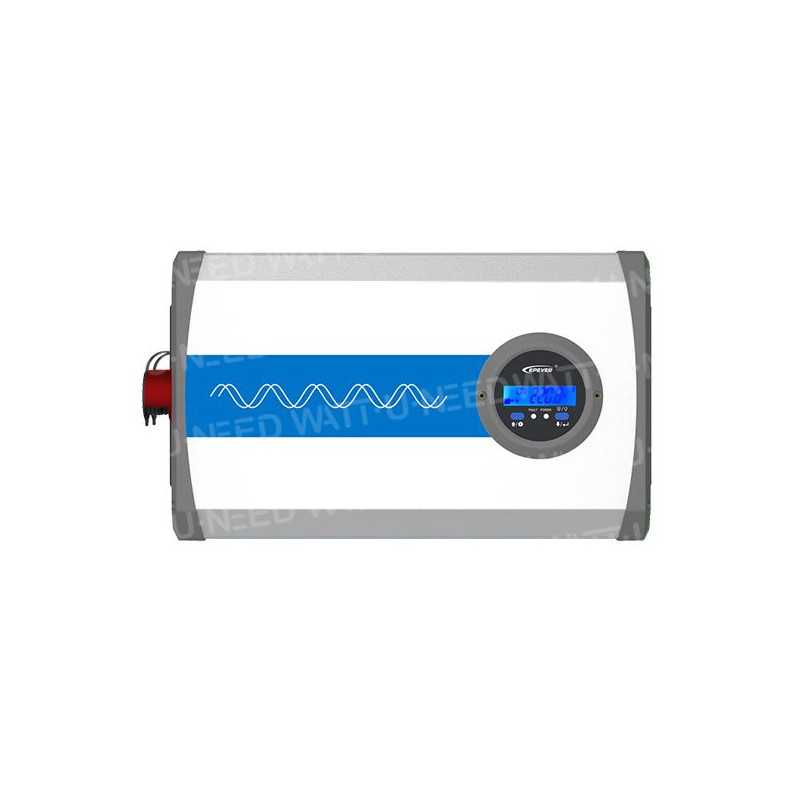

Converter Epever IPowerPlus serie IP500-12-Plus 12V 500W
€169.43
Tax included
IP500-12-Plus
0768563819605
IPower-Plus is a pure sine-wave high-frequency inverter that can convert 12/24/48VDC to 220/230V AC (or 110V/120V AC) and power AC loads. 110V/120V AC) and supply AC loads. Designed to international standards for superior quality, reliability and safety. Rated from 500W to 5000W, Ipower-Plus is perfectly compatible with lithium-ion batteries and suitable for all DC-to-AC situations. perfectly compatible with lithium-ion batteries and suitable for all DC-to-AC situations, such as RVs, boats, residences, and places requiring high-quality electrical power.
1 item(s) left in Stock!

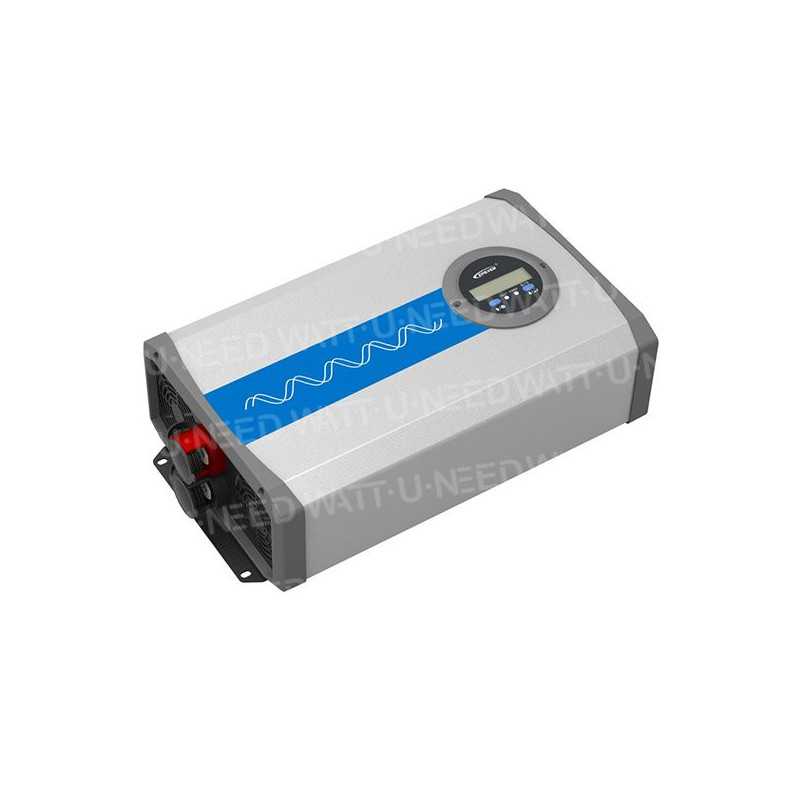

Converter Epever IPowerPlus serie IP500-12-Plus 12V 500W
IPower Plus is a new generation of pure sine wave inverter compatible with the lithium battery system.
This new inverter adopts surge suppression technology to effectively prevent surge current from damaging lithium battery cells and the BMS (Battery Management System). In addition, the adoption of the dual closed-loop voltage and current control algorithm gives the UPS faster response and greater resistance to load impact. The inverter selects key components with high power density and long life to provide stable, long-lasting operation.
Long-life components ensure stable, reliable power supply. Optional communication solutions enable users to monitor status in real time, or modify parameters wherever they are.
The inverter can be widely used in DC to AC fields, such as AC solar power systems, vehicle systems, recreational vehicles, etc. e system, VR power supply, security monitoring system, emergency lighting system, field power system, domestic power system, etc. domestic power system, etc. With its excellent EMC (Electro Magnetic Compatibility) characteristics, the inverter is also suitable for situations with high power quality requirements.
Features
- Pure sinusoidal output
- Electrical input/output isolation
- Dual digital closed-loop control of voltage and current
- Input surge suppression for lithium battery systems
- Input surge suppression technology to support lithium battery systems
- Output power factor up to 1
- Simple system wiring and 180-degree rotating LCD display
- Input protection: reverse polarity, low voltage, overvoltage
- Output protection: overload, short-circuit, overtemperature

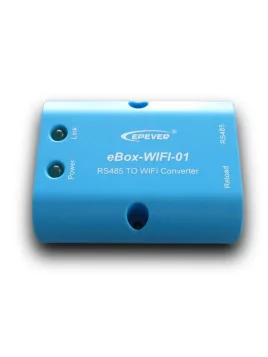

- Telephone and PC remote control via RS485 port
- Additional external switch port
- Safety (EN/IEC62109) and EMC approved to international standards
Technical data
| Parameters | IP500-12-Plus |
| Continuous output power | 500W |
| Surge power | 1000W@5S |
| surge voltage | <50A |
| Output voltage |
220 VAC (±3 % ); 230VAC(-7%~+3%) |
| Output frequency | 50/60Hz±0.2% |
| Output waveform |
Pure sine wave |
| Output distortion THD |
THD≤3 % (resistive load) |
| Load power factor |
, |
2
-1 (VA load ≤ continuous output power) |
| Nominal input voltage | 12 VDC |
| Input voltage range |
10.8 ~ 16.0 VDC |
| Nominal output efficiency | > |
| 89. |
| Max. |
| output efficiency |
> 90% (40% loads) |
| No-load current | <0.9A |
| USB output |
| .1A |
| RS485 communication. |
| Port |
| Dimension (LxWxH) |
286 × 163.5 × 78 mm |
| Mounting dimensions | Φ5mm |
| Net weight |
| ,2 kg |
| Operating temperature range |
℃(Refer to derating curve) |
| Relative humidity | < |
| 95% (NC) |
| Housing | IP20 |
IP500-12-Plus
1 Item
Data sheet
- Length
- 286 mm
- Voltage
- 12V
- Width
- 163,5 mm
- Height
- 78 mm
- Weight
- 2,2 kg
Specific References
- UPC
- 768563819605
- EAN13
- 0768563819605
