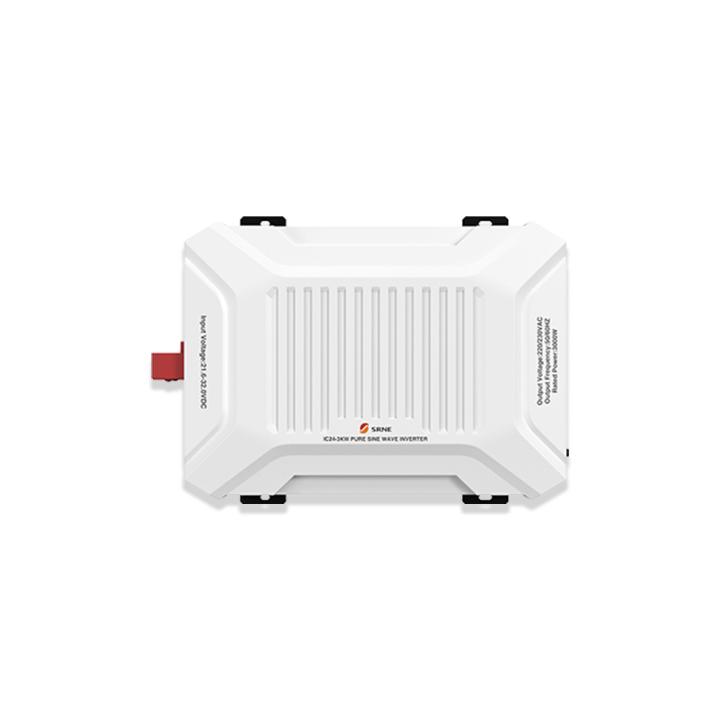

Converter SRNE IC Series 24V - 3000W
€505.10
Tax included
SR-IC24-3kW
0768563820533
Rated power: 3000 W
Nominal battery voltage: 24 Vdc
Rated output voltage: 220 / 230 / 240 Vac
Output frequency: 50 / 60 Hz
Dimensions: 366 x 300 x 116 mm
Weight : 6 kg
9 item(s) left in Stock!
Yield
High conversion efficiency, low losses and low harmonic distortion are accompanied by a variety of operating modes designed to maximize energy savings.
Stable
Stable thanks to advanced SPWM modulation technology for high-quality, pure sinusoidal power output.
Connectivity
Bluetooth is integrated as a standard feature and is compatible with a mobile application, allowing you to view the device's operating parameters.
Security
Several extension interface options are available to meet different user requirements. The surge protection design is specifically optimized to suit lithium battery-powered supply systems.
Intelligent
Provides advanced protection for the battery against overvoltage and overdischarge, as well as preventing output overloads, short circuits and overheating.
SR-IC24-3kW
9 Items
Data sheet
- Frequency range
- 50 / 60 Hz
- Waveform
- Onde sinusoidal pure
- Battery voltage
- 24 Vdc
- Width
- 300 mm
- Height
- 366 mm
- Thickness
- 116 mm
- Standby consumption (night)
- + 0,24 A
- Certification
- CE, ROHS, IEC62109-1/2, EN61000-6-2/4
- Typical noise level (dB)
- + 60 dB
- Type of cooling
- Neutral cooling + intelligent fan
- THDi (Nominal power)
- THD +3%（Load resistance）
- Battery Voltage Range
- 21.6～32Vdc
- Rated output power
- 3000 W
- Rated output voltage
- 220 / 230 / 240 V
- Peak power
- 6000 W
- Power factor
- 0.2-1（Load power≤Continuous output power)
- Nominal output
- + 90 %
- Max. output efficiency
- + 93.5% (30% load)
- Ambient temperature
- -20°C～60°C
Specific References
- UPC
- 768563820533
- EAN13
- 0768563820533
