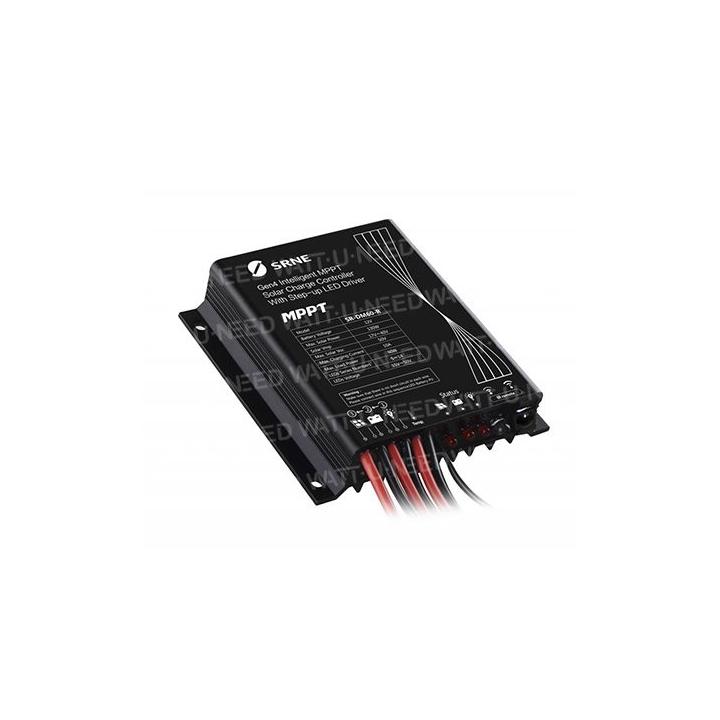

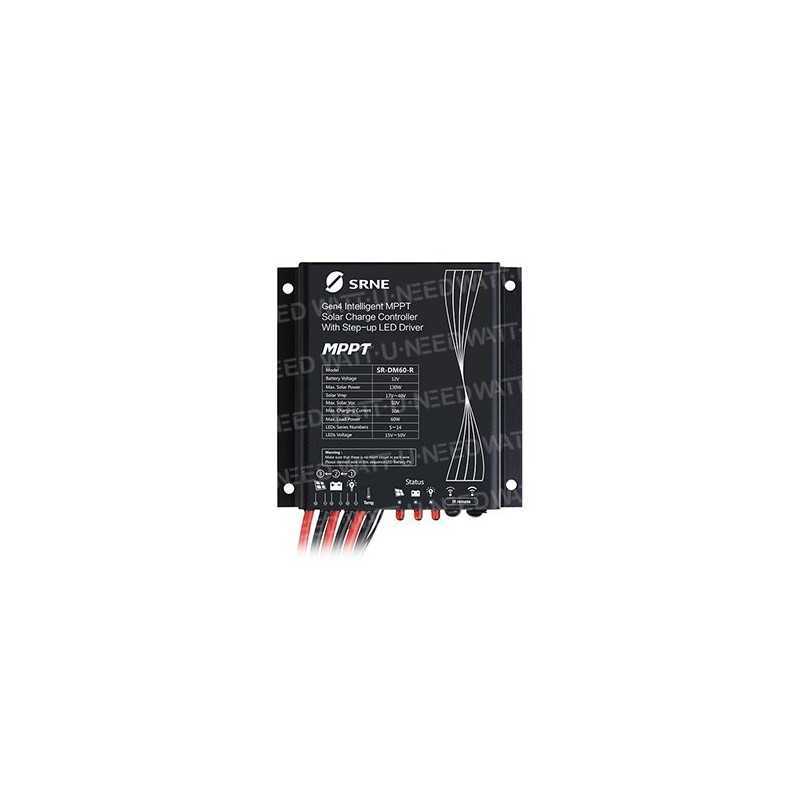

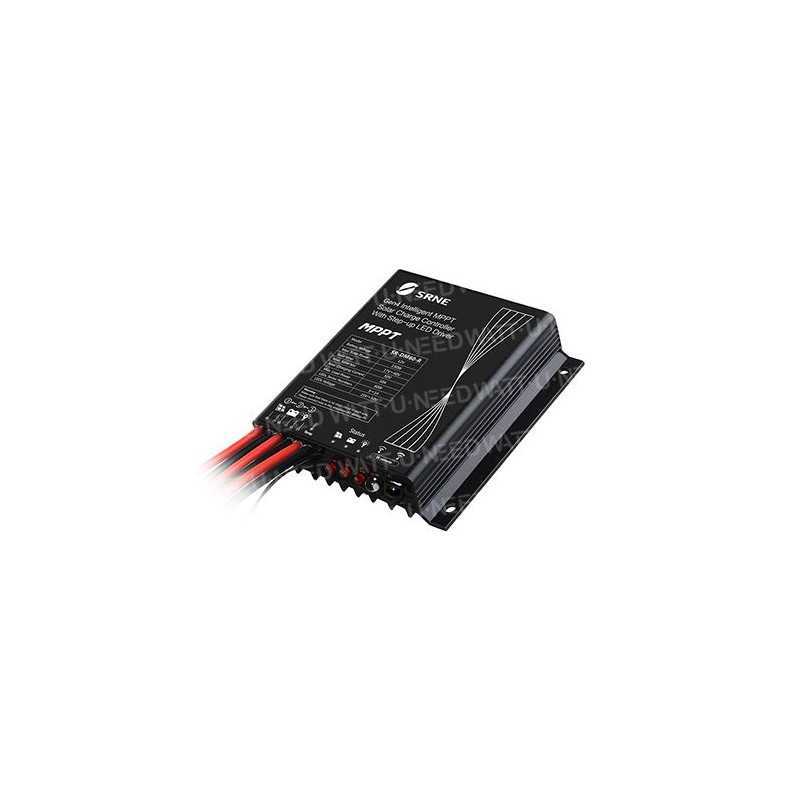

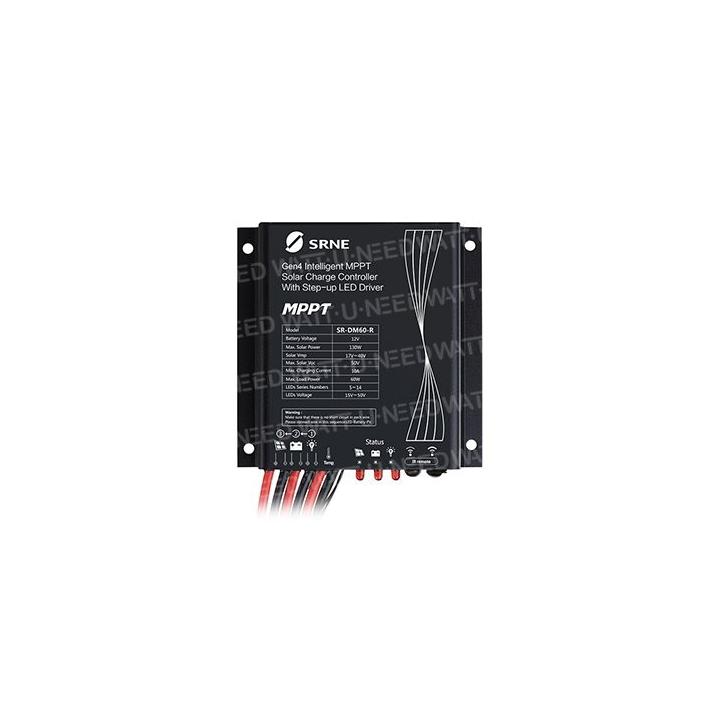

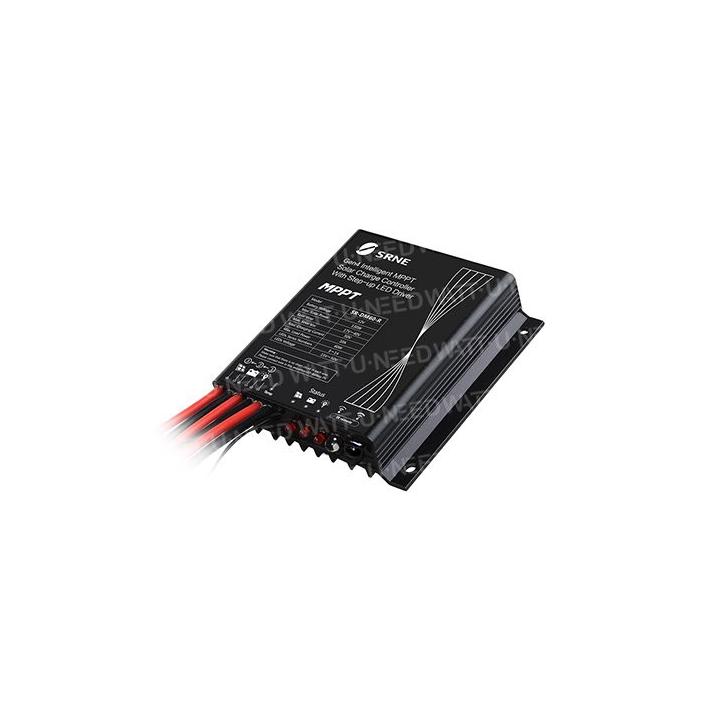

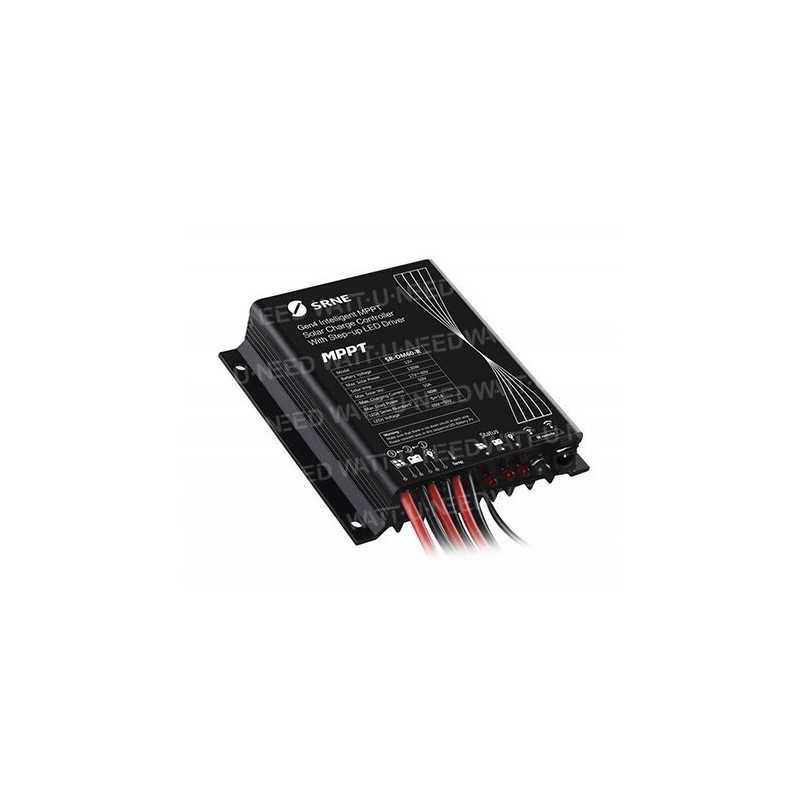

Solar charge controller SRNE MPPT Gen4 DM60
€41.51
Tax included
SR-DM60-W
0768563819070
Gen4 intelligent MPPT solar charge controller with LED step-up driver
All-in-one, waterproof, constant-current MPPT charge controller.
16 item(s) left in Stock!
Solar charge controller SRNE MPPT Gen4 DM60
The benefits
- With MPPT technology, the controller has higher response speed and tracking efficiency, significantly improving the efficiency of solar panel energy utilization.
- Works with both GEL (lead-acid) and lithium batteries; operating parameters can be set by remote control.
- Temperature compensation function and multi-level constant-voltage charging for lead-acid batteries.
- Control of charging power and time.
- Protection and adjustment of battery charging and discharging temperature.
- Intelligent power mode:
- Charging power can be automatically adjusted according to battery level.
- High-precision digital control algorithm for boost voltage and constant current: ensures high efficiency and constant current accuracy.
- Protection against reversal of battery/PV electrodes, protection against short circuits, open circuits and limited LED power, etc.
- Infrared remote control: enables parameter setting and status checking.
- With a metal outer shell and IP67 waterproof rating, the product can operate properly in a variety of challenging situations.
Features
| Items | Values | Adjustable | Default |
| Controller type |
| : infrared remote control; W: wireless remote control 2.4G |
| System voltage | 12V |
| Lead-acid |
| Static power consumption |
| R : ≤5mA |
| Type -W : |
| Standby power consumption | ≤1 mA |
| Charging current | 50mA～3000mA | √ | 330mA |
| Charging voltage | 15V～50V |
| Maximum charging power | 60W/12V |
| xm96% (95% typical efficiency) |
| Charging current accuracy | ≤3%±30mA |
| Intelligent power | High, Moderate, Low, Auto, USE, | |
| No | √ | Medium |
| Load working period |
| eriod + pre-dawn lighting |
| Period adjustment range |
| / 10min |
| Power adjustment range | 1% / 10% |
| Solar input power | |
| aximum | 130W/12V |
| Maximum load current | 10A |
| Maximum solar input voltage | ≤50V |
| MPPT tracking efficiency | ＞99% |
| Ch | conversion efficiency | 98%（Typical efficiency97% ） |
| Overvoltage | PB-16,0V ; overload voltage LI +2V; × 2, 24V system. | 16.0V |
| Limited charging voltage | PB-15.5V ; Overload voltage LI +1V ; ×2, 24V system |
| 15.5V |
| Equalizing charging voltage | PB-14.6V ; LI-No ; ×2, 24V system |
| 14.6V |
| Charge equalization interval | 30 days |
| 30D |
| Boost charge voltage (lead-acid) Charge voltage (lithium) | ||
| .5V ～ 17.0V；×2,24V system | √ | 14.4V |
| Floating charge voltage (lead-acid) Charge return voltage (lithium) | 8.5V ～ 17.0V；×2,24V system | √ | 13.8V |
| Over-discharge voltage | ||
| .5V ～ 17.0V；×2,24V system | √ | 11.0V |
| Over-discharge feedback voltage | ||
| .5V ～ 17.0V；×2.24V system | √ | 12.5V |
| Temperature compensation coefficient | PB: -3.0mV/℃/2V; lithium battery: no compensation. |
| ight control voltage | ～ 11V；×2, |
| 4V system | √ |
| Light control delay | ||
| ～ 60min | √ | 10S |
| High-temperature load |
| √ | 65℃ |
| Low-temperature load | |
| ～ -35℃ | √ |
| Operating temperature |
| ～ +65℃ |
| IP rating | IP67 |
| Protections | Protection against reverse battery polarity |
| protection against reverse polarity of the solar panel, protection against overvoltage of the solar panel, protection against overcharge and overdischarge of the lithium battery, protection against overheating by detection of overcharge of the lithium battery by the BMS, protection against open circuit and short circuit of the load. |
| eight | 260g |
| Controller dimensions | 80 x 82 x 22.6 mm |
| mounting dimensions | 65.5 x 75 mm |
| Mounting hole diameter | Φ 3.5 mm |
