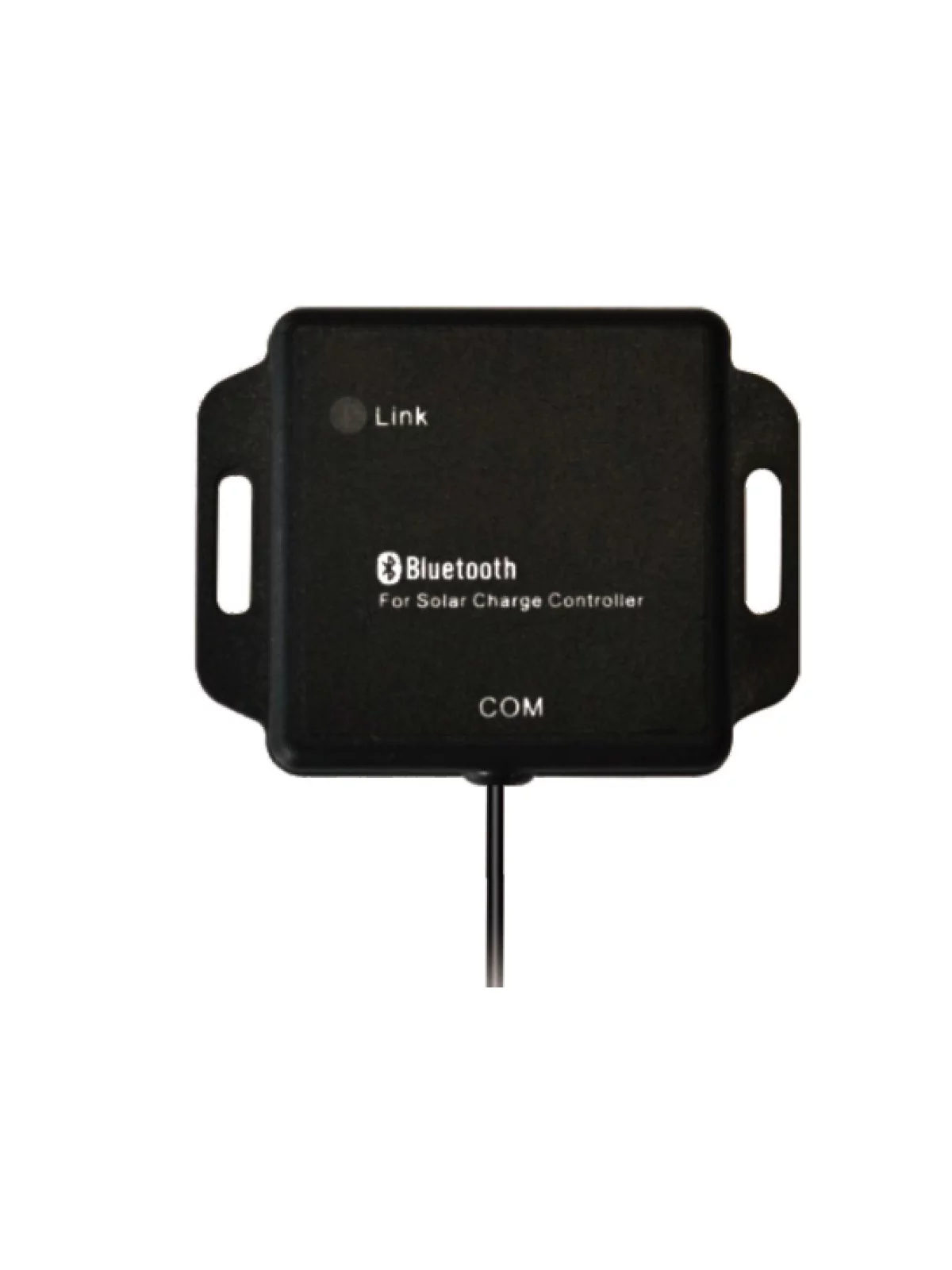

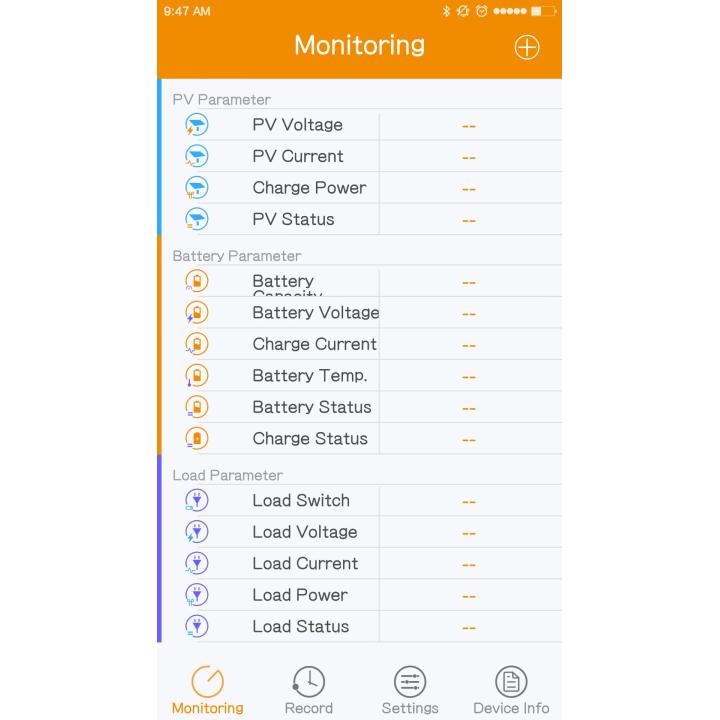

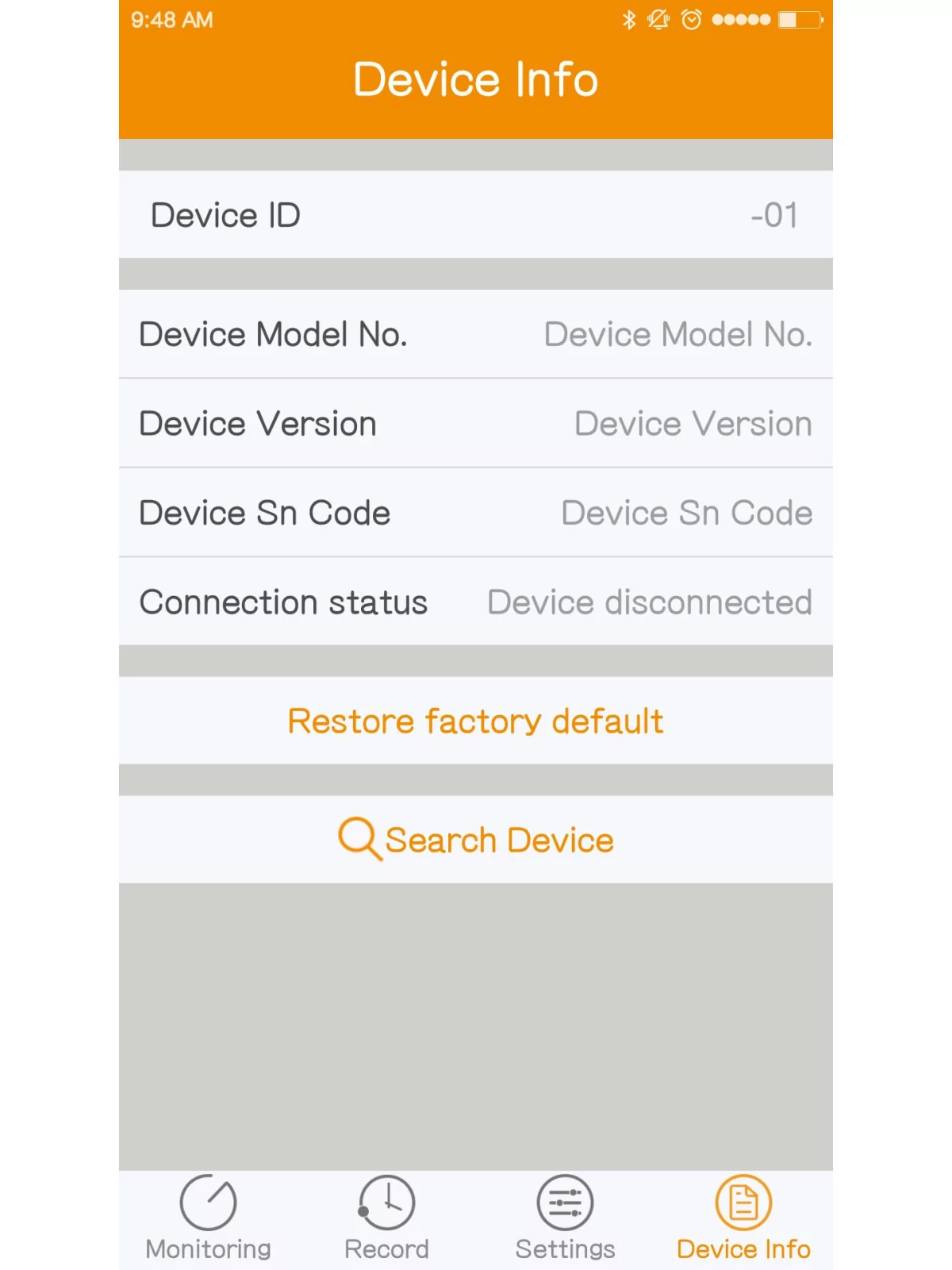

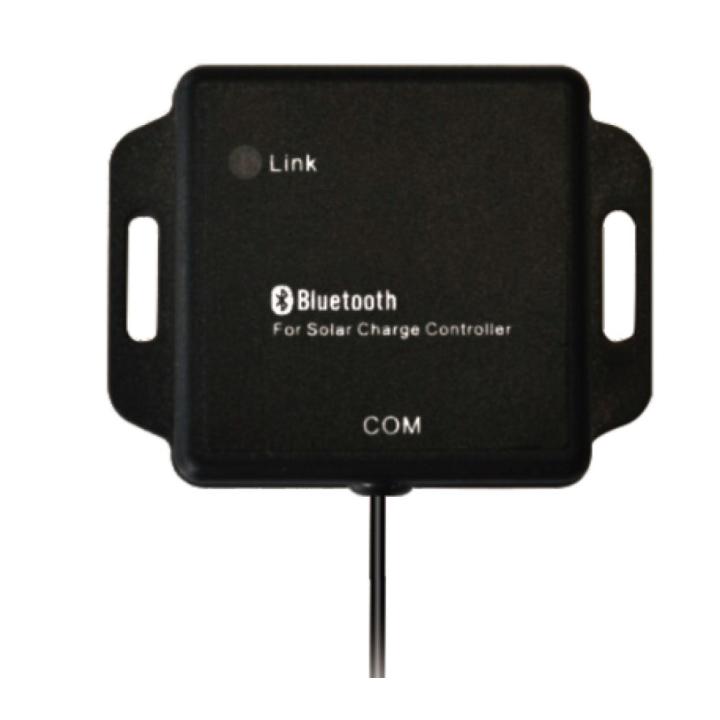

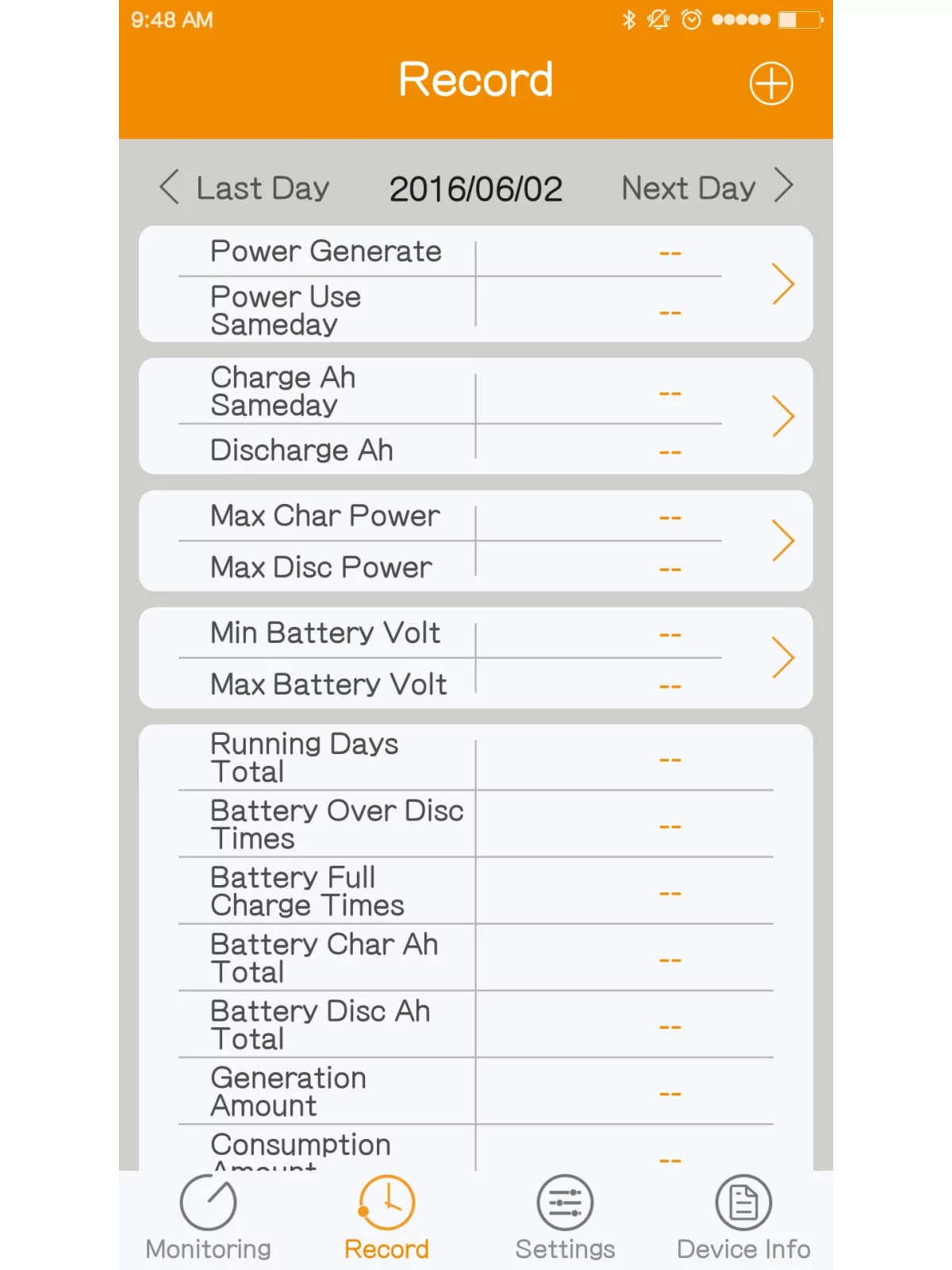

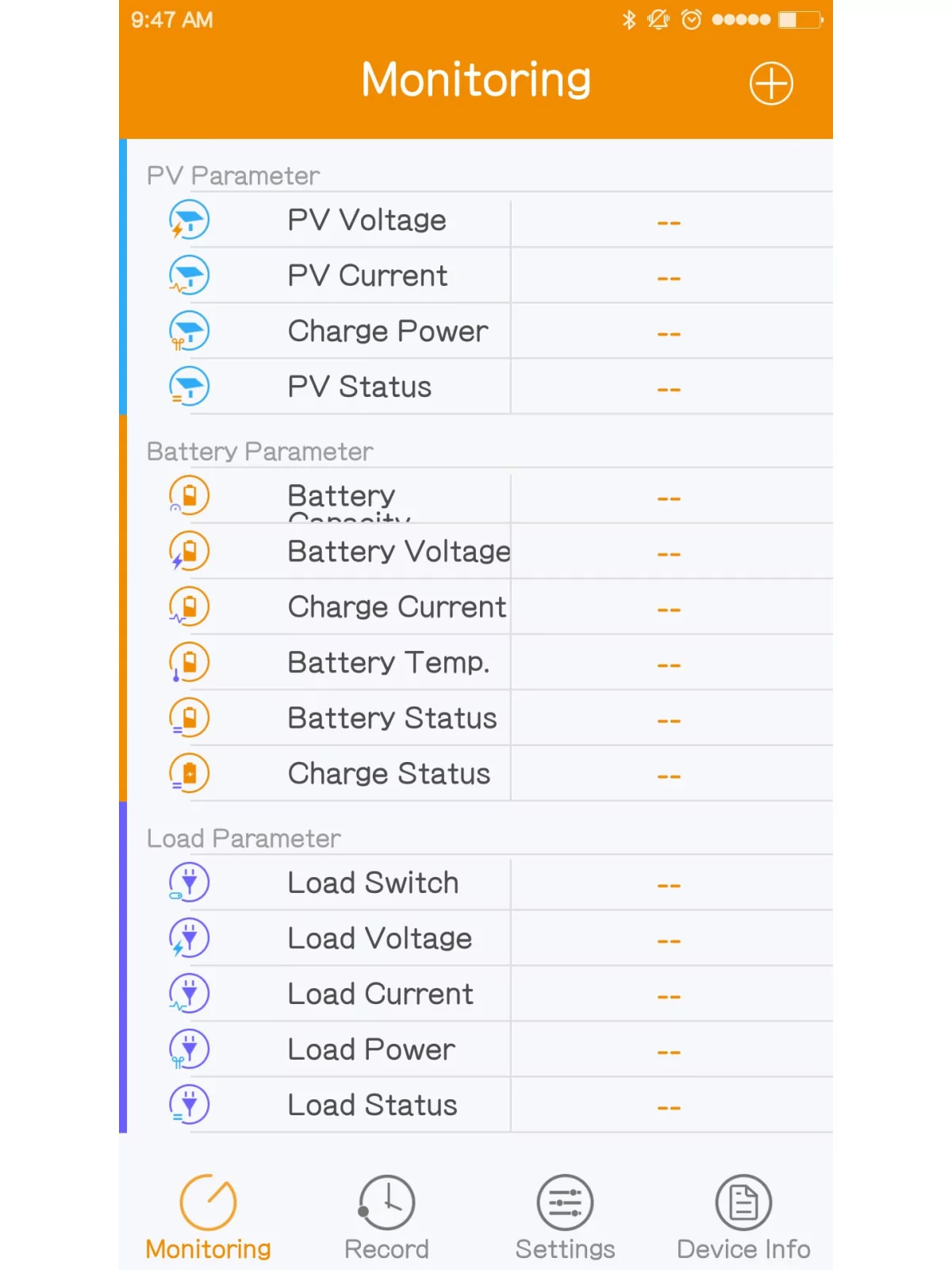

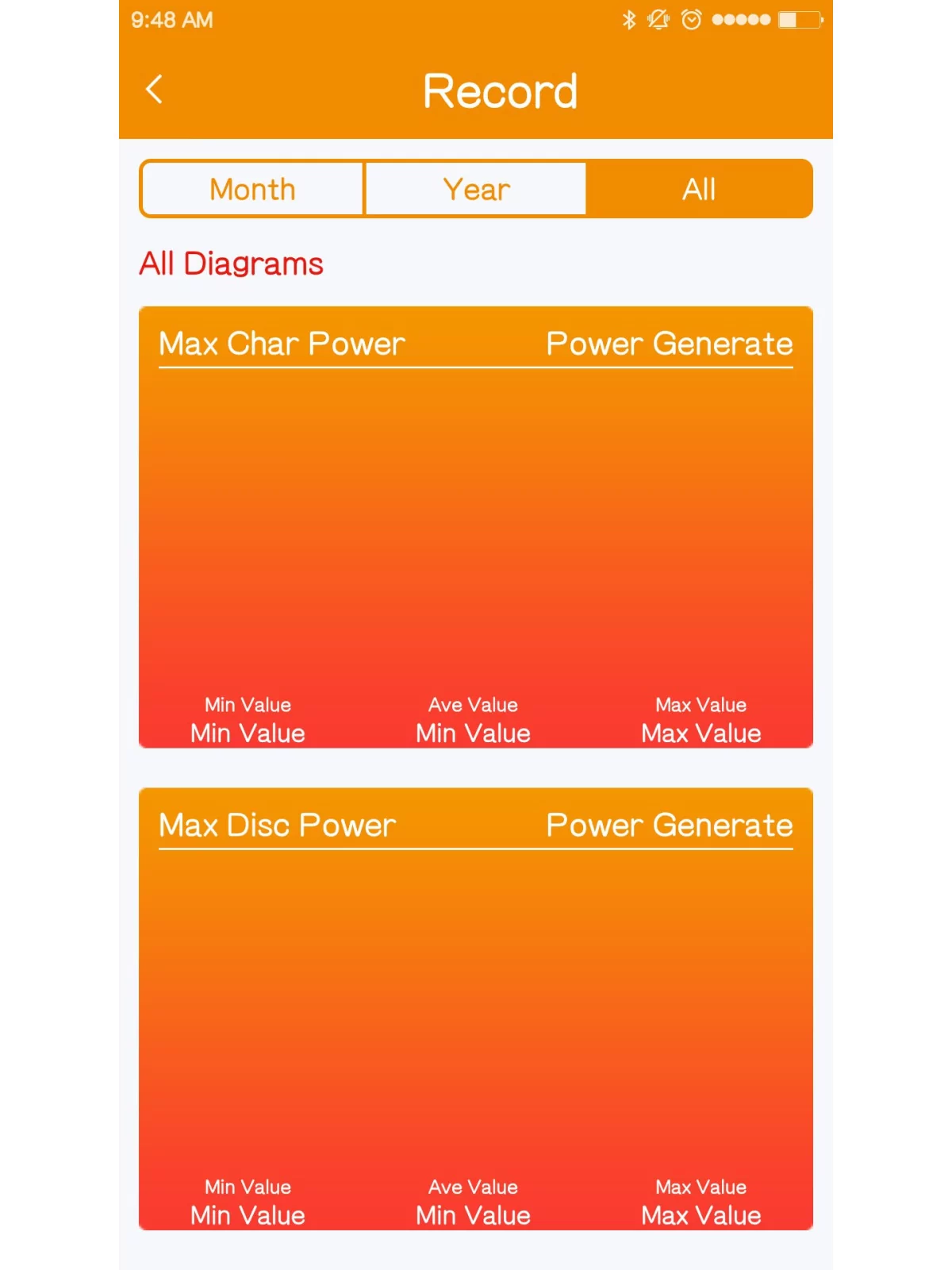

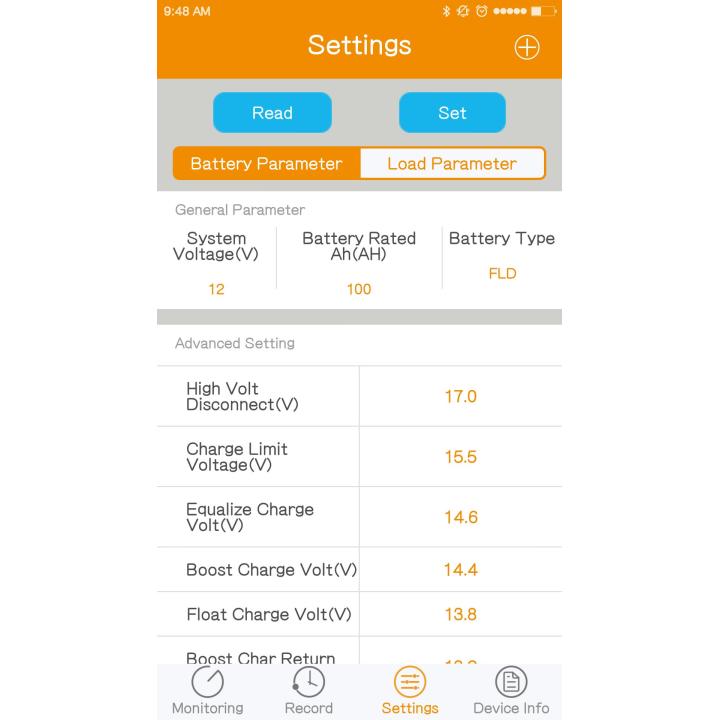

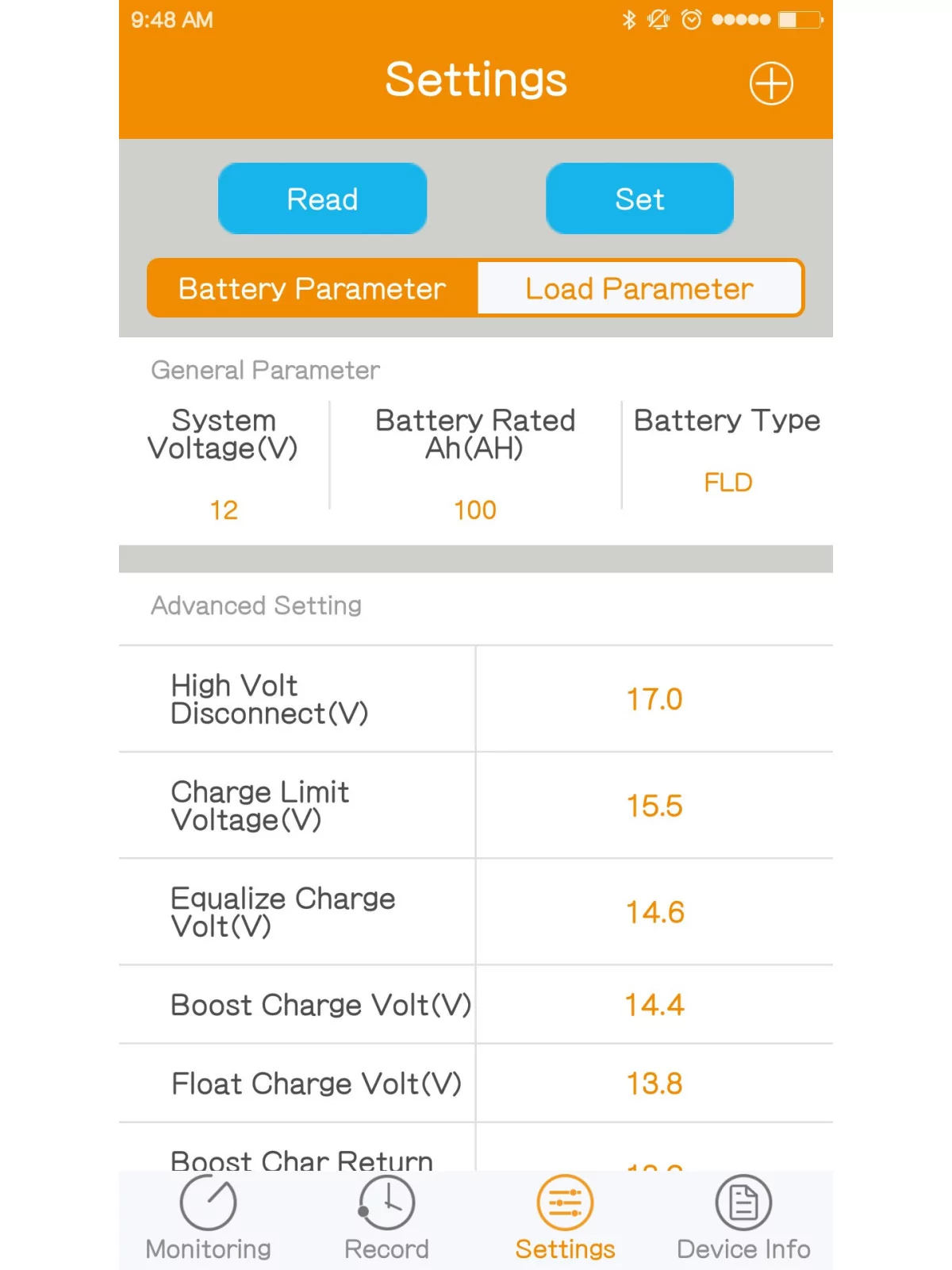

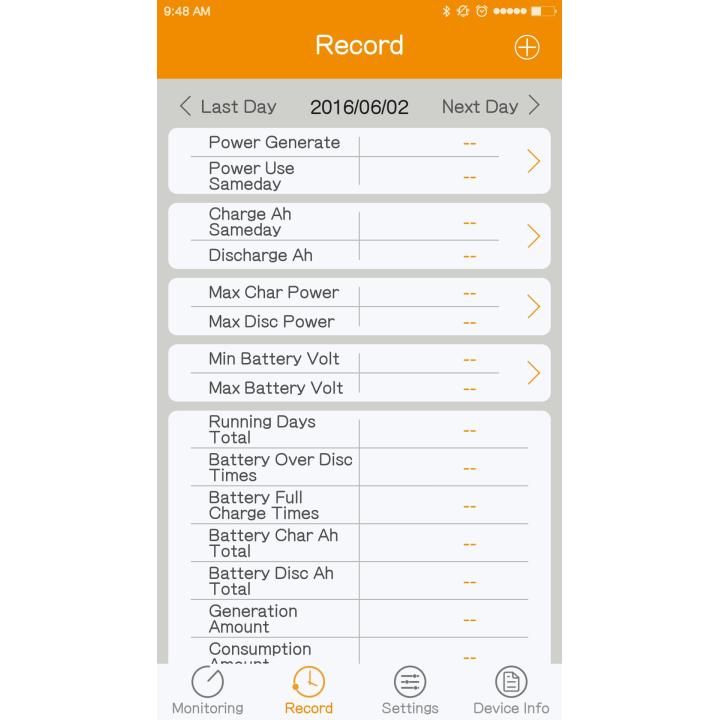

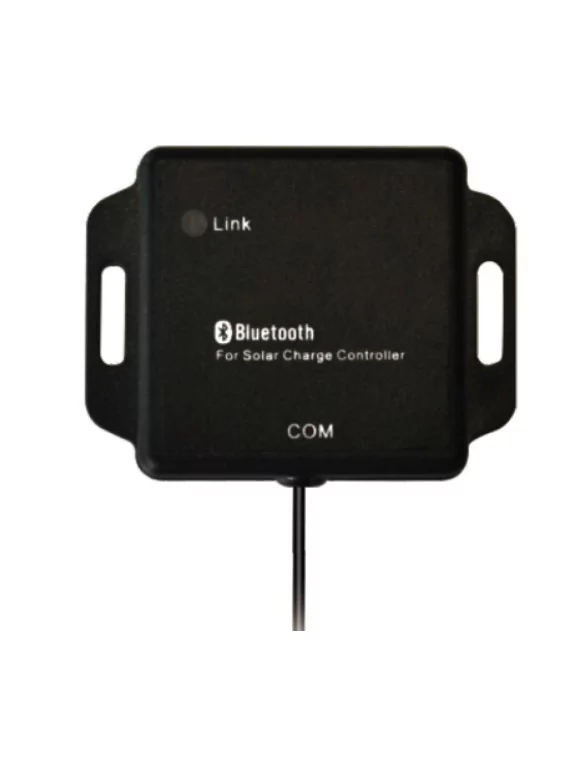

BT-1 is a Bluetooth module designed to enhance our company's solar charge controllers with Bluetooth communication capability. Combined with a cell phone application, it can be used for wireless monitoring, parameterization and verification of system data.
The SRNE Bluetooth adapter performs wireless monitoring and control functions on SRNE MPPT 20, 30, 40 and 60A solar charge controllers featuring an RS232 port. It supports a smartphone app, and features plug-and-play functionality and easy setup.
The adapter employs a dedicated Bluetooth chip with high performance and ultra-low power consumption, adopts Bluetooth 4.0 and BLE technologies, enjoying the benefits of fast communication, excellent anti-interference capability, and more.
What's more, it needs no external power source, being powered directly by the communication port.
Communication distance up to 15 m.

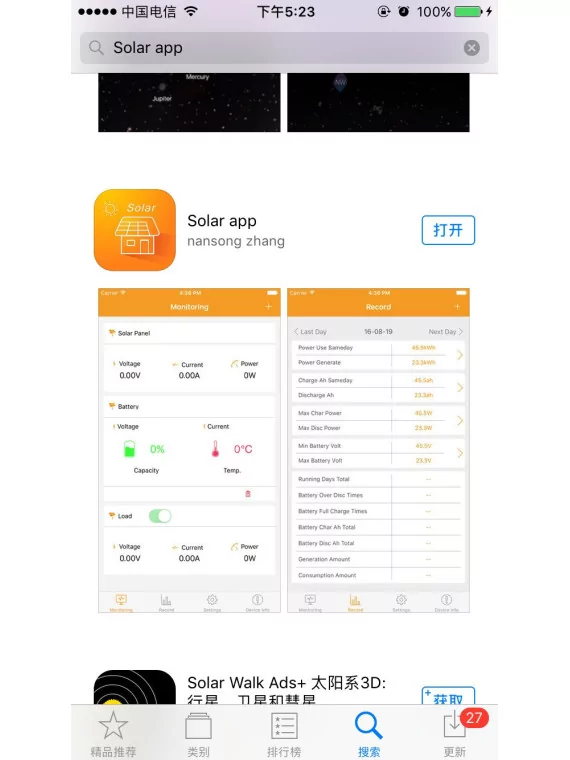

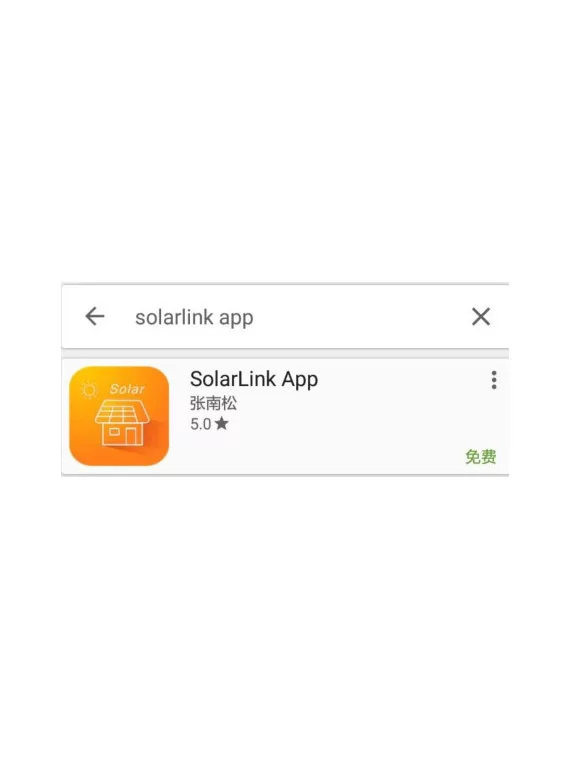

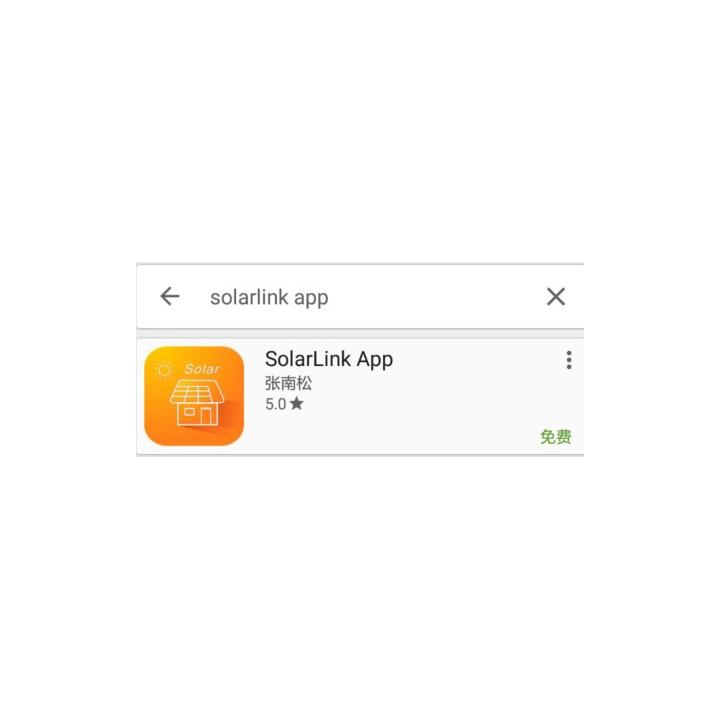

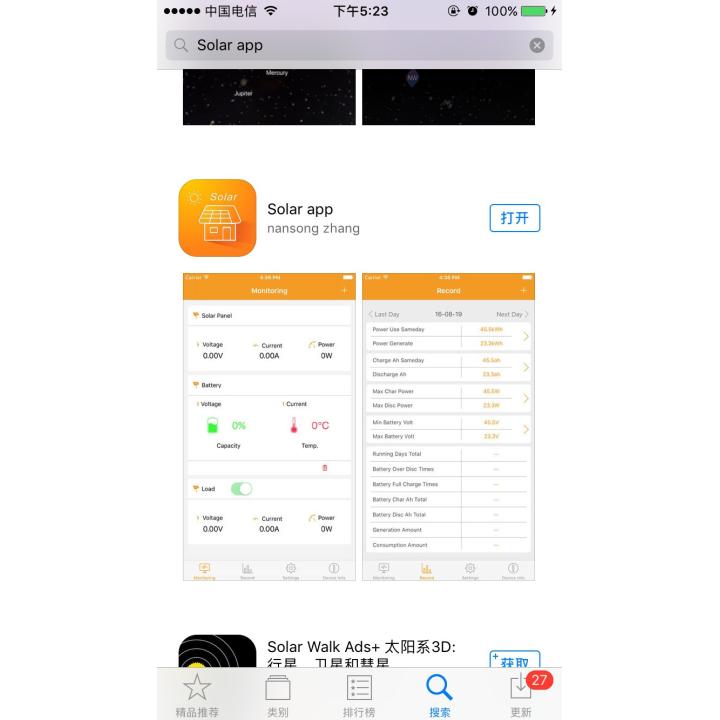

To download the application
To activate the Bluetooth function, please download the related application.

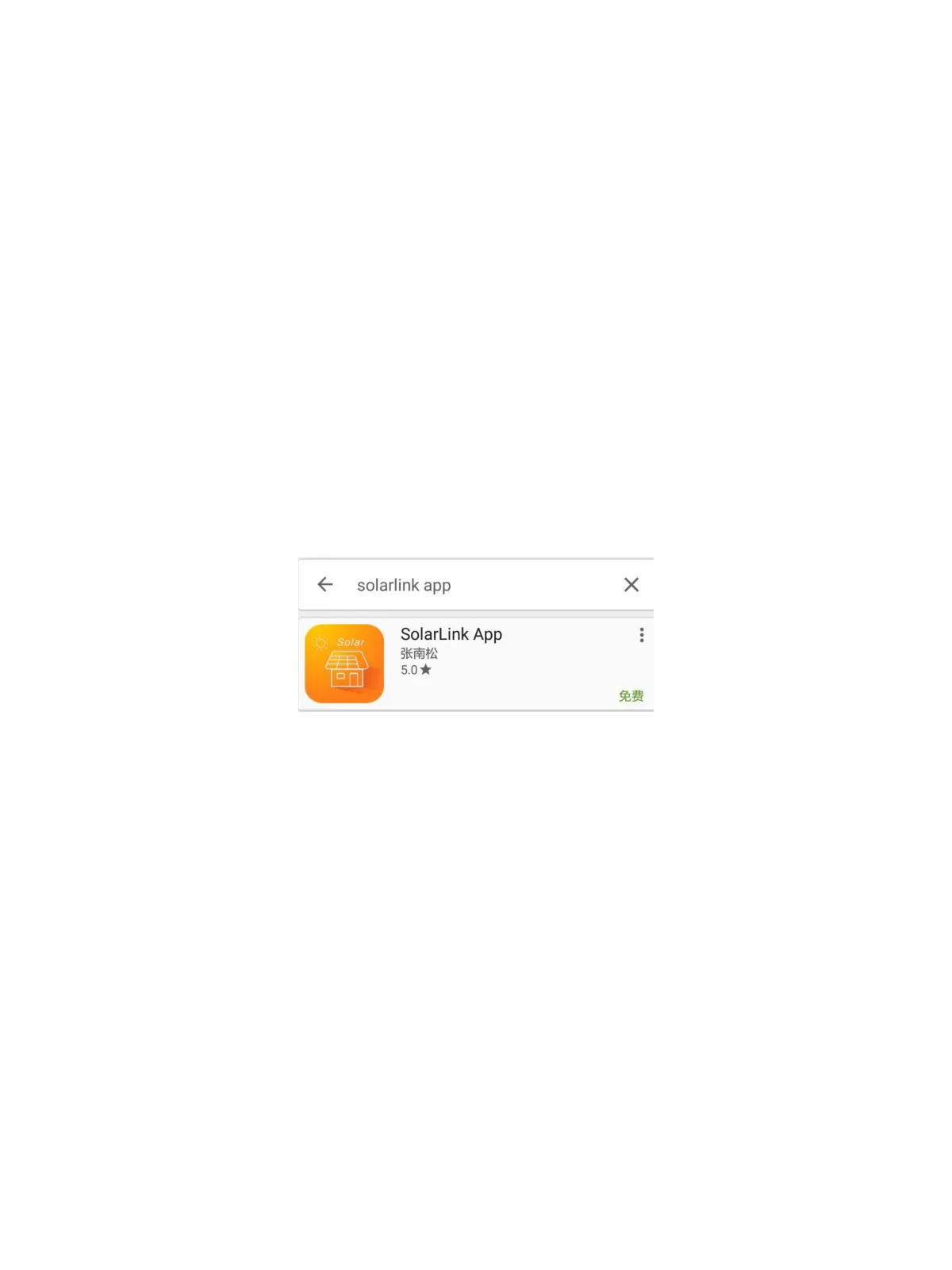

For Androidsystems: simply go to Google Play Store and search for "Renogy BT application".

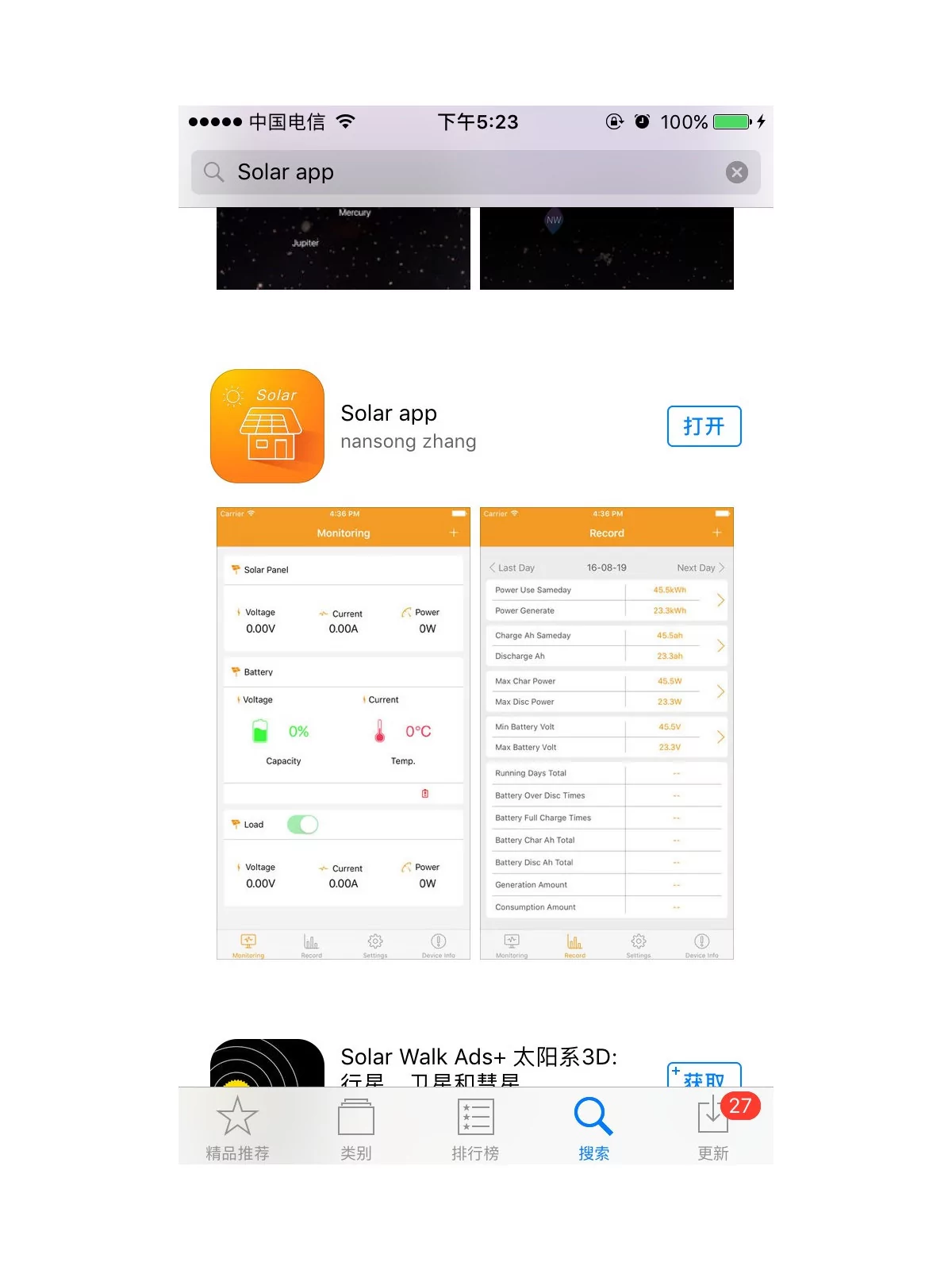

For IOS system: just go to App Store and search for "Renogy BT".
Standby power consumption |
.04W |
Operating power consumption |
.05W |
Communication distance | ≤15m |
Serial baud rate | Fixed baud rate 9600bps |
Connection cable | Standard network cable (parallel cable) |
Installation dimensions | 57.5, φ3.2mm |
Operating temperature |
to 75°C |
