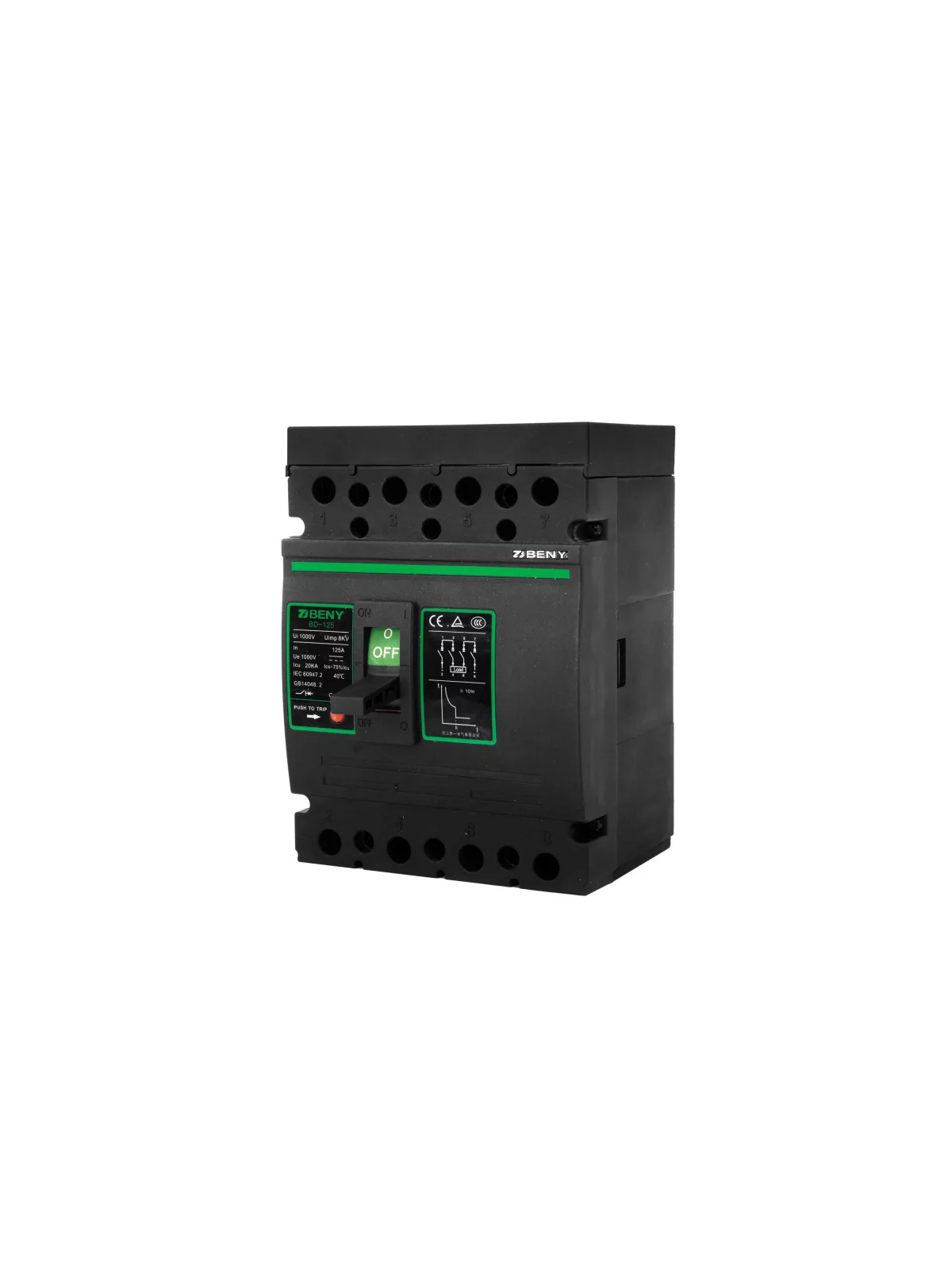

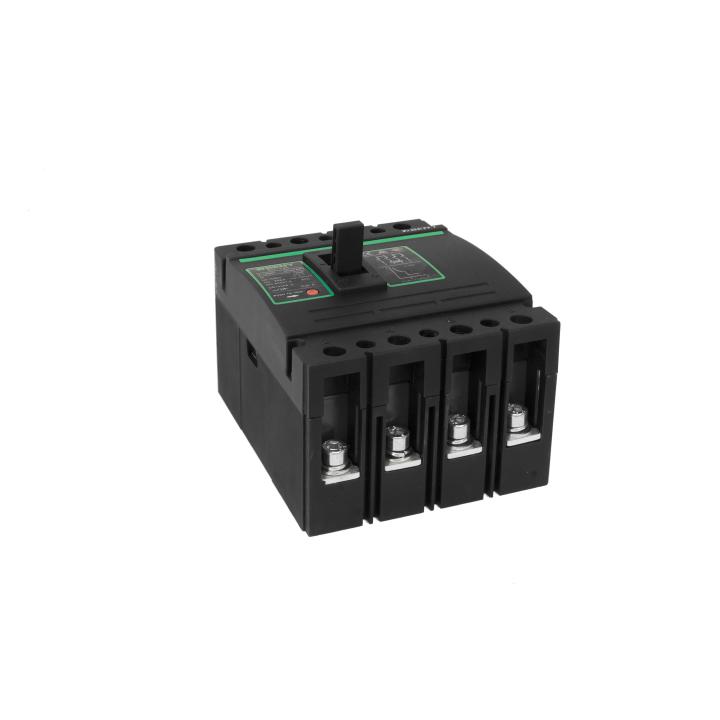

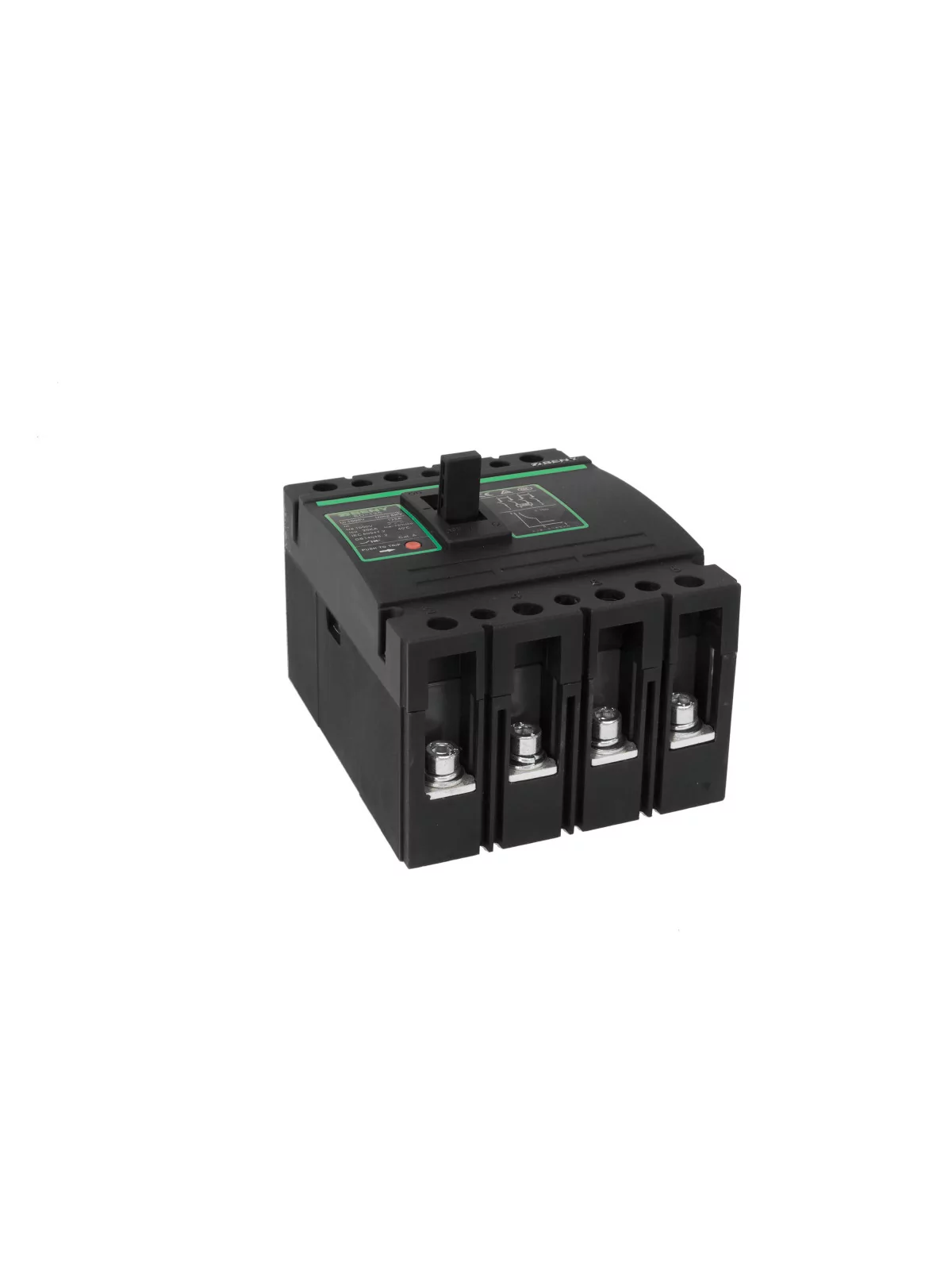

DC 1000V 125A Isolator Switch
€228.97
Tax included
" DC 1000V - 125A Switch to disconnect the panels "
Technical characteristics
| Pole | 4P |
| Max Rated Current | 125A |
| Rated Working Voltage | 1000V DC |
| Rated Current | 60/80 - 100/125 |
| Tension DC max | 1000V DC |
| Tension AC max | 8KV |
| Service Life/Cycle Operation - Mechanical | 14000 |
| Service Life/Cycle Operation - Electrical | 5000 |
| 1 Min Power Frequency Withstand Voltage | 3.8 KV |
| Ultimate Breaking Capacity | 20 KA |
| Run Breaking Capacity | 15 KA |
| Tripping Type | Thermal Magnetic Type |
| Ingress protection | All Sides IP40 ,Connection Terminal IP20 |
| Comply With | IEC60947-2/GB14048.2 |
| Storage Temperature | -45℃~+70℃ |
| Size (L x W x H) | 150x122x92 |
0732
Data sheet
- Type of electrical equipment
- Sectionneur
