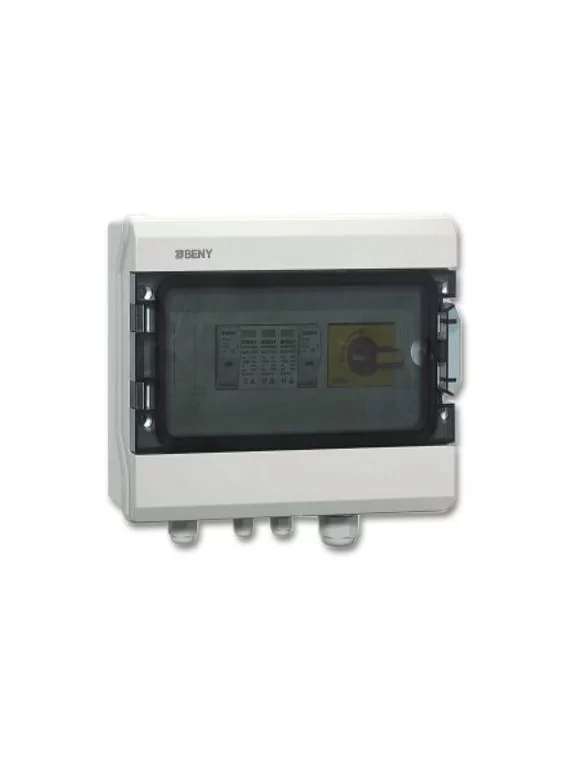

ZJBENY DC single 1 input and 1 output 1000V 32A surge protector box
€147.29
Tax included
BHS-1/1
0768563816635
DC surge protector box
Contact fuse holder without risk for fingers, 15A fuse for positive and negative.
With SPD type 2 surge protection.
The BHS-1/1/1 box, for the protection of 1 string panels with SPD type 2 surge protection.
Total switch-disconnector 1000V 32A DC to the output of an MPPT inverter.
17 item(s) left in Stock!
ZJBENY DC single 1 input and 1 output 1000V 32A surge protector box
For the protection of panels in a string
With
• an entrance from the signs;
• an output from the string to the inverter.
Contact fuse holder without risk for fingers, 15A fuse for positive and negative.
With SPD type 2 surge protection.
The BHS-1/1/1 box, for the protection of 1 string panels with SPD type 2 surge protection.
Total switch-disconnector 1000V 32A DC to the output of an MPPT inverter.
With TUV certificate and provision of customized solutions for different targets. Each string box and combinator will be tested before delivery.
Size
Schematic diagram
Characteristics
| General data | |
| Model Number | BHS-1/1/1 |
| Entrance | 1 string |
| Exit | 1 string |
| Maximum voltage | 1000V |
| Maximum DC short-circuit current per input (Isc) | 15A (editable) |
| Maximum output current | 32A |
| Case | BX-13 |
| Type of material | Polycarbonate/ABS |
| Degree of protection | IP65 |
| Degree of impact resistance | IK10 |
| Dimension | 292 x 220 x 120mm |
| Cable input Input | 2 PG09 Gland, 2.5-16mm |
| Output cable gland | 2 PG21 2.5-16mm |
| DC switch-disconnector | BYT.2-32/BYS |
| Nominal isolation voltage | 1000V |
| Rated current | 32A |
| Category | DC21B/PV2 |
| Compliance with the standard | IEC 60947-3 |
| Certificate | UL, TUV,KEMA,SAA,CE |
| DC Surge Protector | BUD-40/3 |
| Maximum operating voltage (Ucpv) | 1000V |
| Compliance with the standard | EN 50539 Type 2 |
| Maximum discharge current | 40 KA |
| Certificate | TUV CE |
| DC fuse holder | BR-30 |
| Led | Yes |
| Nominal operating voltage | 1000V |
| Fuse link | 10x38mm |
| Certificate | LITTEL 15A UL,CB,CE |
| Environment | |
| Operating temperature | -20°C~+60°C |
| Humidity | 99,00% |
| Altitude | 2000M |
| Installation | Wall mount |
