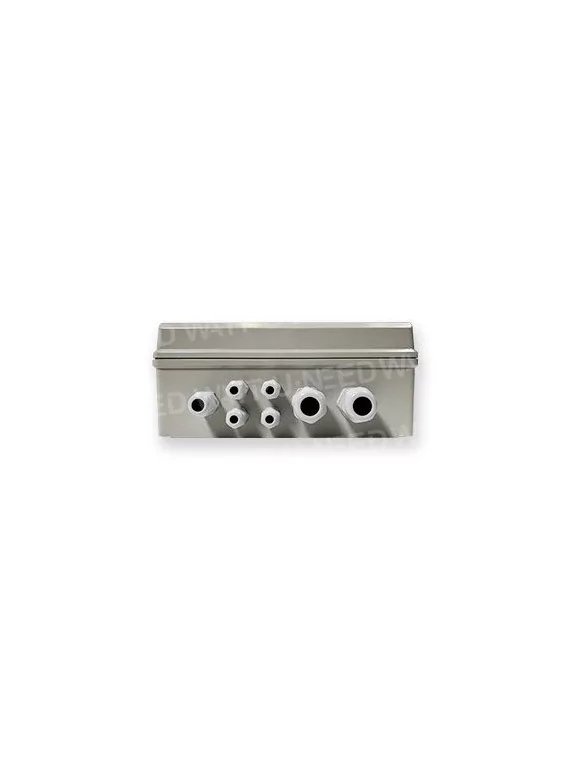

ZJBENY DC double 2 inputs and 2 outputs 1000V 32A
€249.26
Tax included
BHS-2/2
0768563816642
DC surge protector box
Contact fuse holder without risk for fingers, 15A fuse for positive and negative.
With SPD type 2 surge protection.
The BHS-2/2 box, for the protection of 2-string panels with SPD type 2 surge protection.
Total switch-disconnector 1000V 32A DC to the output of an MPPT inverter.
39 item(s) left in Stock!
ZJBENY DC double 2 inputs and 2 outputs 1000V 32A
The BHS series DC string combination housings provide branch-level protection to integrated solar PV systems with load breaker, with overcurrent protection and transient overvoltage suppression.
For the protection of panels in two strings

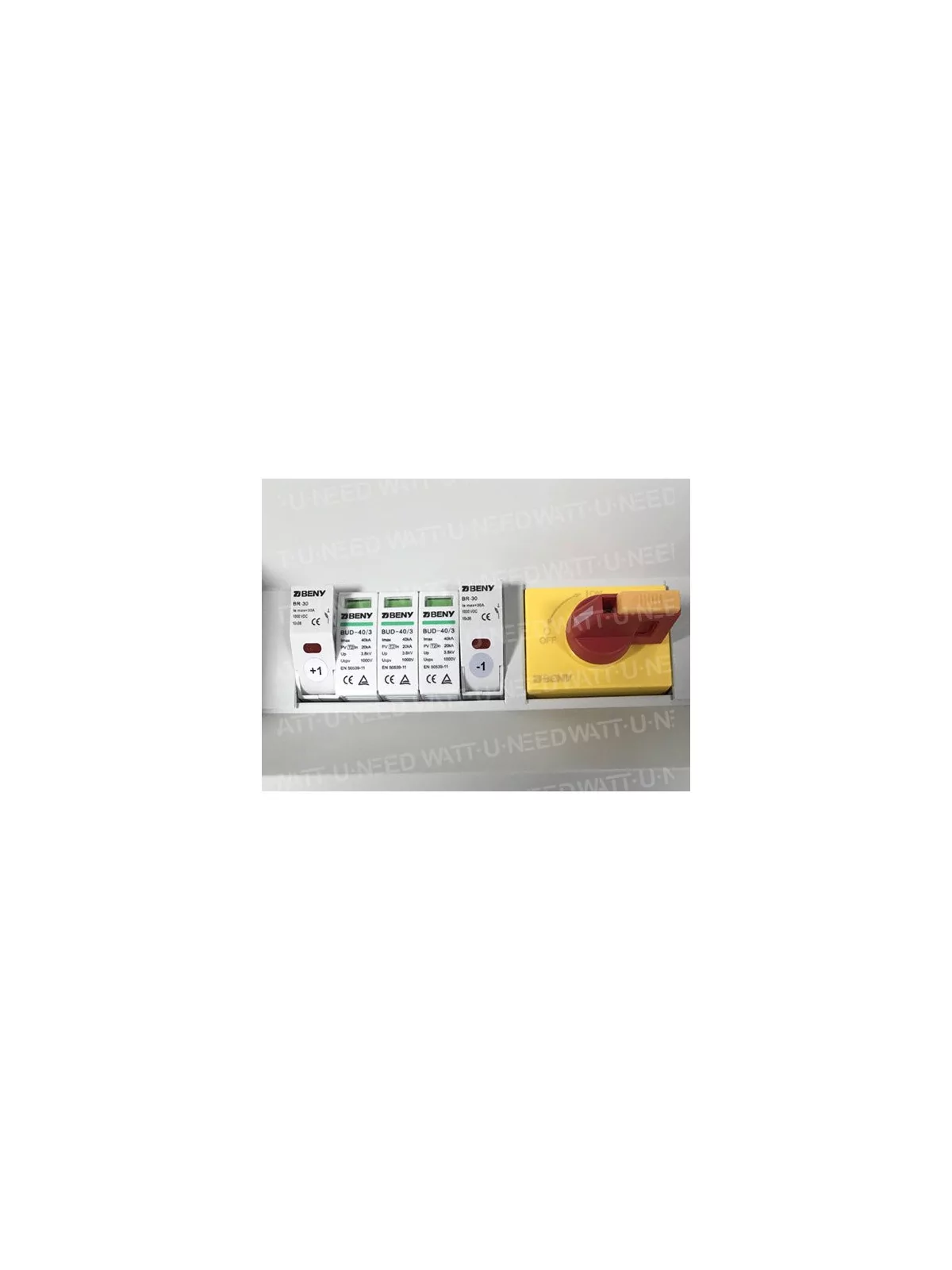

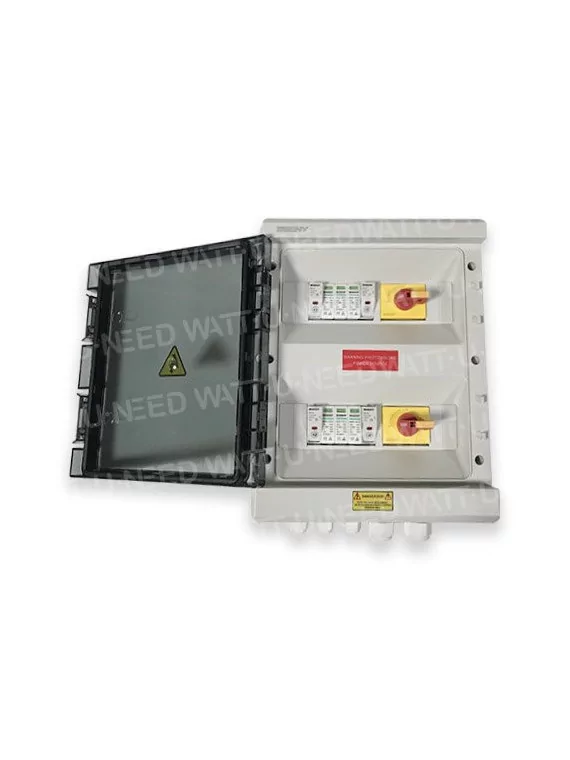

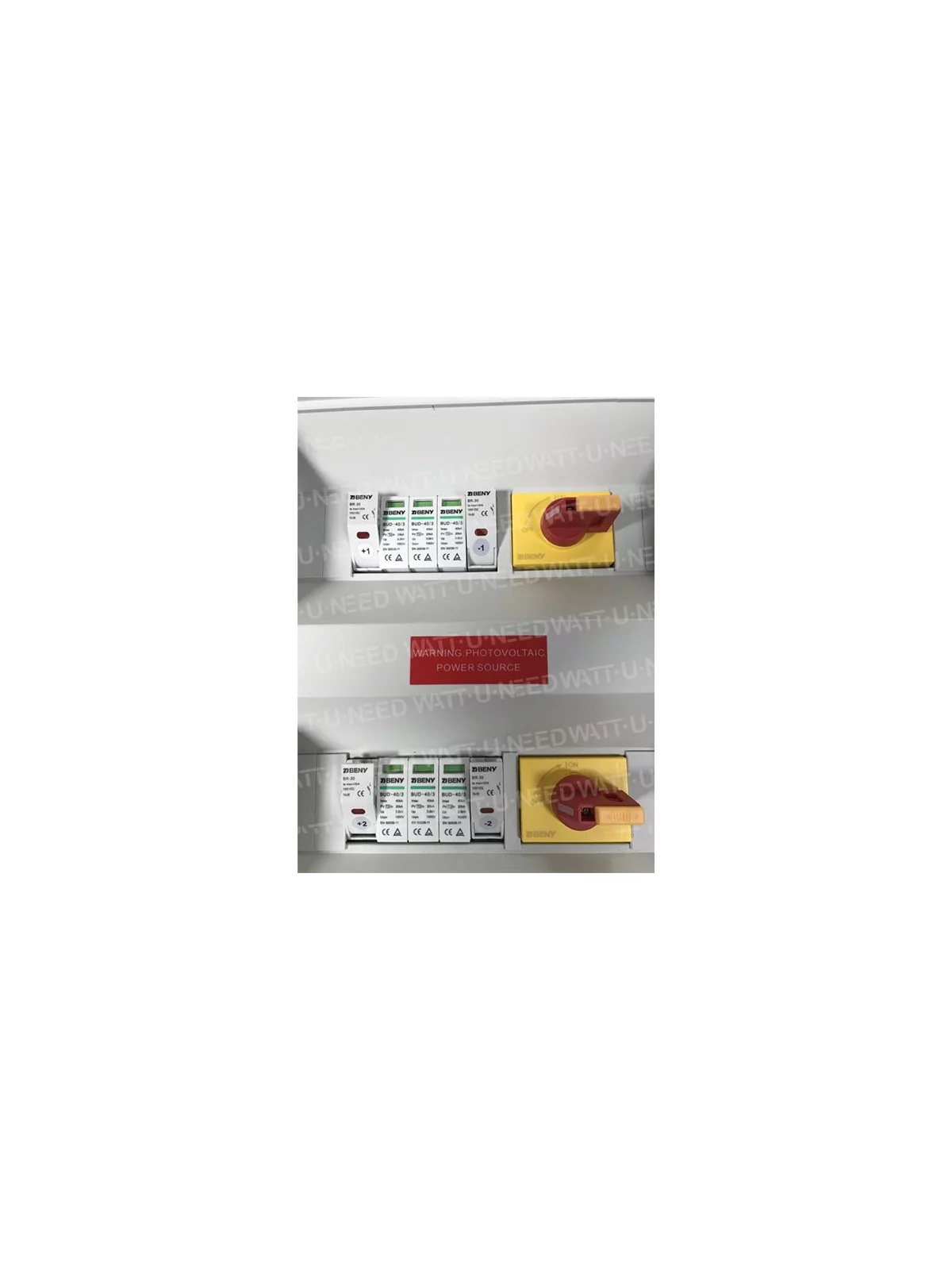

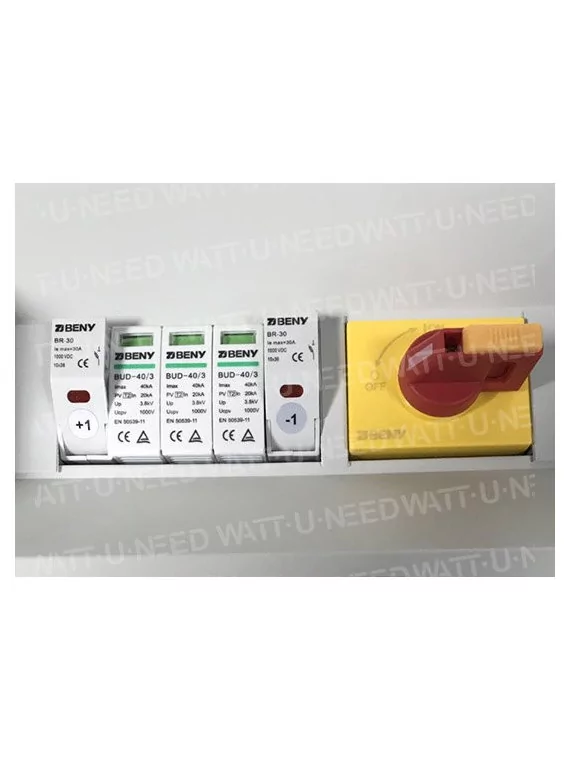

DC surge protector box consisting of 2 input strings, 2 output strings BHS-2/2. It is also equipped with the brand new DC-PV2 1000V disconnector, a DC 1000V fuse holder with secure touch and a type 2 DC surge arrester.
These reliable PV components provide maximum protection at branch level.
The solar PV system remains safe and in good working order, extending the life of the system.
Characteristics
- 1000V
- Input 2 strings
- Output 2 strings

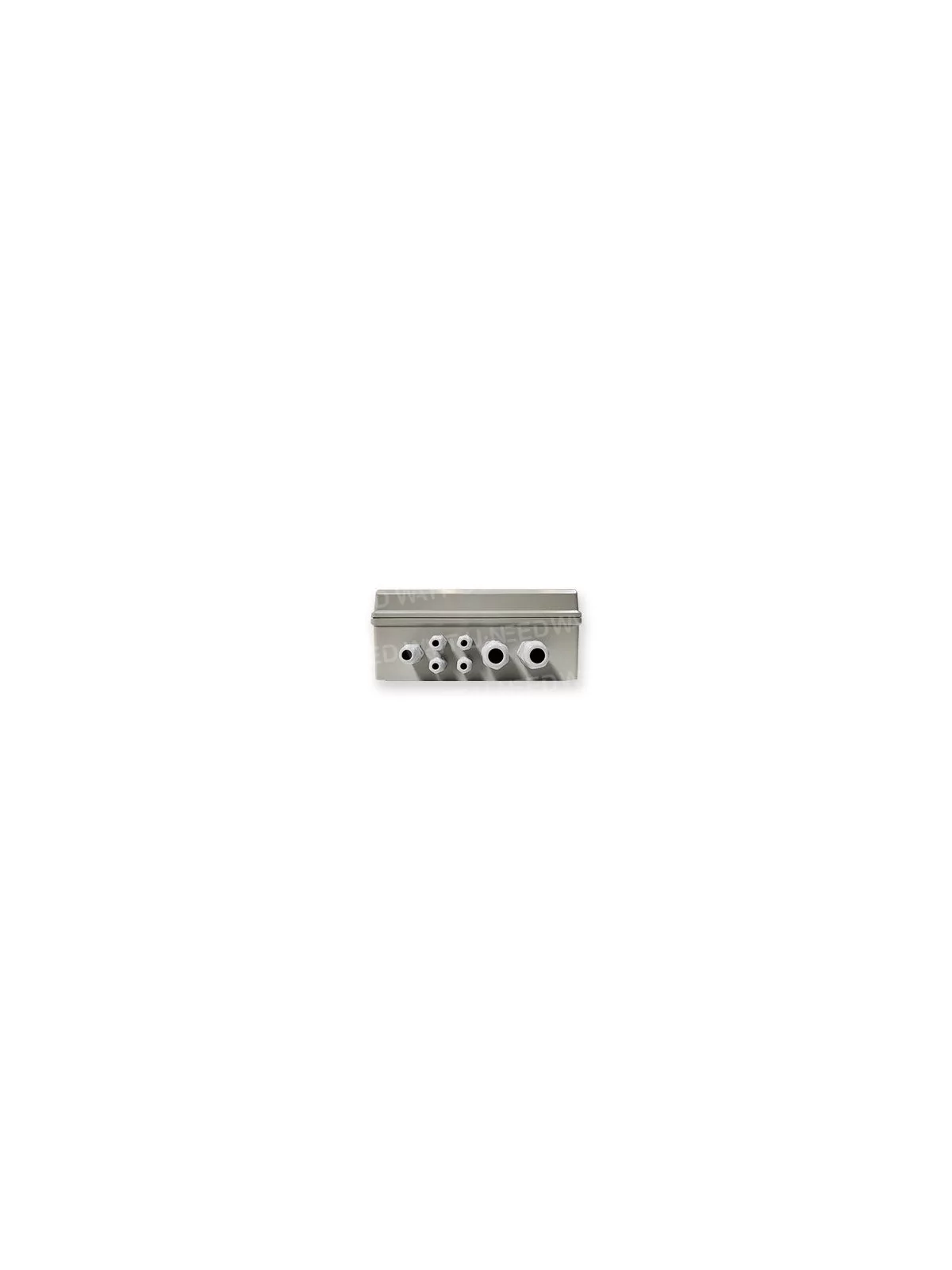

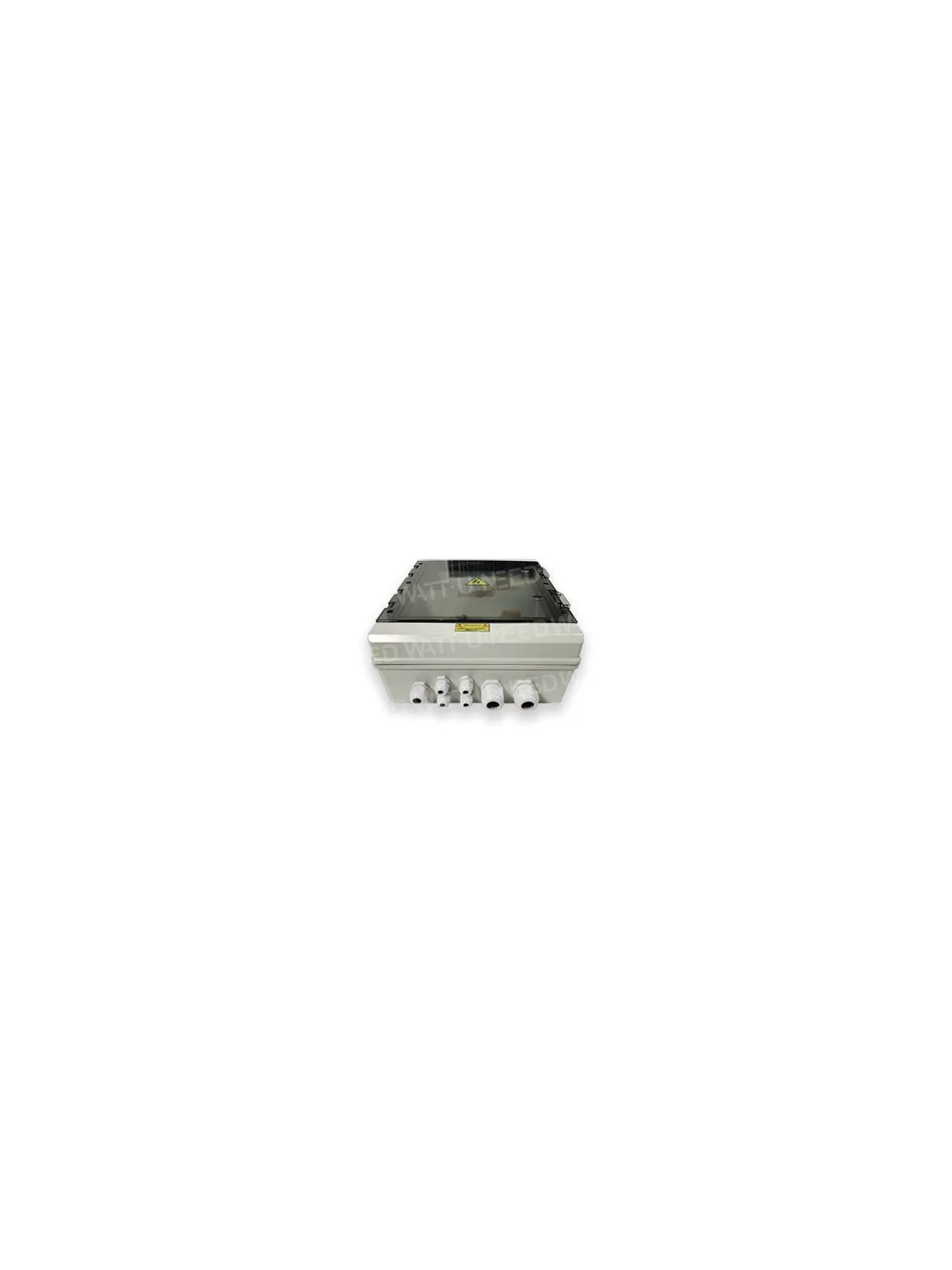

Housing: BX-26
- IP65 degree of protection for exterior and interior
- UV resistance, flame retardant PC material
- Dimension 292 x 370 x 132 mm
DC switch: BYT.2a-32
- 1000V 4P 32A
- Category DC-PV2 Highly reliable
- IEC 60947.3
Type 2 DC Surge Arrester: BUD-40/3
- Surge protection
- 1000V 40 KA
- IEC61643 / EN50593
- Recommended by the biggest brands of inverters
DC fuse holder: BR-30
- Overcurrent protection
- LED indicator
- Protection against contact with fingers
- 10 x 38 mm LITTEL 1000V 15A

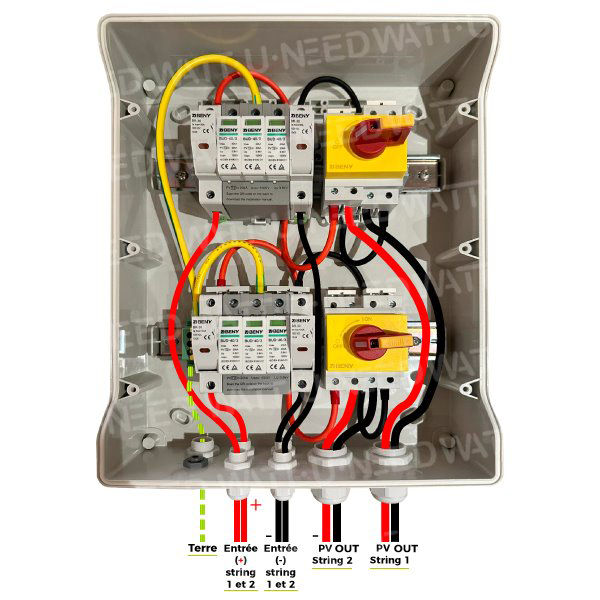

Schematic diagram
Characteristics
| General data | |
| Model Number | BHS-2/2 |
| Entrance | 2 string |
| Exit | 2 string |
| Maximum voltage | 1000V |
| Maximum DC short-circuit current per input (Isc) | 15A (editable) |
| Maximum output current | 32A |
| Case | BX-26 |
| Type of material | Polycarbonate/ABS |
| Degree of protection | IP65 |
| Degree of impact resistance | IK10 |
| Dimension | 292 x 370 x 132 mm |
| Cable input Input | PG09 Gland, 2.5-16mm |
| Output cable gland | PG21 2.5-16mm² |
| DC switch-disconnector | BYT.2-32/BYS |
| Nominal isolation voltage | 1000V |
| Rated current | 32A |
| Category | DC21B/PV2 |
| Compliance with the standard | IEC 60947-3 |
| Certificate | UL, TUV,KEMA,SAA,CE |
| DC Surge Protector | BUD-40/3 |
| Maximum operating voltage (Ucpv) | 1000V |
| Compliance with the standard | EN 50539 Type 2 |
| Maximum discharge current | 40 KA |
| Certificate | TUV CE |
| DC fuse holder | BR-30 |
| Led | Yes |
| Nominal operating voltage | 1000V |
| Fuse link | 10x38mm LITTEL 15A |
| Certificate | UL,CB,CE |
| Environment | |
| Operating temperature | -20°C~+60°C |
| Humidity | 99,00% |
| Altitude | 2000M |
| Installation | Wall mount |
