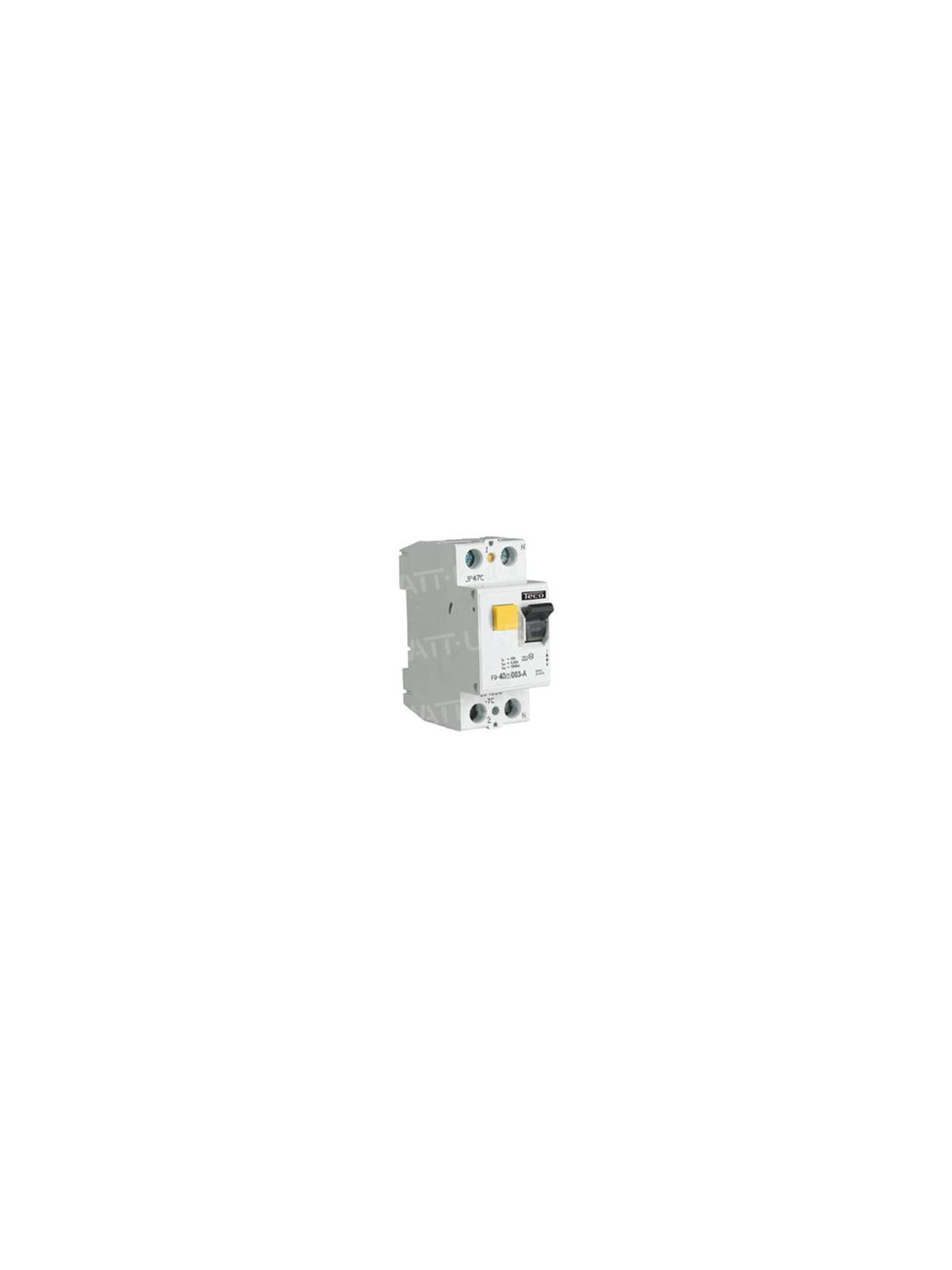

Differential switch TC 2P 80A 300MA type A
rated rated current | 80 amps |
rated voltage | 230 volt |
type of differential current | Has |
rated insulation voltage Ui | 440 volt |
voltage type | CA |
selective type | No |
with locking device | No |
possible auxiliary devices | Yes |
short-term delayed type | Yes |
nominal fault current | 0.3 ampere |
protection class (IP) | IP20 |
frequency | 50 Hz |
mount type | DIN rail |
width in partition units | 2 |
short-circuit resistance (Icw) | 3 kiloampere |
shock current capacity | 0.25 kiloampere |
anti-deflagration | No |
flush mounting depth | 45 mm |
