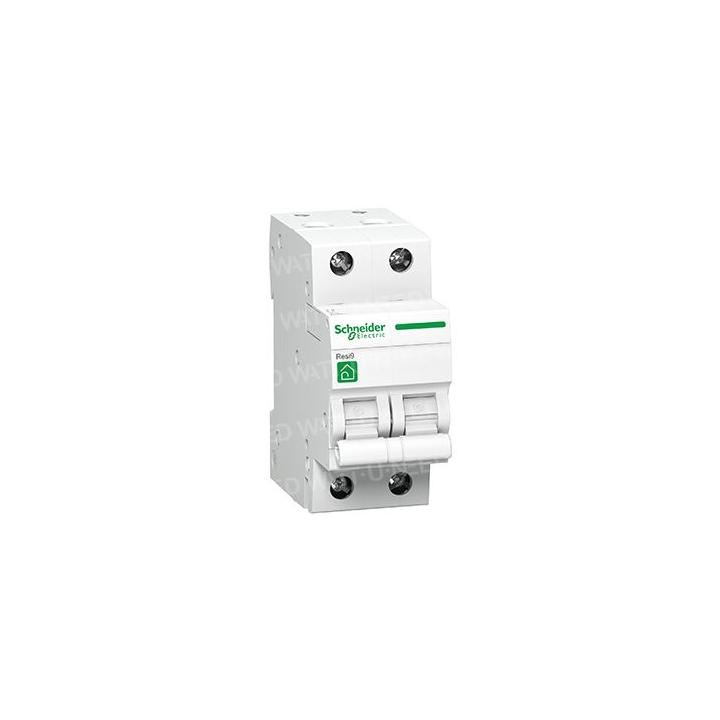

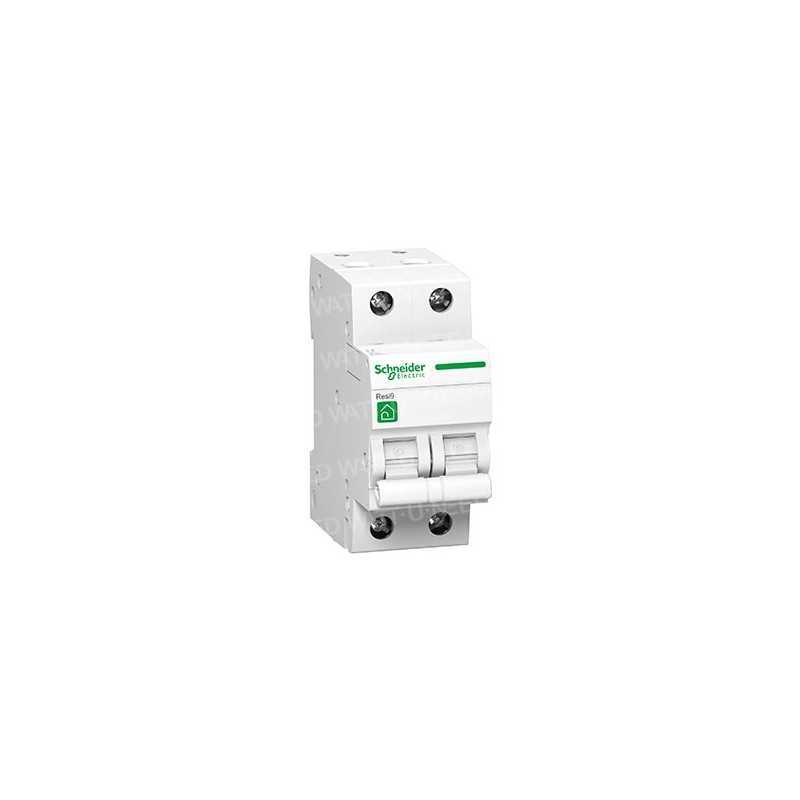

Circuit breaker Schneider mono 32A

Main features

Range

Resi9

Product name

Resi9 MCB

Type of product or component

Miniature circuit-breaker

Device

application

Distribution

2P

Pole description

2

Number of protected poles

[In] rated operating current

32 A at 30 °C

C.

Mains type

a.

Trip technology

Thermal-magnetic

C

Trip curve

capacity

Breaking

3000 A Icn at 230 V c.a. 50/60 Hz in compliance with EN/IEC 60898-1

Standards

EN/IEC 60898-1

Product certifications

CEBEC

Supplementary

Mains frequency

50/60 Hz

a.

[Ue] rated operating voltage	230 V
a. 50/60 Hz

5

Magnetic tripping limit

...10 x In

3

Limitation class

according to EN/IEC 60898-1

.

[Ui] rated insulation voltage	440 V a.c
50/60 Hz

4

[Uimp] rated impulse withstand voltage

kV

key

Control type

Toggle

Local signaling	Indication
ON/OFF

Installation mode

Snap-on

Mounting bracket

DIN rail

b

Compatibility of distribution block and comb	Bas:
iconnect

4

9 mm pitch

Height

85 mm

Width

36 mm

Depth

75 mm

Installation depth

44 mm

0

Product weight

.22 kg

Color

White

life

Mechanical

xml-ph-0031@deepl.intea.

50/60 Hz conforming to EN/IEC 60898-1

Description of optional interlocks

Padlock in OFF position

Connection mode

Tunnel terminals (bottom) - <= 35 mm² - rigid Tunnel type terminals (top) - <= 35 mm² - rigid Tunnel type terminals (bottom) - <= 25 mm² - flexible Tunnel type terminals (top) - <= 25 mm² - flexible

Tightening 3

torque

.5 N.m

Environment

Degree of protection IP

IP20 conforming to IEC 60529 IP40 (modular housing) conforming to IEC 60529

2

Pollution degree

conforming to EN/IEC 60898-1

Overvoltage category

III

-25...

Operating temperature

60 °C

-40

Storage ambient temperature

...80 °C
