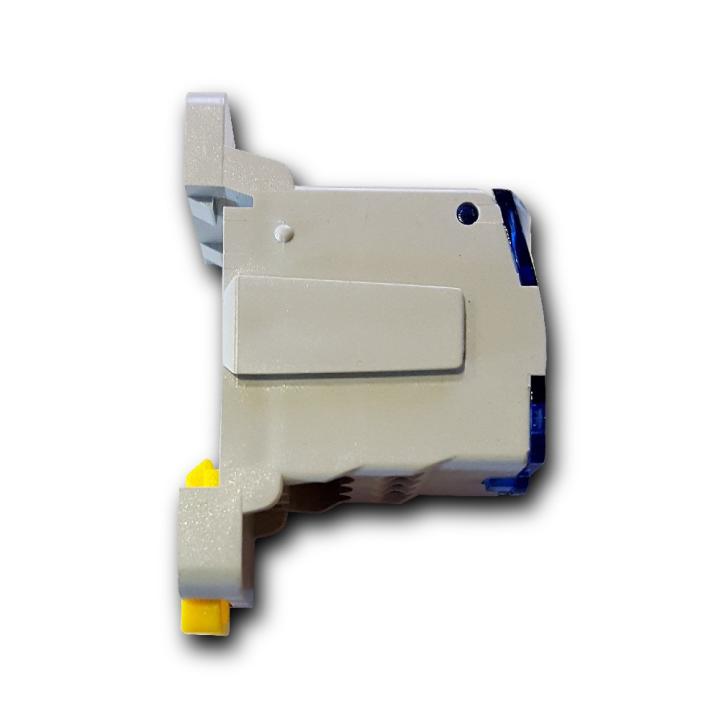

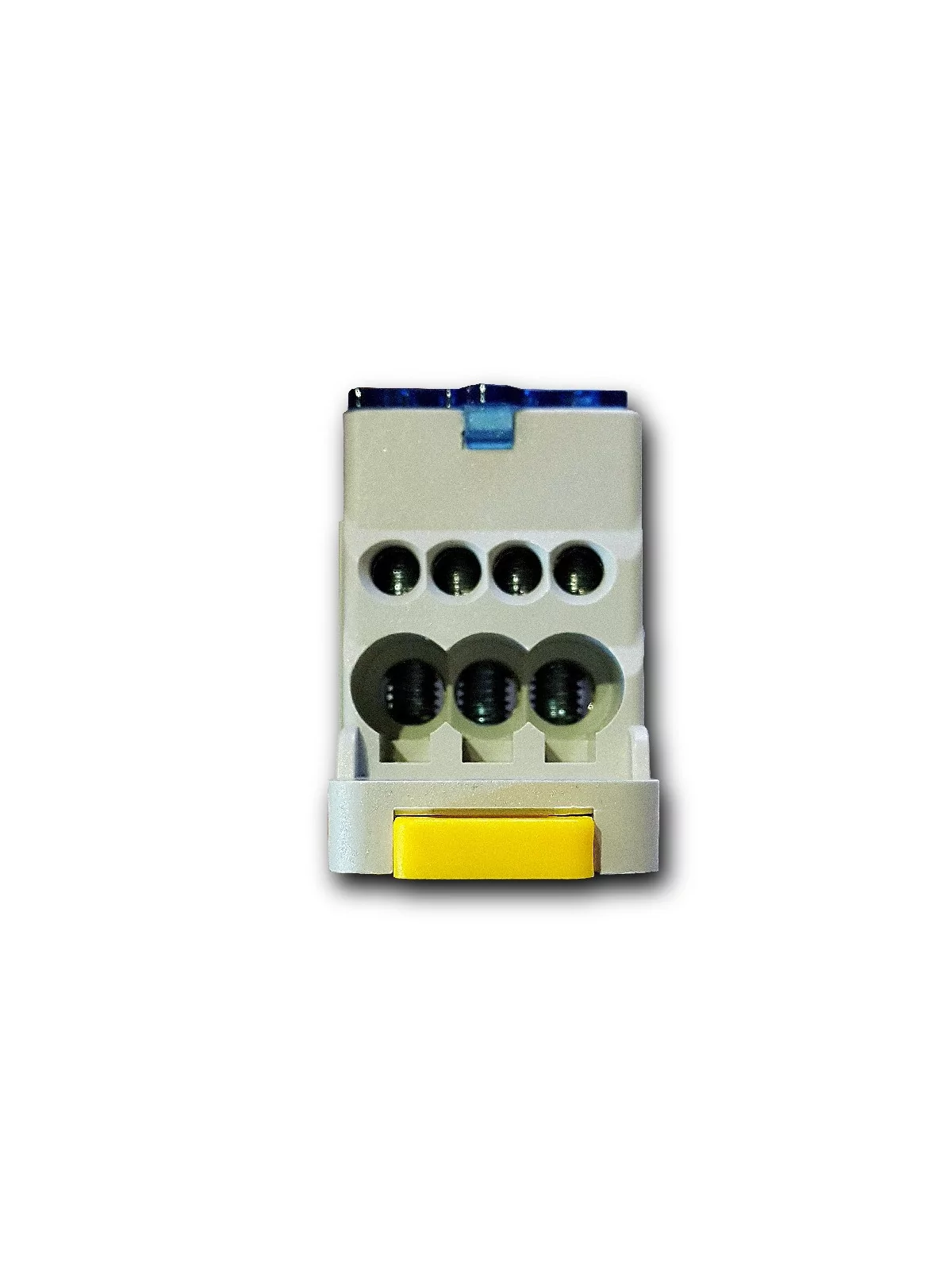

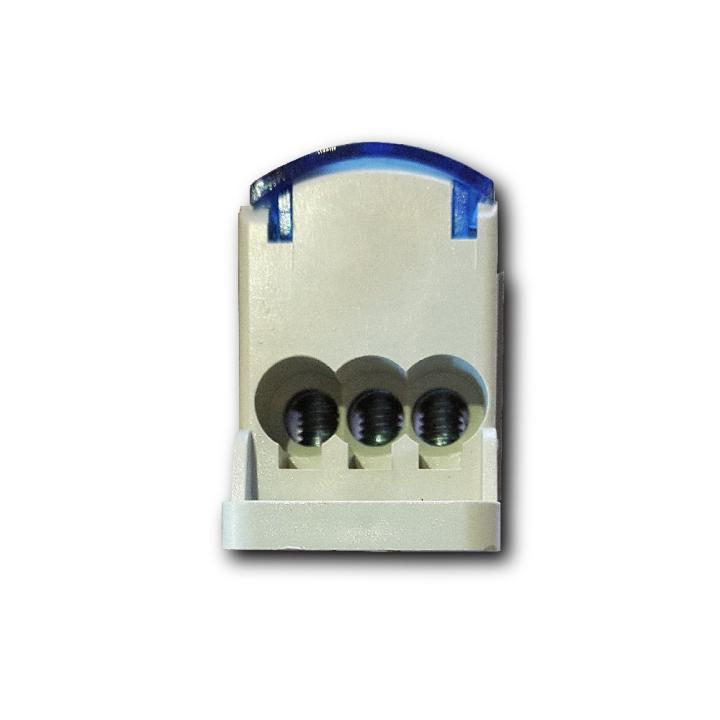

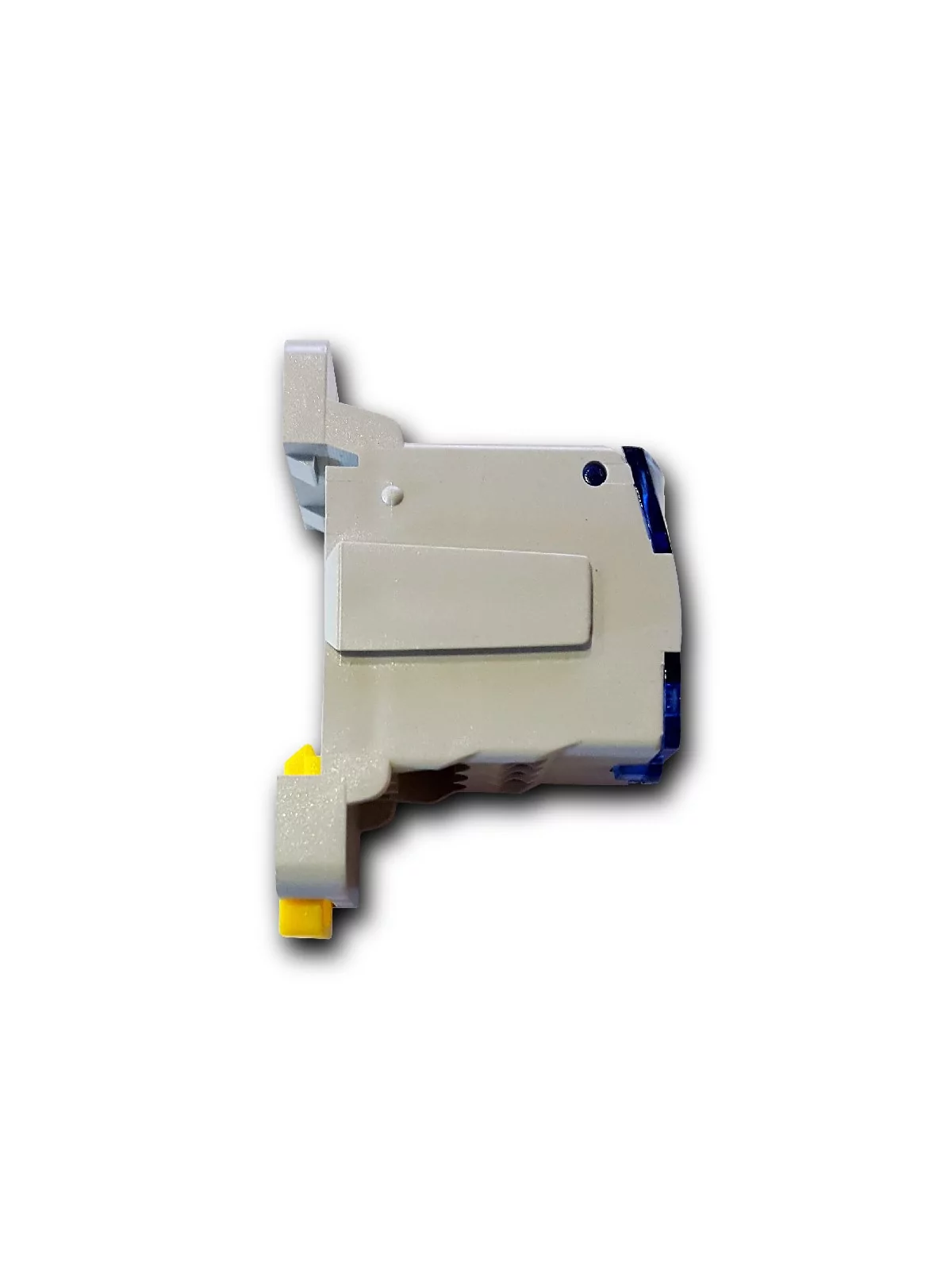

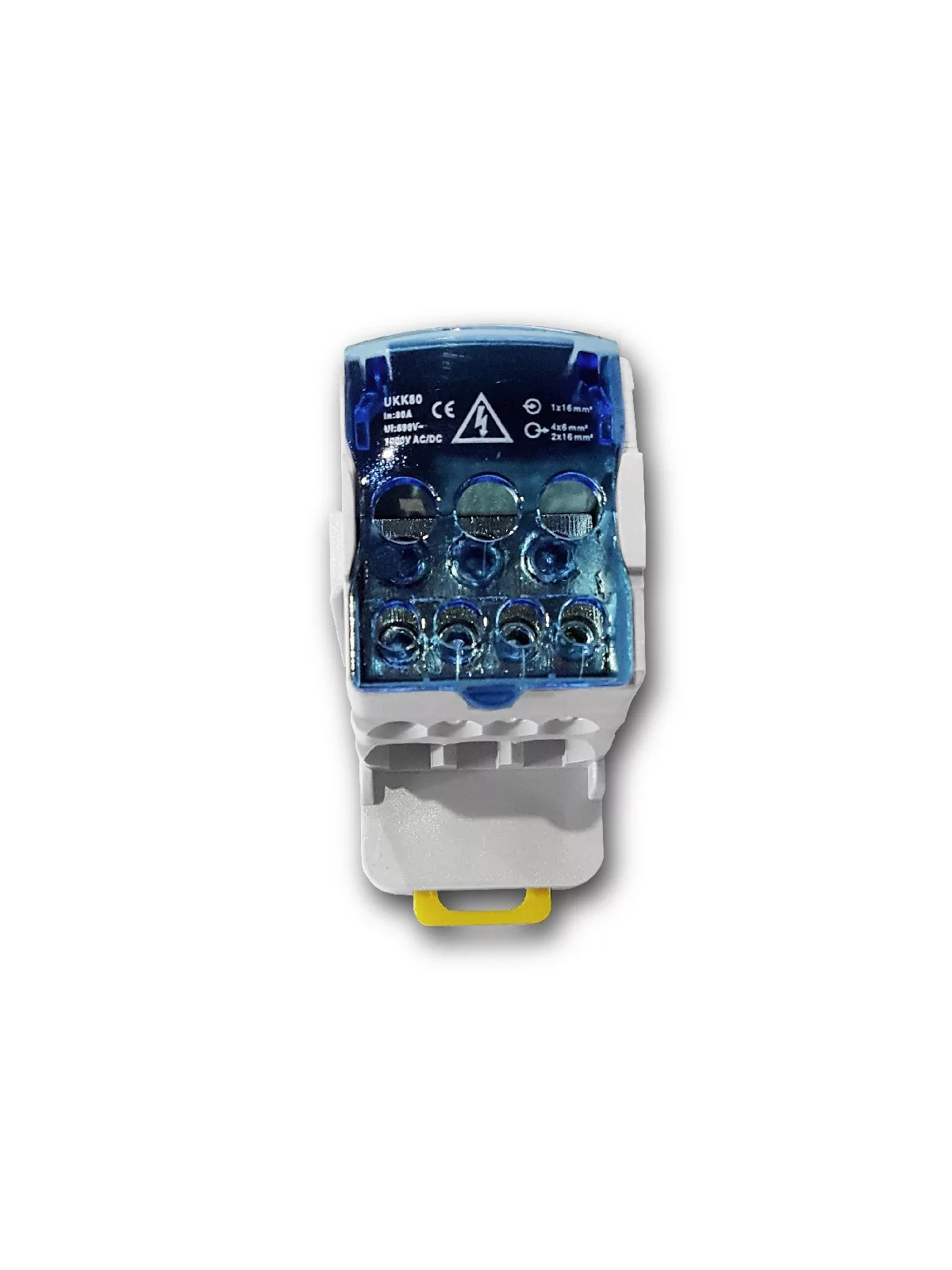

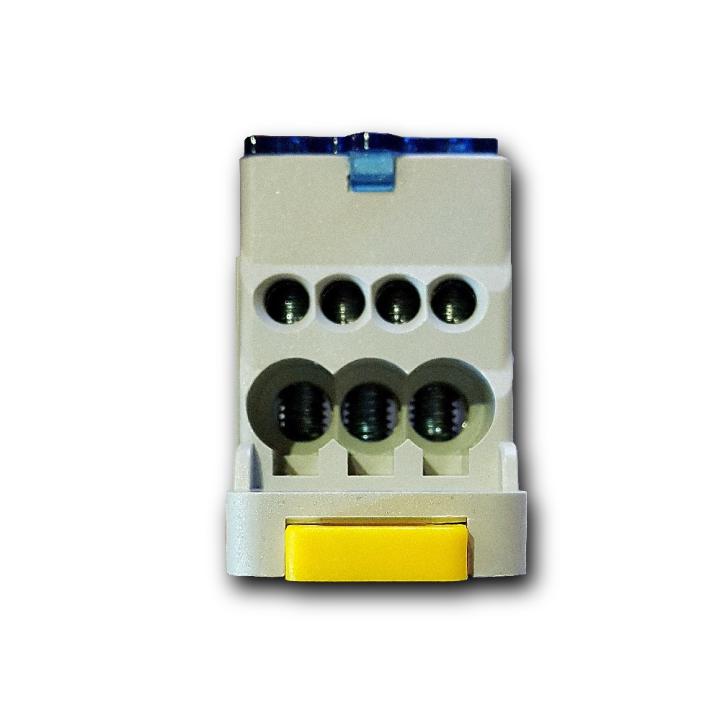

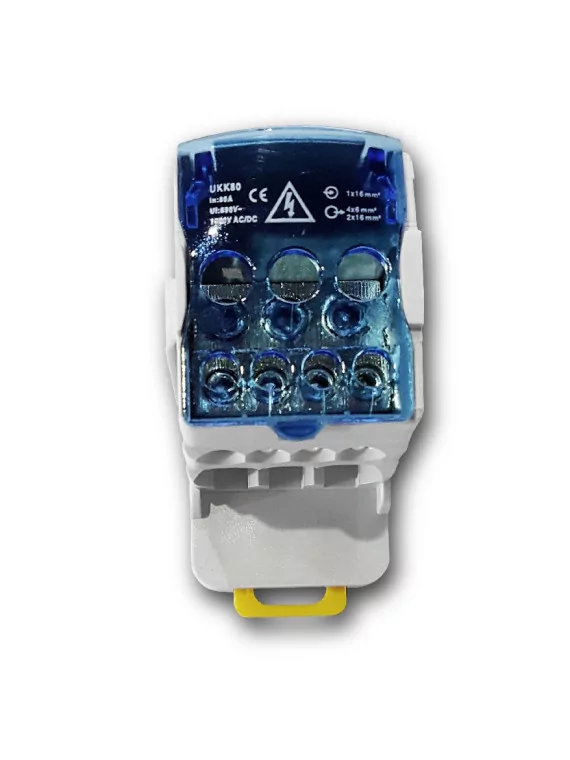

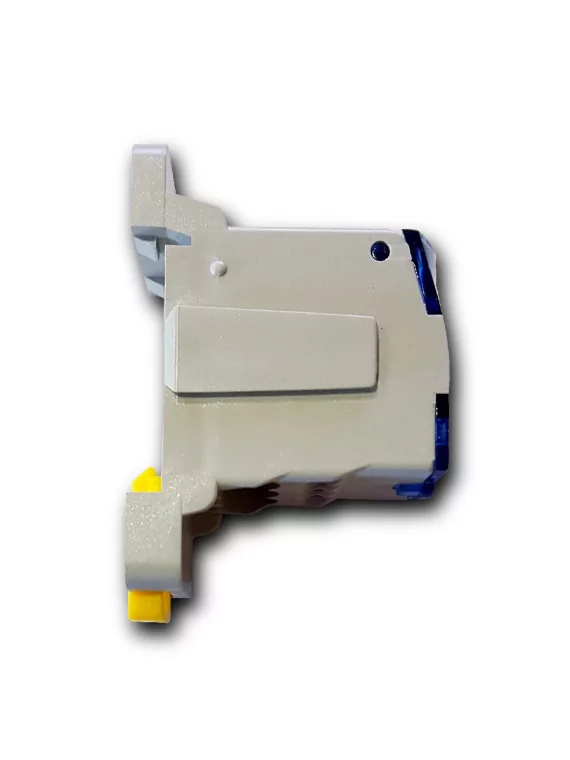

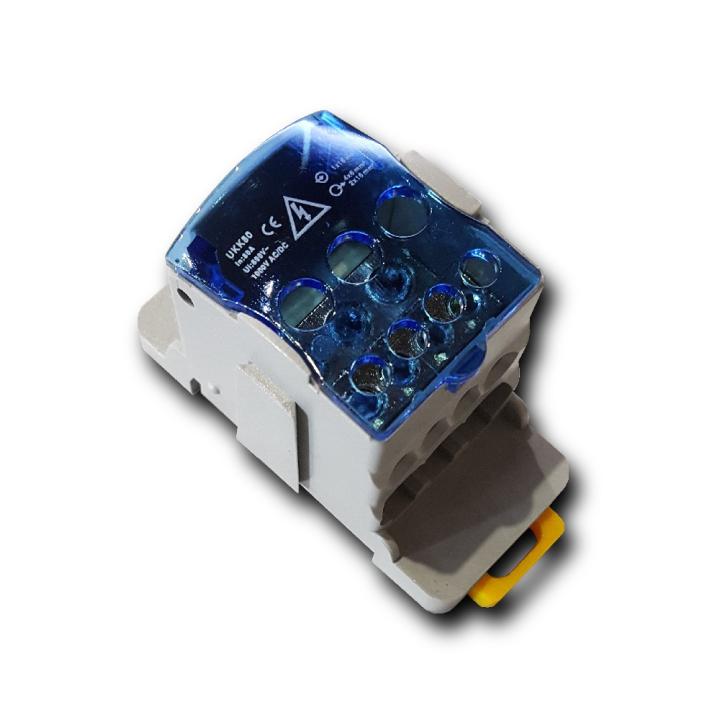

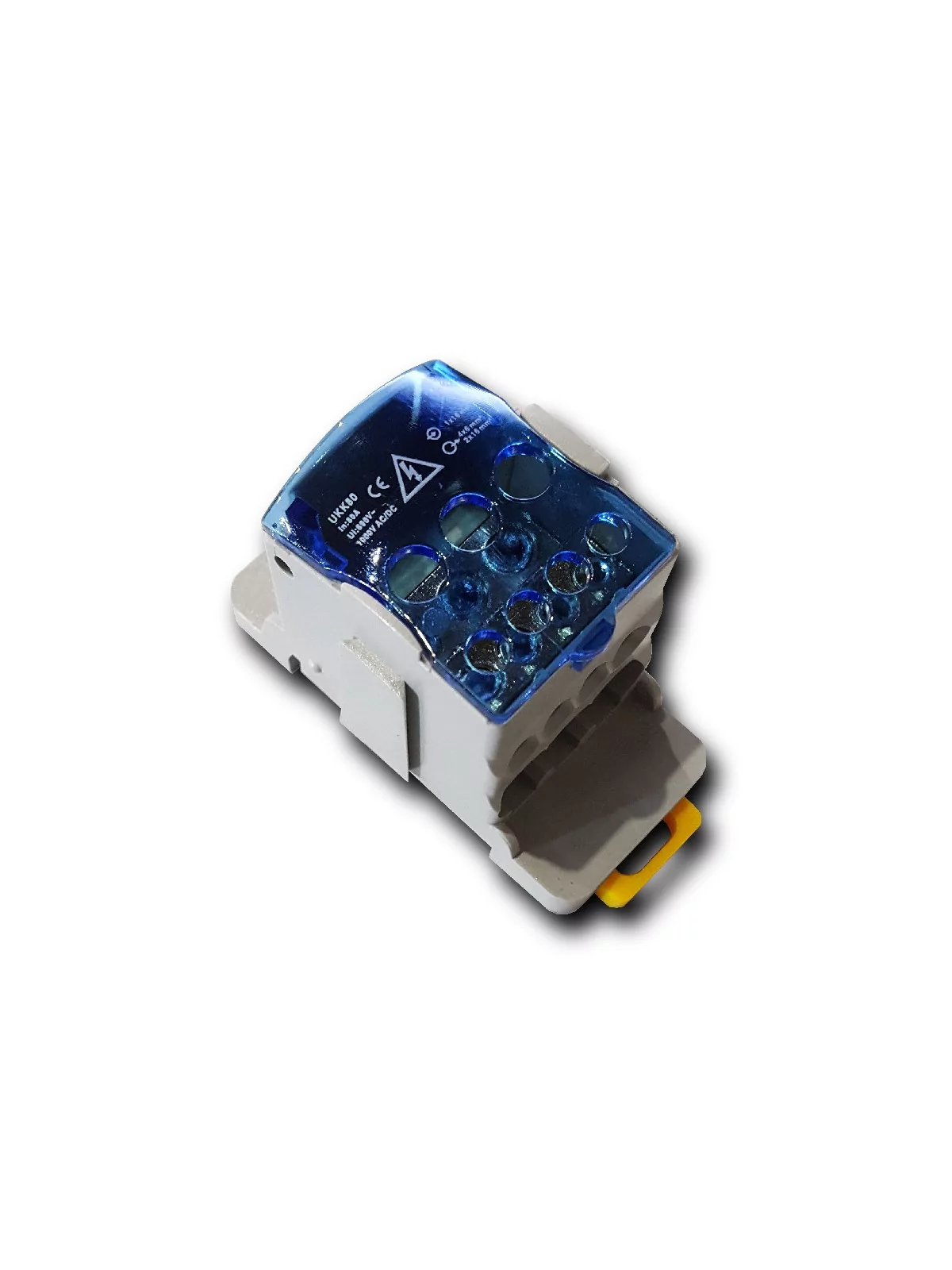

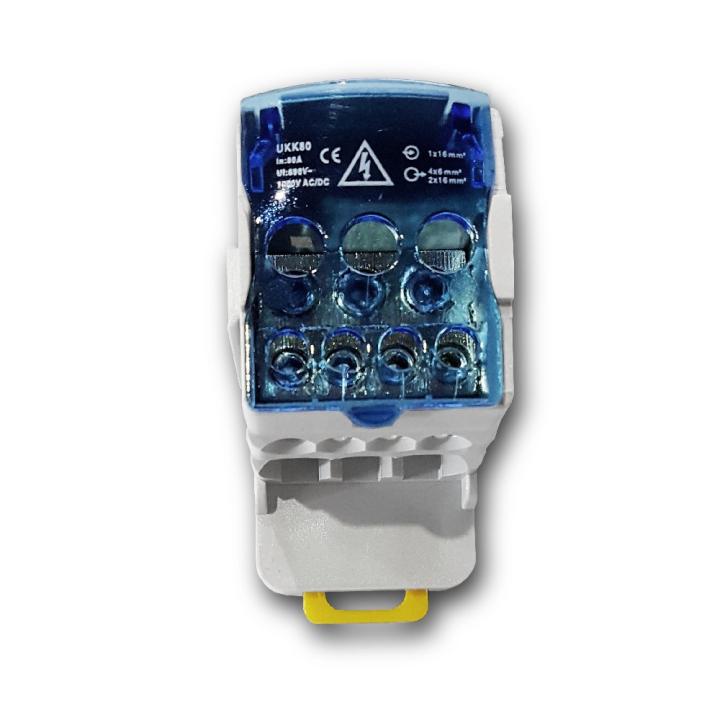

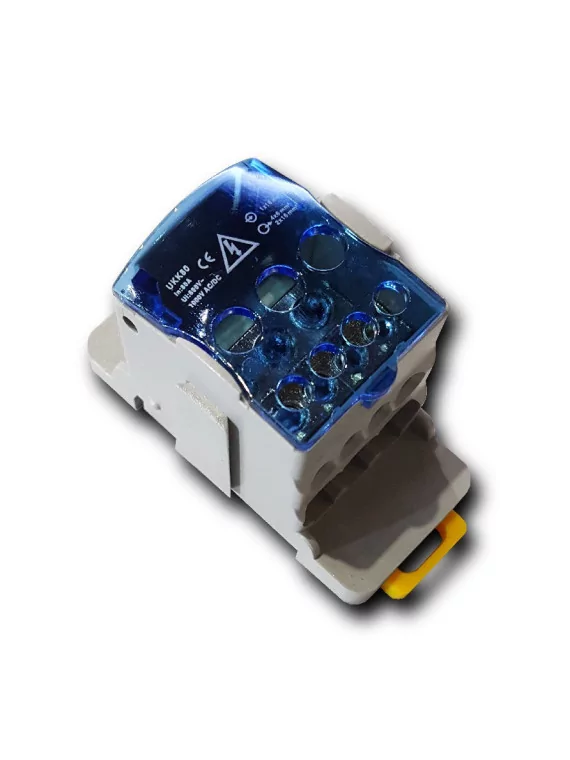

Single Pole Distribution Block 80A
€14.22
Tax included
10266
0712971138506
Unipolar distributor 80A
" Unipolar distributor 80A "
Features
- Increase the number of outputs with one input using a jumper wire
- Tinned copper block allows for copper or aluminum conductor connections
- Screw retaining cover is hinged and removable
- Design allows for visual inspection of conductor and confirmation of connection
- Gangable for building multi-pole power blocks
- Easily clips onto DIN rail or mounts to panel with screws
- 95% fill ratio
- Halogen free
- RoHS compliant
Specifications
Material: Copper; Thermoplastic
Finish: Tinned
Part Number UD-80A
Article Number 569010
| Max Current Rating, IEC | 80A |
| Max Current Rating, UL/CSA | 85A |
| Short Term Withstand Current (Icw) 1s | 3kA |
| Peak Short Circuit Current (Ipk) | 22kA |
| Short Circuit Current Rating (SCCR) | 100kA |
| Max Working Voltage, IEC (Ui) | 1000 VAC/DC |
| Max Working Voltage, UL (Vin) | 600V |
| Line Side Number of Connections | 1 |
| Line Side Compact Stranded Wire Size | 6 - 16 mm² |
| Line Side Wire Size | #16 – #4 |
| Load Side Number of Connections | 6 |
| Load Side Compact Stranded Wire Size | (2) 2,5 - 16 mm² (4) 2,5 - 6 mm² |
| Load Side Stranded Wire Size - Ferrule | (2) 2,5 - 16 mm² (2) 2,5 - 16 mm² |
| Load Side Wire Size | (2) #16 - #4 (4) #16 - #8 |
| Enclosure Rating | IP 20 |
| Depth (D) | 46 mm |
| Height (H) | 69 mm |
| Width (W) | 30 mm |
| Unit Weight | 0,07 kg |
| Certification Details | UL® 1059 |
| Flammability Rating | UL® 94V-0 |
| Complies With | IEC® 60947-7-1 |
