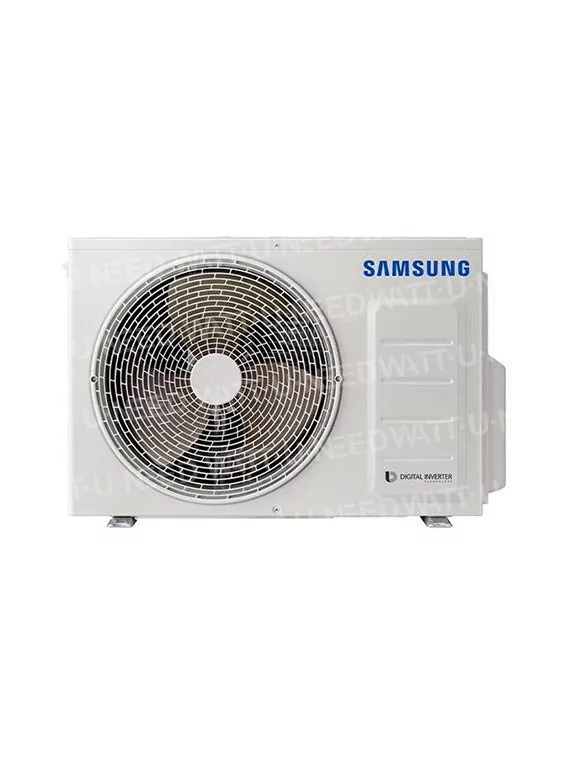

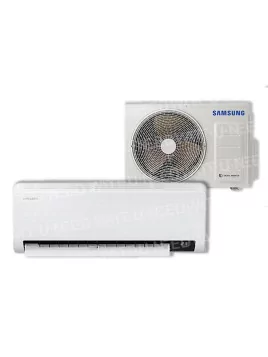

Samsung Wind Free Comfort heat pump from 2.5 to 6.5 kW
The Samsung Wind Free heat pump is available from 2.5 to 6.5 kW provided cleaner, healthier air while eliminating drafts thanks to its micro-perforated design. It provides rapid heating or cooling and consumes little energy.
Please choose your model opposite.
Stay cool comfortably with Wind-Free™ technology.
Available in 4 sizes from 2.75 to 6.50 kW
- High performance (SERR A- / SCOP A)
- Mono and multi-split compatible interior units
- Standard WiFi control by smartphone or tablet
- Long air range: up to 15 metres
- Operating silence: 19 dB (A)
- Air purifier Virus Doctor
- Easy maintenance with Easy Filter filter
- Technology Wind Free : no feeling of draught
Savings and performance thanks to the Digital Inverter
Digital Inverter technology ensures high performance and energy efficiency by removing rotations from the compressor.
By avoiding energy losses due to the Walk/Stop alternation and with improved control, the Samsung air conditioner allows you to significantly reduce energy waste.
This Samsung air conditioner equipped with the Digital Inverter achieves exceptional energy efficiencies, while saving up to 60% of the energy used.
Control your air conditioning systems remotely
Control your Smart-WiFi remote air conditioning systems
With the ability to control how your air conditioner works from your computer or smartphone, you'll never have to worry about forgetting to turn off your system: you can do it remotely! You can also turn it on when you leave your office, and find an already warm or refreshed environment when you get home.
It is also possible to use your smartphone as a remote control, which allows the control of many parameters.
Wind Free technology™
Wind-Free™ technology is such that you may not even notice how it works. Once the desired temperature is reached, the system evenly distributes fresh air without creating unpleasant drafts.
Stay cool all the time

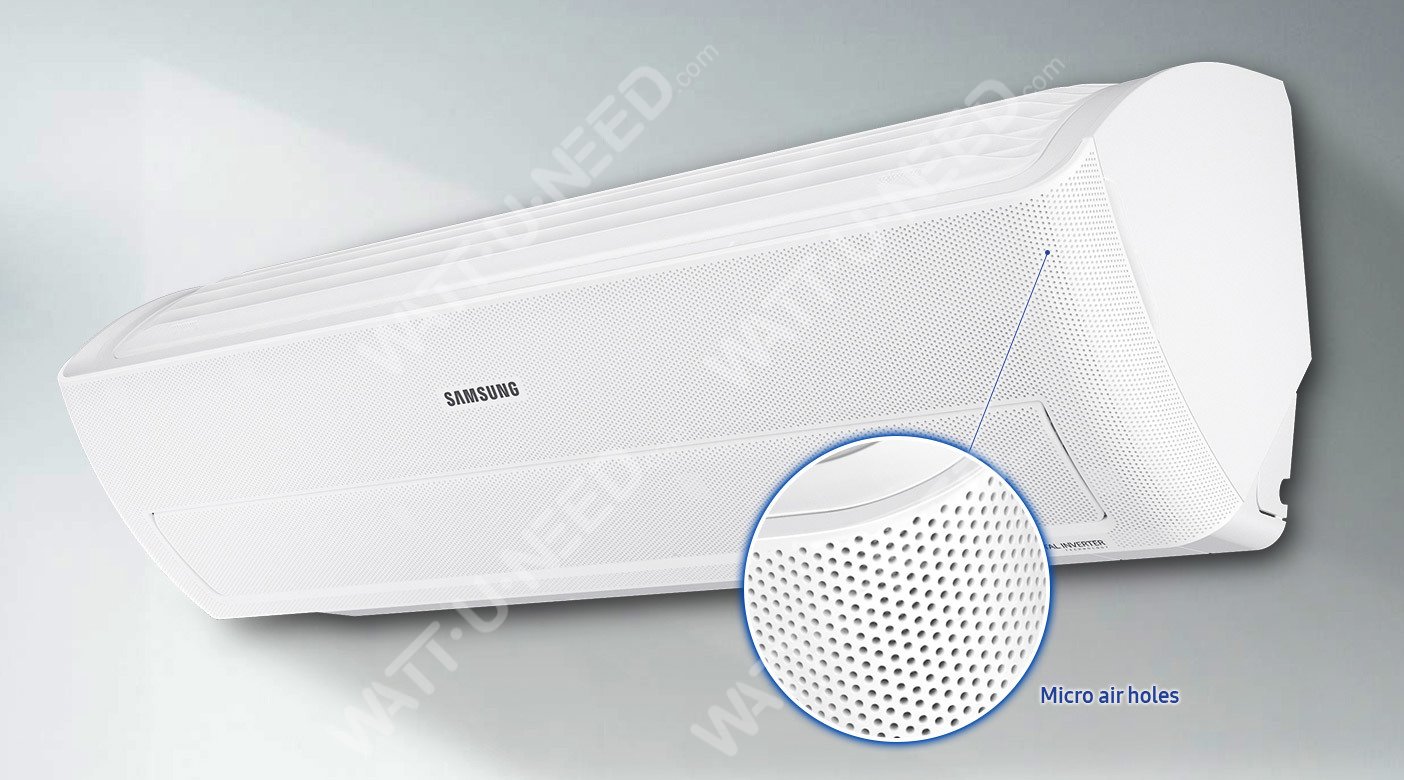

Samsung's Wind-Free™ air conditioning system uses 21,000 micro-perforations to gently and evenly propel air throughout the room. It thus maintains a comfortable level of freshness without any drafts.
Samsung'™ Wind-Free system features a two-step automatic air conditioning system. The desired temperature is quickly reached in Fast Cooling mode, then maintained in Wind-Free™ mode, without drafts.
The new Wind-Free™ Night Mode allows you to get the perfect temperature in your room, ensuring a peaceful sleep without feeling cold at night or when you wake up.

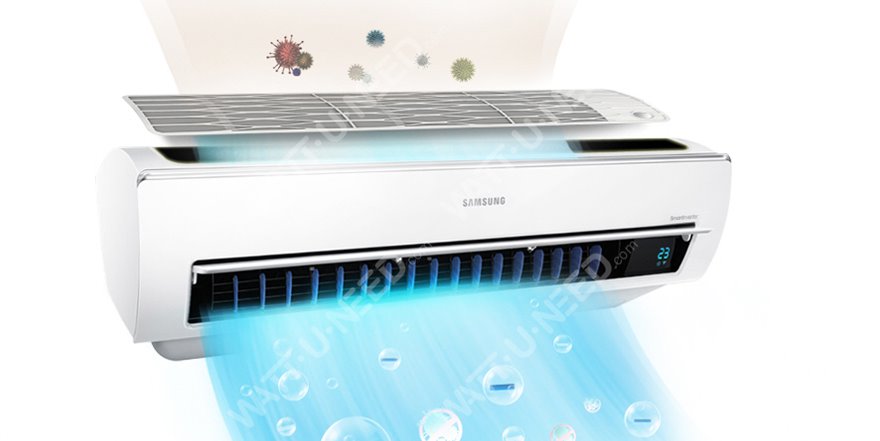

Elimination of viruses
Virus Doctor and Easy Filter eliminate dust, dangerous contaminants and allergens in the air, as well as bacteria and other viruses, including influenza A and coronaviruses, first using a filter and then Virus Doctor. From then on, you will only breathe clean and healthy air, as certified by the BAF (British Allergy Foundation).
Automatic mode change
This command automatically changes the operating world of the air conditioner according to temperature parameters. When a temperature is chosen in automatic mode, the air conditioner heats or cools depending on the temperature indicated.
Easy maintenance
The filter for the new walls in the A3050 range is now located outside the aircraft. This allows it to be removed, cleaned and put back in place easily and quickly.
Characteristics
Kit name | WINDFREE-C09 | WINDFREE-C12 | WINDFREE-C18 | WINDFREE-C24 | ||
Inner unit | AR09TXFCAWKNEU | AR12TXFCAWKNEU | AR18TXFCAWKNEU | AR24TXFCAWKNEU | ||
Outdoor unit | AR09TXFCAWKXEU | AR12TXFCAWKXEU | AR18TXFCAWKXEU | AR24TXFCAWKXEU | ||
Ability | ||||||
Ability | Cooling (nominal) | Kw | 2.5 | 3.5 | 5.0 | 6.5 |
Cooling (Min-Max) | Kw | 0.9-3.4 | 0.9-4.0 | 1.6-6.7 | 1.4-7.6 | |
Heating up -7 degrees Celsius | Kw | 3.2 | 3.5 | 6.0 | 7.4 | |
Heating (Min-Max) | Kw | 0.9-4.5 | 0.9-5.0 | 1.3-8.0 | 1.2-9.4 | |
Heating up --5C | Kw | 2.74 | 3.09 | 4.84 | 6.00 | |
Heating - 10 degrees Celsius | Kw | 2.48 | 2.87 | 4.57 | 5.55 | |
Heating - 15 degrees Celsius | Kw | 2.29 | 2.58 | 4.58 | 5.66 | |
Benefit | ||||||
Energy-efficient cooling | SEER | W/W | 6.7/A | 6.5/A | 6.8/A | 6.4/A |
Energy consumption | kWh/a | 131 | 188 | 257 | 355 | |
Pdesignc | Kw | 2.5 | 3.5 | 5.0 | 6.5 | |
Era | W/W | 3.57 | 2.87 | 3.60 | 3.33 | |
Energy-efficient heating | Scop | W/W | 4.0/A | 4.0/A | 3.8/A | 3.8/A |
Energy consumption | kWh/a | 735 | 770 | 1400 | 1511 | |
Pdesignh (medium) | Kw | 2.1 | 2.2 | 3.8 | 4.1 | |
Cop | W/W | 3.81 | 3.72 | 3.51 | 3.15 | |
Dehumidification | L/h | 1.0 | 1.5 | 2.0 | 2.5 | |
Maximum air volume (cooling) | Inner unit | m3/min | 10.3 | 10.7 | 16.6 | 17.3 |
Outdoor unit | m3/min | 28.0 | 28.0 | 50.0 | 50.0 | |
Acoustic power | Inner unit | dB(A) | 54 | 56 | 58 | 62 |
Outdoor unit | dB(A) | 63 | 64 | 65 | 68 | |
Acoustic pressure | High/silent inner unit | dB(A) | 37/19 | 38/19 | 41/25 | 45/26 |
High exterior unit | dB(A) | 46 | 47 | 51 | 54 | |
Operating range | Cooling | ℃ | -10-46 | -10-46 | -10-46 | -10-46 |
Heating | ℃ | -15-24 | -15-24 | -15-24 | -15-24 | |
Installation data | ||||||
Voltage | Φ, V, Hz | 1st, 220-240V, 50 Hz | 1st, 220-240V, 50 Hz | 1st, 220-240V, 50 Hz | 1st, 220-240V, 50 Hz | |
Type of compressor | Outdoor unit | Type | BLDC Rotary | BLDC Rotary | BLDC Rotary | BLDC Rotary |
Energy consumption | Cooling | W | 700 | 1200 | 1390 | 1950 |
Heating | W | 840 | 940 | 1710 | 2350 | |
Running | Cooling | Has | 3.4 | 4.5 | 6.4 | 8.8 |
Heating | Has | 3.7 | 5.1 | 7.8 | 10.5 | |
Size | ||||||
Net Dimensions (LxHxP) | Inner unit | Mr | 820x199x215 | 820x299x215 | 1055X299X215 | 1055X299X215 |
Outdoor unit | Mr | 660x475x242 | 660X475X242 | 880x638x310 | 880X638X310 | |
Net weight | Inner unit | Kg | 8.9 | 8.9 | 11.5 | 11.6 |
Outdoor unit | 02/06/20 | 23.0 | 23.0 | 39.7 | 43.2 | |
Refrigerant | ||||||
Refrigerant | Type | R32 (these products contain R32. GWP-675) | ||||
Pre-filling (for 5m) | Kg | 0.70 | 0.70 | 1.30 | 1.15 | |
Co2 equivalent pre-fill | tCO2e | 0.47 | 0.47 | 0.88 | 0.78 | |
Recharging of refrigerant | g/m | 15 | 15 | 15 | 15 | |
Connecting the piping | Liquid piping | Mm (inch) | 6.35(1/4) | 6.35(1/4) | 6.35(1/4) | 6.35(1/4) |
Gas pipeline | Mm (inch) | 9.52(3/8) | 9.52(3/8) | 15.88(5/8) | 15.88(5/8) | |
Length of wiring | Min/Max (inside to outside) | Mr | 3/15 | 3/15 | 3/30 | 3/30 |
Wiring height | Max | Mr | 8.54 | 8.54 | 15 | 15 |
Connecting the piping | Evacuation line | Mm | 16.3, 550mm | 16.3, 550mm | 16.3, 550mm | 16.3, 550mm |
