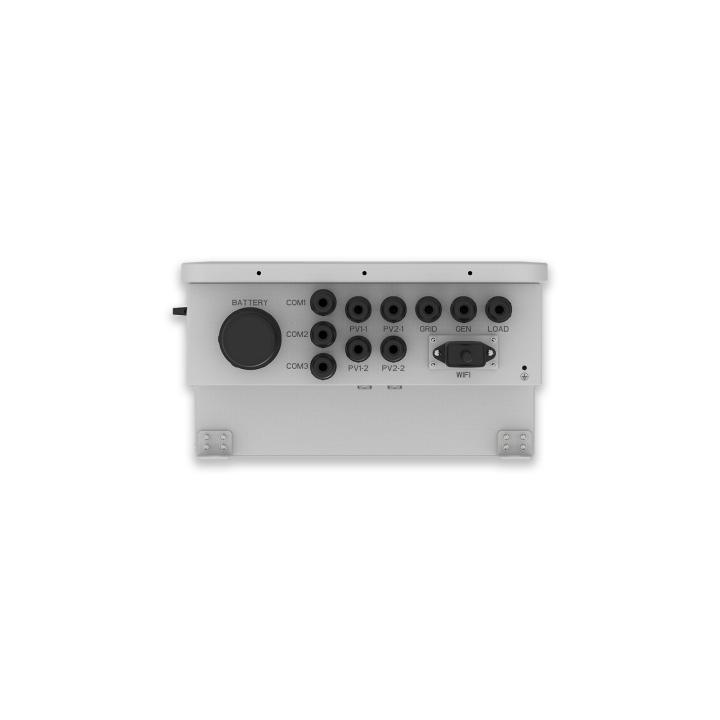

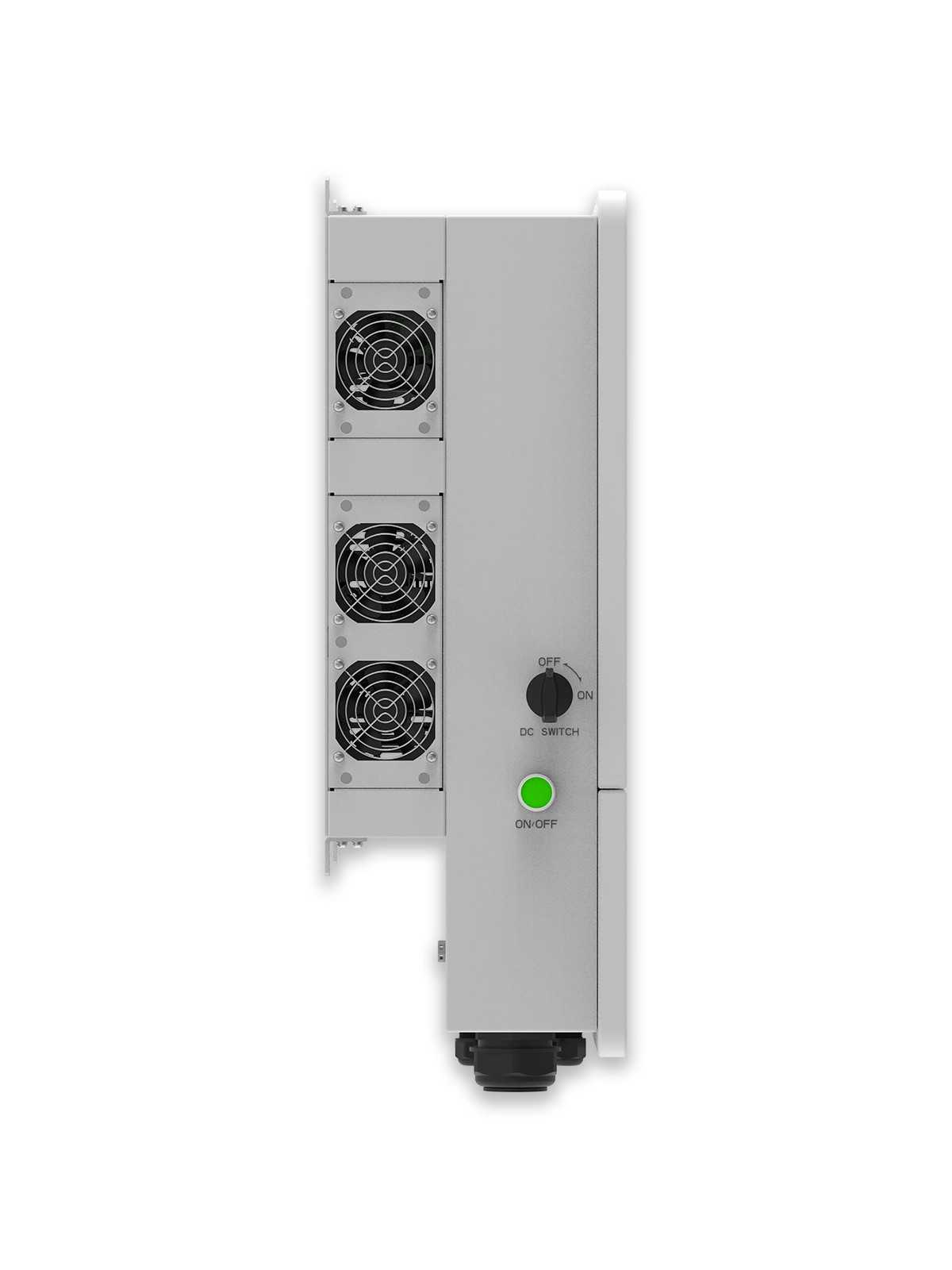

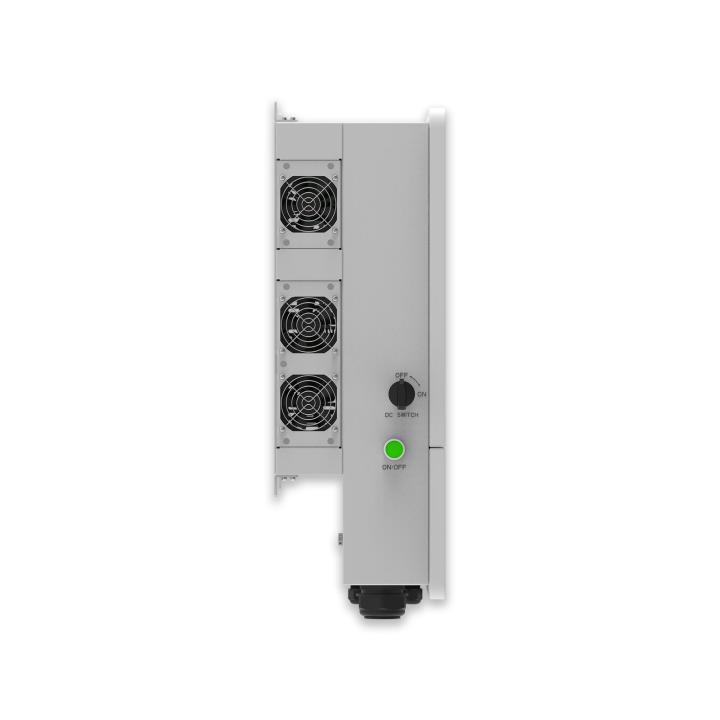

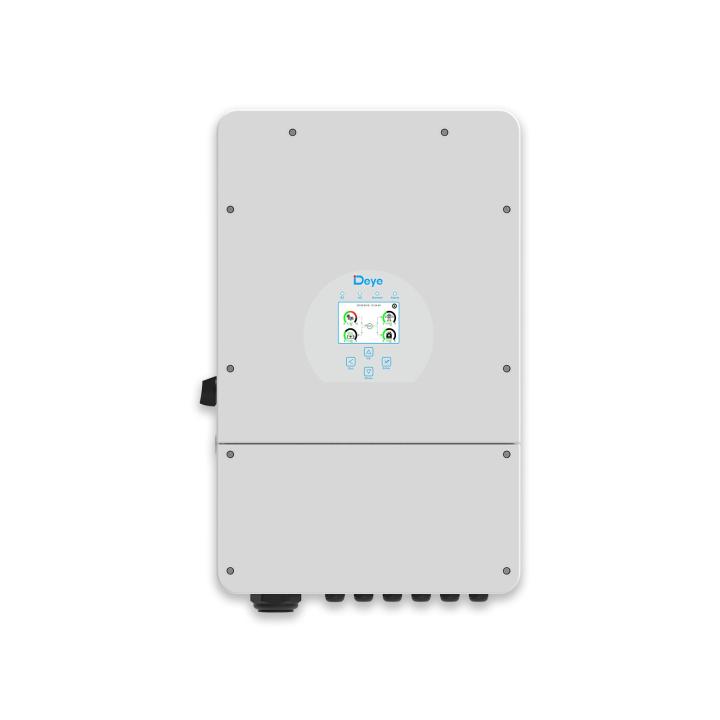

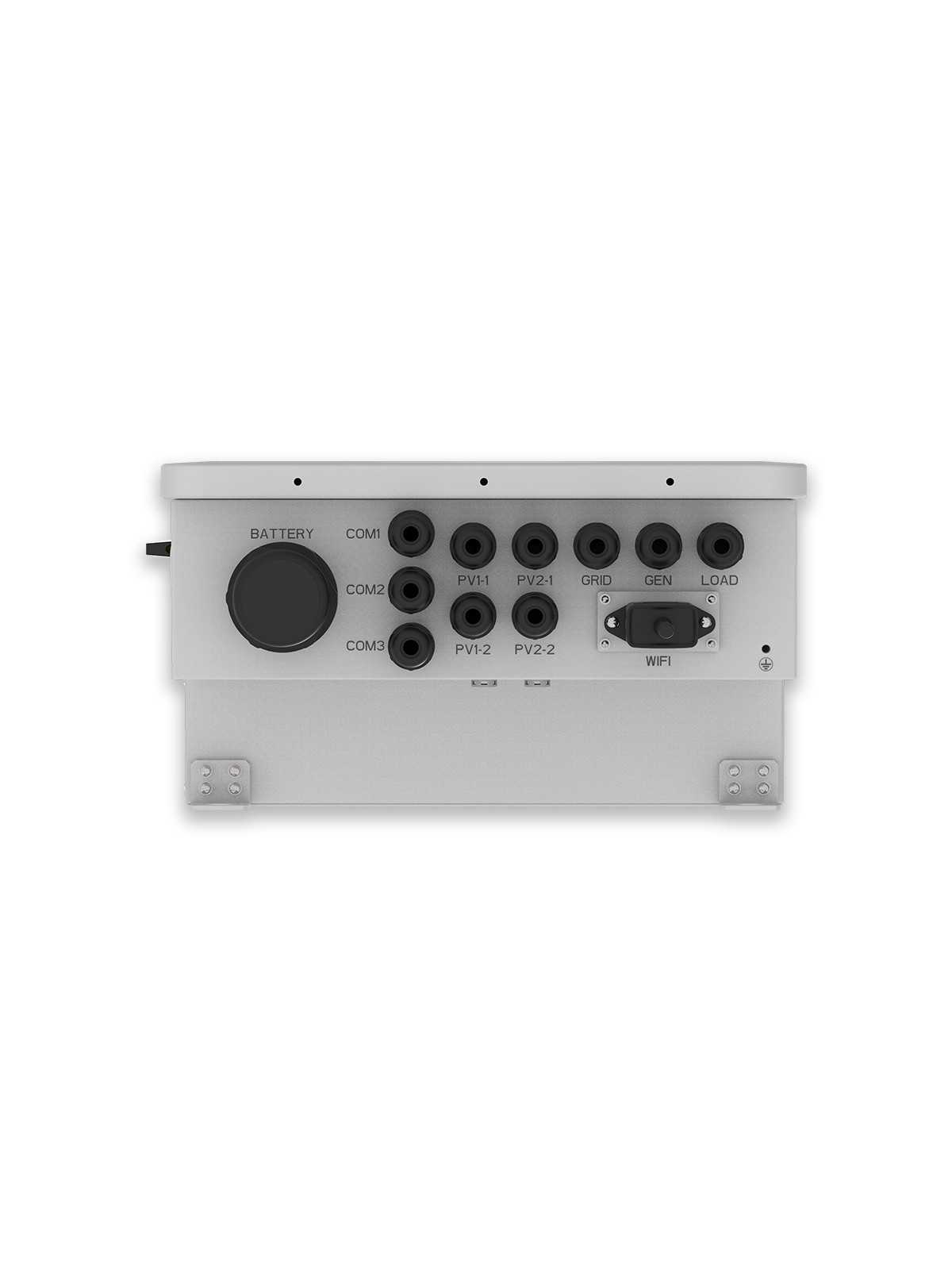

Deye SUN-12K-SG02LP1-EU Hybrid Inverter

Description

Boost your energy independence with the SUN-12K-SG02LP1-EU hybrid inverter, designed for homes and small businesses looking for a more powerful, scalable solution. This system optimizes the self-consumption of your solar energy, helping to reduce your bills while increasing your energy independence. During the day, the inverter captures solar energy to power your equipment, while storing the surplus in the battery for later use. In the event of a power cut, you're protected! Thanks to its compatibility with a generator, you benefit from continuous power supply. Its RS485/CAN port ensures intelligent, optimized energy management, for precise control and maximum efficiency. Choose a reliable, economical and environmentally-friendly energy solution with the SUN-12K-SG02LP1-EU.

Key features

1. Flexible power

The SUN-12K-SG02LP1-EU is a hybrid inverter rated at 12 kW, offering a robust and versatile solution for a wide range of energy needs. Designed to meet the requirements of both modern homes and medium-sized commercial installations, it enables advanced management of both solar energy and battery storage. Thanks to its 12 kW output, it provides efficient energy coverage, optimizing self-consumption while reducing dependence on the electricity grid. It maximizes the use of available solar energy, while guaranteeing stable performance even during periods of high demand. With this model, users benefit from a reliable, scalable solution for managing their energy consumption, contributing to substantial savings and a reduced carbon footprint.

2. Optimizing self-consumption

This inverter is designed to maximize the use of the solar energy produced. During the day, it powers your appliances directly and stores excess energy in the battery, reducing your dependence on the grid and lowering your electricity bills.

3. Intelligent energy management

The system incorporates advanced energy management technology that prioritizes the supply of power to appliances in real time. When solar energy is in surplus, it is used to charge the battery, ensuring that electricity is available even when solar production is low.

4. Reliable backup power

In the event of a power cut, the SUN-12K-SG02LP1-EU can also be easily connected to a generator, ensuring a continuous, reliable power supply. This feature ensures an uninterrupted energy supply, even in the absence of a power grid. Thanks to this capability, users can enjoy total peace of mind, maintaining their comfort and productivity without compromising the performance of their installation. This hybrid system ensures a seamless transition between solar energy, battery storage and genset power, providing a complete, resilient solution in all circumstances.

5. RS485/CAN communication port

Equipped with an RS485/CAN port, this UPS facilitates communication with energy management systems and batteries. This enables real-time performance monitoring and remote software updates, ensuring optimal system operation.

6. Simplified installation

The SUN-12K-SG02LP1-EU has also been designed for quick and easy installation. Its intuitive design enables installers to commission it with great efficiency, considerably reducing installation time and costs. Thanks to its user-friendly interfaces and simplified configuration, this model facilitates rapid set-up, minimizing the effort required while guaranteeing optimum performance right from the outset. This approach guarantees a smooth, cost-effective installation experience, while ensuring maximum reliability right from system start-up.

6. Advanced monitoring functionality

Thanks to a user-friendly interface, you have access to real-time data on energy production, consumption and battery status. This enables you to monitor your energy performance and optimize your savings...

Conclusion

The SUN-12K-SG02LP1-EU, with its 12 kW output and advanced features, represents a perfect solution for those looking to maximize their energy efficiency. Whether you're an individual or a professional, this inverter enables you to reduce your energy costs while adopting a more sustainable approach to consumption. Thanks to its ability to efficiently manage solar energy and battery storage, it optimizes self-consumption and reduces dependence on the grid. Choose the SUN-12K-SG02LP1-EU and take full control of your energy management while contributing to a more environmentally-friendly future!

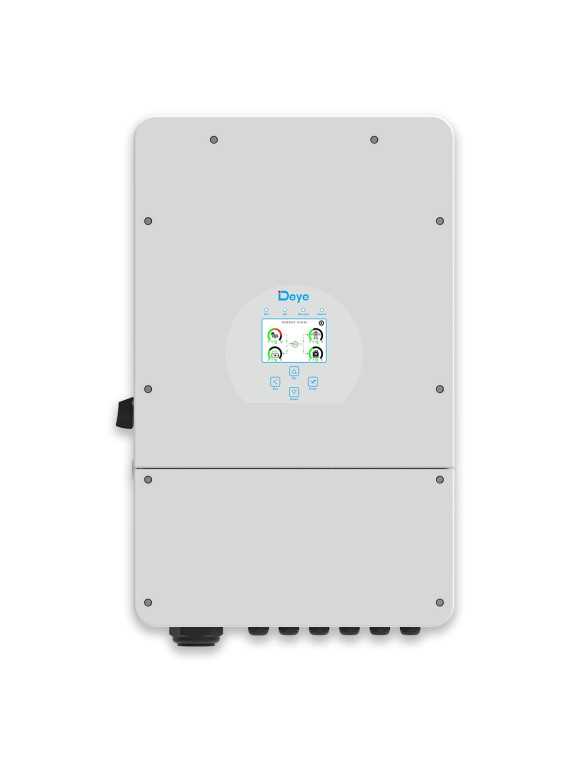

Main Display

The LCD screen is touch-sensitive and displays general inverter information.

1 - The icon in the center of the home screen indicates that the system is operating normally. If it displays "comm./F01~F64", this means that the inverter is experiencing communication or other errors. The error message will be displayed below this icon (errors F01-F64, error details can be viewed in the System Alarms menu).

2 - At the top of the display is the time.

3 - System configuration icon. Press this button to access the system configuration screen, which includes basic configuration, battery configuration, network configuration, system operating mode, generator port usage, advanced functions and Li-Ion battery information.

4 - The main screen displays solar, network, load and battery information. It also indicates the direction of power flow by arrows. As power approaches a high level, the color of the panels changes from green to red, providing a clear view of system information on the main display.

- PV power and charging power always remain positive.

- Negative grid power means selling to the grid, positive means receiving from the grid.

- Negative battery power means charging, positive means discharging.

Remote shutdown function

Intelligent monitoring platform

Thanks to the intelligent monitoring platform, inverter products in the Deye complete series support remote shutdown immediately in the event of an accident. Parameter settings and firmware updates can be performed remotely, facilitating the operation and maintenance of photovoltaic systems.

Technical data

Compatibility and Battery Input

Compatible with lead-acid and lithium-ion batteries, automatically adapting to battery management systems (BMS). 48V battery voltage range.

High efficiency

Maximum efficiency of 97.6%, European efficiency of 96.5% and MPPT efficiency in excess of 99%, guaranteeing maximum energy conversion and minimum losses.

Nominal power

The SUN-12K-SG02LP1-EU is also part of the Deye hybrid inverter range, with a rated power of 12 kW. Like the other models in this range, it boasts a peak power capacity of up to twice its rated power for 10 seconds, ensuring maximum performance during peak demand. This feature enables the UPS to react quickly and flexibly to fluctuating energy requirements, guaranteeing a stable and reliable power supply, even during peaks in consumption.

Advanced protection mechanisms

Includes comprehensive protection features: DC reverse polarity protection, AC output overcurrent protection, AC output overvoltage protection, thermal protection and ground fault protection.

Standards compliance

Meets numerous international safety and performance standards, including IEEE 1547.1, EN 62109-1/2 and UL 1741.

Operating range

Works well over a wide temperature range (-40°C to +60°C) and can operate at altitudes of up to 2000 meters, maintaining noise levels below 30dB.

Monitoring and communication

Supports various monitoring and communication interfaces, including GPRS, WIFI, Bluetooth, 4G and LAN. RS485, RS232 and CAN communication interfaces for robust connectivity and flexible integration.

Physical specifications

Dimensions

Measures 420 mm × 670 mm × 233mm, compact and easy to install.

Weight

Weighs 35.6 kg, for easy handling and installation.

Cooling

Intelligent air cooling for efficient thermal management.

Protection class

IP65 protection, suitable for various indoor and outdoor installations.

UPS operation with Pylontech batteries

UPS installation

Discover the advanced features of Deye hybrid inverters

Optimize your solar installation and manage your energy consumption more efficiently with videos dedicated to Deye hybrid inverters. Discover the best features and applications of this innovative technology. Simply click on the title to access the corresponding video.

1. Deye hybrid inverter peak shavingfunction

Learn how to use the Peak Shaving function to reduce your energy consumption during peak demand and optimize your energy costs.

2. Priority re-injection mode for the Deye hybrid inverter

Discover the first sales mode of the Deye hybrid inverter, a must-see video for understanding how to present and sell this product.

3. Configuration withPylontech lithium-ion battery

Follow our guide to connecting and configuring a Deye UPS with a Pylontech lithium-ion battery to maximize the efficiency of your installation.

4. Deye hybrid UPS time-of-usefunction

Optimize your energy consumption according to the time of day with the Time of Use function, to better manage your energy costs.

5. Deye hybrid inverter intelligent load function

Maximize the efficiency of your system with the intelligent load function, for optimum energy management.

6. Using battery-free mode with the Deye hybrid inverter

Learn how to operate your Deye hybrid inverter without a battery for a simpler, more cost-effective configuration.

7. Parallelfunction of the Deye hybrid inverter

Discover how to connect several Deye inverters in parallel to increase the capacity of your installation according to your energy needs.

8. Charging the battery with a diesel generator

An ideal solution for areas without constant access to the power grid. Learn how to use a diesel generator to charge your batteries with the Deye hybrid inverter.

Optimize your energy consumption today!

Choose the video that interests you and discover how to take advantage of the advanced features of Deye hybrid inverters for optimal energy management and sustainable savings.

Warranty & Support

Warranty

5-year or 10-year warranty, offering peace of mind and assurance of reliability. Warranty period may vary according to installation site and applicable terms.

The Deye SUN-12K-SG02LP1-EU hybrid inverter is a powerful and flexible solution, designed to offer optimal energy management. With its high efficiency, comprehensive protection and advanced control features, it is ideally suited to energy storage and solar applications, while maximizing self-consumption and reducing dependence on the grid. Its intelligent design and robust features make it an essential choice for modern energy requirements, guaranteeing reliable performance that lasts over time. It ensures smooth management of solar energy and storage, while offering great resilience in the face of variations in energy demand.
