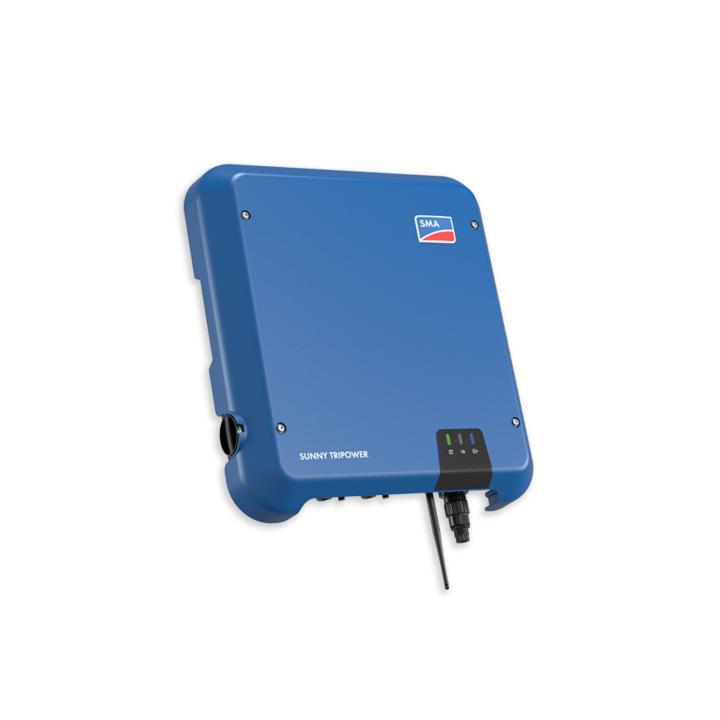

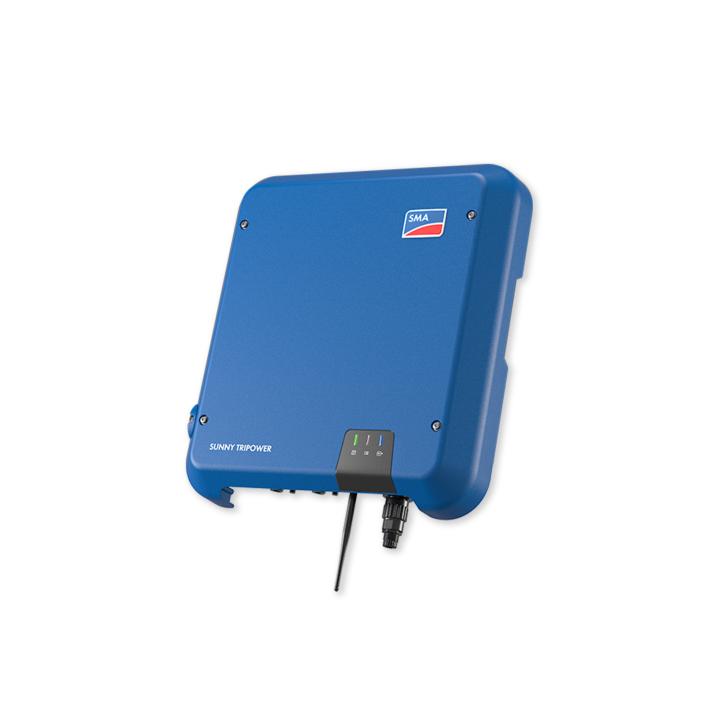

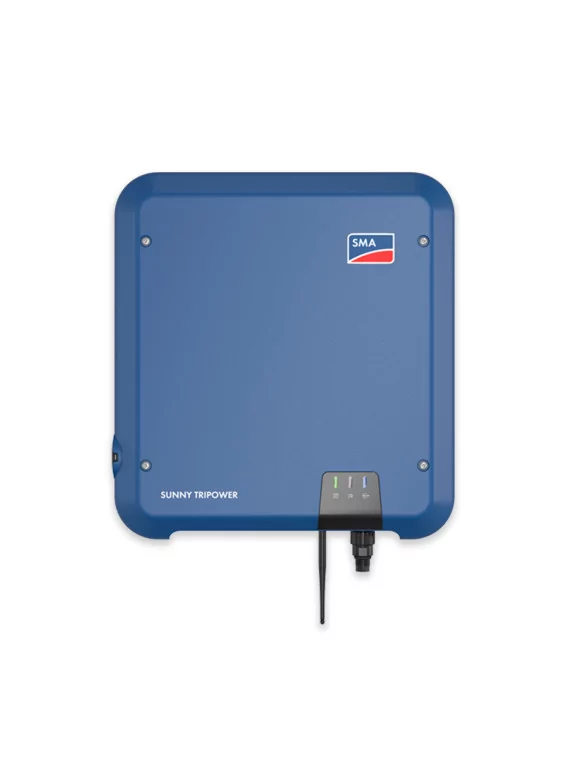

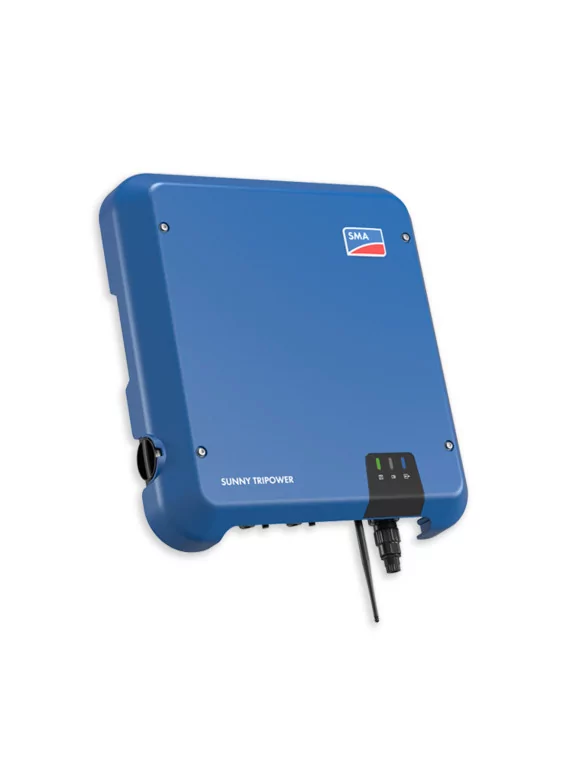

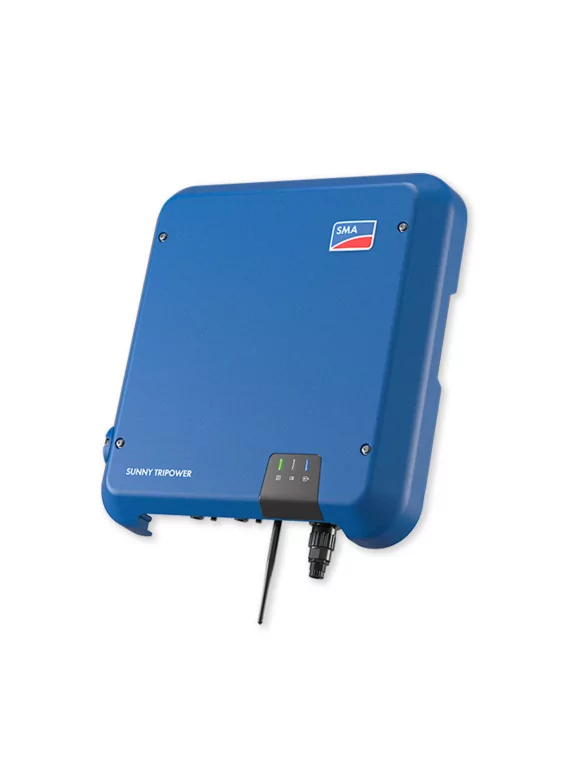

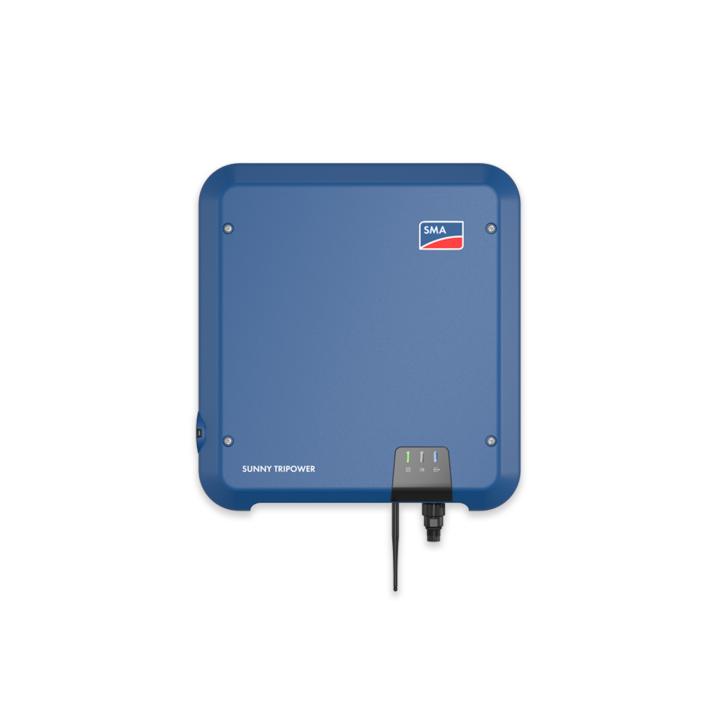

Three-phase inverter SMA Sunny Tripower 3 kVA STP3.0-3AV-40 TL INT BLUE
€1,707.47
Tax included
STP3.0-3AV-40
0712971139466
SMA Sunny Tripower 3 kVA Inverter: Performance at the Service of Your Solar Energy
The SMA Sunny Tripower 3 kVA is a leading choice for solar energy conversion. With its 3000 VA power and 2 MPPT trackers, it optimizes the performance of your photovoltaic system, even under partial shading conditions. Designed for small residential and commercial installations, it offers a reliable and high-performance solution.
Why choose the SMA Sunny Tripower 3 kVA inverter?
- Power and Efficiency: With 3000 VA of three-phase power and 2 MPPT trackers, it ensures maximum energy production.
- Optimized Shading Management: OptiTrac Global Peak technology maximizes the yield of your system, even in shaded conditions.
- Flexibility: Adapts to various configurations with a wide input voltage range and integrated grid management functions.
- Easy Installation: Simple and quick connection with the DC SUNCLIX system.
Key Benefits:
- Optimized Self-Consumption: Use your own solar energy and reduce your dependency on the grid.
- Reliability and Durability: Benefit from a high-quality product designed to last.
- Simplified Installation: Fast and easy installation thanks to its compact design.
SMA Sunny Tripower 3 kVA: Solar energy within reach.
Sorry, there are no more items in stock.
SMA Sunny Tripower 3 kVA solar inverter: Maximum yield and flexibility
Description
Economical
- Maximum efficiency 98%
- Shading management with Opti-Trac Global Peak
- Active temperature management with OptiCool
Flexible
- DC input voltage up to 1000 V
- Integrated grid management functions
- Reactive power injection
- Precise sizing of system modules with Optiflex
Interactive
- Easy adjustment of regional parameters
- Multifunction relay as standard
Simple
- Three-phase injection
- Tool-free cable connection
- SUNCLIX DC connection system
- Integrated ESS DC switch-disconnector
- Simple wall mounting
Optitrac
OptiTrac Global Peak is an additional MPP tracker function for operation in partially shaded PV systems.This specialized operating management system ensures that the modules are constantly operated at maximum power, even in the presence of several maximum powers (in the case of partially shaded PV systems), with no measurable loss of yield (loss <0.2%), . In other words, even if the shading panels are operating correctly.
Features
| Technical data | Sunny Tripower 3.0 | Sunny Tripower 4.0 | Sunny Tripower 5.0 | Sunny Tripower 6.0 |
| Input (DC) | 6000 Wp |
| Wp | |
| Wp | |
| Wp |
| Max. power of photovoltaic generator | 850 V | |||
| Max. input voltage | 140 | ||
| V to 800 V | 175 V to 800 V | 215 V to 800 V | 260 V to 800 V |
| MPP voltage range | |||
| V | |||
| Rated input voltage | 125 V / 150 V | |||
| Input voltage min. | ||||
| / start-up input voltage Max. input current input A / input B | 12 A / 12 A | |||
| Max. short-circuit current. | ||||
| input A / input B | 18 A / 18 A | |||
| Number of independent MPP inputs / strings per MPP input Output (AC) | |||
| / A:1; B:1 | |||
| Rated power (at 230 V, 50 Hz) | 3000 W | 4000 W | 5000 W | 6000 W |
| Max. apparent AC power | 3000 | ||
| VA | 4000 VA | 5000 VA | 6000 VA |
| Rated AC voltage | |||
| ; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE; | |||
| 240 V / 415 V | |||
| AC voltage range | 180 V to 280 V | |||
| AC mains frequency / Range | 50 Hz / 45 Hz to 55 Hz 60 Hz to 65 Hz | |||
| Rated mains frequency / Rated mains voltage | 50 Hz / 230 V | |||
| Max. output current | 3 |
| x 4.5 A | |
| x 5.8 A | |
| x 7.6 A | |
| x 9.1 A |
| Power factor at rated power / adjustable phase shift factor Injection phases / Connection phases | |||
| / 0.8 inductive to 0.8 capacitive | |||
| Efficiency |
| Max. efficiency. | / European efficiency | 98.2 % / 96.5 % | 98.2 % / 97.1 | 98.2 % / 97.4 % | 98.2 % / 97,6 % |
| Protective devices |
| Input-side disconnection device | ● | |||
| Ground fault monitoring / network monitoring | ●/● | |||
| DC reverse polarity protection / AC short-circuit resistance / galvanic separation | ●/●/- | |||
| Fault current monitoring unit, | ||||
| sensitive to all currents Protection class (according to IEC 62103) / overvoltage category (according to IEC 60664-1) | ● | |||
| Protection class (according to IEC 62103) / overvoltage category (according to IEC 60664-1) | |||
| / III | |||
| General features |
| Dimensions (L/H/P) | |||
| mm / 470 mm / 176 mm (17,1 inches / 18.5 inches / 6.9 inches) | |||
| Weight | 17 kg (37.4 lb) | |||
| Operating temperature range | -25 °C to +60 °C (-13 °F to +140 °F) | |||
| Noise emissions, typical | 30 dB(A) | |||
| Autoconsumption (night) | |||
| ,0 W | |||
| Topology / Cooling system | Transformerless / Convection | |||
| Protection class (to IEC 60529) | IP65 | |||
| Climatic class (to IEC 60721-3-4) |
| Maximum permissible value for relative air humidity (non-condensing) Equipment | 100,00% | |||
| Equipment |
| DC | ||||
| / AC connection | SUNCLIX / AC plug | |||
| Shade management : | ||||
| OptiTrac Global Peak / TS4-R | ●/○ | |||
| Warranty : | ||||
| 5 / 10 / 15 years | ●/○/○ | |||
| Certifications and approvals (others on request) | AS 4777, C10/11, CE, CEI 0-21, DIN EN 62109-1/IEC 62109-1, DIN EN 62109-2/IEC 62109-2, EN 50438, G59/3, G83/2, NEN-EN 50438, ÖVE / ÖNORM E 8001-4-712, PPDS, PPC, RD 1699, SI 4777, TR 3.2.1, UTE C15-712, VDE-AR-N 4105, VDE-0126-1-1, VFR 2014 | |||
| Certifications and approvals (planned) | DEWA 2016, EN 62116, IEC 61727, IE-EN 50438, NBR 16149, NRS 097-2-1 | |||
| Type designation | STP3.0-3AV-40 | STP4.0-3AV-40 | STP5.0-3AV-40 | STP6.0-3AV-40 |
STP3.0-3AV-40
Data sheet
- Inverter power
- 3000VA
- Max. solar input voltage
- 1000 V
- Phase
- Triphasé
- Number of MPPT
- 2 MPPT
