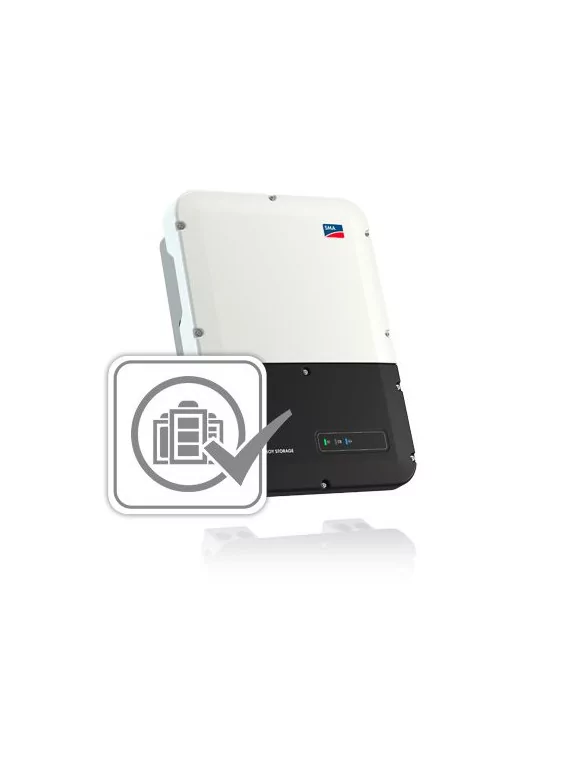

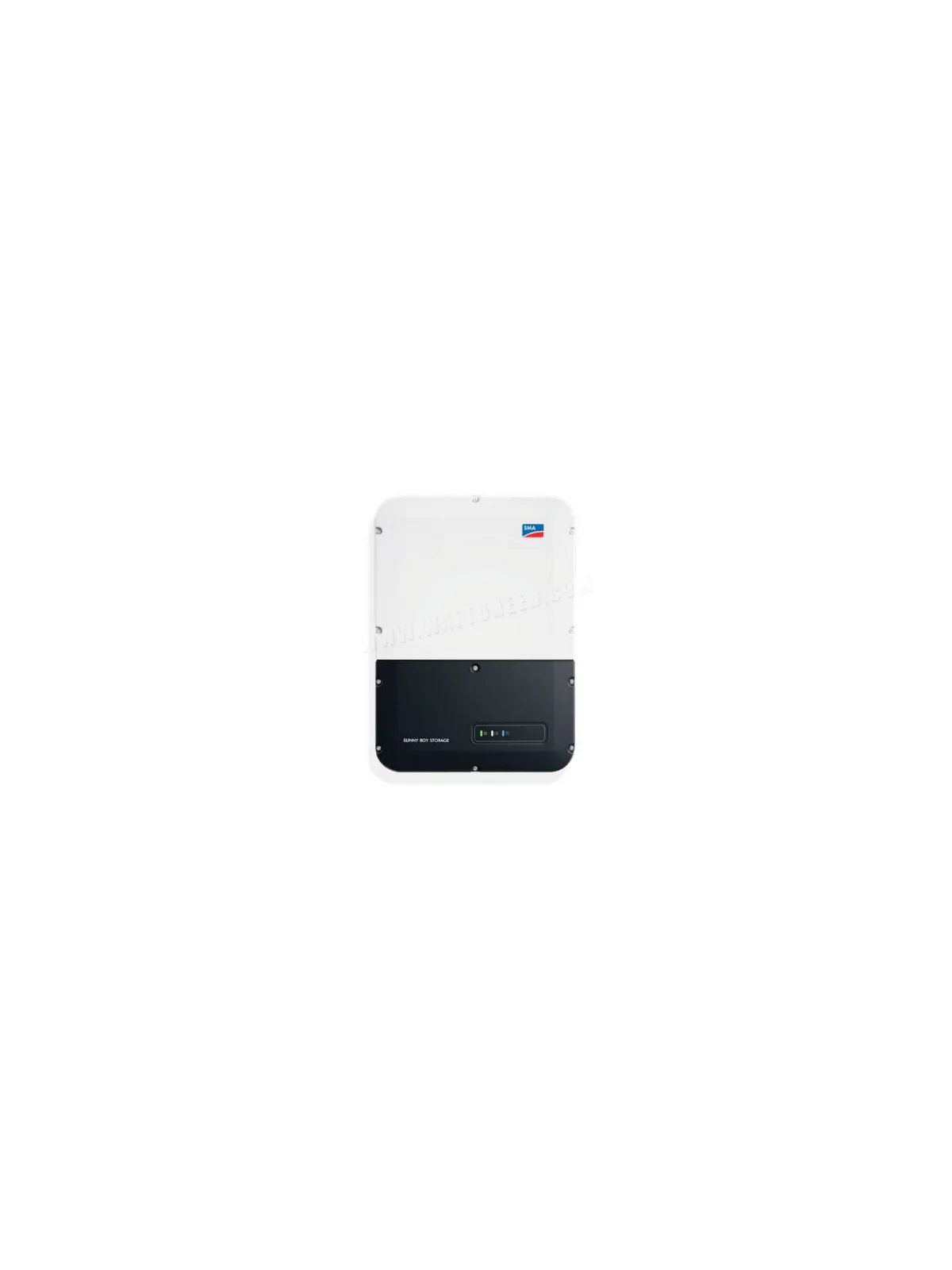

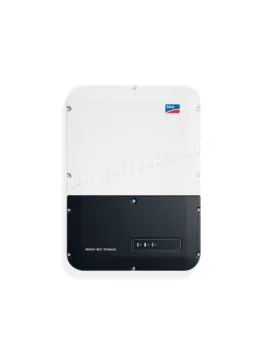

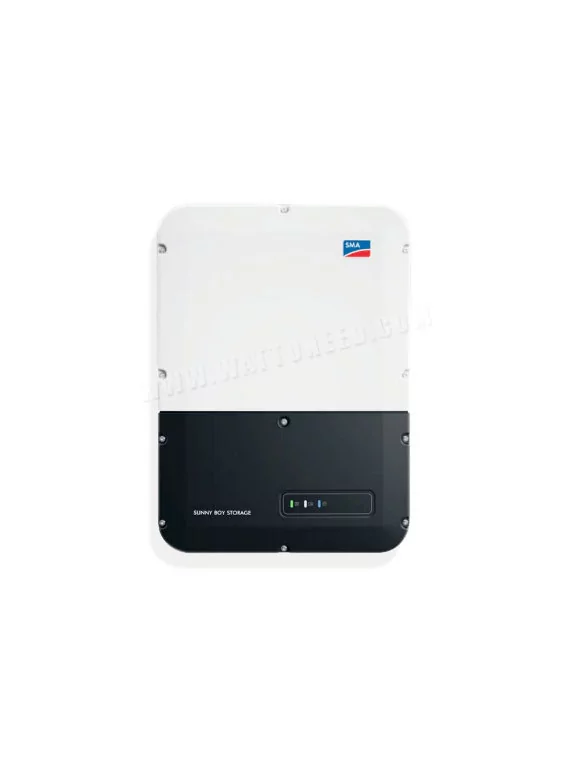

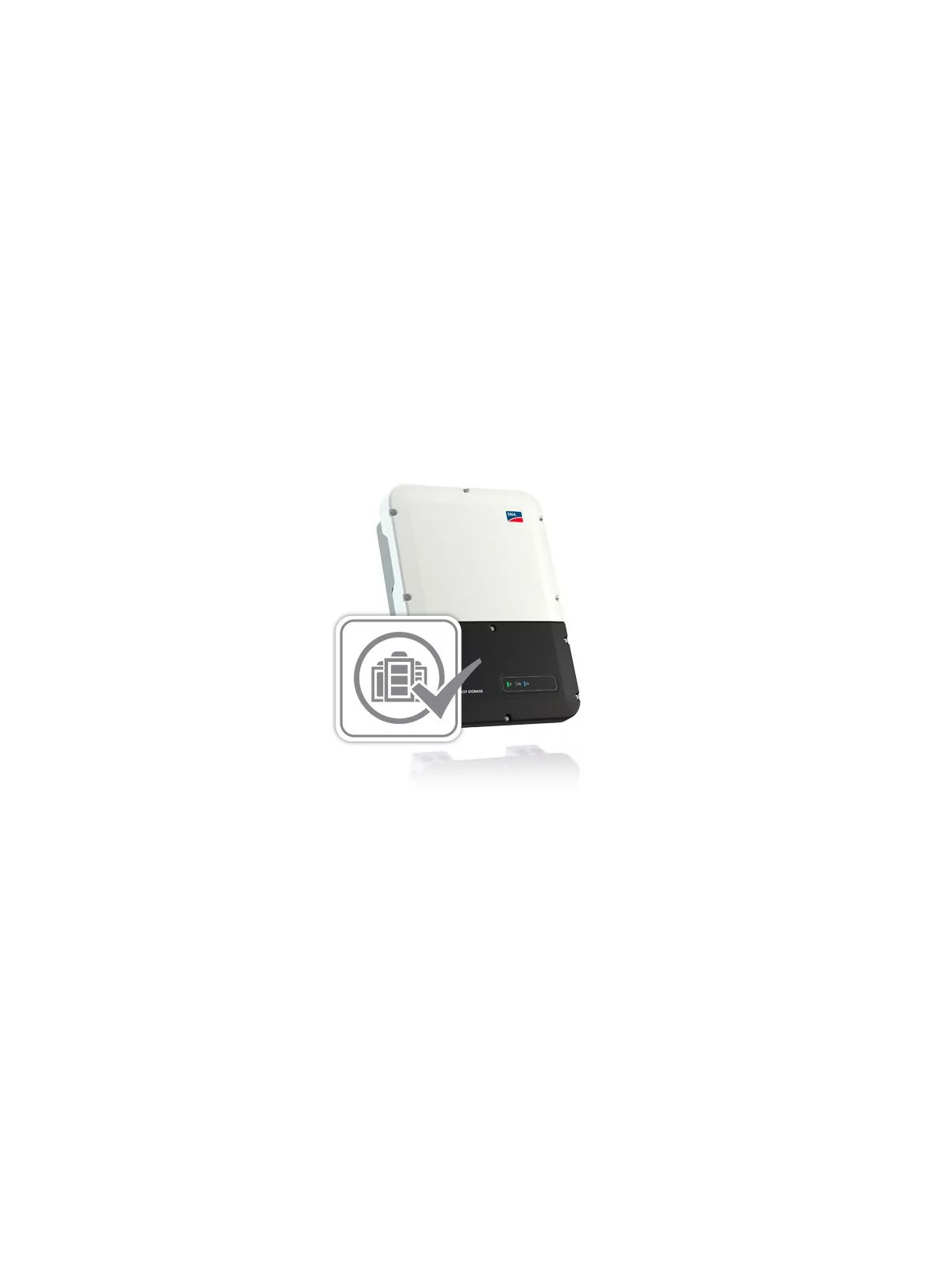

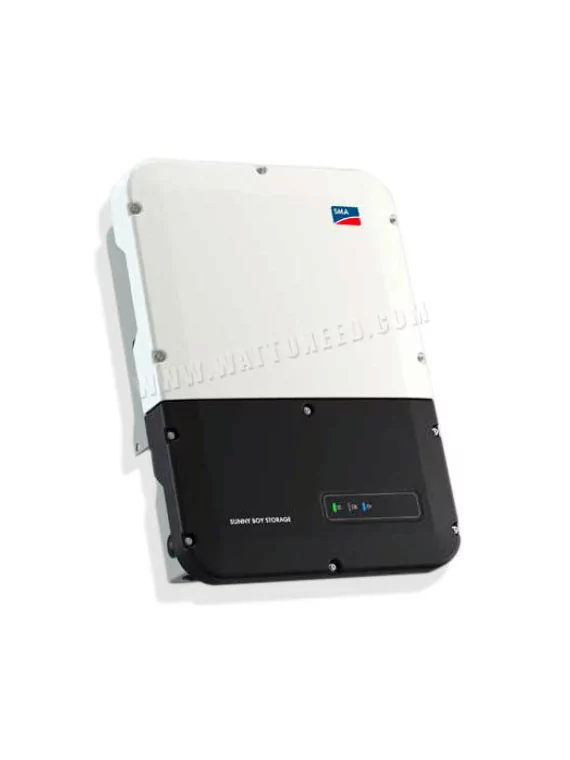

Single-phase inverter SMA Sunny Boy storage 6 kVA SBS6.0-10
![Sunny Boy storage 6.0](https://www.wattuneed.com/img/cms/SMA-image-1.jpg)
Solar energy storage
Additional battery can be added at a later date, as required
- Ideal for grid-connected systems
- Up to three high-voltage batteries can be connected
- Integrated Secure Power Supply back-up function
- Fully automated back-up function for household power supply (optional)
Flexible system sizing
Solar electricity today, tomorrow and beyond, for optimum power supply
A photovoltaic system equipped with an appropriate storage system is as individual as the electricity consumed and the household of those who use it.
Whatever the need - the growing family, the electric car to be charged or the garage to be turned into a workshop - connecting up to three high-voltage batteries means that all consumer devices can be supplied with solar electricity, whether the sun is shining or not.
![Nouvelle installation : installation photovoltaïque avec système de stockage](https://www.wattuneed.com/img/cms/SMA-image-5.jpg)
New installation: photovoltaic system with storage system
A storage system makes users independent of traditional electricity distributors and rising energy costs. Thanks to high-voltage technology, storage systems equipped with Sunny Boy Storage are particularly efficient and easy to install.
![Modernisation : installation photovoltaïque avec système de stockage](https://www.wattuneed.com/img/cms/SMA-image-4.jpg)
Modernization: photovoltaic system with storage system
To increase the amount of self-generated solar energy used in the home, the existing photovoltaic system can be retrofitted with a complete storage system by adding just a few additional components. The homeowner reduces the amount of electricity drawn from the grid, thereby lowering his electricity bill.
![Extension : adapter un système de stockage aux besoins croissants](https://www.wattuneed.com/img/cms/SMA-image-6.jpg)

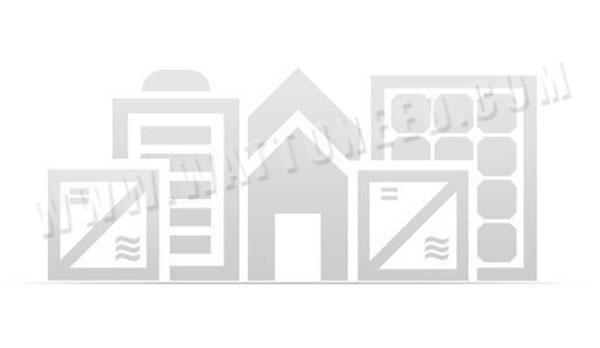

Extension: adapting a storage system to growing needs
Multistring technology allows up to three high-voltage batteries to be connected to Sunny Boy Storage at any one time. This means the operator can gradually expand his storage system to suit his specific needs.
![Approvisionnement énergétique fiable](https://www.wattuneed.com/img/cms/SMA-image-7.jpg)
Reliable energy supply
Reliable energy supply, even in the event of grid failure
- The integrated Secure Power Supply back-up function supplies the various electrical appliances manually from the battery, even in the event of a grid failure
- An optional automatic transfer switch can be added for complete household power supply on all three line conductors from the battery and photovoltaic system in the event of a grid failure
- A maximum output of 8 kW in back-up power mode is sufficient to supply all common electrical appliances
- 10-year warranty
Its high IP65 protection class means it can withstand the harshest environmental conditions, and can even be installed outdoors.
Technical data
Rated power at 230 V, 50 Hz | 3680 W | 5000 W | 6000 W |
Rated AC voltage | 230 V | 230 V | 230 |
AC voltage range* | 172.5 V to 264,5 V | 172.5 V to 264.5 V | 172.5 V to 264.5 V |
Rated AC current at 220 V | 16.7 A | 22.7 A | 26 A |
Rated AC current at 230 V | 16 A |
.7-10 | 26 A |
Rated AC current at 240 V | 15.3 A | 20.8 A | 25 A |
Maximum AC current in standby mode | 20 A / 1 min | 28 A / 1 min | 32 A / 1 min |
AC current harmonic distortion rate | < 4% | < 4% | < |
4% |
Maximum output current in case of malfunction | 198 Apeak | 198 Apeak | 198 Apeak |
Inrush current | 18.5 A | 18.5 A | 18,5 A |
Rated mains frequency | 50 Hz | 50 Hz | 50 Hz |
AC mains frequency* | 50 Hz / 60 Hz | 50 Hz | 50 Hz/60 Hz |
Working range for an AC mains frequency of 50 Hz | 45 Hz to 55 Hz | 45 Hz to 55 Hz | 45 |
Hz to 55 Hz |
Working range for AC mains frequency 60 Hz | 55 Hz to 65 Hz | 55 Hz to 65 Hz | 55 Hz to 65 Hz |
Power factor at rated power |
Phase shift factor cos φ, | adjustable | .8 inductive to 1 to 0.8 capacitive | .8 inductive to 1 to 0.8 capacitive | .8 inductive to 1 to 0, |
8
Overvoltage category to IEC 60664-1 | III | III | III |
Depending on the regional data set |
xml-ph-0030@de7-10 | .0-10 | .0-10 |
Maximum DC voltage | 600 V | 600 V | 600 V |
Voltage range* | 100 V to 550 V | 100 V to 550 V | 100 V to 550 V |
DC voltage |
rating | 360 V | 360 V | 360 V |
Maximum DC current per input | 10 A | 10 A | 10 A |
Short-circuit currentcircuit | 40 A | 40 A | 40 A |
Overvoltage category to IEC 60664-1 | III | III | |
AC output, |
| | mergency power mode |
Rated AC voltage | 230 V | " | " |
Maximum output current | 16 A | " | " |
