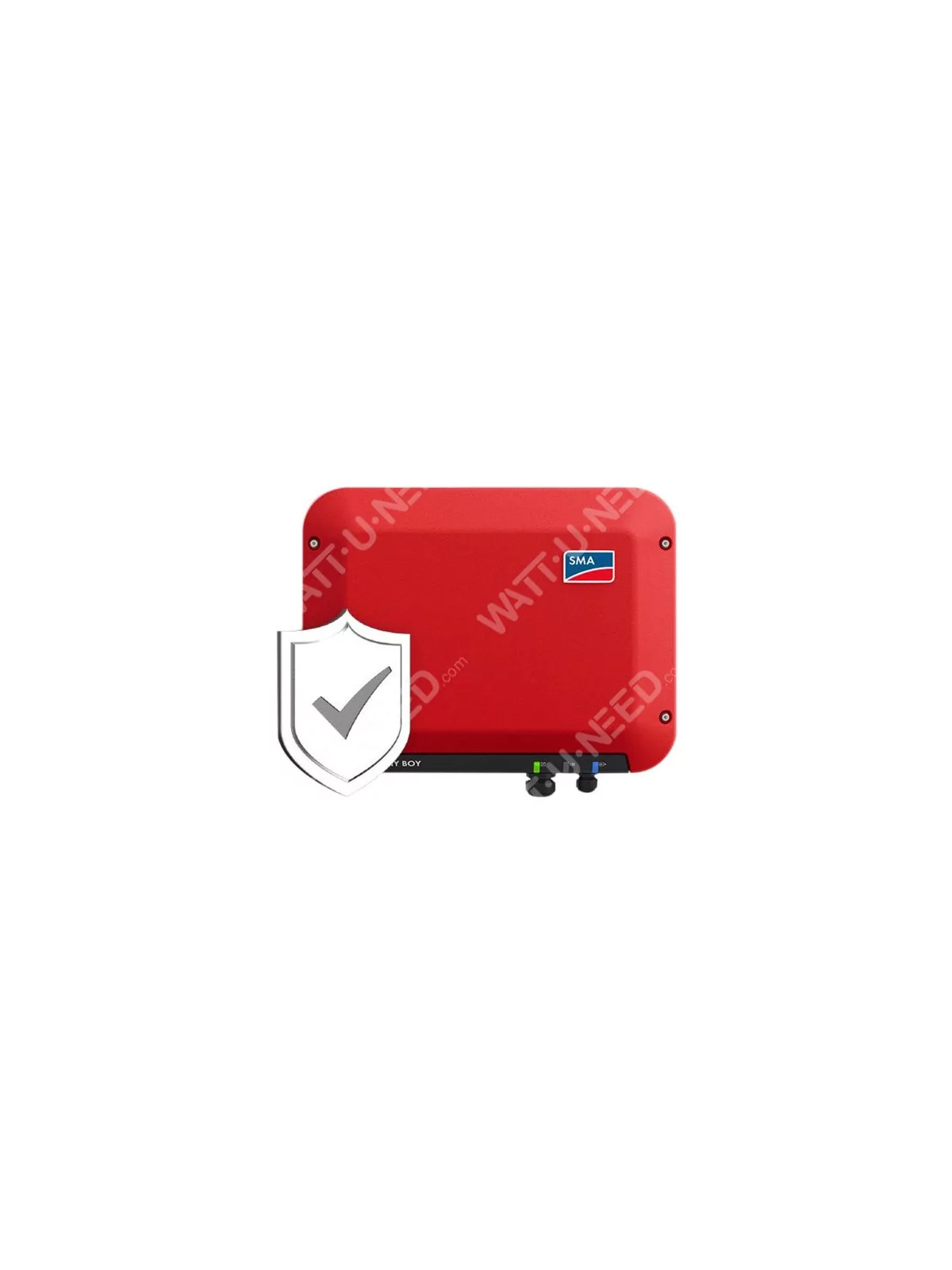

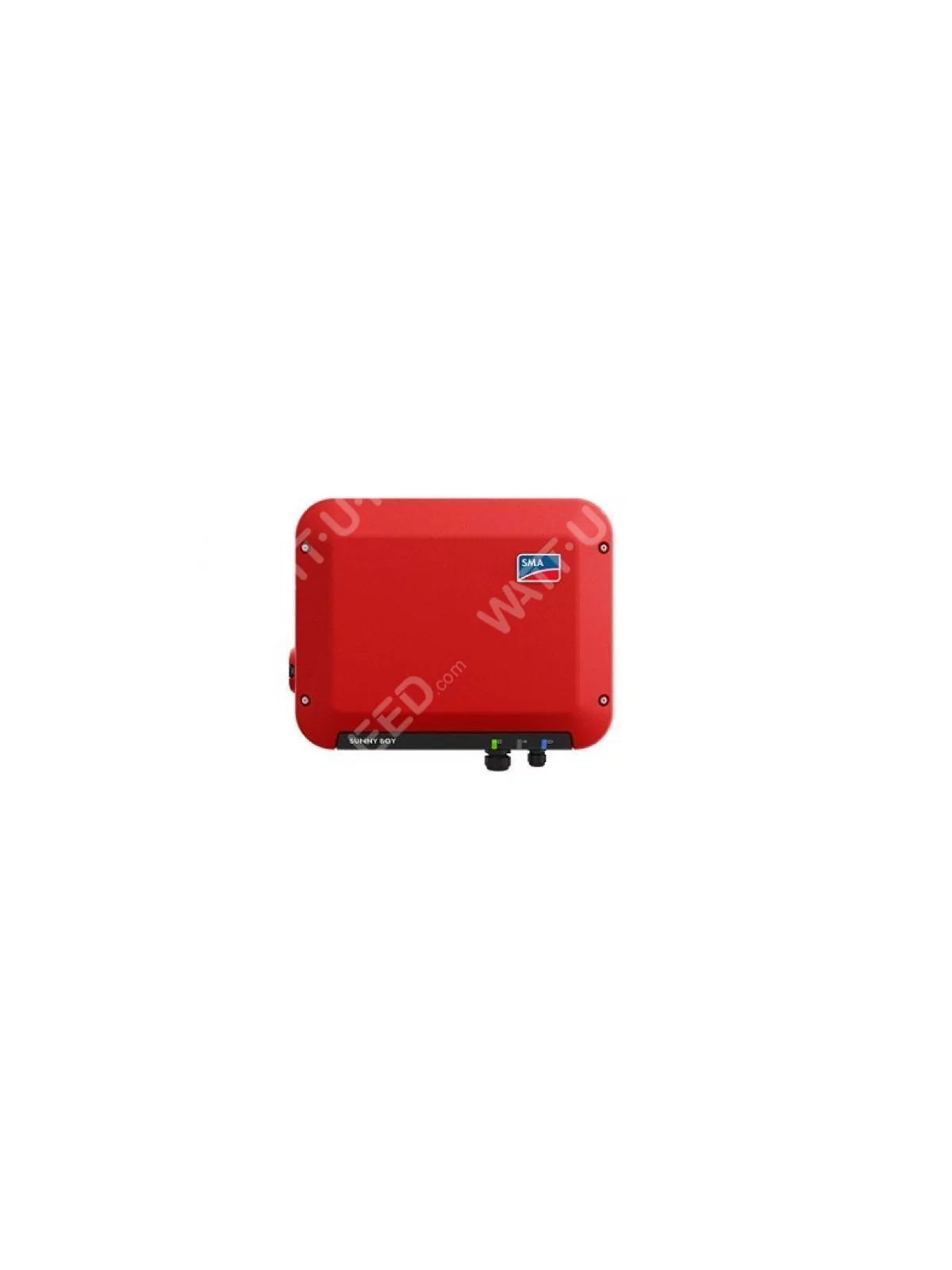

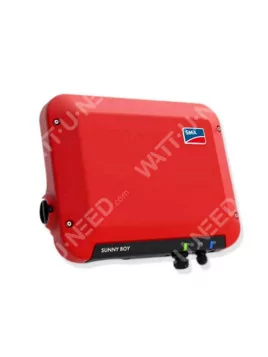

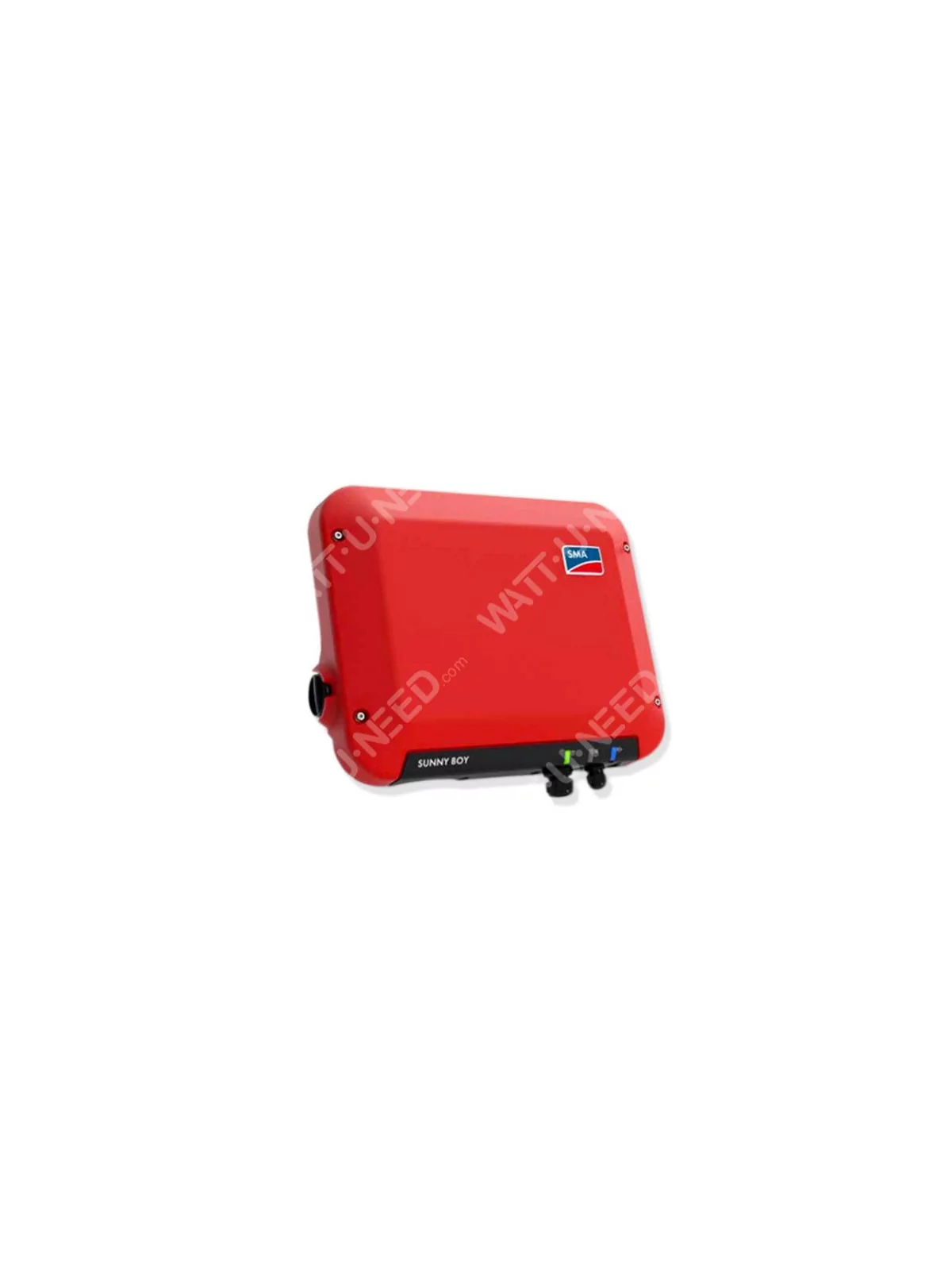

Single-phase inverter SMA Sunny Boy 2 kVA - SB2.0-1VL-40
Description
The new Sunny Boy 1.5 and 2.5 inverters are the ideal solution for small photovoltaic systems.
Easy to install, the inverter is compatible with a wide range of photovoltaic panels thanks to its extended voltage range (80 - 600V), making it highly flexible while offering excellent efficiency.
Its small dimensions make it particularly lightweight. It can be easily integrated indoors or outdoors.
Its robust, lightweight casing makes it easy to install both indoors and outdoors, making it ideal for small photovoltaic systems.
Features
- Up to 97.2% efficiency - Transformerless - Maintenance-free thanks to convection cooling - SUNCLIX DC connection system - Easy to install - Wide input voltage range
Efficiency curve
Optitrac technology
OptiTrac Global Peak is an additional function of the proven "OptiTrac" MPP tracker and is activated on this inverter.
It is used for partially shaded photovoltaic systems. Even in this configuration, this special operating mode guarantees continuous operation of the panels at the point of maximum power, without any noticeable influence on yield (losses < 0.2%). In other words: even in the event of shading, the panels operate correctly.

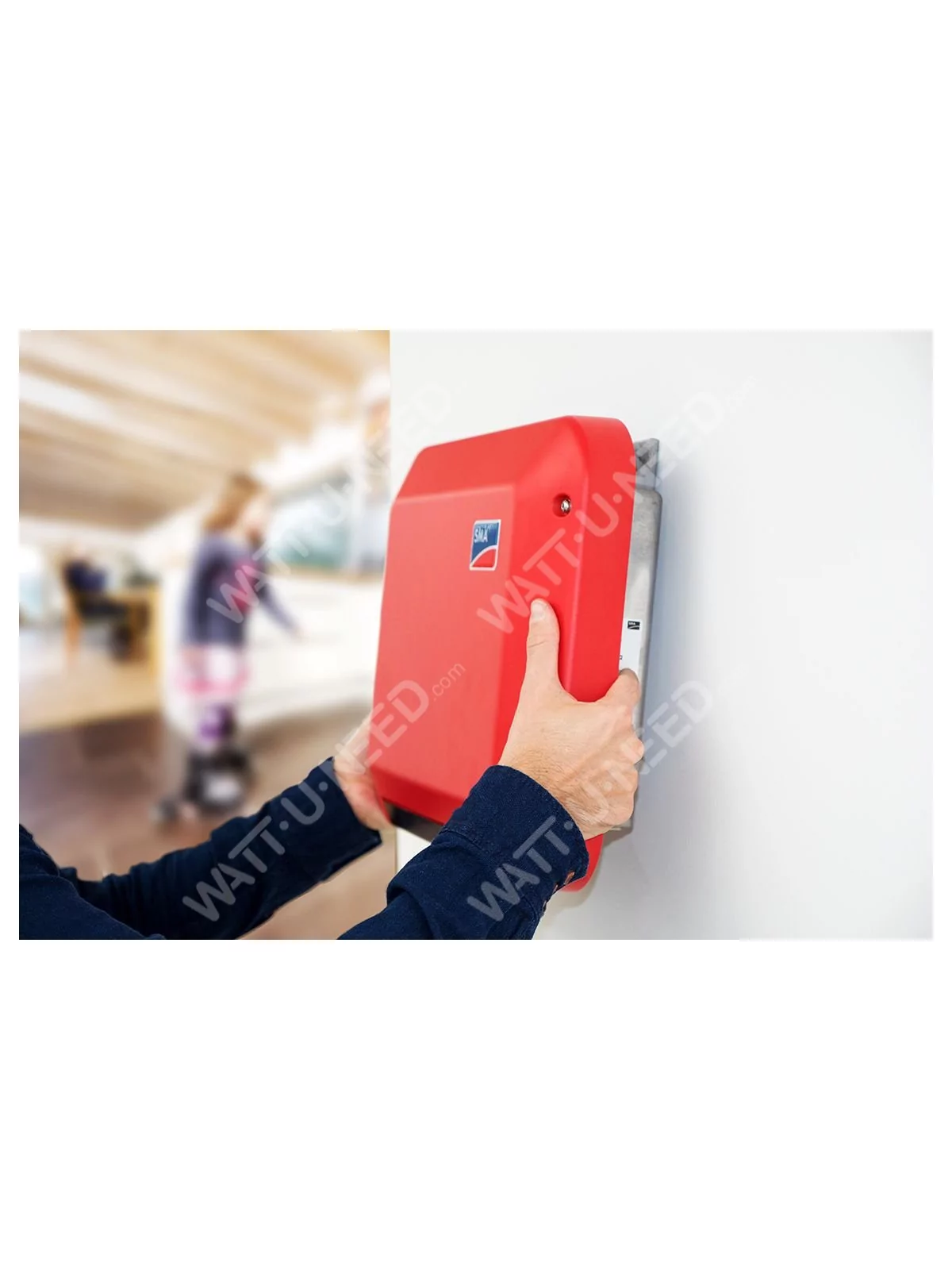

Installation and commissioning
Technical data
0
Model
Sunny Boy 2.
Input (DC)
Max. power of photovoltaic generator
4000 Wp
Max. input voltage.
600 V
MPP voltage range
210 V to 500 V
Assigned input voltage
360V
.
Min. input voltage
/ starting input voltage
50V/80V
Max. input current per string
10A
Max. short-circuit current.
per string
18A
1/1
Number of independent MPP inputs / strings per MPP input
Output (AC)
Assigned power (for 230V, 50Hz)
2000 W
Max. apparent AC power
2000
VA
AC nominal voltage
220 V / 230 V / 240 V
AC nominal voltage range
180 V to 280 V
AC mains frequency/range
50 Hz,
60 Hz / -5 Hz to +5 Hz
Rated mains frequency / Rated mains voltage
50 Hz / 230 V
9
Maximum output current
A
1
Power factor for rated power
0
Adjustable phase shift factor
,8 inductive to 0.8 capacitive
Injection phases / connection phases
01/01/19
Efficiency
Max. efficiency.
/ European efficiency
97.2 % / 96,4 %
Protection devices
DC-side disconnection device
●
Ground fault monitoring / mains monitoring
●/●
DC reverse polarity protection / AC short-circuit resistance / galvanic separation
●/●/-
Fault current monitoring unit,
sensitive to all currents
●
I/III
Protection class (to IEC 62103) overvoltage category (to IEC 60664-1)
reverse current protection
Not required
General specifications
Dimensions (W/H/P)
460 / 357 / 122 mm (18,1 / 14.1 / 4.8 inches)
9
Weight
.2 kg (20.3 lbs)
Operating temperature range
-40 °C to +60 °C (-40 °F to +140 °F)
Noise emissions, typical
<25 dB
2
Autoconsumption (night)
,0 W
Topology
Transformerless
Cooling system
Convection
Protection class (to IEC 60529)
IP65
4K4H
Climatic class (to IEC 60721-1-3-4)
Maximum permissible value for relative air humidity (non-condensing)
100,00%
Equipment
connection
DC
/ AC connection
SUNCLIX / connector
Warranty 5/10/15/20 years
● / ○ / ○ / ○
NEN-EN50438
Certifications and approvals (others on request)
AS4777, C10/11, CE, CEI0-21,
DIN EN 62109-1/IEC 62109-1, DIN EN 62109-2/IEC 62109-2, EN50438, G83/2, IEC61727, IEC62116, NBR16149,
