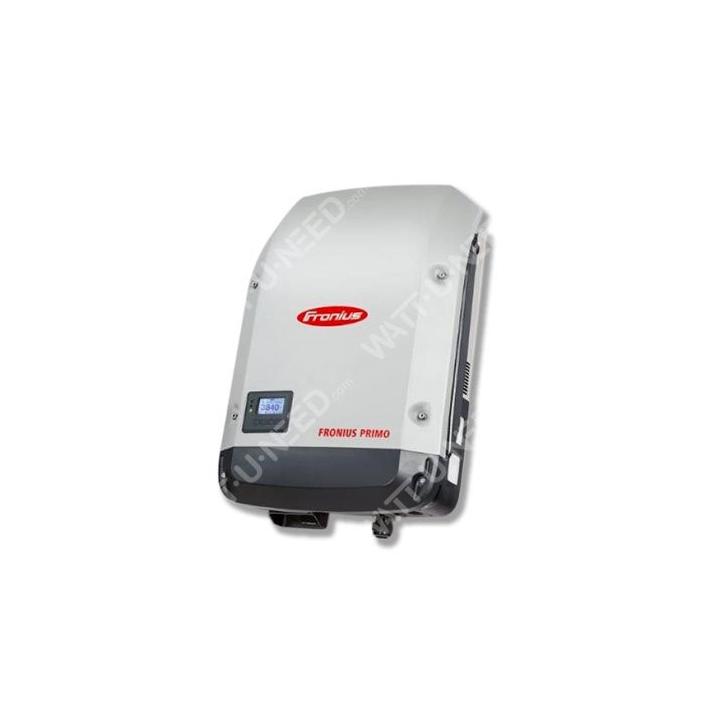

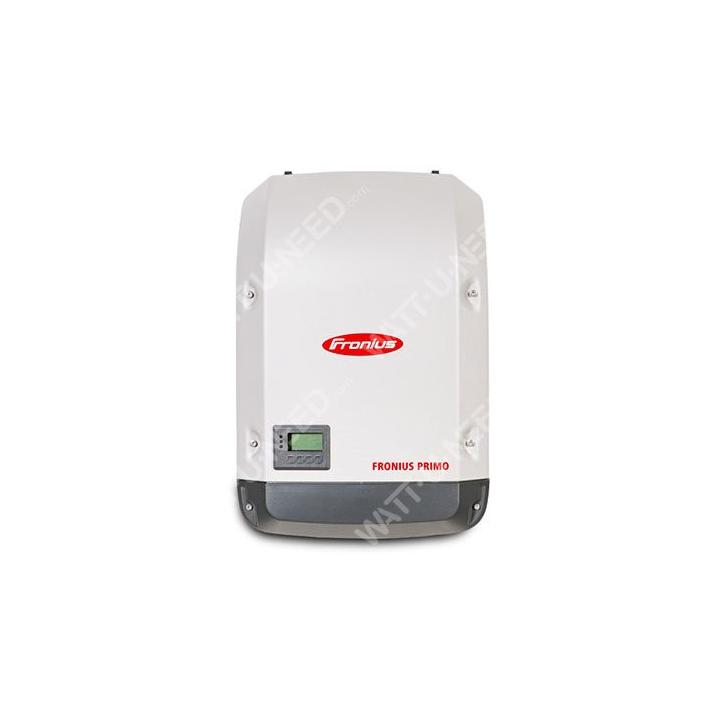

Single-phase inverter Fronius Primo 3,68 kVA - 3.6-1

€1,391.94

Tax included

Reference: Fronius Primo 3.6-1

EAN13: 0712971129900

Fronius Primo 3.6-1: Solar Excellence at Your Fingertips

Choose performance and reliability with the Fronius Primo 3.6-1 inverter. Designed for residential solar installations, it ensures optimal energy production and unparalleled ease of installation. Discover Fronius innovation for clean and sustainable energy.

Why choose the Fronius Primo 3.6-1?

Fast Installation: The SnapINverter mounting system revolutionizes solar installation.
Maximum Efficiency: The DynamicPeakManager algorithm continuously optimizes energy production.
Flexibility: The 2 independent MPPT inputs adapt to all panel configurations.
Reliability: Benefit from a 5-year warranty and long lifespan.

Key Benefits:

Compact and Lightweight: Easily integrates into all spaces.
State-of-the-Art Technology: Transformerless for increased efficiency.
Durable: Designed to withstand outdoor conditions.

Technical Specifications:

Power: 3.6 kW
Phase: Single-phase
Number of MPPTs: 2
Dimensions: 645x431x204 mm
Weight: 21.50 kg

Ideal for:

Single-family homes
Small collectives
Roof installations

Ready to produce your own energy?
Contact us to discuss your project and receive personalized advice.

1 item(s) left in Stock!

Onduleur monophasé Fronius

Fronius Primo 3.6-1: The smart, easy-to-install residential solar inverter

General information

With power classes ranging from 3.0 to 8.2 kW, the Fronius Primo is the perfect addition to the new generation of SnapINverter inverters. This transformerless, single-phase inverter is perfectly suited to domestic use. The innovative SuperFlex Design allows maximum flexibility in installation design, while the SnapINverter mounting system simplifies installation and maintenance.

- Main features of the Fronius Primo 3.6-1:

Easy installation thanks to the SnapINverter mounting system
Two independent mppt inputs enabling strings of panels with two different orientations to be connected
high-speed mppt
for real-time energy conversion and increased energy recovery
Transformerless
Wide input voltage range ( 200 - 800 V )
DynamicPeakManager (shade management): a new algorithm capable of dynamically searching for the best mppt

- Brand: Fronius

- Model: Primo 3.6-1

- Power: 3.6 kW

- Dimensions WxHxD: 645x431x204 mm

- Weight: 21.50 kg

- Warranty: 5 years

Quick, easy and efficient assembly

Montage simple, rapide et efficace

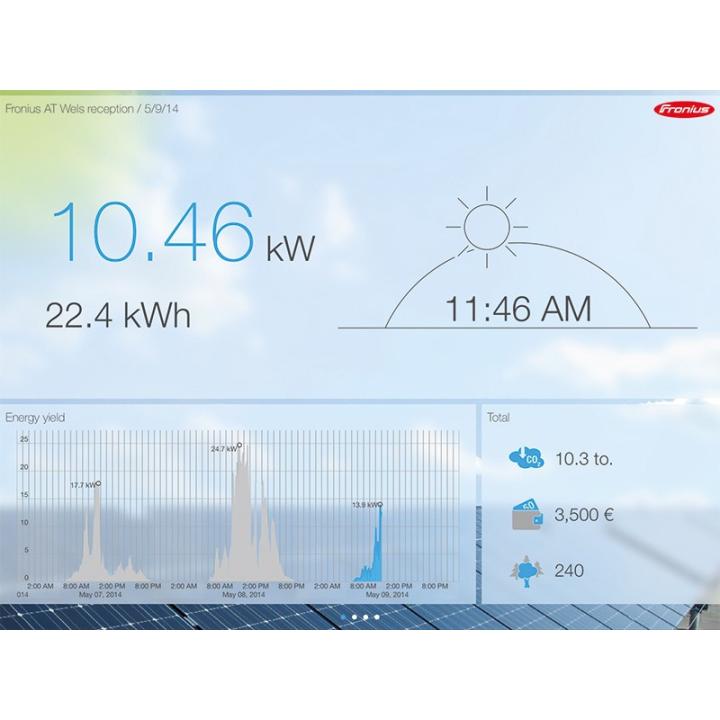

Manage your production with SolarWeb

Gérez votre production avec SolarWeb

Shade management with DynamicPeakManager

Gestion des ombrages avec le DynamicPeakManager

Chimney shading: 1-2% additional gain per year for 1 hour of morning and evening shading

Frame shading: 2-4% additional gain per year for 1 hour of morning and evening shading

DynamicPeakManager energy consumption: ~ 0.05% of annual gain

Residential solutions

WiFi surveillance system installation

General commissioning of Fronius inverters

SnapINverter technology

Technical data

INPUT DATA	Fronius Primo 3.6-1

Max. input current
(Idc max1 / Idc max2)

12.0 A / 12.0 A

Max. short-circuit current.
of the field of modules (MPP1 / MPP2)	18.0 A / 18.0 A

Min. input voltage (Udc min)

80 V

Injection start voltage
(Udc start)

80 V

Nominal input voltage (Udc,r)

Max. input voltage

(

Udc max)

,000 V

MPP voltage range
(Umpp min - Umpp max)

200 - 800 V

Number of MPP trackers

Number of DC connectors

+ 2

OUTPUT

Nominal AC power (Pac,r)

,680 W

Max. output power

.680 VA

AC output current (Iac max)

16.0 A

Mains connection (voltage range)

~ NPE 220 V / 230 V (180 V - 270 V)

Frequency (frequency range)

50 Hz / 60 Hz (45 - 65 Hz)

Harmonic distortion	<
5%

Power factor(cos φac,r)

,85 - 1 ind. / cap.

ENERAL DATA

Dimensions
(height x width x depth)

x 431 x 204 mm

Weight

21,5 kg

Protection class

IP 65

Protection class

Overvoltage category (DC / AC)¹⁾

/ 3

Night-time consumption	<
1 W

Inverter concept

Transformerless

Cooling

Regulated air cooling

Mounting

Indoor and outdoor mounting

Ambient temperature range

40 °C - +55 °C

Permissible air humidity

0% - 100%

Max. height.

above sea level

.000 m

DC connection technology

2x DC+1, 2x DC+2 and 4x DC- screw terminals 2.5 - 16 mm²

AC connection technology

AC screw terminals 2,5 - 16 mm² 3-pole

Certificates and standards compliance

DIN V VDE 0126-1-1/A1, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 4777-2, AS 4777-3, G83/2, G59/3, IEC 0-21.

ield

Max. yield	98.0
%

European yield (ηEU)

96.8 %

to 5 % Pac,r2⁾

80.8 / 82.5 / 82.5 %

to 10 % Pac,r2⁾

86.3 / 93.6 / 91.8 %

to 20 % Pac,r2⁾

91.6 / 96.2 / 95.2 %

to 25 % Pac,r2⁾

92.7 / 96,9 / 95.

to 30% Pac,r2⁾

93.5 / 97.2 / 96.3%

to 50% Pac,r2⁾

95.0 / 97.7 / 97.3%

to 75% Pac,r2⁾

95.6 / 97.8 / 97.

to 100% Pac,r2⁾

95.8 / 98.0 / 97.8%

MPP efficiency	>
99.9%

PROTECTION DEVICES

DC insulation measurement

Yes

Overload capacity	Dynamic operating point displacement,
power limiting

DC disconnect switch

Yes

INTERFACES

WiFi / Ethernet LAN

Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)

digital inputs and 4 digital inputs/outputs

Connection to operating information exchange device

USB (type A connector)³⁾	Datalogging,
inverter update via USB stick

x RS422 (RJ45 connector)³⁾

Fronius Solar Net

Signalling output3⁾

Energy management (zero potential relay output)

Datalogger
and Web server	Integrated

Datalogger and Web server3⁾

S0 meter connection / surge protection input

RS485

Modbus RTU SunSpec or meter connection

¹ ) According to IEC 62109-1.
²⁾ And for Umpp min / Udc,r / Umpp max
³⁾Also available in light.. version.

Subject to change without notice.

Reference Fronius Primo 3.6-1

Data sheet

Max. solar input voltage: 1000 V
Power: 3680 VA
Phase: Monophasé
Number of MPPT: 2 MPPT
