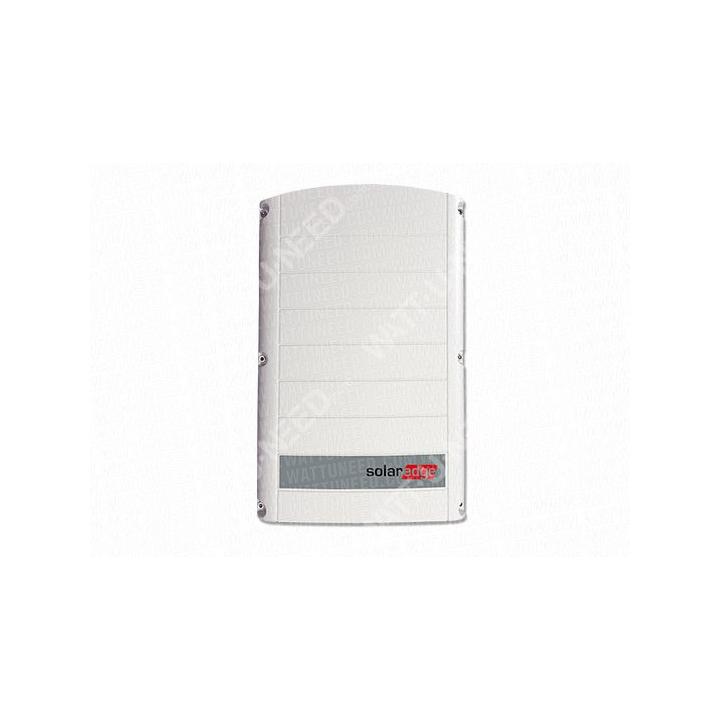

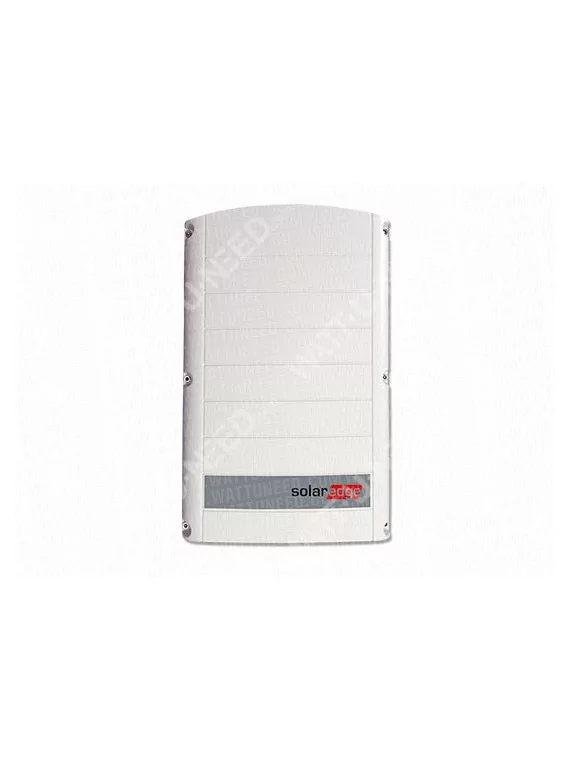

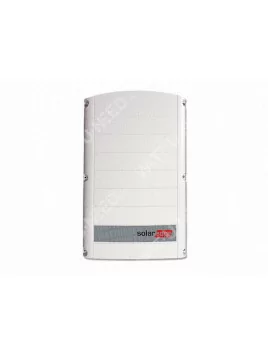

The SolarEdge three-phase inverter combines sophisticated digital control technology with efficient power conversion architecture for superior solar energy harvesting and unmatched reliability.
The SolarEdge three-phase inverter combines sophisticated digital control technology with efficient power conversion architecture for superior solar energy harvesting and unmatched reliability.
Fixed-voltage technology ensures that the solar inverter always operates at its optimum input voltage, regardless of the number of modules in a string or environmental conditions.
A proprietary monitoring system has been integrated into the inverter, gathering performance data from the power optimizer of each PV module. This data can be transmitted over the web and accessed via the SolarEdge supervision platform for performance analysis, fault detection and troubleshooting of PV systems.
Easy commissioning with the SetApp inverter
SolarEdge's new range of three-phase inverters features a new, intelligent commissioning method. Inverter commissioning is carried out directly via a smartphone using the intuitive SetApp mobile application. Take it to the next level. Find out more about SetApp.
Key features
- Inverters specifically designed to work with power optimizers - 4 kW-10 kW for residential systems, 12.5 kW-33.3 kW for commercial systems - Superior efficiency - Excellent reliability with a standard 12-year warranty (extendable to 20 or 25 years) - Small size, light weight and easy installation - Quick and easy inverter commissioning directly from your smartphone with SolarEdge SetApp - Three-phase compatibility on 3x230V networks without neutral in Belgium, Norway, Taiwan and the Philippines - Supervision receiver integrated into modules - Internet connection via Ethernet or wireless (Wifi, ZigBee gateway, cellular network) - IP65 - outdoor and indoor installation
Dimensions
Features
S
E4K
SE5K
SE7K
SE8K
SE9K
SE10K
Rated AC output power
4000
5000
10000
VA
Maximum AC output power
4000
5000
10000
xml-ph-0031@deepl.int
phase to phase / phase to neutral (nominal)
380 / 220 ;
400 / 230
Vac
AC output voltage - phase-to-neutral range
184 - 264.5
Vac
AC frequency
50/60 ± 5
Hz
Maximum continuous output current (per phase)
,5
11,5
13
14,5
16
networks - three-phase
/ N / PE (With Neutral)
Utility monitoring,
i
slanding protection, configurable power factor, country-configurable thresholds
