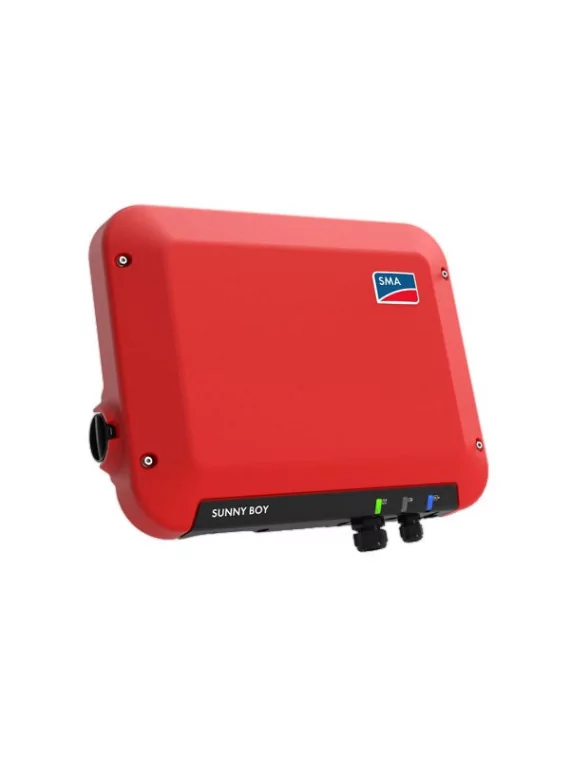

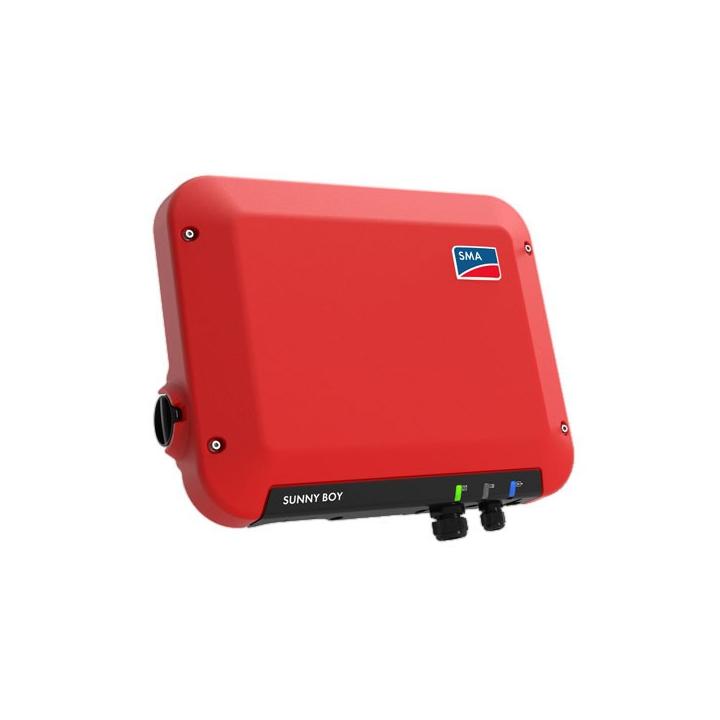

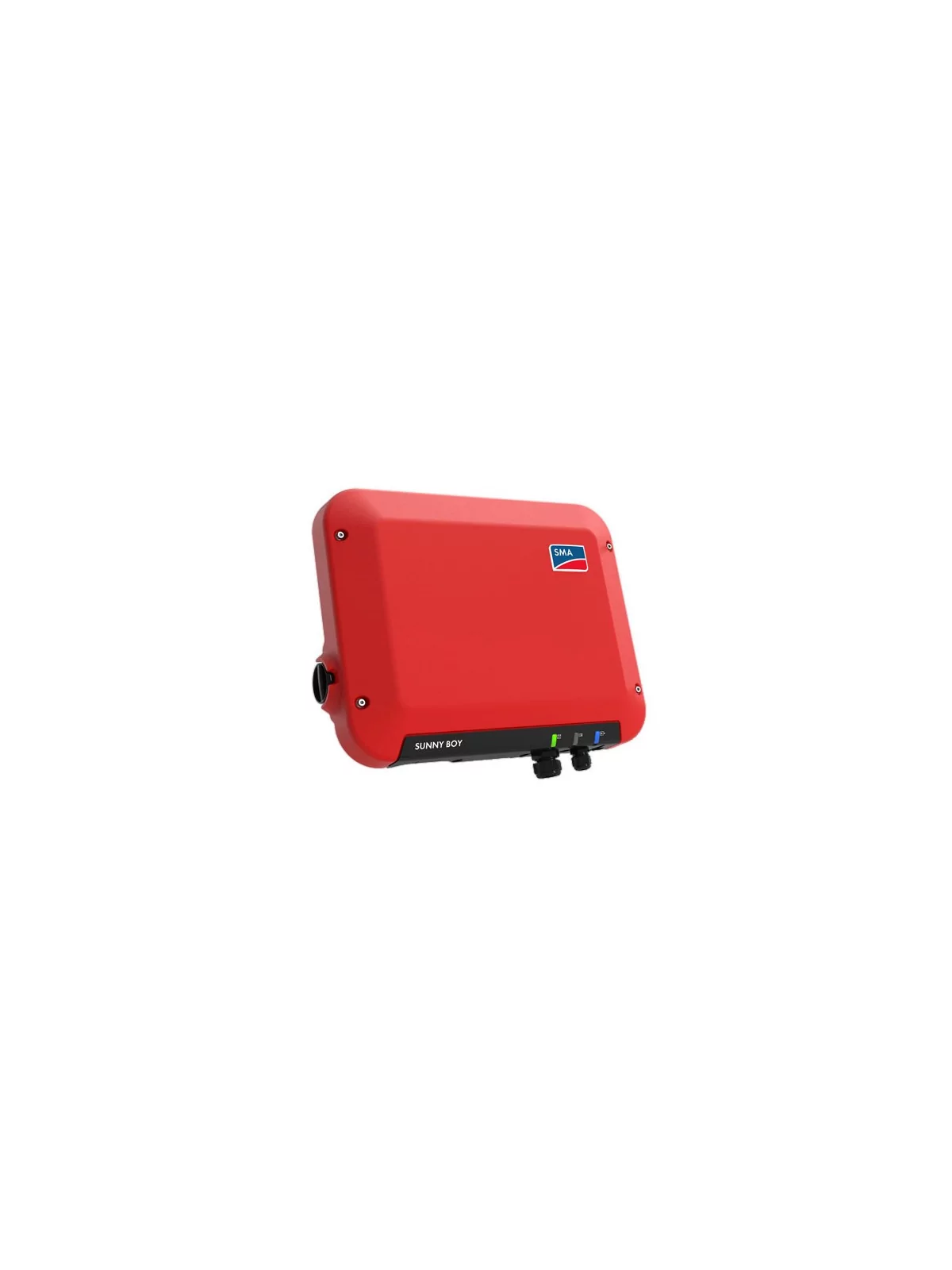

Single-phase inverter SMA Sunny Boy 2,5 kVA - SB2.5-1VL-40
Description
The new Sunny Boy 1.5 and 2.5 inverters are the ideal solution for small photovoltaic systems.
Easy to install, the inverter is compatible with a wide range of photovoltaic panels thanks to its extended voltage range (80 - 600V), making it highly flexible while offering excellent efficiency.
Its small dimensions make it particularly lightweight. It can be easily integrated indoors or outdoors.
Its robust, lightweight casing makes it easy to install both indoors and outdoors, making it ideal for small photovoltaic systems.
Features
- Up to 97.2% efficiency - Transformerless - Maintenance-free thanks to convection cooling - SUNCLIX DC connection system - Easy to install - Wide input voltage range
Efficiency curve
Optitrac technology
OptiTrac Global Peak is an additional function of the proven "OptiTrac" MPP tracker and is activated on this inverter.
It is used for partially shaded photovoltaic systems. Even in this configuration, this special operating mode guarantees continuous operation of the panels at the maximum power point, without any noticeable influence on yield (losses < 0.2%). In other words: even in the event of shading, the panels operate correctly.
Installation and commissioning
Technical specifications
Technical data
Sunny Boy 1.5
Sunny Boy 2.0
Sunny Boy 2.5
DC input
Max. power of photovoltaic generator
3000Wp
4000Wp
5000Wp
Max. input voltage
600V
MPPT voltage range
160Và500V
210V à 500V
260V à 500V
Assigned input voltage
360V
Min. input voltage/start-up input
50V/80V
Max. input current.
Per string
10A
Max. short-circuit current.
Per string
18A
Number of independent MPPT inputs/strings per MPPT input
AC output
Assigned power (For 230V,
50Hz)
1500W
2000W
2500W
AC apparent power max
1500VA
2000VA
2500VA
AC nominal voltage
220V/230V/240V
AC nominal voltage range
180Và280V
AC mains frequency/range
50Hz,60Hz/-5Hz to +5 Hz
Rated mains frequency/rated mains voltage
50Hz/230V
Maximum output current
11A
Power factor for rated power
Adjustable phase shift factor
,8 inductive to 0.8 capacitive
Injection phases/connection phases
Max.
yield
European efficiency
97.2%/96.1%
97.2%/96.4%
97.2%/96,7%
Protective devices
-
DC-side disconnection device
-/-
Ground fault monitoring / network monitoring
-/-/-
DC polarity reversal protection / AC short-circuit resistance
-
Fault current monitoring unit,
sensitive to all currents
Protection class (to IEC 62103)/overvoltage category (to IEC 60664-1)
Not required
General data
Dimensions
460/357/122 mm (18,1/14.1/4.8 inches)
Weight
.2 kg (20.3 lbs)
Operating temperature range
to +60°C (-40°F to 140°C F)
Noise emissions, typical
<25db
Self-consumption (nui)
,
W
Topology
Transformerless
Cooling system
Convection
Protection class
IP65
Climatic class
Maximum permissible relative humidity (non-condensing)
100,00%
Equipment
DC
/ AX connection
SUNCLIX / Connector
Warranty 5/10/15/20 years
-/○/ ○/ ○
Certifications and approvals (others on request)
AS4777, C10/11, CE, CEI0-21,
DIN EN 62109-1/IEC 62109-1, DIN EN 62109-2/IEC 62109-2, EN50438, G83/2, IEC61727, IEC62116, NBR16149,
