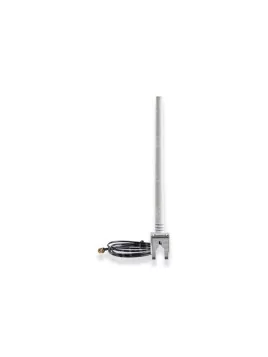

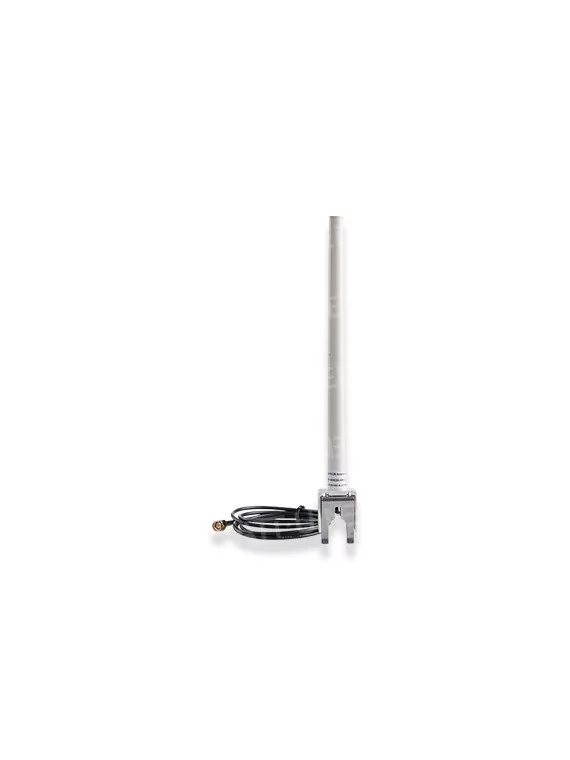

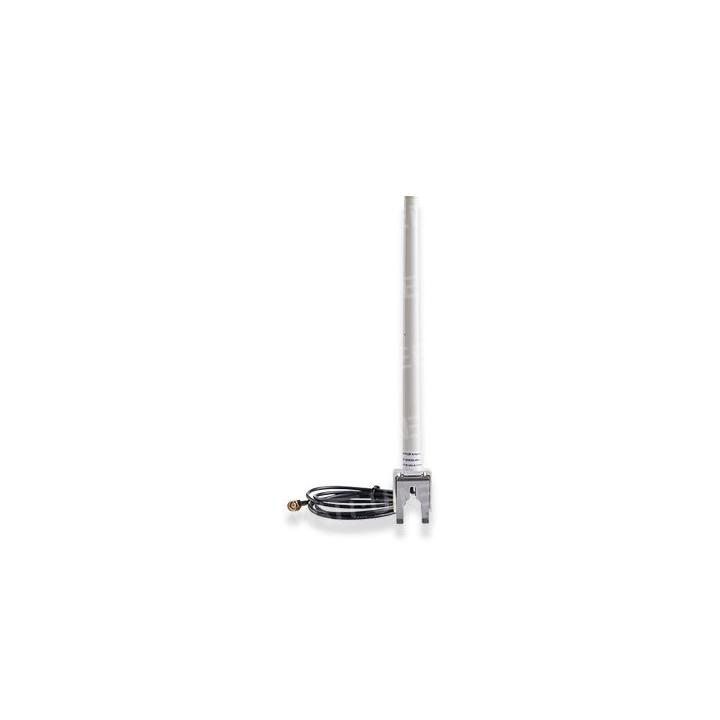

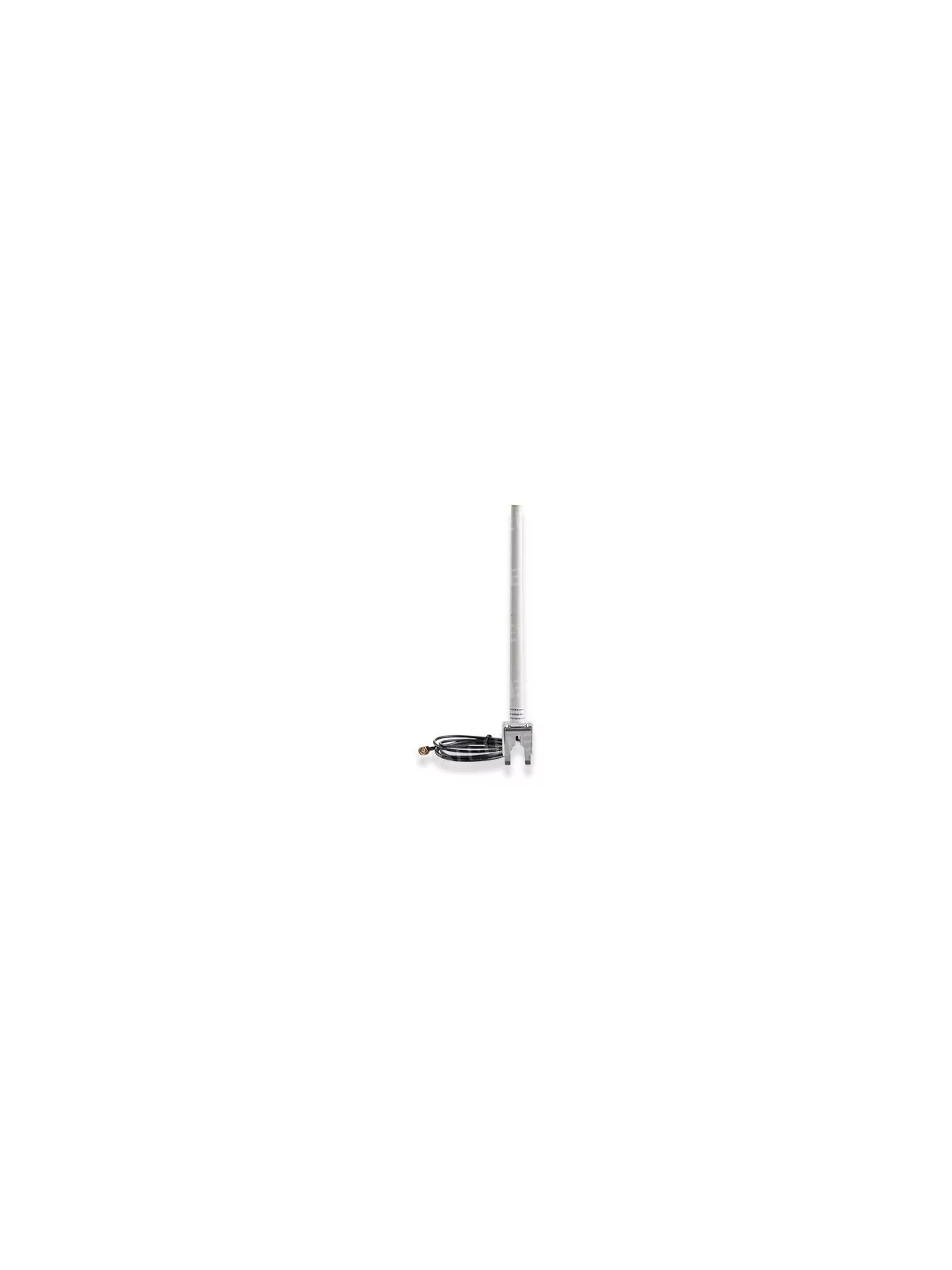

Antenna for WiFi and ZigBee® communication SolarEdge

Wi-Fi/ZigBee antenna: simplified solar connectivity

The external antenna is used to wirelessly connect SetApp-compatible SolarEdge inverters to the monitoring platform or to home automation systems.

Simplified wireless connectivity

• Used to connect a SolarEdge device to the monitoring platform via Wi-Fi
• Used to connect a SolarEdge device to smart devices via ZigBee communication
• External to the inverter for greater range
• Indoor or outdoor use
• 5-year warranty

Highlights :

• Connects a SolarEdge device to the supervision platform via Wi-Fi.
• Connects a SolarEdge device to home automation via ZigBee communication *
• Located outside the inverter for greater range
• Wi-Fi is integrated into the SolarEdge device.
• Suitable for indoor or outdoor use

*ZigBee plug-in required

---

Features

Compatible inverters

Sexxx-xxxxxBxxx

UNITS

ELECTRICAL SPECIFICATIONS

2

Frequency range

.4 - 2.

5

Ghz

5

Gain (Max)

dBi

Beam width - horizontal

360

Degrees

Beam width - vertical

50

Degrees

5

Maximum input power

W

Input impedance

50

Ohm

VSWR2

.1:1

Linear

Polarization

Impedance

50

Ohm

Radiation

Omni Directional

dipole

Antenna type

Collinear

Antenna design

Dipole network

Use	Indoor / Outdoor

ELECTRICAL SPECIFICATIONS

-4

Operating temperature
0 to + 60	°C

Storage humidity

10% to 90% non-condensing

ELECTRICAL SPECIFICATIONS

Dimension (Height x Diameter)

222 x 13

mm

0

Weight

,

0

5

kg

RG174

Cable

Cable length (Max)

135

cm

Connector

RP SMA

Internal material

PCB + spring

Base material

PC Lexan 503R-WH5151L or WH8G952 Sabic
