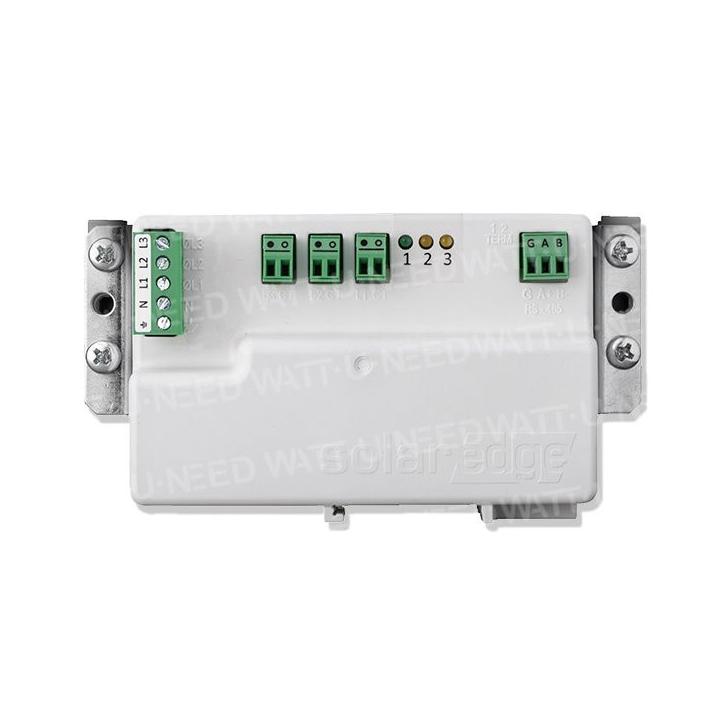

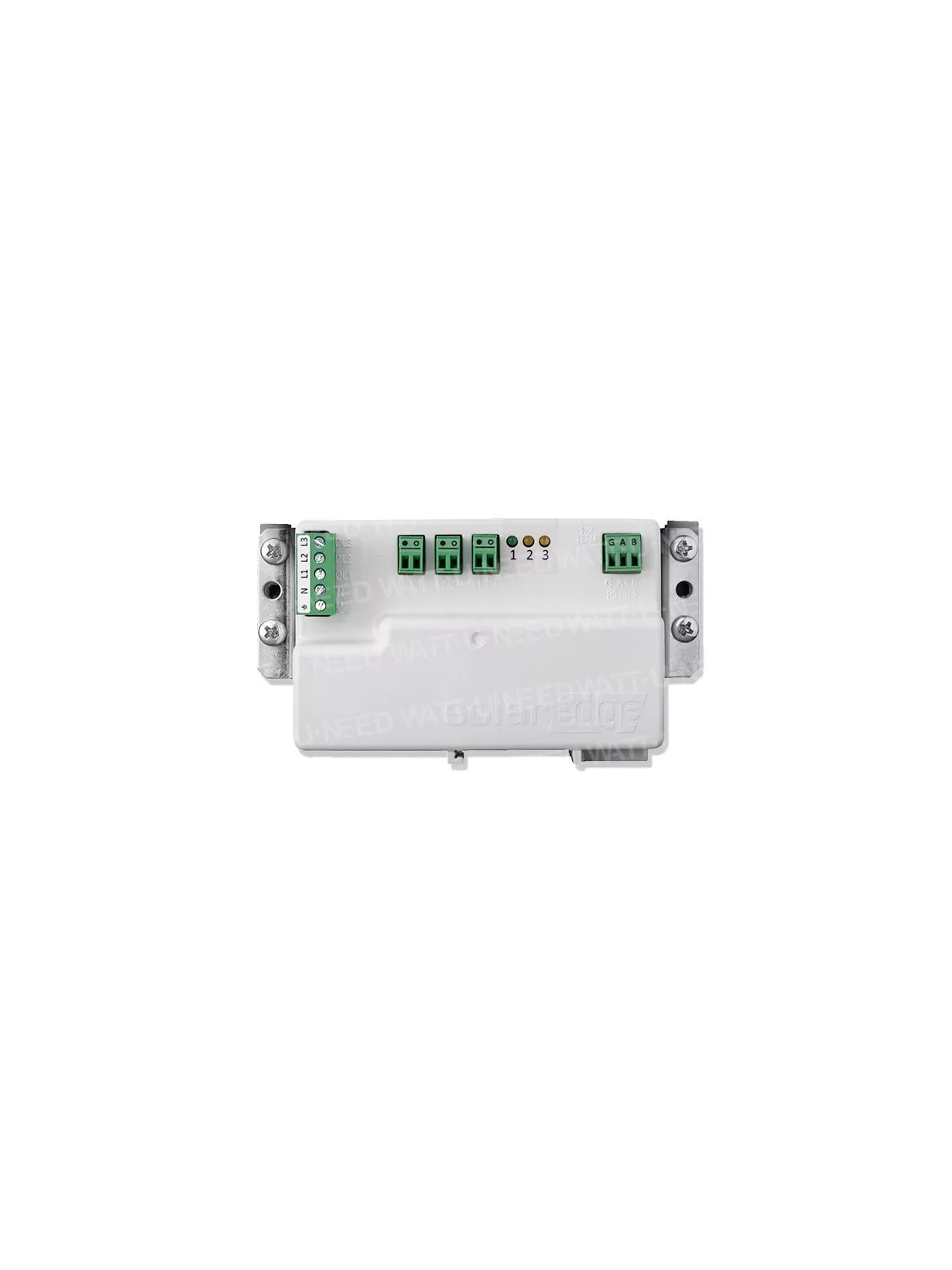

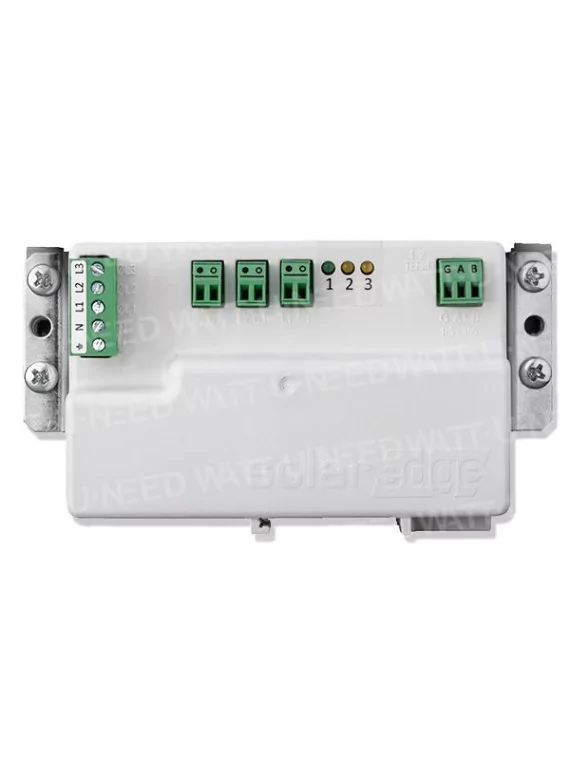

Energy meter with Modbus connection suitable for
- High-accuracy meter readings (up to 0.5%) for production/consumption readings
- Restricted export of production to the grid
- Small in size and easy to install - suitable for standard electrical cabinets
- Suitable for residential, tertiary and ground truss installations
- Compatible with RS485 end-of-line resistors up to 120 Ohms
Operating voltage range - phase to neutral, phase to phase Vac
Nominal: 230/400
networks - single-phase; three-phase*
/ N / PE ; L1 / L 2 / L3 / N / PE
Power consumption (norm.)
RS485 half-duplex, 3-wire (A, B,
device identification (Modbus)
0
5% - 100% of rated CT current
IEC 62053-21 Class 1, IEC 62053-23 Class 2
IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No.
2000, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6,EN 61000-4-5, EN 61000-4-6,
INSTALLATION SPECIFICATIONS
Dimension (HxLxW) 75 x 138.6 x 35
Operating temperature range
5% to 90% up to 40°C decreasing linearity to 50% RH at 55°C
Relative humidity (non-condensing)
DIN rail / Surface mounting
Reference SE-MTR-3Y-400V-A
Data sheet Number of MPPT 1 MPPT Condition New
