Compact single-phase inverters for small grid-connected PV systems

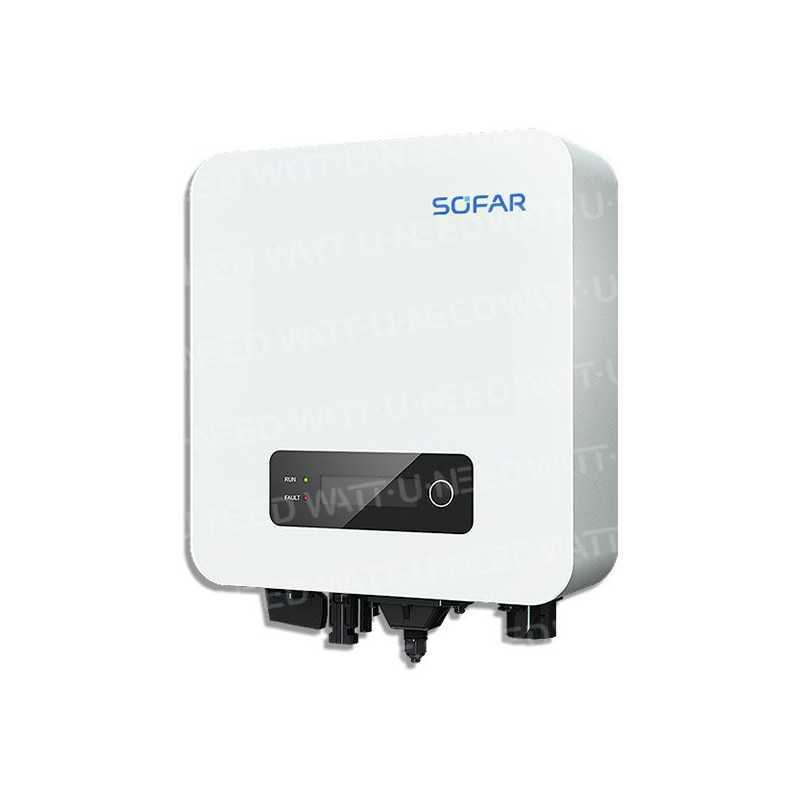

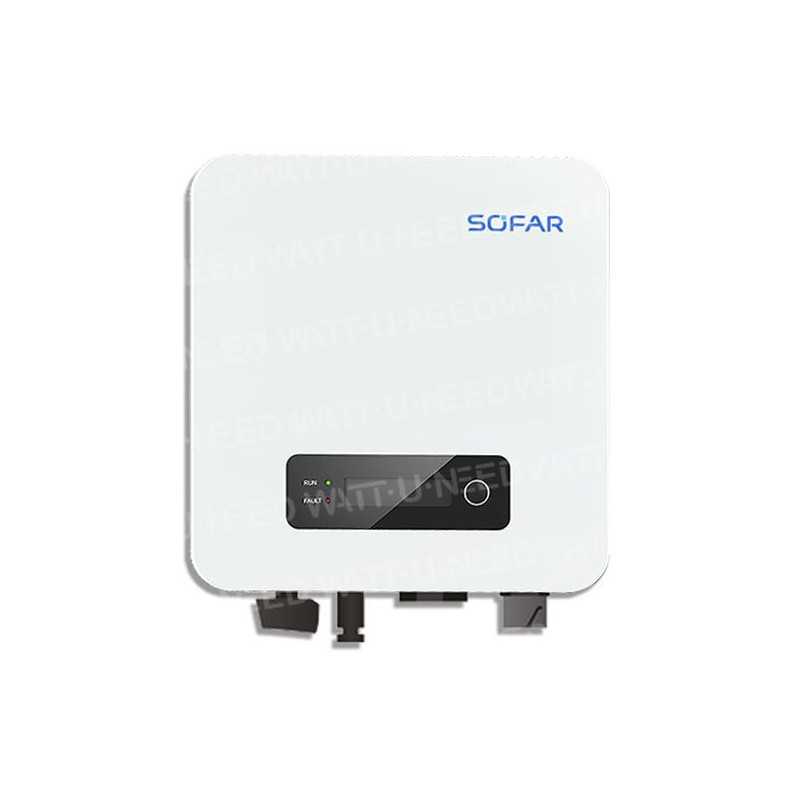

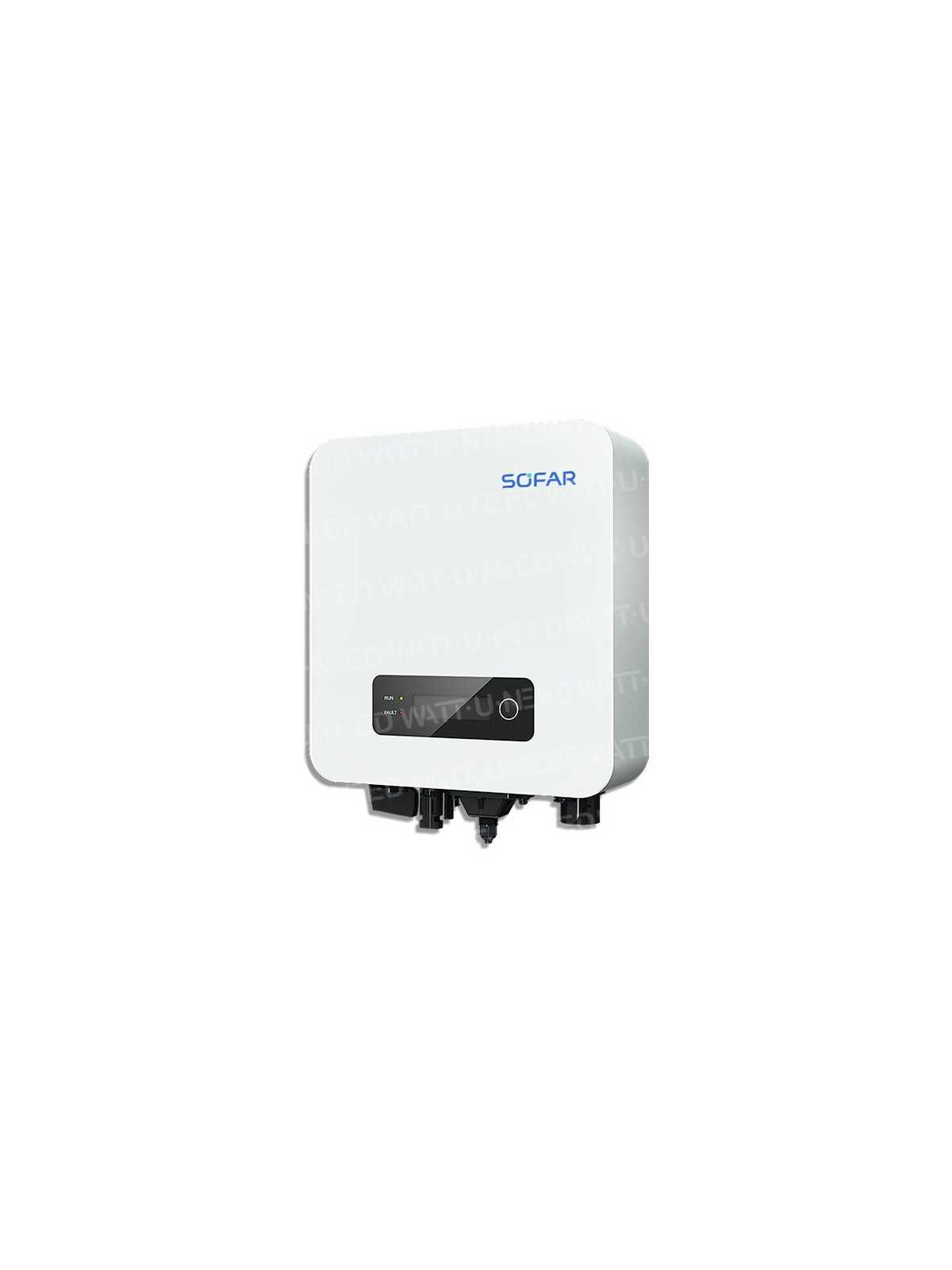

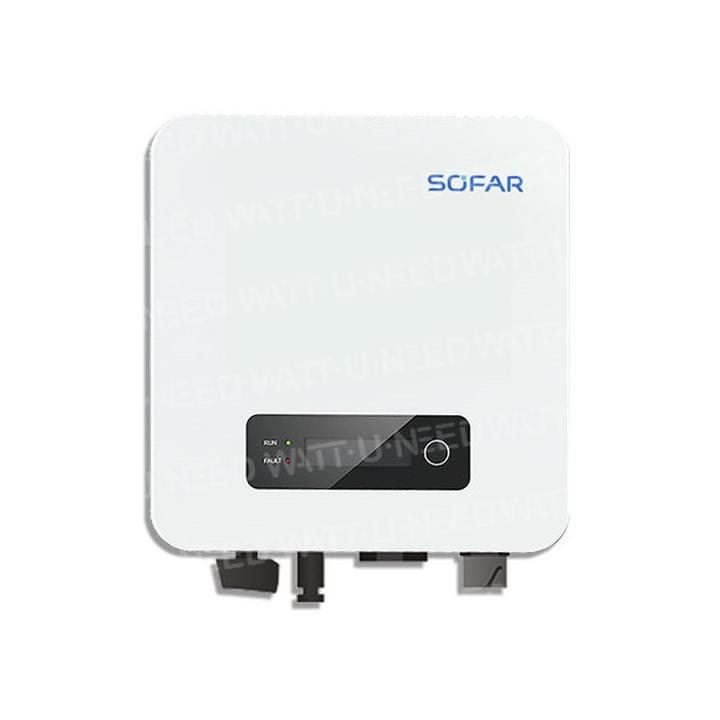

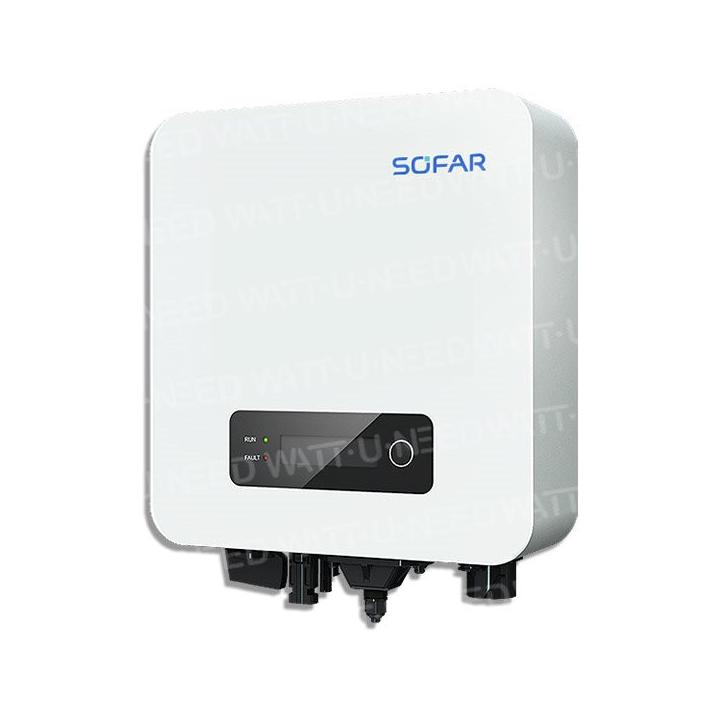

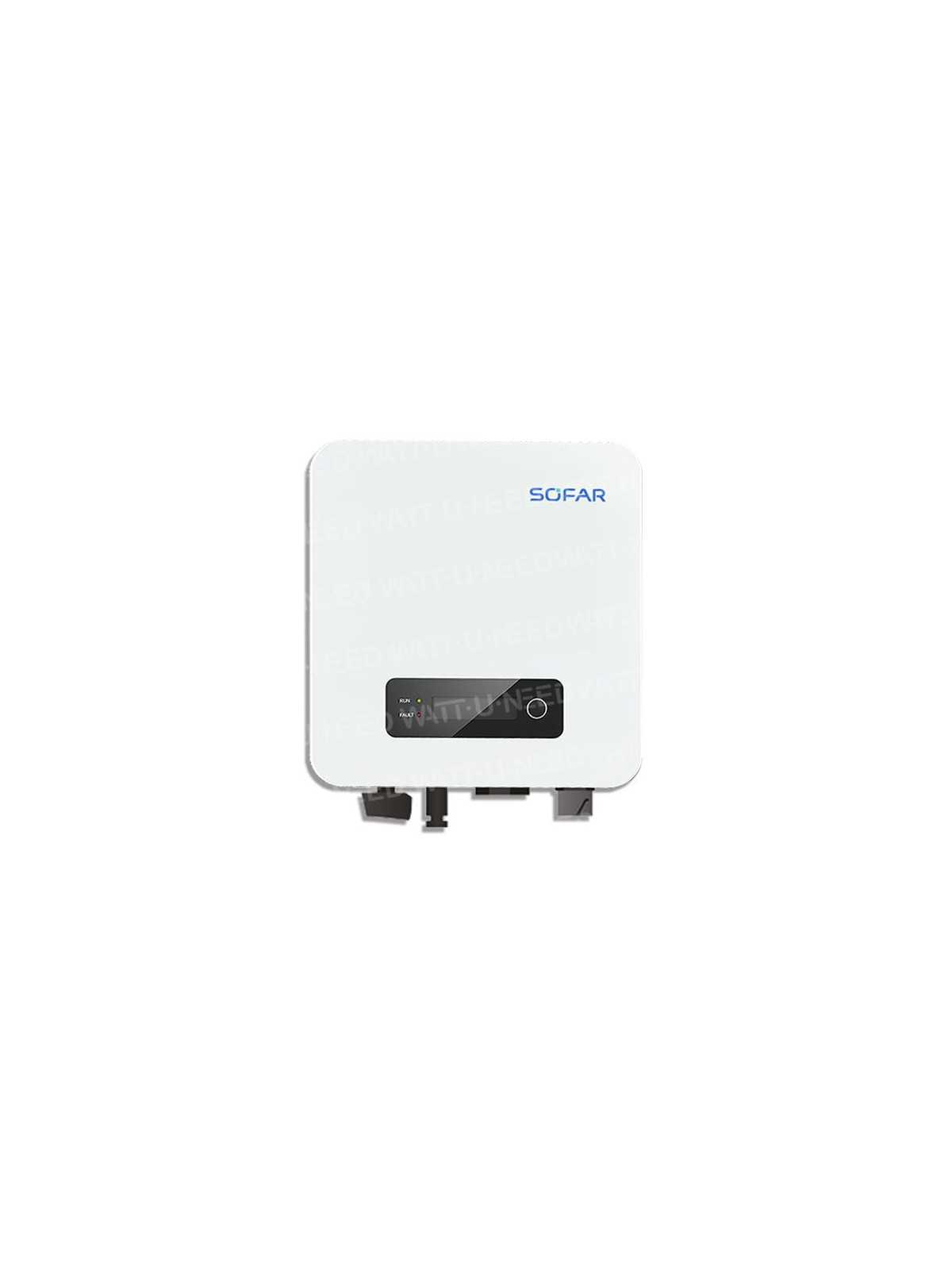

SofarSolar 1.1K...3.3KTL-G3 is a polished, compact and lightweight solar inverter for smaller single-phase PV systems.
With an efficiency of up to 97.7%, it maximizes the energy yield of your PV system. The integrated zero export function allows the user to limit the power supplied to the grid by simply adding a current transformer to the system.
The inverter also comes with a WiFi key for easy connection to the SofarSolar monitoring portal.
High efficiency
- Maximum efficiency of 97.5%. - Precise real-time MPPT algorithm for maximum utilization - Wide input voltage operating range
All in one. Flexible, cost-effective system solution
- Free choice of location thanks to IP65 rating - Plug & Play" connection for easy installation and maintenance - Interface selection - Wi-Fi / RS485 /GPRS - LCD + LED display - Integrated zero export function (optional)
Low maintenance costs
- Detachable lid for easy installation - Stainless aluminum covers - A flexible control solution
Intelligent grid management
- Reactive power capacity - Automatic power reduction in the event of overfrequency - Remote control of active/reactive power limit
Features
DC INPUT
PV input power max.
Recommended
4100 Wp
Max. input voltage
550
V
Starting voltage
70 V
Nominal input voltage
360 V
MPPT operating voltage range
50 - 550 V
Full MPPT power in voltage range
275 - 500 V
Max. MPPT input current
12
A
Max. DC input short-circuit current.
P
er MPPT
15 A
Number of MPPT / string per MPPT
/ I
Type of input terminal
Type MC4
AC output
Rated power
Max. power.
In AC
3000 W
Max. output current
14.5 A
Nominal mains voltage
/ N / PE,
230 Vac
Mains voltage range
180 - 276 Vac (according to local standards)
Nominal mains frequency
50 Hz / 60 Hz
Mains frequency range
45 - 55 Hz / 54 - 66 Hz (according to local standards)
