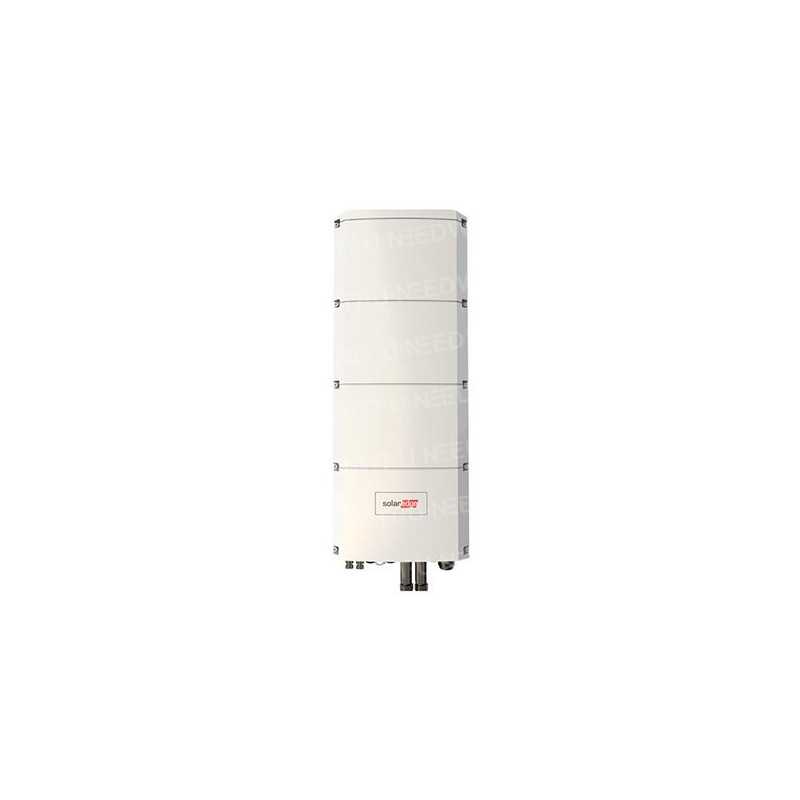

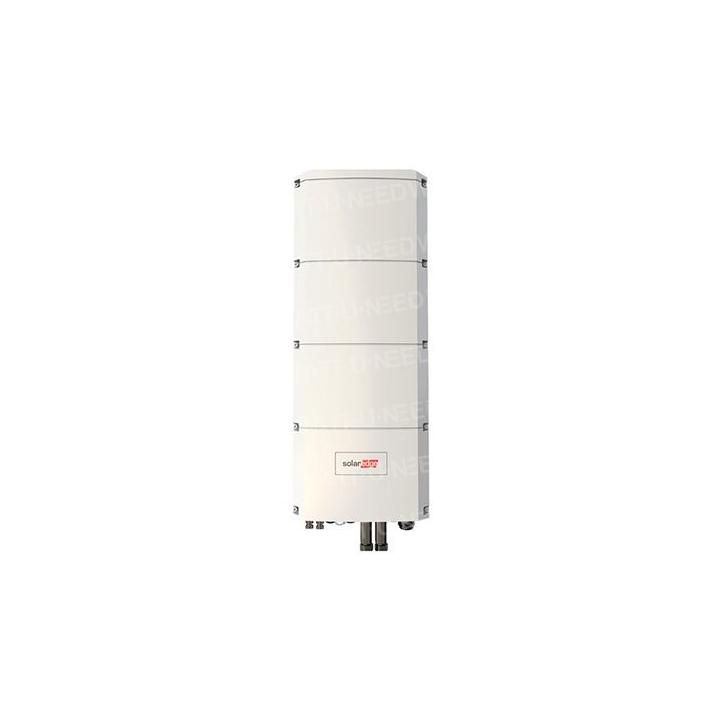

Three-phase inverter StorEdge RWS SE5K to SE10K SETAPP
A single inverter unit directly connected to one or more 48 V batteries available from different suppliers. This highly efficient inverter manages solar energy production and consumption, as well as battery power, for homes with three-phase installations. It comes with a standard 12-year warranty.
Suitable for both indoor and outdoor installations, inverters are available in models from 5 kW to 10 kW.
Easy commissioning with SetApp
SolarEdge single-phase inverters now feature a new, intelligent commissioning method. Inverter commissioning is carried out directly via smartphone using the intuitive SetApp mobile application. Switch to the new standard for inverter commissioning.
Ideal for three-phase systems with battery storage
- Simple installation with a single inverter to manage solar power generation (photovoltaic,
- PV) and battery storage
More energy thanks to a DC-coupled solution that stores solar energy directly in the battery without losses due to AC conversion
Quick and easy inverter commissioning directly from a smartphone using SolarEdge SetApp
Design eliminates high voltages during installation
,maintenance or transport for enhanced safety
Integrated module-level supervision and full visibility of battery status, solar energy production and self-consumption data
Compatible with low-voltage 48 V batteries from different suppliers for greater flexibility
Features
| Model | SE5K-RWB48 | SE8K-RWB48 | SE10K-RWB48 | Value |
| Nominal AC output power | 5000 |
| Maximum AC output power | 5000 |
AC output voltage
Phase to phase/phase to neutral (nominal) | 380/220 ; |
| 400/230 | Vac | |
| AC output voltage - Phase-to-phase/phase-to-neutral range | 184 to 264,5 | Vac |
| Maximum continuous output current (per phase) |
Residual current detector
Residual current level detector |
| 300 /30 | mA |
| networks - three-phase |
| / N / PE (Star with neutral) |
| Energy consumption monitoring, anti-islanding protection, configurable power factor, |
| country-configurable thresholds | Yes |
| Maximum DC power (STC module) | 10000 | 13000 | 15000 |
| Nominal DC input voltage | 750 |
| Maximum input current | 13,3 | 17,3 | 20 | Adc |
| Reverse polarity protection | Yes |
| Ground fault detection | 700 kΩ sensitivity |
| Maximum inverter efficiency | 98 |
| European weighted efficiency | 97,3 | 97.6 |
| communication interfaces |
| x RS485, Ethernet, |
| SolarEdge home network |
| Network connection standards |
| 4105, |
| Tor Erzeuger Typ A, EN 50549-1, CEI 0-21, G98 Type A, G98 NI Type A, RD1699 / RD413 / NTS, VDE-V 0126-1-1, VFR 2019, EN 50438 |
| Emissions | IEC61000-6-2, |
| IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, EN55011 |
| INSTALLATION SPECIFICATIONS |
| AC output - Cable gland diameter | 15 to 21 | mm |
| DC battery - Cable gland diameter |
| x 11-16, |
5
| PV DC input |
| x pair type MC4 |
| Dimensions (H x W x D) | 907 x 317 x 192 | mm |
| Operating temperature range |
| to + 60 | °C |
| Cooling | Internal and external fans |
| IP65 - Indoor and outdoor |
