Flexible plant design and maximized production thanks to integrated functions

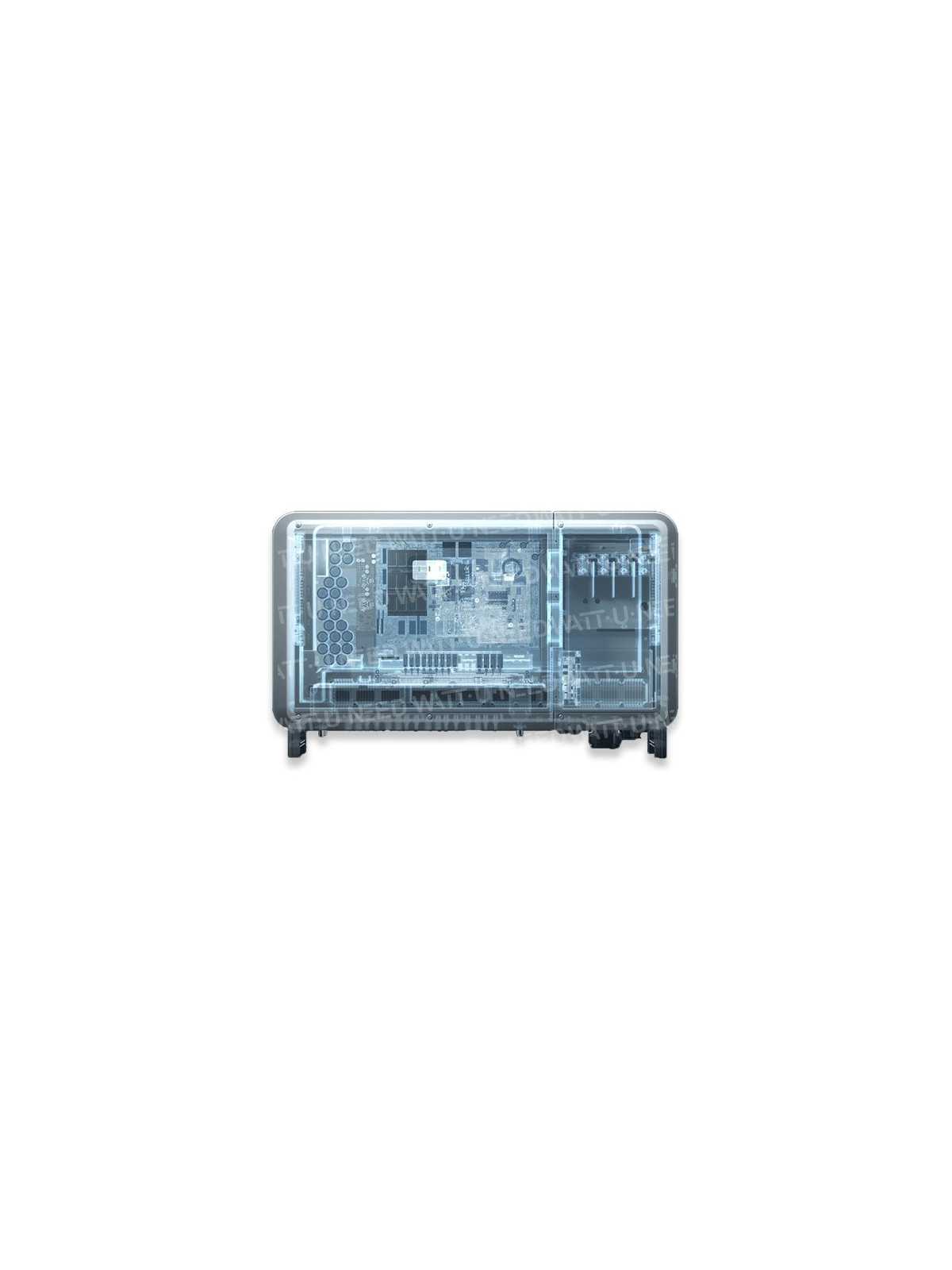

Flexible plant design for large-scale industrial photovoltaic systems: the Sunny Tripower CORE2 is the ideal inverter for decentralized megawatt plants. With an output of 110 kilowatts, 24 strings and 12 MPP trackers, it provides a particularly high degree of solar coverage throughout the day, for both ground-mounted and roof-mounted installations with different inclinations. The integrated SMA ShadeFix software solution optimizes system performance automatically and continuously, even for partially shaded panels.
With the Sunny Tripower CORE2 inverter as the central component of the SMA Energy System Business solution, installers and system owners benefit from high-quality components from a single manufacturer, and the possibility of future options for adding SMA storage solutions.
More options
Maximum flexibility in the design of medium and large-scale ground-mounted and roof-mounted systems.
Maximum flexibility in plant design up to several MW.
- Best in class: 12 MPP trackers
- 24 strings with Sunclix connectors
- Photovoltaic systems can be oversized by up to 150%
- Up to 1100 VDC
- Compatible with bifacial solar panels
More integration
Central element of the SMA Energy System Business and ennexOS, ready for all future needs.
Ready for all present and future expansion requirements.
- SUNNY DESIGN: intuitive planning and configuration,
- Energy storage system for businesses: easy expandability, e.g. by adding storage solutions,
- DATA MANAGER M: full integration of the ennexOS platform and simple commissioning of the system,
More performance
A "ready-to-use" solution with integrated optimization of energy production guarantees efficient installation and service.
The "ready-to-use" installation concept guarantees maximum output.
- No DC coupler required
- Best-in-class inverter: 110 kW with 400 VAC as standard
- Multiple handling handles
- High resistance to environmental conditions SMA
- ShadeFix
Integrated intelligent functions
SMA ShadeFix is a patented, integrated software solution for optimizing plant energy production that outperforms most conventional hardware solutions for managing shading in PV installations.
Features
| Max. power of photovoltaic generator | 165000 Wp STC |
| Max. input voltage |
| 1100 V |
| MPP voltage range | 500 V to 800 V |
| Min. input voltage / start-up input voltage | 200 V / 250 V |
| Max. input current./max. short-circuit current per MPP tracker | 26 A / 40 A |
| Number of independent MPP trackers / strings per MPP tracker | 12/02/20 |
| Rated power at nominal voltage | 110000 W |
| Max. apparent AC power | 1100000 |
| VA |
| AC voltage range | 320 V to 460 V |
| AC mains frequency | 50 Hz / 45 Hz `to 55 Hz / 60 Hz / 55 Hz to 65 Hz |
| Maximum output current | 159 A |
| Power factor at rated power/adjustable phase shift factor |
| / 0,8 overexcited to 0.8 underexcited |
| Harmonic distortion (THD) | < |
| 3% |
| Injection phases / AC terminal |
| / 3-PE |
| Max. yield./European efficiency | 98.6% / 98. |
| Dimensions (W / H / D) | 1117 mm / 682 mm / 363 mm |
| Operating temperature range | -30 °C to +60 °C |
| Noise emissions, typical | < |
| 65 db(A) |
| Self-consumption (night) | < |
| 5 W |
| Topology / cooling system | Transformerless / active cooling |
| Degree of protection (to IEC 60529) | IP66 |
| Maximum permissible value for relative air humidity (non-condensing) | 100 |
| Equipment / Function / |
| Accessories |
| DC |
| / AC connection | Sunclix / terminal lug (up to 240 mm²) |
| LED display (status/error/communication) |
| Yes |
| Data interface | Web / Modbus interface SunSpec |
