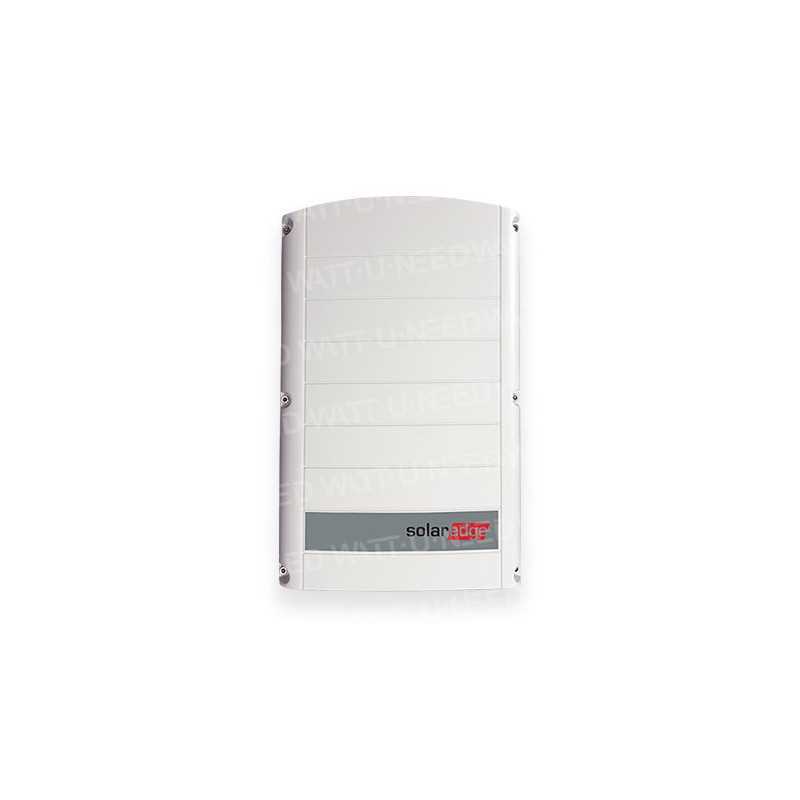

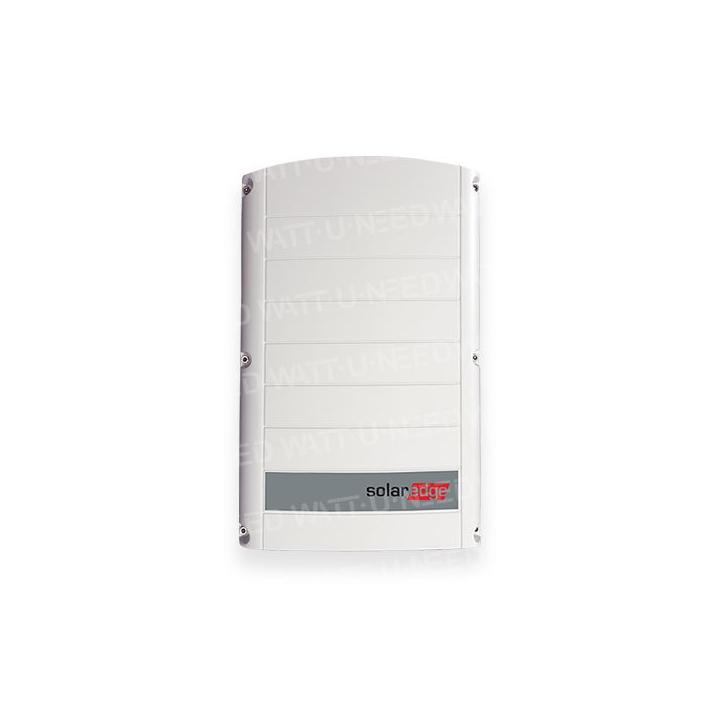

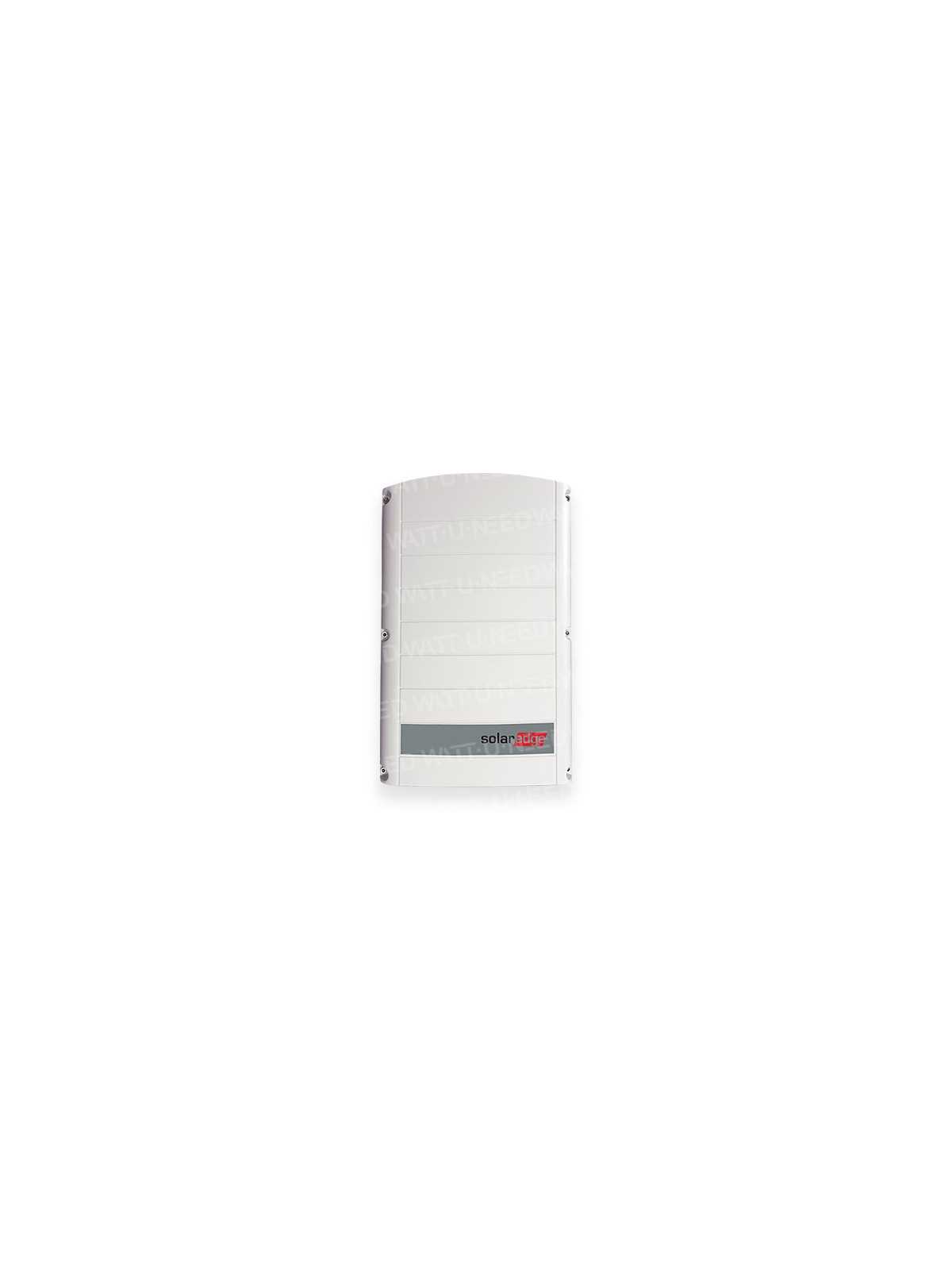

SolarEdge 16K-17K three-phase inverter: Maximise your solar energy production
The SolarEdge three-phase inverter combines sophisticated digital control technology with efficient power conversion architecture for superior solar energy harvesting and unmatched reliability.
Fixed-voltage technology ensures that the solar inverter always operates at its optimum input voltage, regardless of the number of modules in a string or environmental conditions.
A proprietary monitoring system has been integrated into the inverter, gathering performance data from the power optimizer of each PV module. This data can be transmitted over the web and accessed via the SolarEdge supervision platform for performance analysis, fault detection and troubleshooting of PV systems.
Easy commissioning with the SetApp inverter
SolarEdge's new range of three-phase inverters features a new, intelligent commissioning method. Inverter commissioning is carried out directly via a smartphone using the intuitive SetApp mobile application. Take it to the next level.
Key features:
- Inverters designed specifically to work with
- 12
- power optimizers
- .5 kW-25 kW for tertiary systems
- Superior efficiency
- Excellent reliability with a standard 12-year warranty (extendable to 20 or 25 years)
- Small size, light weight and easy installation
- Quick and easy inverter commissioning directly from your smartphone with SolarEdge SetApp
- Three-phase compatible on 3x230V grids without neutral in Belgium,
- Norway, Taiwan and the Philippines
- Supervision receiver integrated into the modules
- Internet connection via Ethernet or wireless (Wifi, ZigBee gateway, cellular network)
- IP65 - outdoor and indoor installation
Features
APPLICABLE FOR INVERTERS
WITH THE FOLLOWING ITEM CODES | SEXXK-BE0T0BNN4 |
| AC output voltage - phase to phase | 220 / 127 ; |
| 230 /133 | Vac |
| AC output voltage - phase-to-phase range | 184 - 264,5 | Vac |
| Maximum continuous output current (per phase) | 20 | 25,5 | 26 |
Residual current detector /
Graduated residual current detector | 300 / 30 | mA |
| networks - three-phase |
| (network without neutral/Delta ; |
g
| potential is not supported) |
Utility monitoring, islanding protection,
factor Configurable power, country-configurable thresholds | Yes |
| Maximum DC power (STC module) | 14400 | 18400 | 20000 |
| Transformerless, |
| without ground |
| Maximum input voltage | 600 |
| Nominal DC input voltage | 400 |
| Maximum input current | 19 | 24 | 26 | Adc |
| Ground fault detection | 700kΩ sensitivity |
| Maximum inverter efficiency | 98 |
| European weighted efficiency | 97,7 | 97.7 | 97.7 |
| Night-time consumption | < |
| 2.5 |
| communication interfaces(2 |
| RS485, Ethernet, Wi-fi (requires antenna)(3), ZigBee (optional), |
| cellular network(optional) |
| With SetApp mobile app via integrated local Wi-fi |
| Rapid Shutdown | Optional(4) (Automatic upon disconnection from AC grid) |
| Arc fault protection | Integrated, |
| user-configurable (to UL1699B) |
| DC SAFETY UNIT (OPTIONAL) |
| Interpole disconnection | Not available |
| Type DC Protection | Not available |
| DC |
| on plus & |
| minus | Not available |
| Safety | IEC-62103 (EN50178), IEC-62109, |
| AS3100 |
| Grid connection standards |
| , EN50438 |
| Emissions | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, |
|
I
| AC output | Cable gland diameter 15 - |
| 21 | mm |
| DC input with DC safety unit | Not available | mm |
| Dimension (W x D x H) | 540 x 315 x 260 | mm |
| Dimension with DC safety unit (W x D x H) | Not available | mm |
| Weight with DC safety unit | Not available | kg |
| Operating temperature range |
| to +60(5 |
| Cooling | Fan (user-replaceable) |
| Protection ratings | IP 65 - Outdoor and indoor |
| Mounting | Mounting bracket supplied |
(1) If permitted by local regulations
(2) Please refer to the data sheets - Communication category in the download area for the specifications of our communications solutions |
https://www.solaredge.com/en/downloads#/?cb=487%7C50%7C33
(3) Wi-Fi connection requires an external antenna. For more information, please visit: https://www.solaredge.com/sites/default/files/se-wifi-zigbee-antenna-datasheet.pdf
(4) Product code for inverters with rapid shutdown: SExxK-RWRxxxxxx; available for SE25K and SE27.6K
(5) For information on de-rating, please refer to: www.solaredge.com/sites/default/files/se-temperature-derating-note-nl.pdf |
