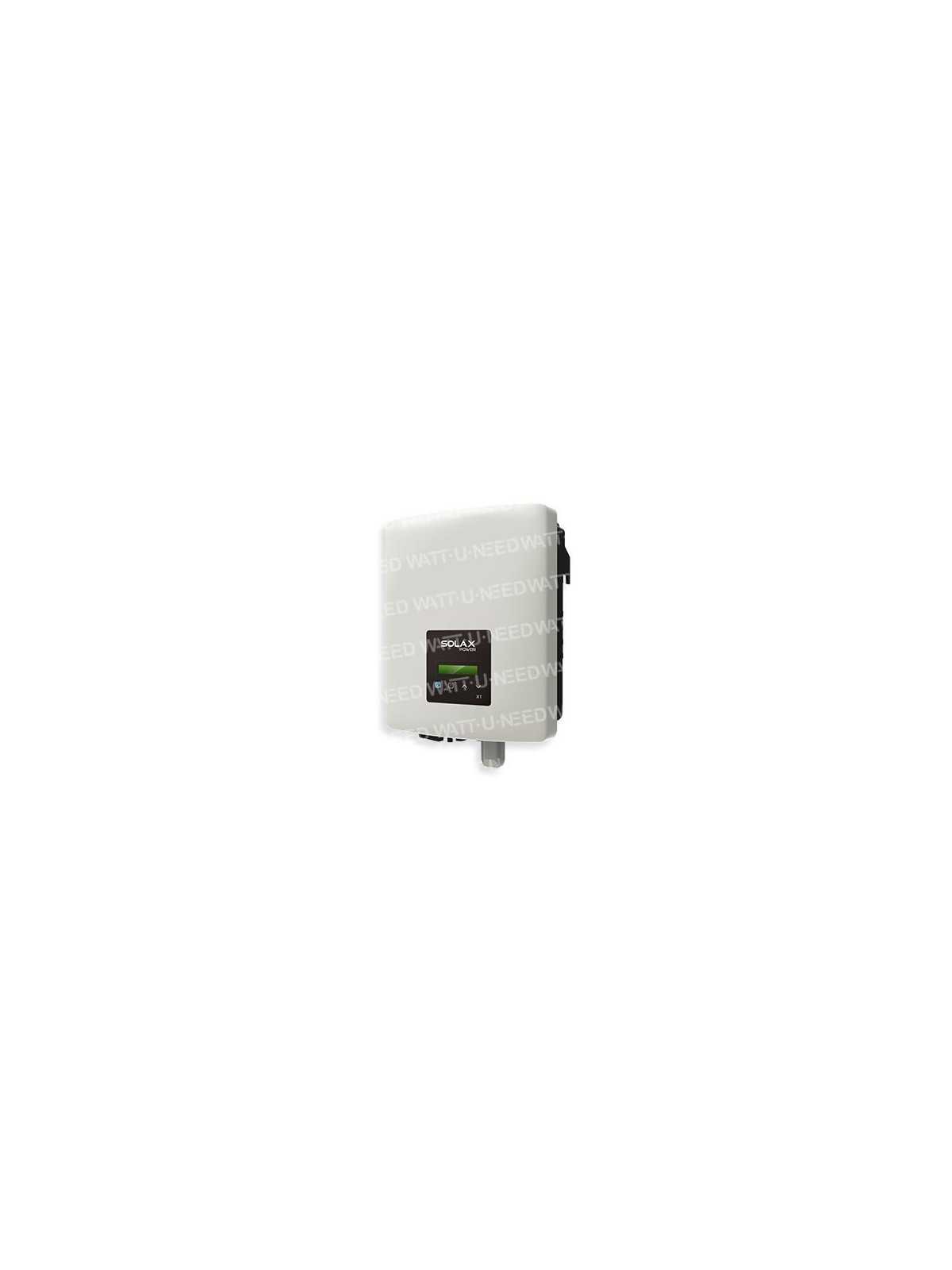

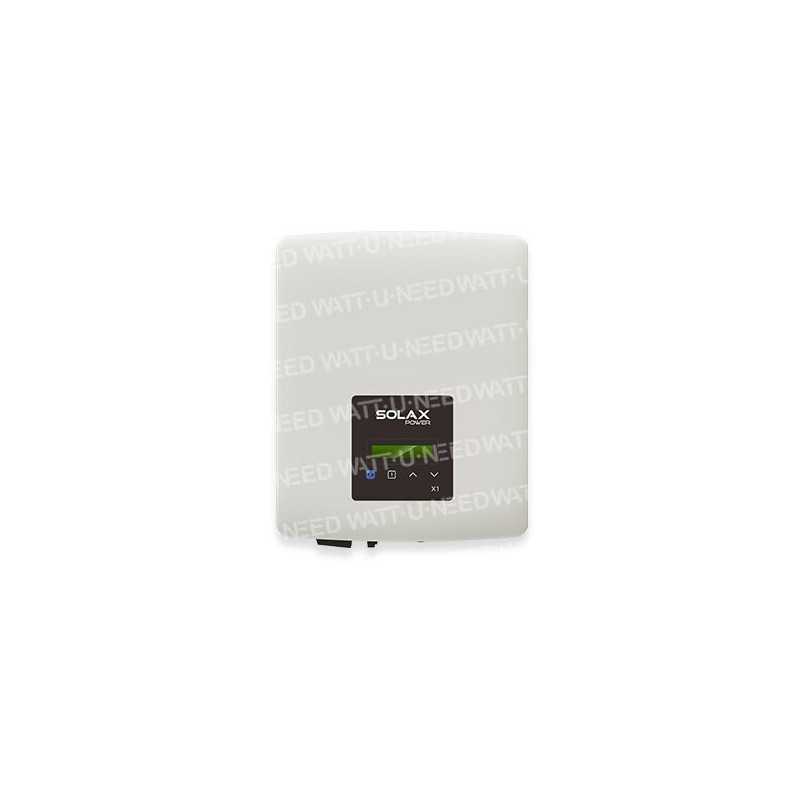

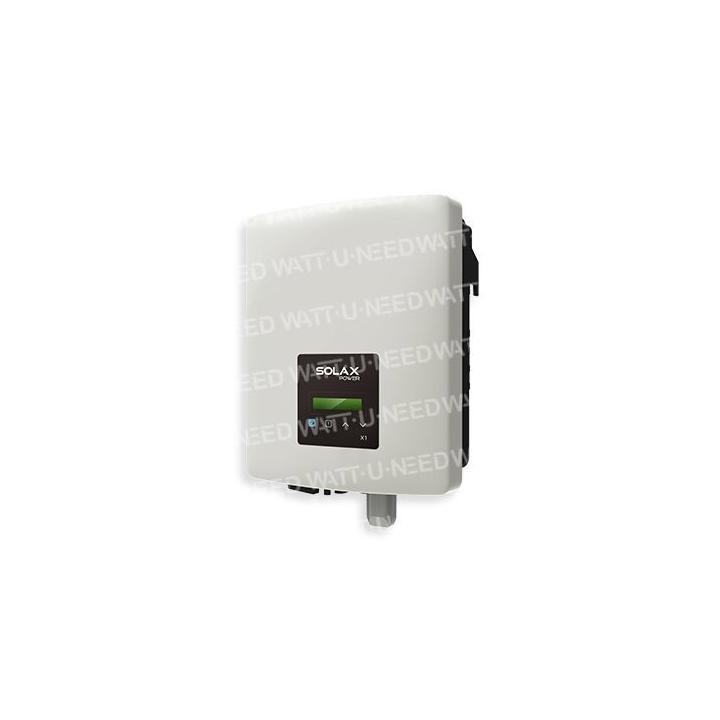

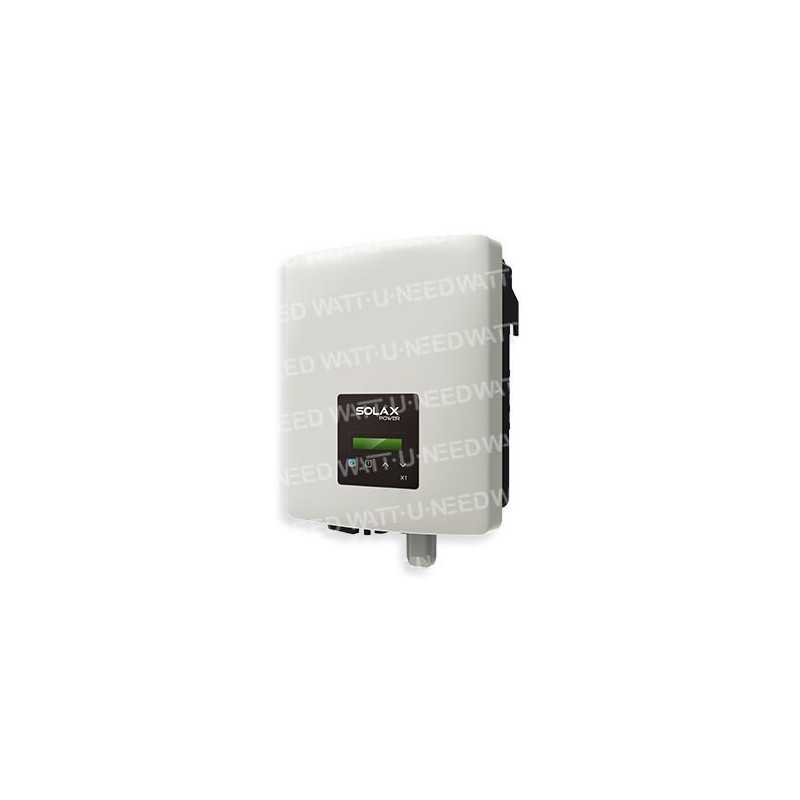

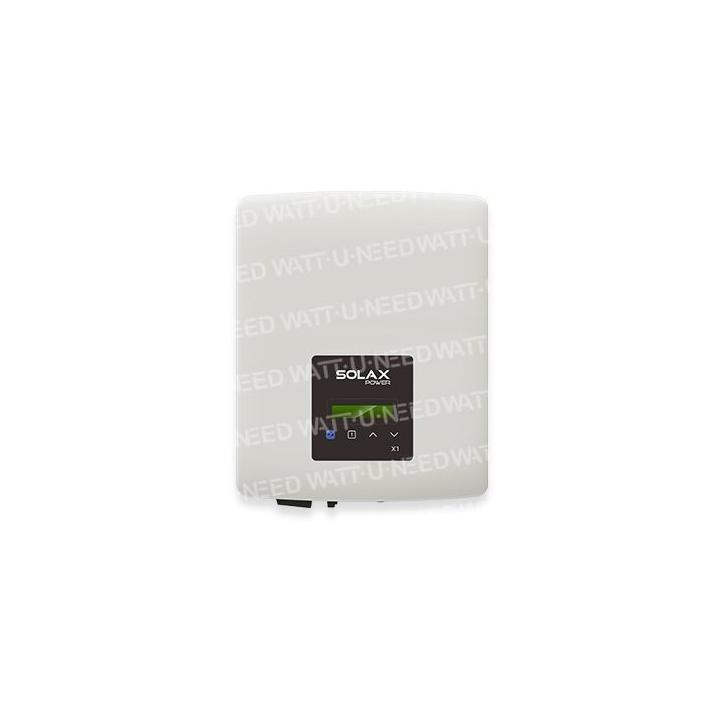

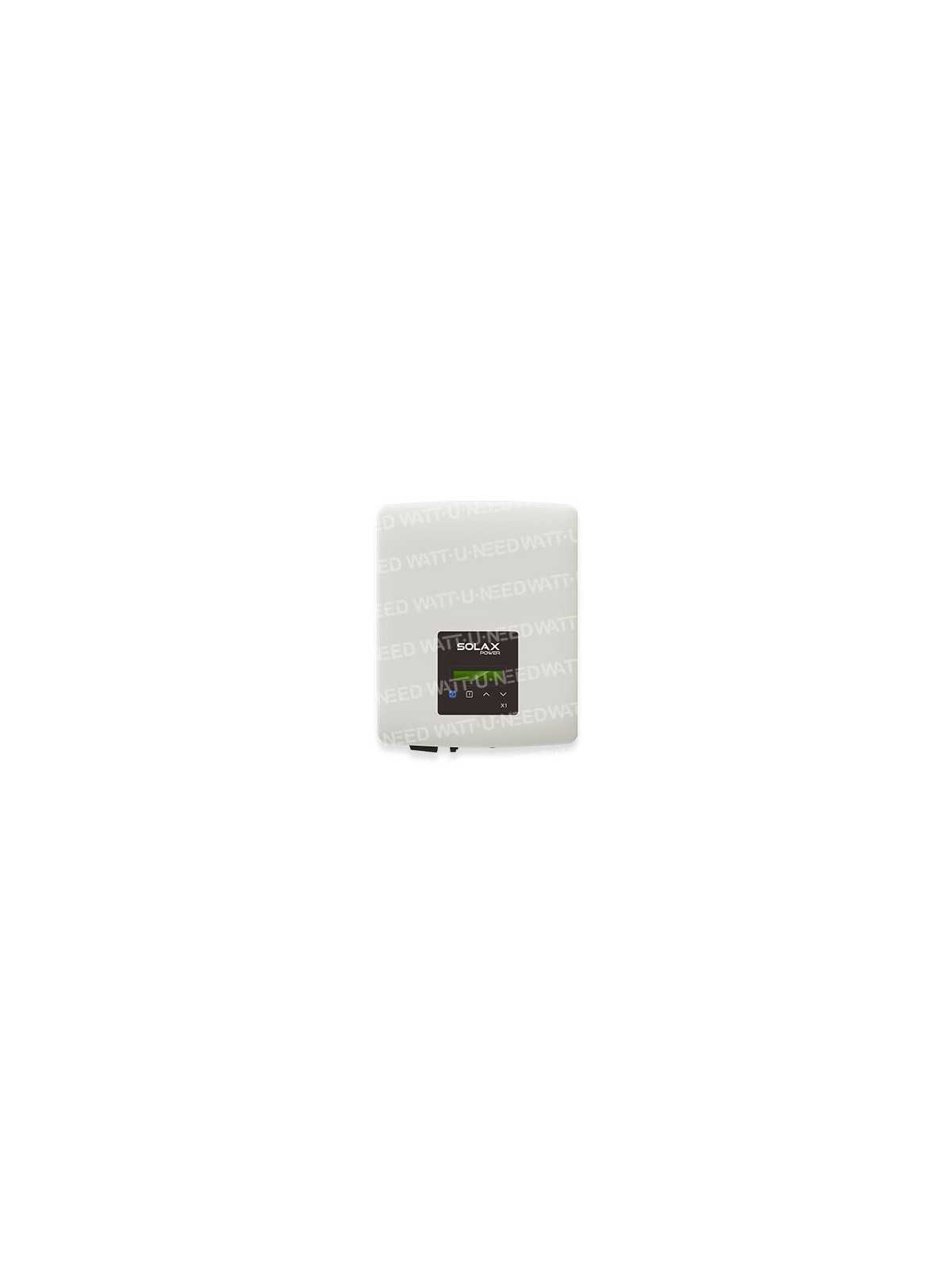

Inverter Solax X1 Mini 3.0 X1-3.0K-S-D
Perfect for small photovoltaic panels
The X1 Mini inverter is the perfect solar solution for small photovoltaic panels ranging from 0.6 kW to 3.6 kW. With a maximum efficiency of 98%, it is one of the most efficient small inverters available on the market today.
Small, light and silent
The X1 Mini has been designed to fit into the smallest of spaces. With a footprint of just 35cm and weighing just 7kg, the X1 Mini is small but not lacking in performance.
Indoor or outdoor installation
The X1 Mini is IP66-rated, which means it can be installed indoors or outdoors, giving you the choice of where to install the system.
Features
Password to enter parameters: 2014
| Max. power of photovoltaic panels (Wp) | 4500 |
| Nominal DC operating voltage (V) | 360 |
| Max. short-circuit current. |
| (A) | 16 |
| MPPT voltage range (V) | 55-530 |
| Start-up operating voltage (V) | 70 |
| Chains per MPP/MPPT tracking |
| Nominal AC power (VA) | 3000 |
| Nominal mains voltage (AC voltage range) | 220/230/240; 180~280 |
| Nominal mains frequency/range (Hz) | 50/60; ±5 |
| Nominal AC current (A) | 13,04 |
| Displacement power factor |
| .8 capacitive - 0.8 inductive |
| European efficiency (%) | 96.5 |
| Standby power consumption (night) (W |
| Overvoltage protection | Yes |
| Overcurrent protection | Yes |
| Resistance monitoring |
| resistance |
| Ground fault current monitoring | Yes |
| DC injection monitoring | Yes |
| Earth leakage circuit breaker protection | Yes |
| EN 61000-6-2, |
| EN 61000-6-3, EN 61000-3-2, EN 61000-3-3 |
| Certification | EN62109-1/-2; |
| G98; AS/NZS 4777,2; VDE4105; EN50438 |
| Degree of protection (according to IEC 60529) | IP66 |
| Operating temperature range (°C |
| Max. operating altitude. |
| (m |
| Humidity(%) |
| to 100 (condensation) |
| Typical noise level (dB) | <25 |
| Dimensions (L x W x D) (mm |
| Communication interfaces | RS485
DRM |
Fi
LAN |
(optional)
USB |
| Standard warranty (years) | 10 |
