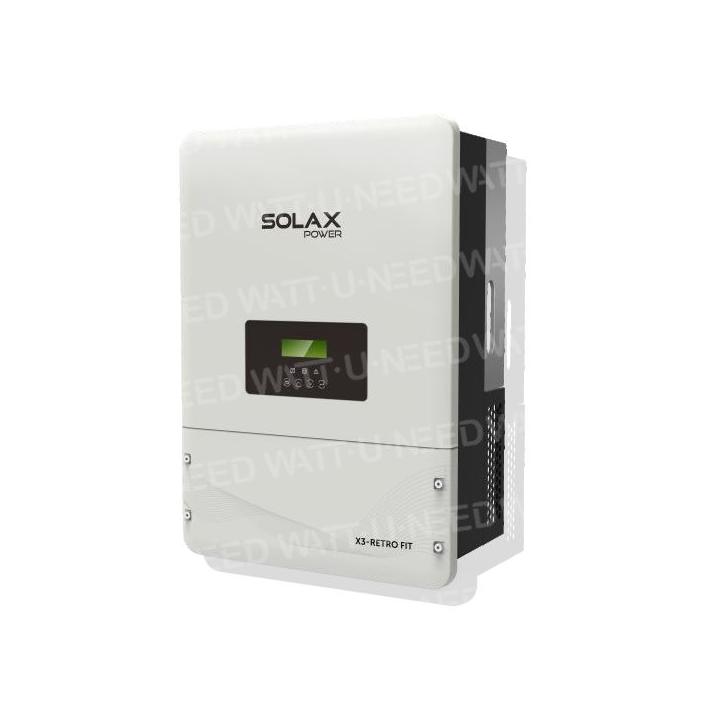

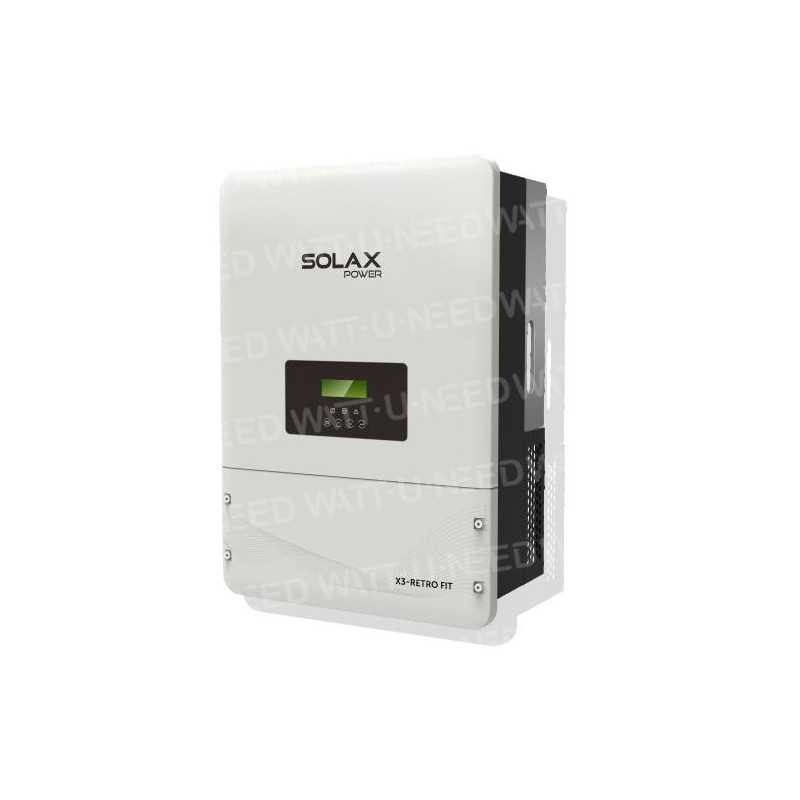

SolaX single-phase X3 RETRO FIT 10.0 kW - HIGH VOLTAGE X3-FIT-10.0-W
SolaX Power is pleased to announce the release of its new X3 Retro Fit. Generate energy from your solar panels during the day. Once the background charge has been satisfied, the intelligent SolaX X3 Retro Fit will direct excess energy into your battery for later use. Allowing you to make the most of your generated energy. If your home suffers a loss of power, the X3 Retro Fit then returns the stored energy to the home, ensuring you're never left in the dark even during a power cut.
Add to existing PV systems
The SolaX X3 Retro-Fit can be installed alongside any string inverter on the market today, allowing you to switch to solar battery storage without changing your existing installation. You also benefit from the added advantage of a backup power supply, enabling you to stay powered during a power cut.
Never lose power
With the SolaX X3 Retro-Fit, you can be sure you'll never be without power, even during a power cut. A backup power supply or "EPS" switch (only available on "E" models) allows the X3 Retro-fit to operate completely off-grid, meaning that all the energy you've stored on your batteries will now be used in the event of a power cut.
Indoor or outdoor installation
The X3 Retro-Fit is IP65-rated, which means it can be installed indoors or outdoors, giving you the choice of where to install the system.
Features
Password to enter parameters: 2014
A | Nominal mains voltage (AC voltage range) (V) |
| 400V/230VAC; 380/220VAC |
| Nominal mains frequency/range (Hz) | 50/60 |
| Nominal AC current (A) | 14,5 |
| Displacement power factor |
| .8 leading to 0.8 trailing |
| Max. AC apparent power [VA] | 10000 |
| Nominal mains voltage(AC voltage range) [V] | 400V/230VAC ; |
| 380/220VAC |
| Nominal mains frequency/frequency range [Hz] | 50/60 |
| Battery voltage range [V] | 160-800 |
| Max. continuous charging/discharging current |
| 35 |
C| ommunication interfaces | CAN / RS485 |
| Reverse connection protection | Yes |
| MAX. apparent power. |
| continuous [VA] | 10000 |
| Nominal voltage [V],Frequency [Hz] | 400V/230VAC ; 380/220VAC |
| MAX. continuous current | 14,5 |
P| eak apparent power [VA] | 10000 60 |
| Three unbalanced phases | Yes |
| Max. |
| Battery charging efficiency (GRID to BAT) | 96,00 |
| Max. efficiency |
| to BAT |
| Battery discharge efficiency (BAT to AC) | 96,50 |
| Standby power consumption (Night) [W] | <25 for warm standby, <3 for cold standby |
| Overvoltage and undervoltage protectionvoltages | Yes |
| Ground fault protection monitoring | Yes |
| EN 61000-6-1 / EN 61000-6-2 / EN 61000-6-3 |
| Certification |
| 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / AS4777 / EN50549/ CEI 0-21 |
| Degree of protection (according to IEC60529) | IP65 |
| Operating temperature range [°C] |
| ~ +60 (derating to +45) |
| Maximum operating altitude [m] | <2000 |
| Humidity [%] |
| (condensation) |
| Storage temperature [°C] |
| 20 ~ +60 |
| Typical noise emission [dB] | 40 |
| Dimensions [mm] | 457 x 654 x 228 |
| Communication interfaces | Ethernet |
Pocket WiFi (optional)
Pocket LAN (optional)
Pocket GPRS (optional)
DRM
USB
ISO alarm
CT |
