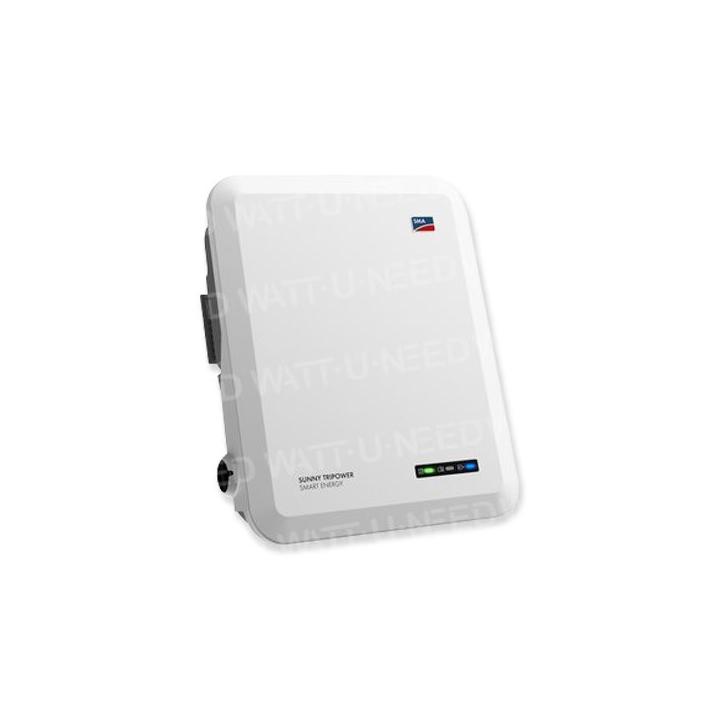

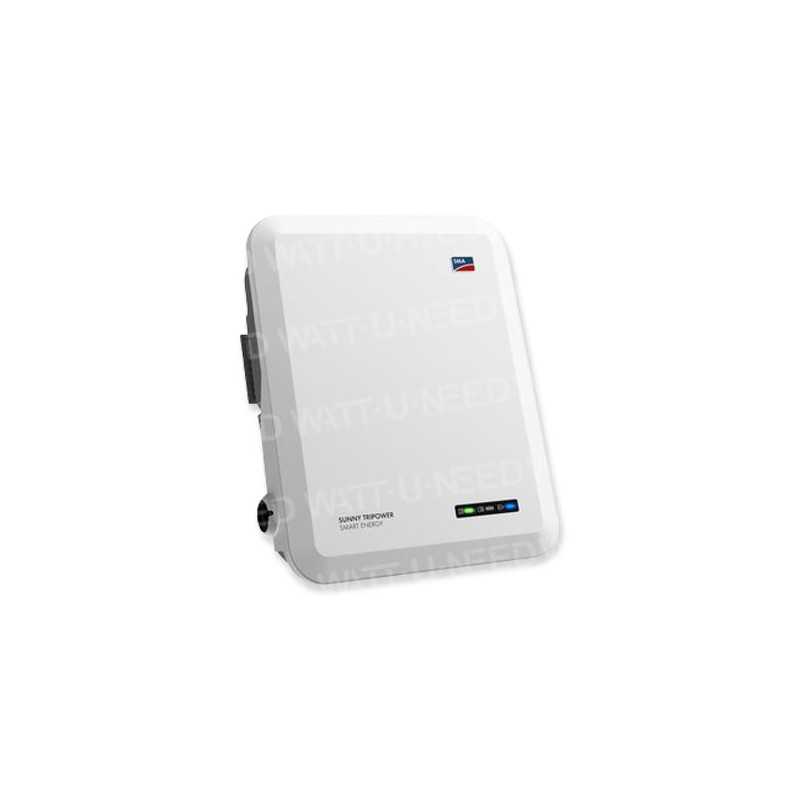

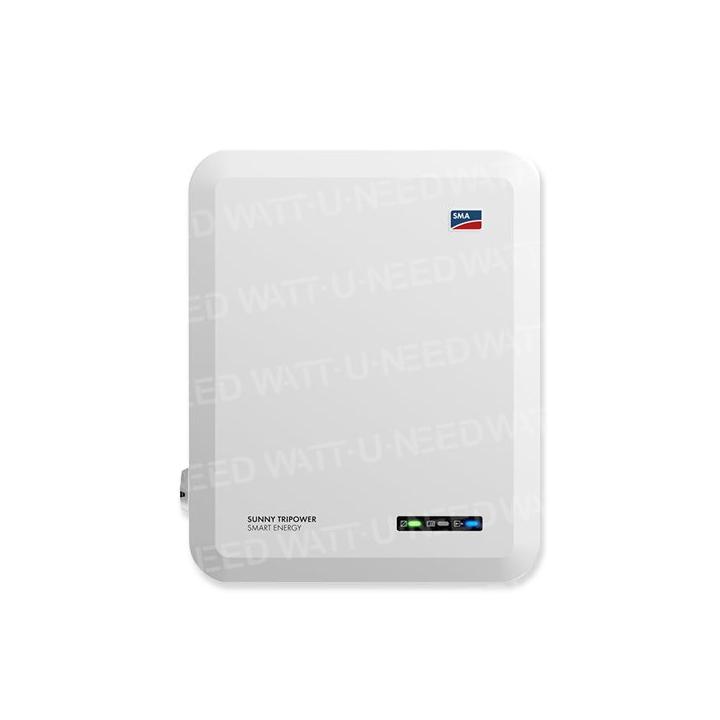

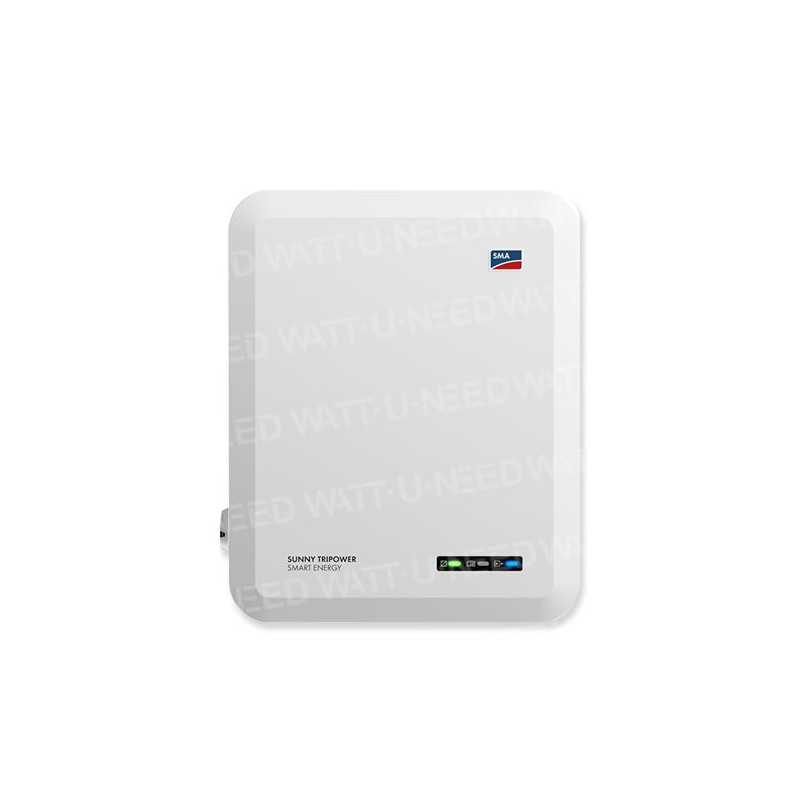

The Sunny Tripower Smart Energy hybrid inverter is the 2-in-1 solution for supplying solar energy to your customer's home. SMA combines intelligent technologies and integrated features in a compact, space-saving solution - over 30 years' experience in energy storage make this possible. Generating and storing solar energy is simpler and more efficient with Sunny Tripower Smart Energy. The energy system can be expanded at any time, including the integration of electric mobility or heat pumps. The integrated back-up power supply function ensures power supply even in the event of a power failure. Solar installations thus become complete, intelligent energy systems, in which self-consumption of solar energy can be very high.
Generate and store maximum energy
- Maximum energy efficiency with SMA ShadeFix - Three-phase and DC-coupled - Integrated back-up function - Charges more than twice as fast, making the most of cloudy days - Charges the domestic battery with the extra output of the solar panels, which would otherwise be wasted - Compatible with the following high-voltage batteries: - BYD Premium HVS 5.1-12.8 - BYD Premium HVM 11.0-22.1
Intelligent use of energy
- Intelligent energy management in combination with Sunny Home Managern - Perfectly integrated into SMA Energy System Home
Easy to install
- Quick installation thanks to external connections - Compact design and two-in-one solution save space and time
Follow-up and support
- 360° professional support for professionals - Extended factory warranty from 5 to 10 years - free of charge
Features
Max. power of photovoltaic generator
7500 Wp
Wp
12000 Wp
15000 Wp
Max. input voltage
1000
V
MPP voltage range
210 V to 800 V
250 V to 800 V
330 V to 800 V
280 V to 800 V
Ra
ted input voltage
600 V
/ starting input voltage
150 V / 180 V
Max. input current input A / input B
12.5 A / 12.5 A
12.5 A / 25 A
Max. short-circuit current.
input A / input B
20 A / 20 A
20 A / 40 A
Number of independent MPP inputs / Strings per MPP input
/ A:1 ; B:1
/ A:1 ; B:2
Battery
Battery type
Lithium-ion battery1)
Voltage range
150 V to 600 V
Max. charge/discharge current
30
A²) / 30 A²)
Number of batteries that can be connected
Max. charge/discharge power3)
7500 W / 6000 W
W / 7200 W
10600 W / 10600 W
AC
Rated power (for 230 V, 50 Hz)
5000 W
6000 W
W
10000 W
Max. apparent AC power
5000
VA
6000 VA
VA
10000 VA
Rated AC voltage
; 220 V / 380 V
; 230 V / 400 V
;
240 V / 415 V
AC voltage range
156 V to 277 V
AC mains frequency / range
50 Hz / 45 Hz to 55 Hz
Rated mains frequency / Rated mains voltage
50 H
z / 230 V
Rated o
utput current
x 7,3 A
x 8.7 A
x 11.6 A
x 14,5 A
Maximum output curre
nt
3 x
7
.6 A
3 x 9.1 A
3 x 12.1 A
x 15.2 A
Power factor at rated power / phase shift
factor adjustable
1
/ 0,8 inductive to 0.8 capacitive
Injection phases / connection phases
/ 3
Max. efficiency.
/ European efficiency
98.2 % / 97.3 %
98.2 % / 97.5
98.2 % / 97
.8 %
98.1 % / 97.5 %
Output (emergency AC power supply) in Ongrid mode
Max. connectable power for consumers connected to emergency power supply
13800 W
Max. output current for consumers connected to emergency power supply 13800 W Max. output current for consumers connected to emergency power supply 13800 W Max. output current for consumers connected to emergency power supply 13800 W Max. output current for consumers connected to emergency power supply 13800 W Max. output current for consumers connected to emergency power supply 13800 W Max.
for consumers connected to stand
x 20 A
Output (standby AC alim.
AC power supply) in Offgrid mode
Rated power 1~/3~ (at 230 V, 50 Hz)
1660 W / 5000 W
2000 W / 6000 W
2660 W / 8000 W
2660 W / 8000 W
Max. apparent AC power
5000
VA
6000 VA
VA
10000 VA
Output power / apparent output power <
5 min
6000 W / 6000 VA
W / 7200 VA
12000 W / 12000 VA
Output power / apparent output power < 10 min
10000 W / 10000 VA
12000 W / 12000 VA
Rated voltage AC
;
230 V / 400 V
AC mains frequency
50 Hz
Switching time in emergency mode
30 ms to 10 s (adjustable)
Protective devices
Disconnecting device on input side (gen.
DC photovoltaic)
●
Ground fault monitoring / Mains monitoring
● / ●
DC reverse polarity protection / AC short-circuit resistance / Galvanic separation
● / ● / -
Fault current monitoring unit,
sensitive to all currents
●
Protection class (to IEC 61140)
Overvoltage category (to IEC 60664-1) mains / battery / gen.
photovoltaic
III / II / II
SPD
DC type II / AC type II
General data
Dimensions (L/H/P)
500 mm / 598 mm / 173 mm (19.7 inches / 23,5 inches / 6.8 inches)
Weight
30 kg (66 lb)
Operating temperature range
-25 °C to +60 °C (-13 °F to +140 °F)
Noise emissions,
typical
30 dB(A)
Self-consumption (night)
44 W
Topology / cooling system
Transformerless / convection
Protection class (to IEC 60529)/ Climatic class (to IEC 60721-3-4)
IP65 / 4K26
Maximum permissible relative humidity (non-condensing)
