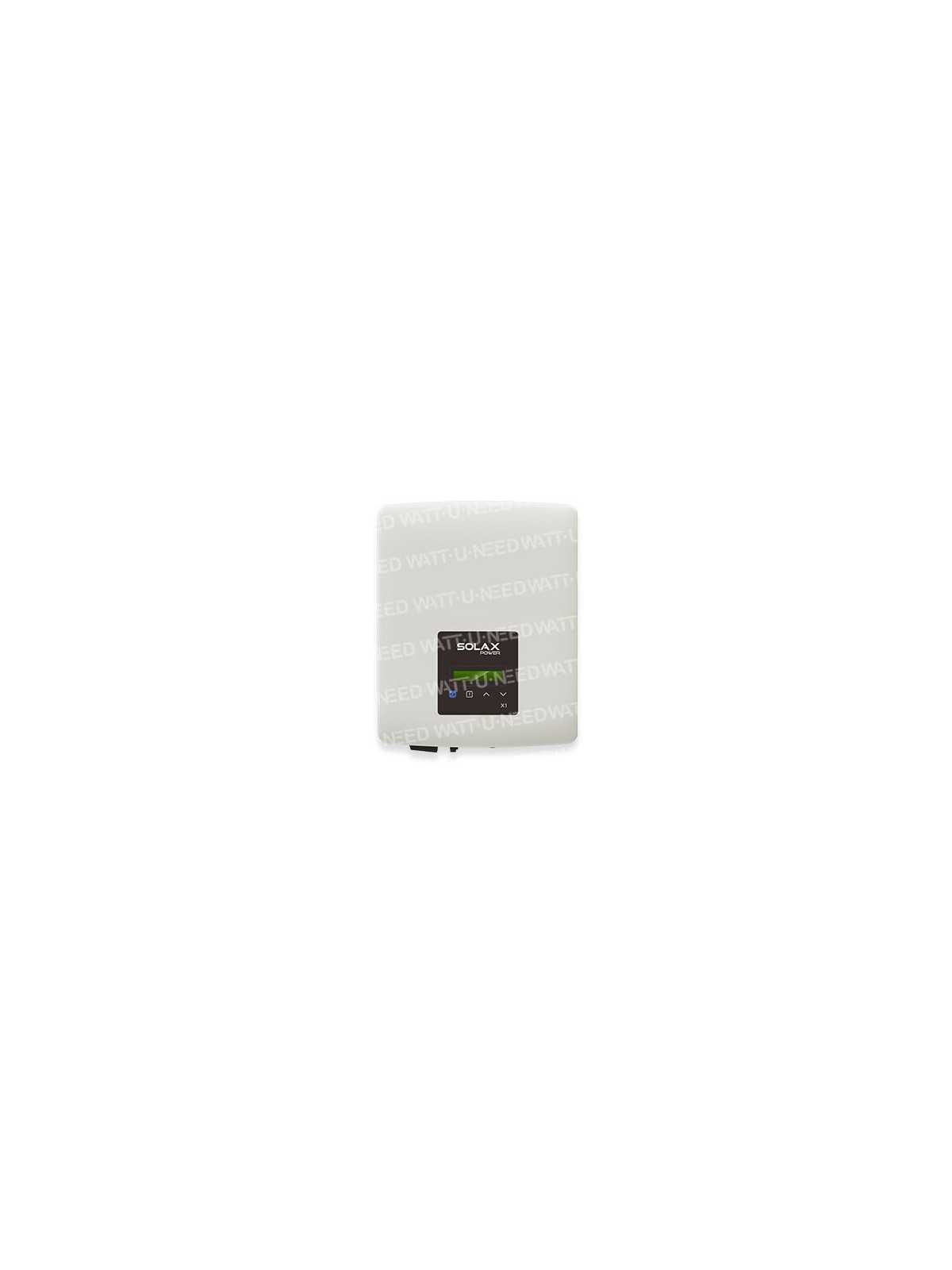

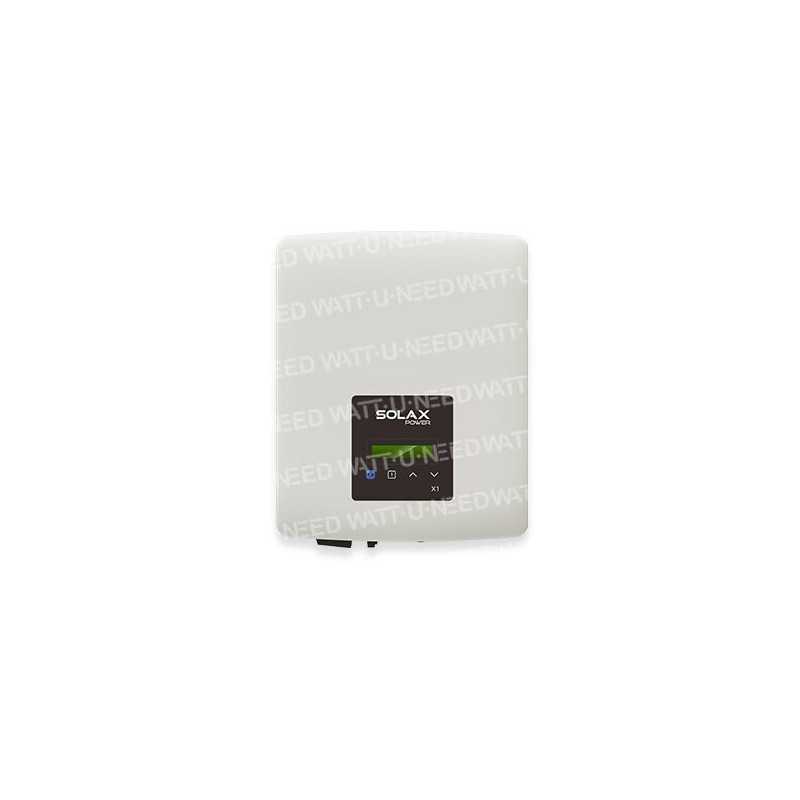

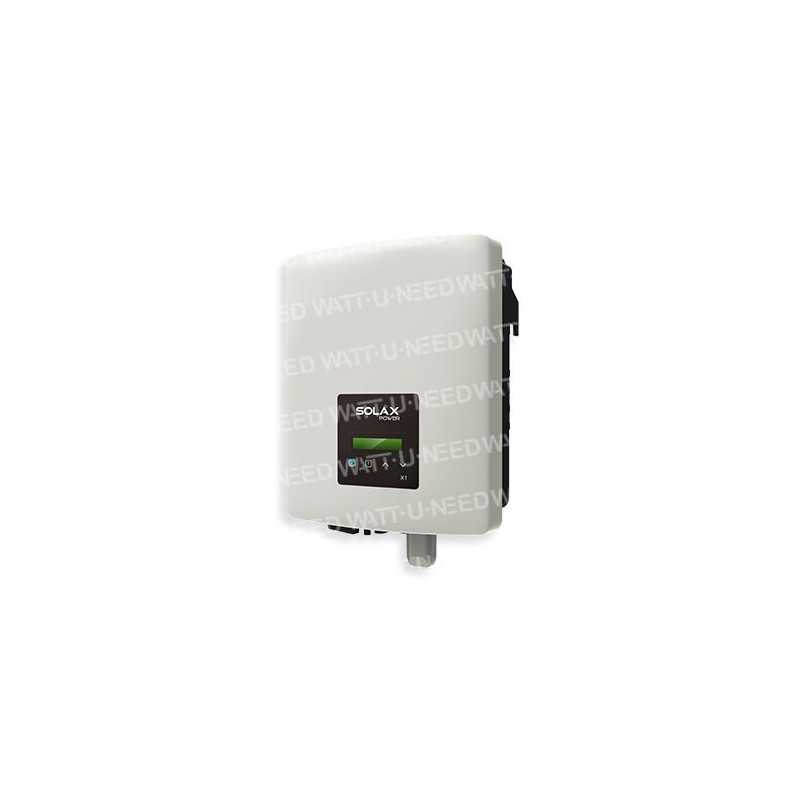

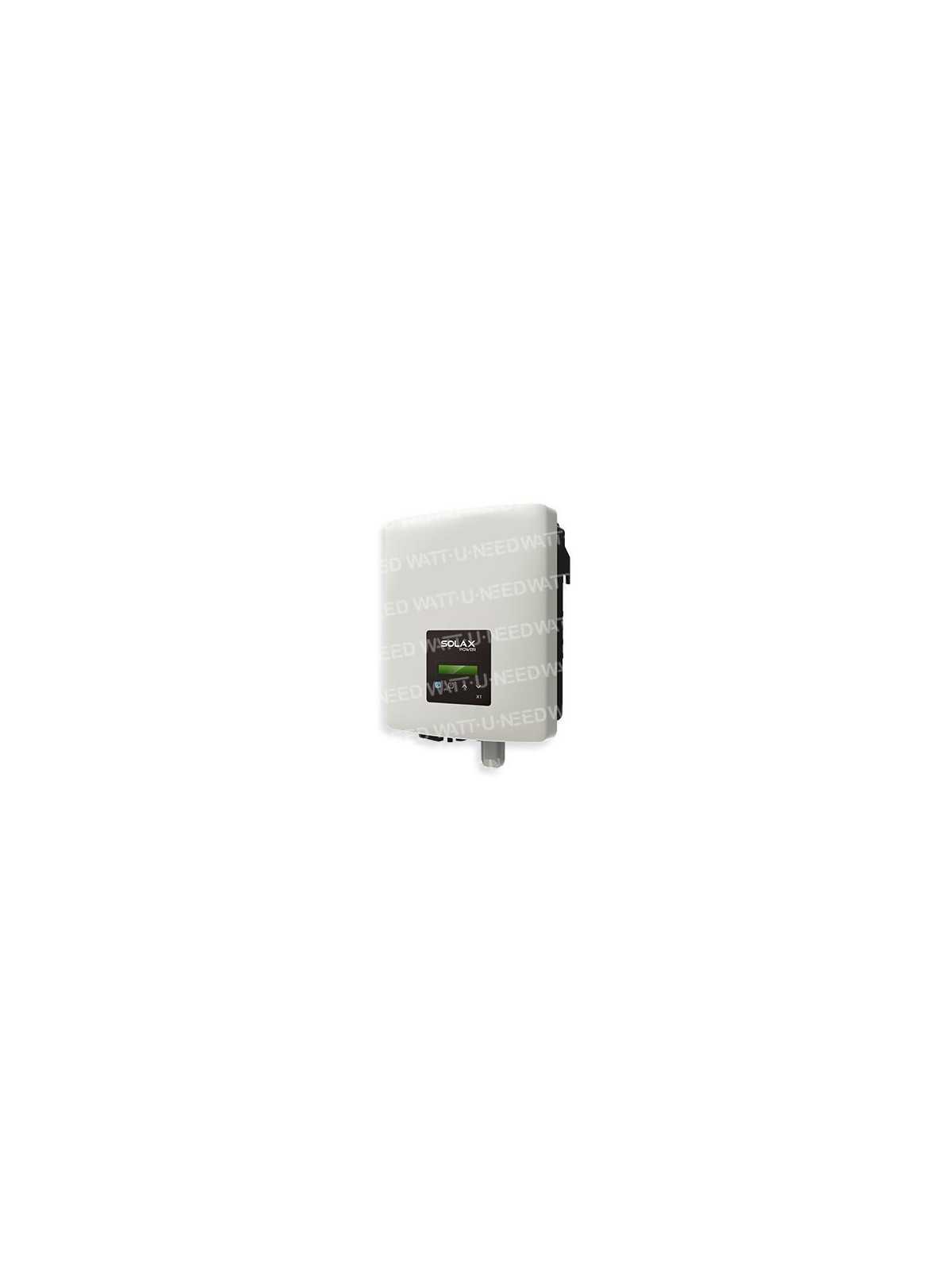

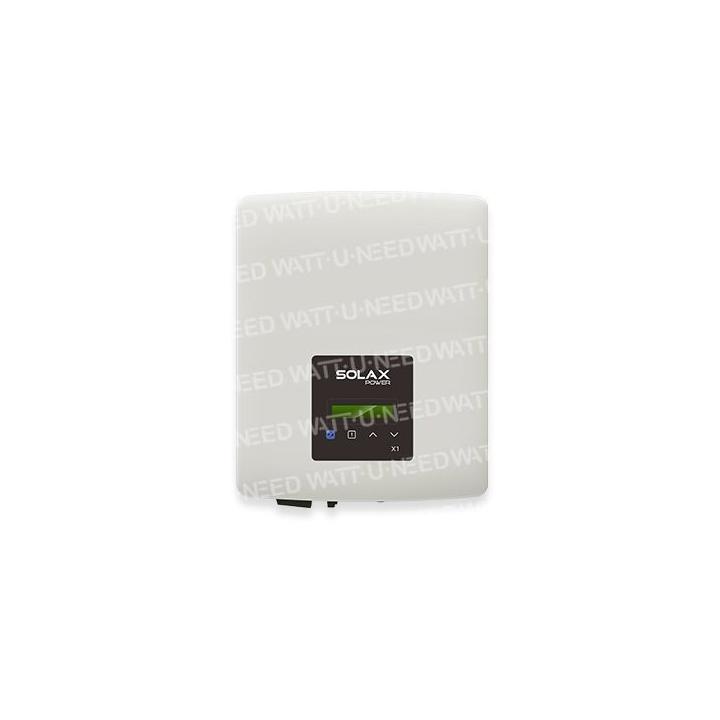

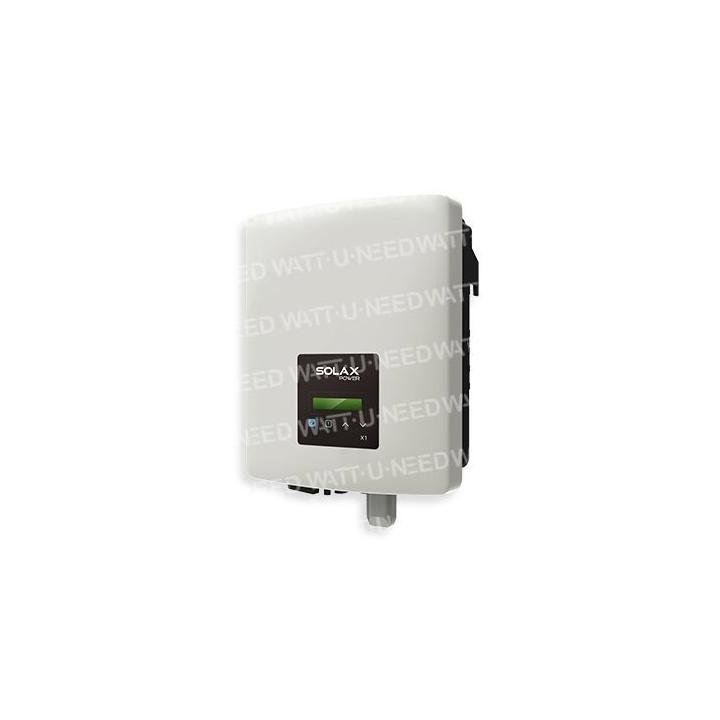

Single-phase inverter SolaX X1 Mini 2.5 X1-2.5K-S-D
€608.01
Tax included
X1-2.5K-S-D
0768563819582
SolaX X1 Mini 2.5 kVA: The Small Giant of Solar Energy
Produce your own electricity with ease! The SolaX X1 Mini 2.5 kVA is the ideal solution for small rooftops. Compact yet powerful, it efficiently converts solar energy into usable electricity, helping you reduce your energy bill and contribute to the energy transition.
Why choose the SolaX X1 Mini?
- Exceptional efficiency: With a 98% efficiency, it maximizes your solar energy production.
- Easy installation: Compact and lightweight, it installs quickly and easily.
- Tailored to your needs: Designed for small installations, it fits perfectly into your project.
The advantages of the SolaX X1 Mini:
- Small footprint: Ideal for limited spaces.
- Quick installation: Save time and money.
- Unmatched reliability: Built to last.
Ready to make the leap into self-consumption? Contact us to discuss your project and get a personalized quote.
Sorry, there are no more items in stock.
Compact, high-performance solar inverter : SolaX X1-2.5K-S-D
Perfect for small photovoltaic panels
The X1 Mini inverter is the perfect solar solution for small photovoltaic panels ranging from 0.6 kW to 3.6 kW. With a maximum efficiency of 98%, it is one of the most efficient small inverters available on the market today.
Small, light and silent
The X1 Mini has been designed to fit into the smallest of spaces, with a footprint of just 35cm and weighing just 7kg, the X1 Mini is small but not lacking in performance.
Indoor or outdoor installation
The X1 Mini is IP66-rated, which means it can be installed indoors or outdoors, giving you the choice of where to install the system.
Features
Password to enter parameters: 2014
| INPUT |
| Max. power of photovoltaic panels (Wp) | 3750 |
| Max. DC voltage (V) | 550 |
| Nominal DC operating voltage (V) | 360 |
| Max. input current (A) | 14 |
| Max. short-circuit current | |
| (A) | 16 |
| MPPT voltage range (V) | 55-530 |
| Start-up operating voltage (V) | 70 |
| MPP/MPPT tracking |
| 1 |
| Chains p |
| er MPP/MPPT tracking |
| AC |
| Nominal AC power (VA) | 2500 |
| (VA) | 2750 |
| Nominal mains voltage (AC voltage range) | 220/230/240; 180~280 |
| Nominal mains frequency/range (Hz) | 50/60; ±5 |
| Nominal AC current (A) | 10,8 |
| Max. AC current | |
| (A) | 11.9 |
| Displacement power factor |
| .8 capacitive - 0.8 inductive |
| THDi, rated power(%) | <3 |
| MPPT efficiency (%) | 99.9 |
| European efficiency (%) | 96.5 |
| Max. efficiency. | (%) | 98,0 |
| ABSORBED POWER |
| Standby consumption (night) (W) |
| STANDARDS |
| Overvoltage protection | Yes |
| Overcurrent protection | Yes |
| Monitoring of DC insulation resistance |
| resistance |
| Yes |
| Ground fault current monitoring | Yes |
| DC injection monitoring | Yes |
| Earth leakage circuit breaker protection | Yes |
| Safety | IEC 62109-1/-2 |
| EN 61000-6-2, |
| EN 61000-6-3, EN 61000-3-2, EN 61000-3-3 |
| Certification | EN62109-1/-2; |
| G98; AS/NZS 4777,2; VDE4105; EN50438 |
| ENVIRONMENTAL LIMITS |
| Degree of protection (according to IEC 60529) | IP66 |
| Operating temperature range (°C) |
| to + 60 (derating to 45) |
| Max. operating altitude. |
| (m |
| <2000 |
| Humidity(%) |
| to 100 (condensation) |
| Storage temperature (°C |
| ~ 70 |
| Typical noise level (dB) | <25 |
| DIMENSIONS AND WEIGHT |
| Dimensions (L x W x D) (mm |
| 267 x 328 x 116 |
| Weight (kg |
| Cooling type | Natural |
| Topology | Non-insulated |
| Communication interfaces | RS485 DRM |
| Fi LAN | |
| (optional) USB |
| LCD display | Yes |
| Standard warranty (years) | 10 |
X1-2.5K-S-D
Data sheet
- Inverter power
- 2500VA
- MPPT/PWM
- MPPT
- Phase
- Monophasé
- Number of MPPT
- 1 MPPT
- Width
- 267 mm
- Height
- 328 mm
- Thickness
- 116 mm
- IP protection
- IP 66
- Weight
- 6 kg
