Integrated intelligence for a system fit for the future

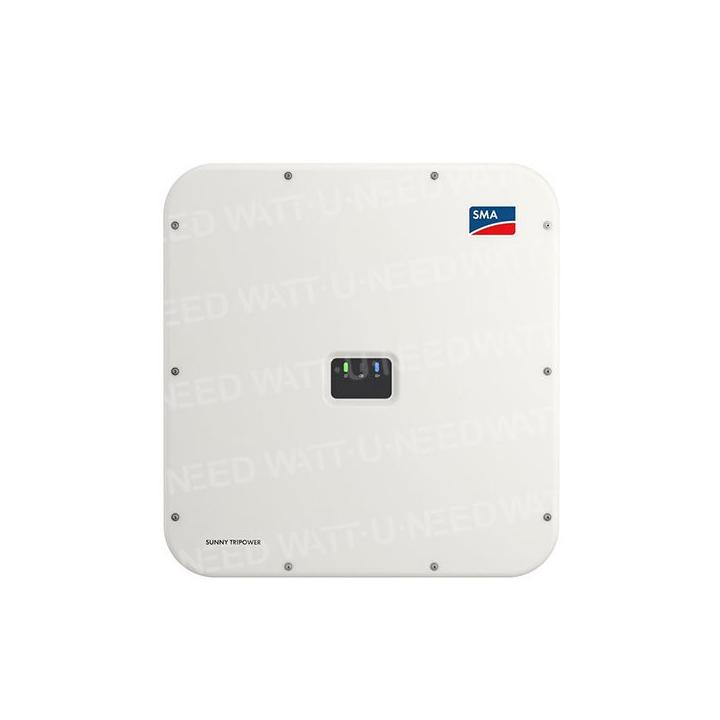

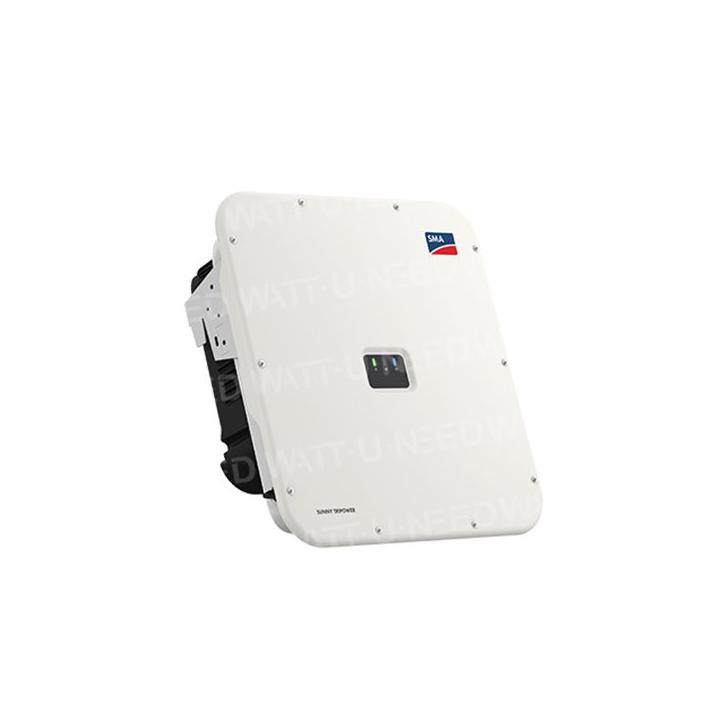

The new Sunny Tripower X is an innovative solution for commercial, industrial and tertiary photovoltaic systems. The integrated System Manager function with direct access to Sunny Portal powered by ennexOS monitors up to five SMA inverters and one energy meter. It ensures dynamic regulation of active and reactive power via SMA Dynamic Power Control. Thanks to its wide input voltage range and high input current capacity, it is compatible with the latest generation of high-performance photovoltaic panels. The new design ensures efficient cooling of electronic components, maximizing the service life of the Sunny Tripower X. Commissioning is fast, simple and centralized for all devices in the system. On a day-to-day basis, users benefit from integrated software solutions: SMA ShadeFix optimizes power generation even in shadows, while SMA ArcFix effectively detects arcing and helps prevent fires.
Integrated System Manager
- Monitoring and control of up to 5 inverters (max. 135 kVA) included - Direct access to Sunny Portal powered by ennexOS - SMA Dynamic Power Control
Guaranteed safety
- SMA ArcFix arc protection - DC overvoltage protection - Simplified network and system protection
Maximum production
- Optimized efficiency thanks to integrated SMA ShadeFix system - I-V curve diagnostics
More flexibility
- 3 MPP trackers - High input current for high-performance photovoltaic panels - Modularity for later addition of energy management functions
Features
rotective devices
Sunny Tripower X 15
Sunny Tripower X 20
Sunny Tripower X 25
Input (DC)
Max. power of photovoltaic generator
22500 Wp STC
30000 Wp STC
37500 Wp STC
Max. input voltage
1000
V
MPP voltage range
257 V to 800 V
340 V to 800 V
430 V to 800 V
Assigned input voltage
570 V
Min. input voltage.
/ starting input voltage
150 V / 188 V
Max. input current per MPP tracker
24 A
Max. short-circuit current.
per MPP tracker
35 A
Number of independent MPP trackers / strings per MPP tracker
/ 2
Output (AC)
Assigned power (for 230 V,
50 Hz)
15000 W
20000 W
25000 W
Nominal apparent power / Max apparent power
15000 VA/15000 VA
20000 VA/20000 VA
25000 VA/25000 VA
Nominal AC voltage
220 V / 380 V ;
230 V / 400 V ; 240 V / 415 V
Voltage range
176 V to 275 V / 304 V to 477 V
AC mains frequency / range
50 Hz / 44 Hz to 56 Hz 60 Hz / 54 Hz to 66 Hz
Rated mains frequency / Rated mains voltage
50 Hz / 230 V
Rated output current max.
21,7
A / 36.6 A
29 A / 36.6 A
36.2 A / 36.6 A
Injection phases / AC terminal
/ 3-(N)-PE
Power factor at rated power / Adjustable phase shift factor
/ 0 inductive to 0 capacitive
Harmonic distortion rate (THD)
<
3%
Efficiency
Max./europ. efficiency
98.2% / 97.7%* 9
98.2% / 97.9%*
98.2% / 98,0 %*
Protective devices
Input-side disconnection devices
●
Earth-fault monitoring / Mains monitoring
● / ●
DC reverse polarity protection / Short-circuit resistancecircuits AC
