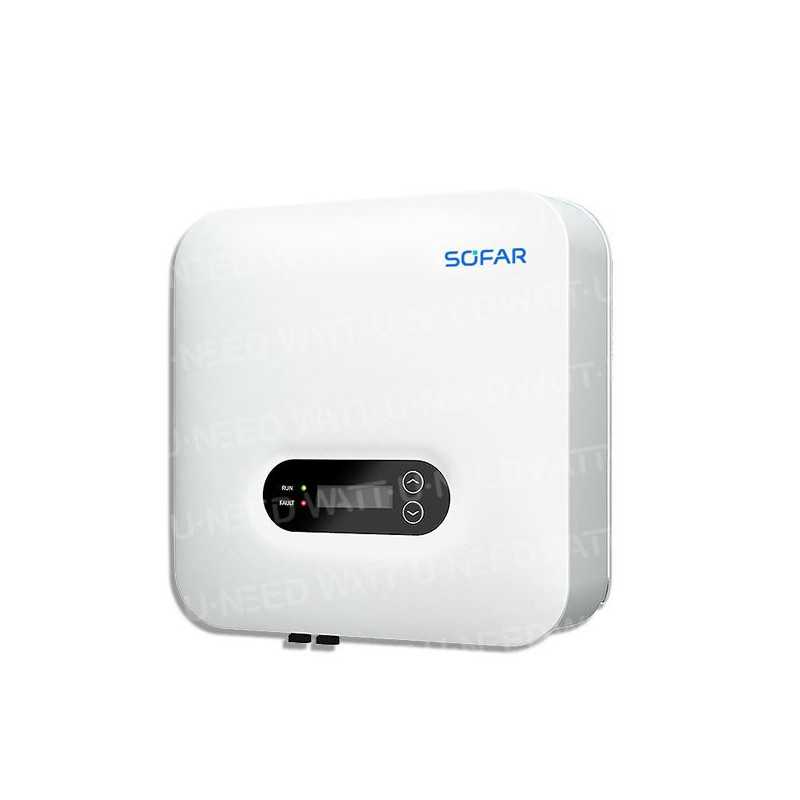

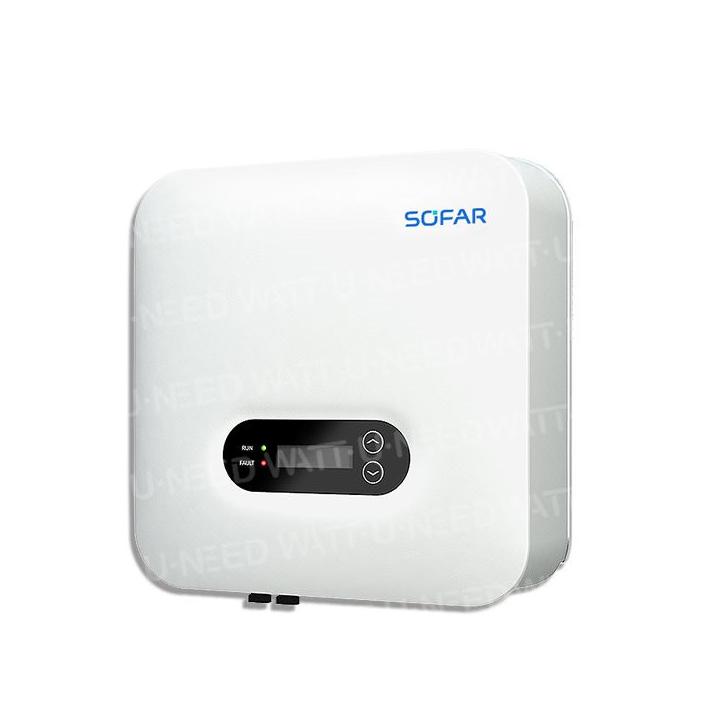

Single-phase inverter Sofar Solar 3,6kVA - 3.6KTLM-G3
The new G3 single-phase inverter with 2 MPPT trackers for residential PV systems
SOFAR 3K...6KTLM-G3 is the upgraded version of SofarSolar's residential inverter series. With its elegant IP65 design and natural cooling for silent operation, the inverter is perfectly suited to small residential installations.
The inverter is also equipped with two MPPT trackers and an integrated I-V curve scanning function, making it possible to realize more complex installations, for example those with shading problems or different roof orientations.
A WiFi key is supplied with the inverter, for easy connection to the SofarSolar monitoring portal.
High efficiency
- Maximum efficiency of 98.2%. - Precise real-time MPPT algorithm for maximum utilization - Wide input voltage operating range
All in one. Flexible, cost-effective system solution
- Free choice of location thanks to IP65 rating - Plug & Play" connection for easy installation and maintenance - Interface selection - Wi-Fi / RS485 /GPRS - LCD + LED display - Integrated zero export function (optional)
Low maintenance costs
- Detachable lid for easy installation - Stainless aluminum covers - A flexible control solution
Intelligent grid management
- Reactive power capacity - Automatic power reduction in the event of overfrequency - Remote control of active/reactive power limit
Specifications
DC INPUT
PV input power max.
Recommended
5400 Wp
Max. power.
DC power per MPPT
3500 W
2
Number of MPP trackers
1
Number of DC inputs
for each MPPT
Max. input voltage
600
V
Starting voltage
90 V
Nominal input voltage
380 V
MPPT operating voltage range
80 - 550 V
Full MPPT power in voltage range
200 - 500 V
Max. MPPT input current
15
/ 15 A
Max. input short-circuit current
Per MPPT
22.5 / 22.5 A
AC output
Rated power
3680 W
Max. power.
In AC
3680 VA
Max. output current
16
NL
ominal mains voltage
/ N / PE,
230 Vac
Mains voltage range
180 - 276 Vac (according to local standards)
Nominal mains frequency
50 Hz / 60 Hz
Mains frequency range
45 - 55 Hz / 55 - 65 Hz (according to local standards)
0
Adjustable active power range
- 100 %
THDi
<
3%
1
Power factor
default (adjustable +/-0.8)
PERFORMANCE
%
Max. efficiency.
98,20
Weighted European efficiency
97.30%
PROTECTION
Protection against polarity reversal in direct current
Yes
DC switch
Optional
Safety protection
Anti-islanding,
leakage current detection, earth fault monitoring
Lightning arrester
Varistor :
Type III standard
COMMUNICATION
Standard communication mode
RS485 / Wi-fi / Bluetooth, optional :
Ethernet
DATA
GENERAL
-
Ambient temperature range
30°C to 60°C
Night-time power consumption
<1 W
Topology
Transformerless
Degree of protection
IP65
0100%
Permissible relative humidity range
-
altitude
Max. altitude.
Operating
4000 m
Noise
<
25 dB
9
Weight
.2 kg
Cooling
Natural
Dimensions
349 x 344 x 164 mm
Display
LCD,
App via Bluetooth
Warranty
10 years
Standards
EMC
(electromagnetic compatibility)
EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3,
