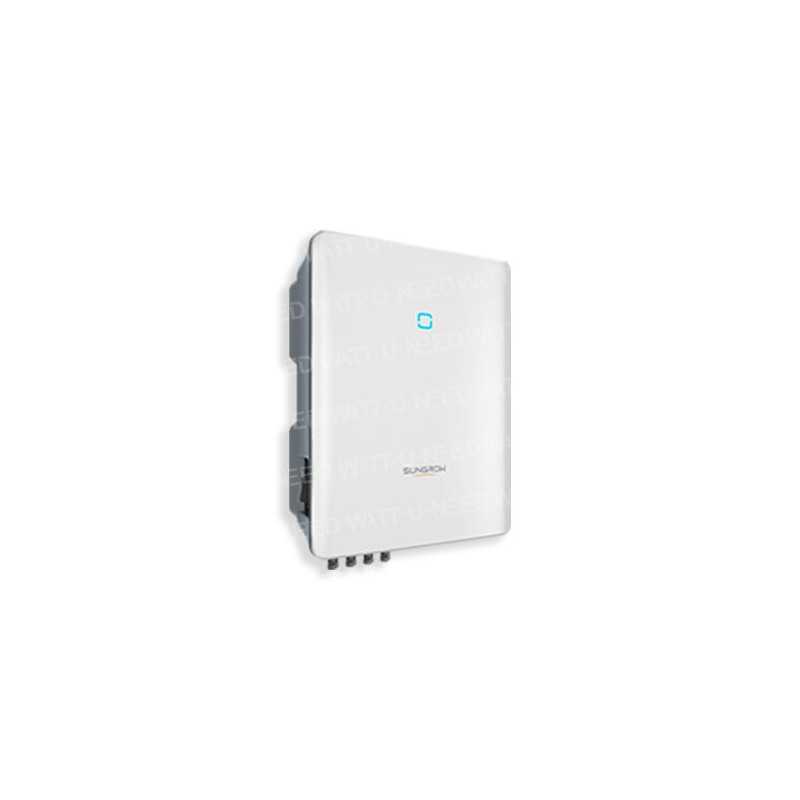

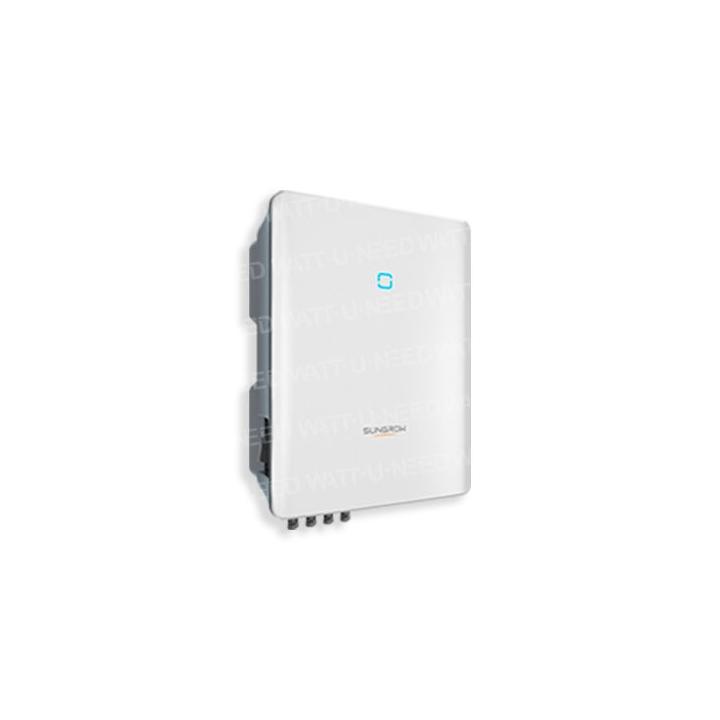

The SunGrow SG5.0/6.0/8.0/10RT three-phase inverter is the ideal solution to optimize your solar energy production. Globally recognized for its reliability and efficiency, this inverter adapts to all photovoltaic installations, from the smallest to the largest.
Why choose SunGrow?
Proven expertise: SunGrow is a global leader in solar inverters with over 25 years of experience.
High efficiency: Maximize your energy production with optimal efficiency and advanced features like intelligent IV curve tracking.
Reliability and safety: Benefit from enhanced protection with a fast arc-fault circuit breaker and IP65 certification.
Easy installation: Simplified commissioning thanks to a compact design and an intuitive app.
Smart management: Monitor and control your installation in real-time with a user-friendly interface.
Key advantages:
Adaptability: Compatible with a wide range of photovoltaic modules, including bifacial modules.
Durability: Robust design for a long lifespan.
Safety: Surge and short-circuit protection.
SunGrow: The global reference for high-performance and reliable solar energy.
SunGrow 5-10 kVA : High-performance three-phase solar inverter
Sungrow Power Supply Co, Ltd ("Sungrow") is the world's most bankable inverter brand, with over 269 GW installed worldwide as of June 2022. Founded in 1997 by university professor Cao Renxian, Sungrow is a leader in solar inverter research and development with the industry's largest dedicated R&D team and a broad product portfolio offering PV inverter solutions and energy storage systems for utility, commercial and industrial, and residential applications, as well as internationally recognized floating PV power plant solutions, NEV driving solutions, EV charging solutions and renewable hydrogen production systems. With 25 years' experience in the photovoltaic field, Sungrow products supply power to over 150 countries worldwide.
Offering a wide range of solutions and services, Sungrow is committed to providing clean energy for all and continues its efforts to become the world leader in clean energy conversion technology.
High efficiency
Lower start-up and wider MPPT voltage range
Compatible with bifacial modules
Intelligent PID recovery function
Safe and reliable
Integrated type II DC&AC SPD
Corrosion protection index C5
Intelligent management
Intelligent curve IV scanning
24/7 live monitoring
Remote firmware update
User-friendly configuration
Compact design 18/21 kg single-pin connectors
Quick and easy commissioning via app
Features
Model
SG5.0RT
SG6.0RT
SG8.0RT
SG10RT
DC INPUT
PV input power max
7500W
W
12000W
15000W
PV input voltage max
1100 V
PV operating voltage min.
/ Start-up input voltage
180 V
Nominal PV input voltage
600 V
MPP voltage range
160 -
1000 V
Number of independent MPP inputs
Default number of PV strings per MPPT
PV input current max
25 A (12,5 A/12.5 A)
Max. DC short-circuit current
32 A (16 A/16 A)
Max.
for input connector
30A
AC
Rated AC output power
5000W
6000W
10000W
Max AC output power
5500VA
600VA
8800VA
11000VA
Max AC output current
,3A
10A
13,3A
16,7A
Rated AC voltage
,
220/380 V 3/N/PE, 230/400 V 3/N/PE, 240/415 V
AC voltage range
180 - 276 V / 311 - 478 V
Nominal grid frequency Grid frequency range
50 Hz / 45 - 55 Hz 60 Hz / 55 - 65 Hz
Harmonic (THD)
<3% (at rated power)
Power factor at rated power / adjustable power factor
>
0.99 / 0.8 leading - 0.8 lagging
Supply phases / Connection phases
/ 3
EFFICIENCY
Maximum efficiency
98.40%
98.50%
98.50%
European efficiency
97
.40%
97.80%
97,
0%
PROTECTION
Mains monitoring
Yes
DC polarity reversal protection
Yes
short-circuit protectioncircuits AC
Yes
Leakage current protection
Yes
Overvoltage protection
DC type II / AC type II
DC switch
Yes
Arc fault circuit switch
Yes
Recovery function
PID
Yes
GENERAL
Dimensions (l x h x d)
370 x 480 x 195 mm
Weight
18 kg
Mounting
Wall mounting
Topology
Without transformer
Degree of protection
IP65
Operating ambient temperature range
25 to 60°C
Permissible relative humidity range (non-condensing)
