- Small, compact size - 150% oversize and 110% overload. - Max. DC input 14A per string - Low start-up voltage and wide MPPT range - CT/Meter compatibility - Integrated SPD on AC and DC sides - Remote update and maintenance

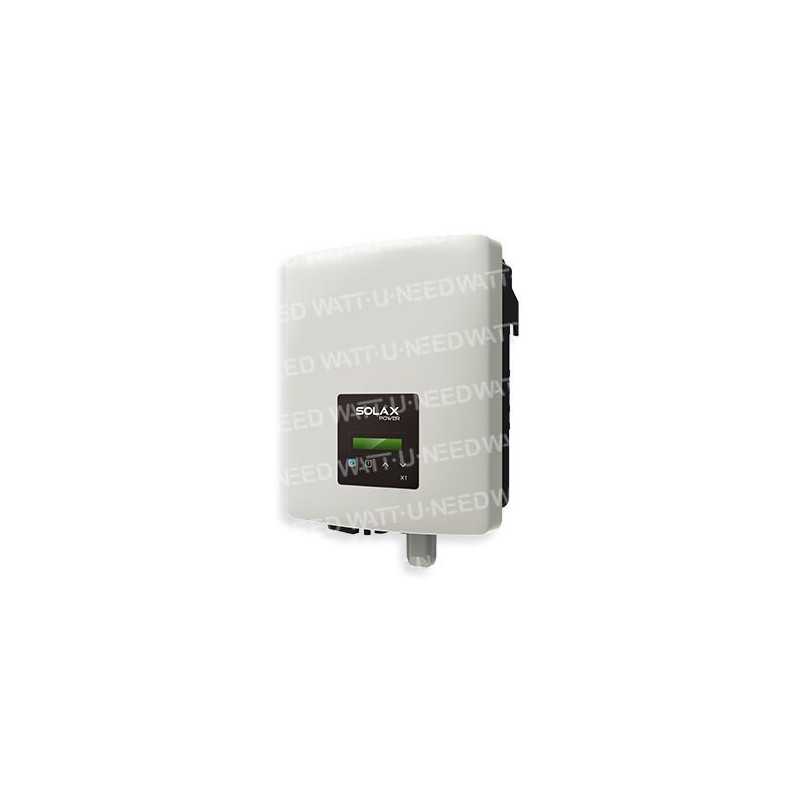

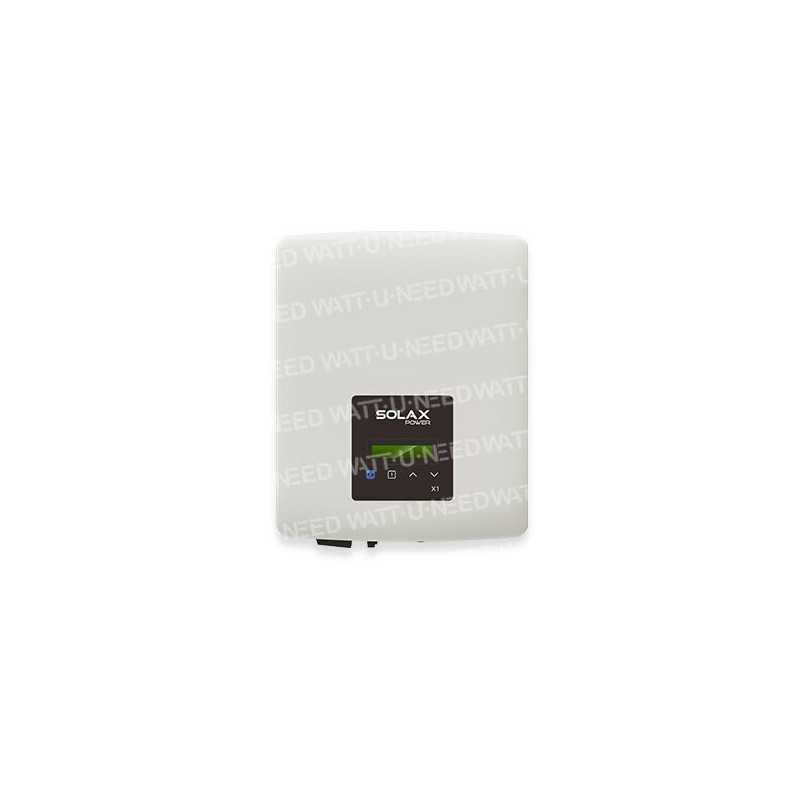

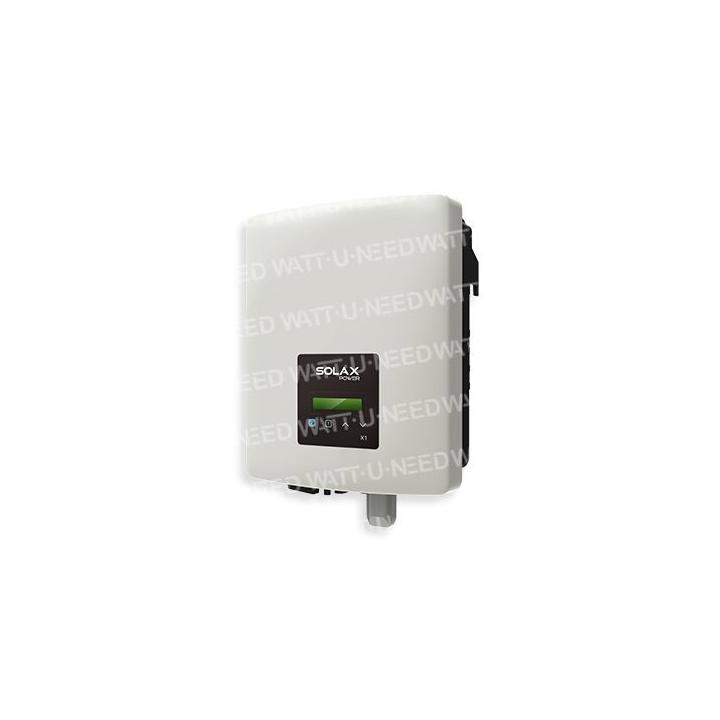

The X1 Mini inverter is the perfect solar solution for small photovoltaic panels ranging from 0.6 kW to 3.6 kW. With a maximum efficiency of 98%, it is one of the most efficient small inverters available on the market today.
Small, light and silent
The X1 Mini has been designed to fit into the smallest of spaces, with a footprint of just 35cm and weighing just 8.3kg, the X1 Mini is small but not lacking in performance.
Indoor or outdoor installation
The X1 Mini is IP66-rated, which means it can be installed indoors or outdoors, giving you the choice of where to install the system.
Features
Password to enter parameters: 2014
DC INPUT
Max. power of photovoltaic panels (Wp)
5400
Max. DC voltage.
(VI)
550
Start-up operating voltage (V)
70
Nominal DC operating voltage (V)
360
MPPT voltage range (V)
55-530
Number of MPP/MPPT tracks / Chains per MPP/MPPT track
/ I
Max. input current
(A)
14
Max. short-circuit current (A)
16
AC
Rated AC power (VA)
3680
Rated AC current (A)
16
Max. AC power.
(VA)
3680
Max. AC current
(A)
16
Nominal mains voltage (AC voltage range)
220/230/240; 180~280
Nominal mains frequency/range (Hz)
50/60;
±5
Displacement power factor
.8 capacitive - 0.8 inductive
THDi, rated power(%)
<3
SYSTEM
Max. efficiency.
(%)
98
European efficiency (%)
96.5
Standby power consumption (night) (W
Degree of
IP66
Max. operating altitude.
(m
<
2
000
Humidity(%)
to 100 (condensation)
Typical noise level (dB)
30
Storage temperature (°C
~ 70
Dimensions (L x W x D) (mm
267 x 328 x 116
Weight (kg
,3
Cooling type
Natural
Communication interfaces
RS485, DRM Wi-Fi (optional) LAN/4G USB CT/Meter (optional)
STANDARDS
DC insulation protection
Yes
fault protection monitoring
ground
Yes
Mains monitoring
Yes
DC injection monitoring
Yes
Return current monitoring
Yes
Residual current detection
Yes
Anti-islanding protectionislanding
Yes
Overheating protection
Yes
SPD
Yes
STANDARD
Safety
EN/IEC62109-1/-2
EN61000-6-1/2/3/4 ;
EN61000-3-2/3/11/12
Certification
IEC61727/G98/AS/NZS 4777.2/VDE4105/EN50549/CEI 0-21/RD1699/UNE 206007-1/VFR, etc.
