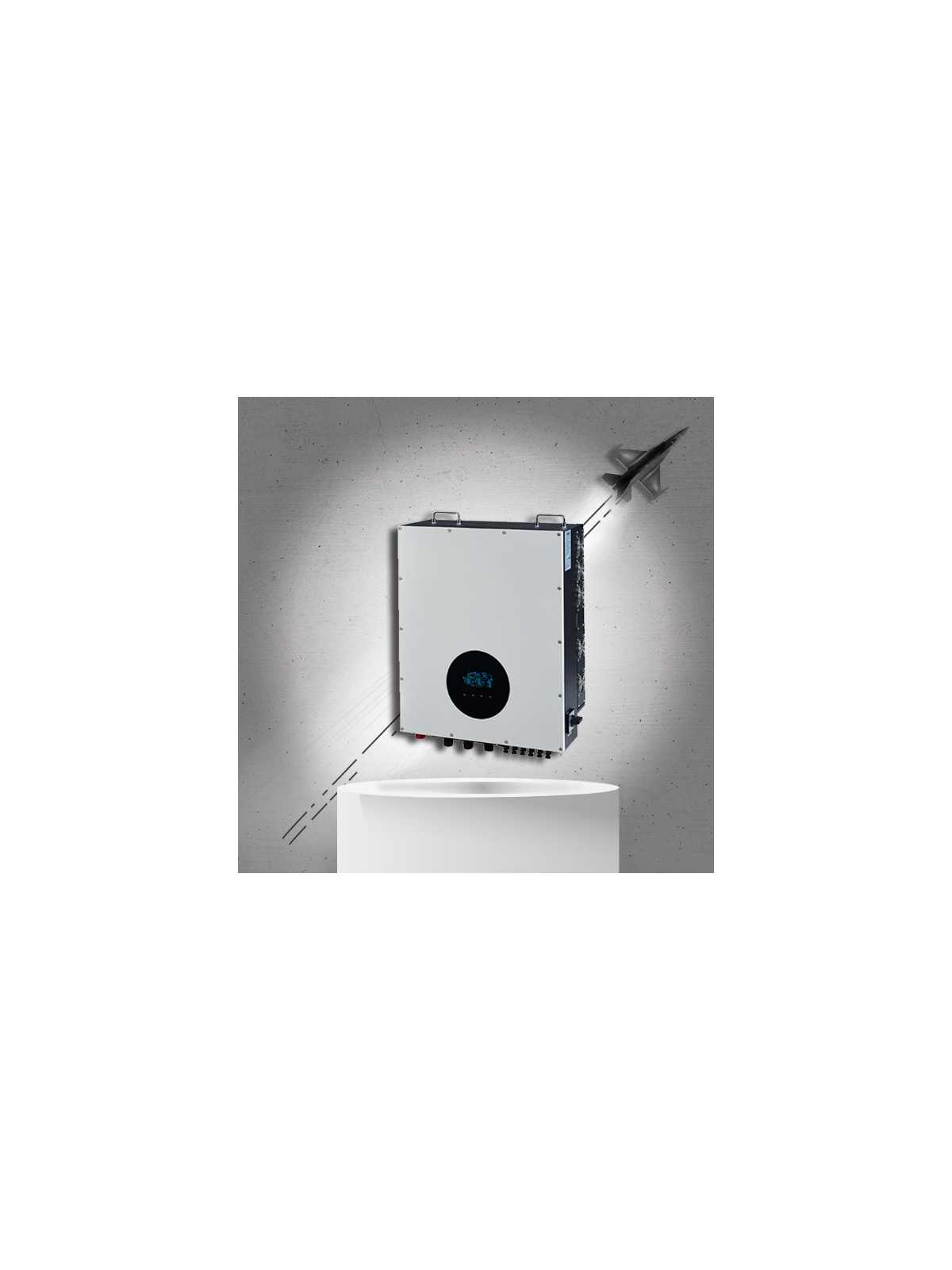

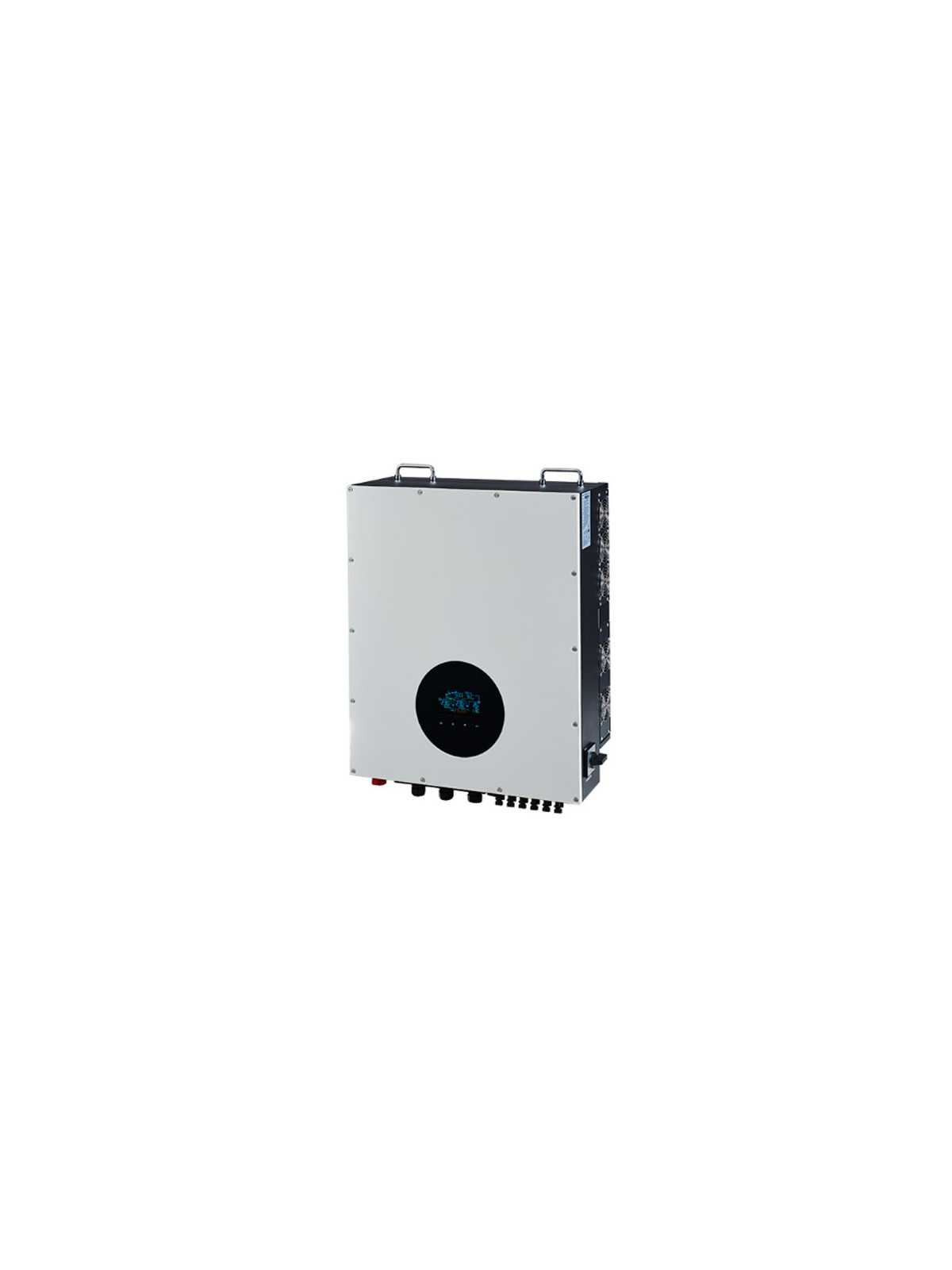

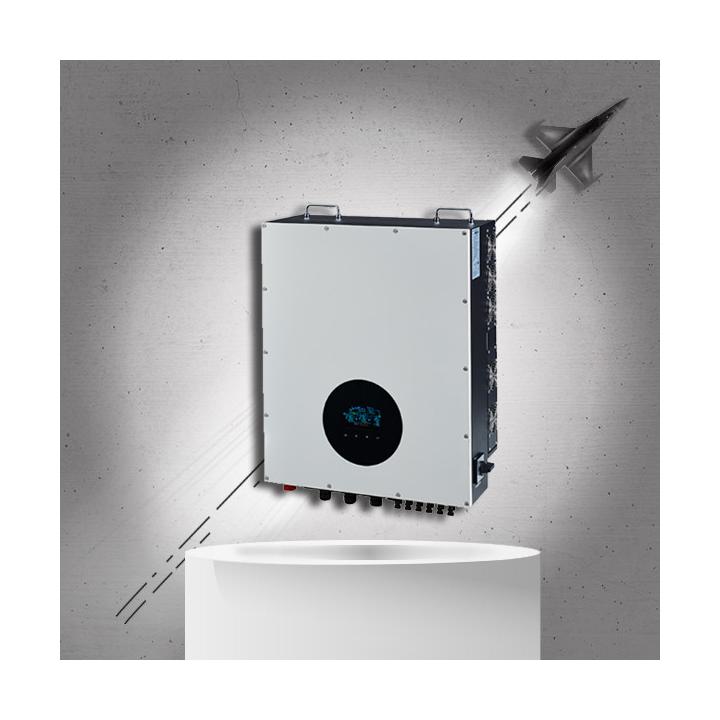

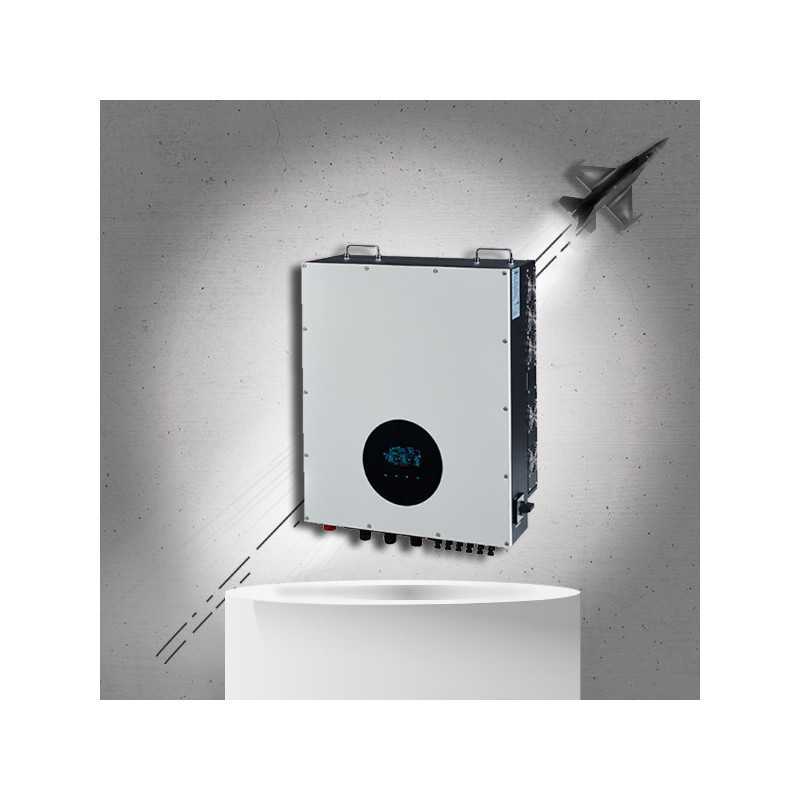

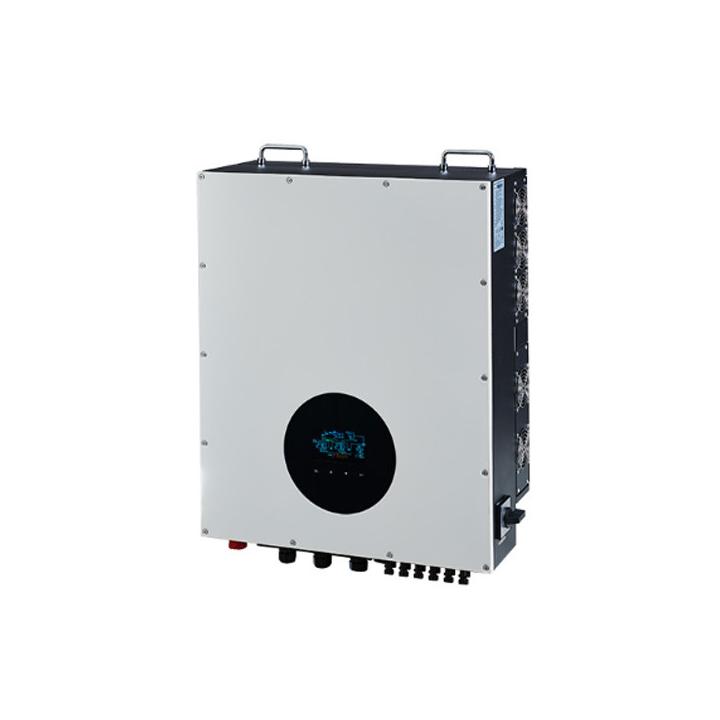

    Multisolar F16 30kW grid-injection-storage hybrid inverter
    Multisolar F16 30kW grid-injection-storage hybrid inverter
    Multisolar F16 30kW grid-injection-storage hybrid inverter
    Multisolar F16 30kW grid-injection-storage hybrid inverter

    Three-phase hybrid inverter Multisolar F16 30kW grid feed

    €6,100.42
    Tax included
    Multisolar-F16
    0768563820083

    Multisolar F16 30kW inverter: control your solar energy with total flexibility

    The Multisolar F16 30kW three-phase hybrid inverter is designed to optimize your solar energy production and offer you great flexibility of use. Robust and high-performance, it adapts to all your needs, whether for a domestic or professional installation.

    Why choose the Multisolar F16 30kW inverter?

    • Maximum flexibility: Thanks to its AC coupling function, it integrates easily into your existing system and offers multiple configuration possibilities.
    • Robusticity: Its IP65 certification means it can withstand the elements and harsh environments.
    • Optimum performance: It efficiently manages unbalanced loads of up to 150% and offers dual output for intelligent energy management.
    • Connectivity: Integrated WiFi and RS485 communication port enable remote monitoring and control.

    Key benefits:

    • Optimized self-consumption: Maximize the use of your solar energy to reduce your bills.
    • Reliability: Benefit from robust, durable equipment for long-term use.
    • Easy installation: Installation is simplified thanks to its many integrated features.

    Multisolar F16 30kW: The ideal solution for customized solar energy.

    2 item(s) left in Stock!

    Three-phase hybrid inverter...

    €6,100.42

    30kW three-phase hybrid inverter: Flexibility and performance with Multisolar F16

    IP 65 three-phase hybrid solar inverter with 150% unbalanced load.

    With IP65 protection, Multisolart F16 is suitable for outdoor applications and indoor environments where atmospheric humidity and dust are present. It supports a 150% unbalanced load, and the maximum load can reach 15kW for each phase. This flexibility can facilitate different energy consumptions in a domestic environment. With the integrated AC coupling function, the existing system on the grid can be easily upgraded and extended to a hybrid system. The Multisolar F16 30Kw also offers a second terminal for the user's choice of generator input or programmable output.

    - Water and dust tightness (IP65) makes the inverter available for a variety of working conditions.
    - 150% unbalanced load support
    - Dual output for intelligent load management
    - Integrated AC coupling function
    - Integrated WiFi for mobile monitoring (application available)
    - User-adjustable charging current up to 50A
    - Wide range of battery inputs
    - Integrated communication port for BMS (RS485)
    - Parallel operation of up to 4 units

    Features

    ModelMultisolar F16 30kW
    Maximum PV input power40000W
    Rated output power30000W
    Maximum load power18000W
    Network operation
    PV input (DC)
    Rated DC voltage / Maximum DC voltage720VDC / 1000 VDC
    Start-up voltage / Initial supply voltage320 VDC / 350 VDC
    MPP voltage range350 VDC ~ 900 VDC
    Number of MPP trackers / Maximum input current3/A : 26A, B:26A, C : 26A
    Number of strings per MPP trackerA:2, B:2, C:2
    MAINS/UTILITY OUTPUT (AC)
    Rated output voltage230VAC (P-N) / 400 VAC (P-P)
    Output voltage range184-265 VAC per phase
    Rated output current43.5 A per phase
    Power factor0,9 lag à 0,9 lead
    EFFICIENCY
    Rendement de conversion maximum (DC/AC)96.5%
    Rendement européen@ Vnominal96%
    OFF-GRID OPERATION
    AC INPUT
    AC starting voltage / Automatic restart voltage120 - 140 VAC / 180 VAC per phase
    Acceptable input voltage range170 - 280 VAC per phase
    Maximum AC input current50A
    PV INPUT (DC)
    Tension DC maximale1000 VDC
    Plage de tension MPP350 VDC ~ 900 VDC
    Nombre de trackers MPP / Courant d'entrée maximum3 / A : 26A, B : 26A, C : 26A
    BATTERY MODE OUTPUT (AC)
    Rated output voltage230 VAC (P-N) / 400 VAC (P-P)
    Output waveformPure sine wave
    Efficiency (DC to AC)96%
    HYBRID OPERATION
    PV INPUT (DC)
    Maximum DC voltage1000 VDC
    Start-up voltage / Initial supply voltage320 VDC / 350 VDC
    MPP voltage range350 VDC ~ 900 VDC
    Number of MPP trackers / Maximum input current3 / A : 26A, B : 26A, C : 26A
    MAINS OUTPUT (AC)
    Rated output voltage230 VAC (P-N) / 400 VAC (P-P)
    Output voltage range184 - 265 VAC per phase
    Rated output current43.5 A per phase
    AC INPUT
    AC starting voltage / Automatic restart voltage120 - 140 VAC / 180 VAC per phase
    Acceptable input voltage range170 - 280 VAC per phase
    Maximum AC input current50A
    BATTERY MODE OUTPUT (AC)
    Rated output voltage230 VAC (P-N) / 400 VAC (P-P)
    Efficiency (DC to AC)96%
    BATTERY AND CHARGER
    Battery voltage range600 ~ 1000 VDC
    Maximum charging current30 A
    GENERAL
    PHYSICS
    Dimensions, D x W x H (mm)255 x 660 x 750
    Net weight (kgs)73
    INTERFACE
    Communication portRS-232, USB, CONTACT SEC, RS-485 and Wi-Fi
    Smart slotOptional SNMP, MODBUS and GPRS
    ENVIRONMENT
    Humidity0 ~ 100% RH
    Operating temperature-From -25°C to 60°C (derating >45°C)
    Altitude0 ~ 1000 m**
    ‘*These figures are based on the VDE-4105 standard. All figures may vary depending on AC voltage and country requirements.

    SolarPower 1.20SP10

      Multisolar-F16

      Data sheet

      Inverter power
      30000VA
      Phase
      Triphasé
      Number of MPPT
      2 MPPT
      Width
      660 mm
      Height
      750 mm
      Thickness
      255 mm
      Inverter type
      Hybrid
      Weight
      73 Kg
