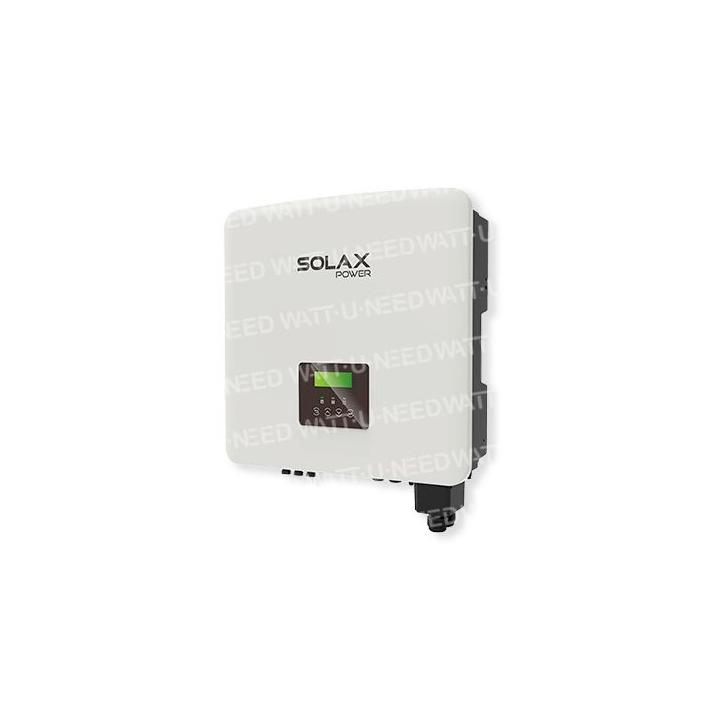

    Three-phase hybrid inverter SolaX X3-HYBRID-5.0-D G4.2

    SolaX X3-HYBRID-6.0-D G4.2 three-phase hybrid inverter

    €3,120.05
    Tax included
    X3-HYBRID-6.0-D-G4.2
    0768563820090

    SolaX X3-Hybrid 6 kVA: Flexibility and Performance for Your Home

    Discover the SolaX X3 6 kVA three-phase hybrid inverter, the ideal solution to produce and store your own energy. With its exceptional performance and flexibility, it allows you to significantly reduce your electricity bills and contribute to the energy transition.

    Why choose SolaX X3-Hybrid 6 kVA?

    • High performance: Maximizes solar energy production and offers high efficiency.
    • Maximum flexibility: Adapts to all solar system configurations.
    • Reliability: Ensures continuous power supply during grid outages.
    • Simplified installation: Quick and intuitive commissioning.

    Key benefits:

    • Smart hybrid mode: Combines solar energy, grid power, and storage for optimized management.
    • Remote monitoring: Control your installation in real-time with a dedicated app.
    • Scalability: Ability to connect multiple inverters in parallel to increase power.

    Ideal for:

    • Single-family homes
    • Small businesses
    • Agricultural installations

    Ready to move towards energy independence?
    Contact us to discuss your project and receive personalized advice.

    1 item(s) left in Stock!

    SolaX X3-HYBRID-6.0-D G4.2...

    €3,120.05

    SolaX 6kVA hybrid solar inverter: Optimised power and efficiency

    SolaX Power is pleased to announce the launch of the X-Hybrid commercial three-phase inverter for battery storage. The three-phase range includes inverters from 5 to 10 kW and, thanks to the possibility of installing several inverters in parallel, scalable battery storage for commercial applications is now a reality. The inverter is equipped with EPS (Emergency Power Supply) function only when supported by additional inverters, has several communication options and can be remotely controlled.

    High efficiency

    • 150% oversized PV and 110% overload output
    • Maximum 150% overload output
    • Superior load and discharge efficiency, up to 97.5%.
    • Integrated shadow tracking function

    Economical

    • DC input current of up to 16A, compatible with high-power solar panels.
    • Stores excess energy from PV to battery
    • Low start-up output voltage enables inverter to work longer.
    • Less energy loss from battery to inverter

    Intelligent

    • Switchover time <10ms
    • Fast configuration with U-disk
    • Compatible with lithium and lead-acid batteries
    • Compatible with CTs, loads respond in 0.3s
    • Intelligent load management (e.g.: heat pump). (e.g.
    • heat pump)
    • Parallel function on and off-grid, up to 150kW 5
    • working modes, 2 charging periods available
    • Ready for VPP, auxiliary service on the electricity market.
    • Unbalanced three-phase output 50% of rated output power on a single phase maximum

    Safety

    • IP65 protection level
    • SPD integrated

    Features

    Password to enter parameters: 2014

    INPUT
    Max. power of photovoltaic panels (Wp)10000
    Max. DC voltage.
    (V)1000
    Start-up voltage (V)200
    Nominal DC operating voltage (V)640
    MPPT voltage range (V)180 -
    950
    Number of MPP trackers/chains per MPP tracker
    (1/1)
    Maximum input current per MPPT (A)16/16
    short-circuit current
    ircuit per MPPT (A)20/20
    AC
    AND INPUT
    Nominal AC power (VA)6000
    Max. AC power
    (VA)6600
    Max. AC current (A)
    ,7
    Max.
    AC input apparent power (VA)

    12000
    AC current max.
    (A)19,3
    Rated mains voltage (AC voltage range) (V)415/240; 400/230;
    380/220
    Nominal mains frequency/range (Hz)50/60
    Displacement power factor
    .8 capacitive - 0.8 inductive
    THDi, nominal power (%)<3
    BATTERY
    Battery typeLi-ion battery/Lead-acid battery (under development)
    Battery voltage range (V)180 -
    650
    Maximum continuous charge/discharge current (A)30
    (OFF-GRADE OR EMERGENCY) (WITH BATTERY)
    Nominal output power (W)6000
    Peak apparent power (VA)
    ,60s
    Maximum continuous current (A)
    .7
    Rated voltage (V) ;
    Frequency (Hz)400/230; 50/60
    Switching time (ms)<10
    Parallel operation

    Yes
    SYSTEM
    MPPT efficiency (%)98.0
    European efficiency (%)97,7
    Battery charge/discharge efficiency (%)*198.5 / 97.5
    Standby power consumption (night) (W)<5
    Degree of protection (to IEC 60529)IP65
    Operating temperature range (°C)
    to + 60 (derating to 45)
    Max. operating altitude.
    (m
    < 3000
    Humidity(%)
    to 100
    Typical noise level (dB)<
    35
    Storage temperature (°C)
    -+ 70
    Dimensions (L x W x D) (mm)503 x 503 x 199
    Weight (kg)30
    Cooling typeNatural
    Communication interfacesCT/ Counter (optional) / RS485/ External control (optional :
    Pocket WiFi/Lan/4G)/ DRM/ USB Upgrade/NTC (optional)
    STANDARD
    SafetyEN/IEC62109-1/-2
    IEC/EN 61000,
    NB/T 32004
    Certification
    / G99 / G98 / AS4777 / EN50549 / CEI 0-21 / IEC61727 / PEA / MEA / NRS-097-2-1/ RD1699 / TOR
    X3-HYBRID-6.0-D-G4.2

    Data sheet

    Inverter power
    6600 VA
    Phase
    Triphasé
    Number of MPPT
    2 MPPT
    Inverter type
    Hybrid

    Specific References

    New

    Download

    SolaX X3-Hybrid-G4-Manual-EN

    Download (8.18MB)

    SolaX X3-Hybrid-G4-Manuel-FR

    Download (8.81MB)
