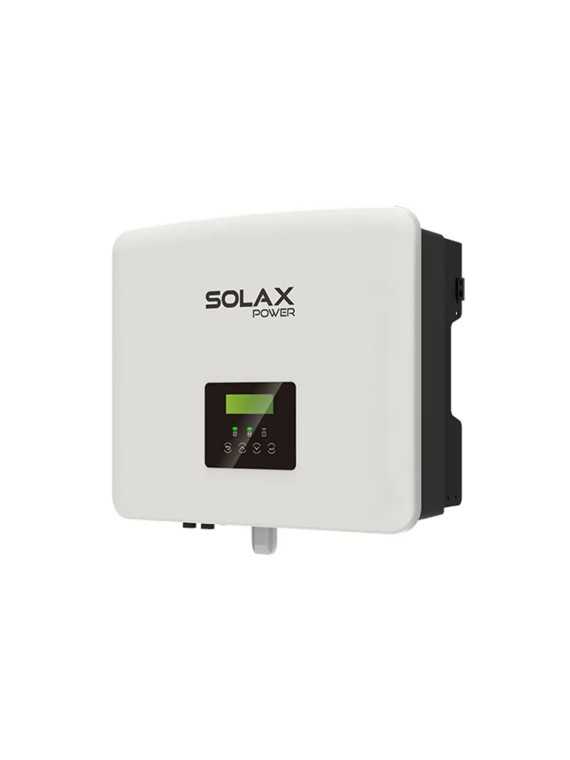

Single-phase hybrid inverter SolaX X1 - 3 kVA X1-HYBRIDE-3.0-D G4.1
€1,963.52
Tax included
X1-HYBRIDE-3.0-D G4.1
0768563820212
The X1-Hybrid G4 series is a high-quality inverter capable of converting solar energy into alternating current and storing the energy in batteries. This inverter can be used to optimize self-consumption, store energy in batteries for later use, or feed energy into the public grid. Its operating mode depends on the user's preferences, and it can provide emergency power during power failures.
1 item(s) left in Stock!
Single-phase hybrid inverter SolaX X1- 3 kVA X1-HYBRIDE-3.0-D G4.1
High efficiency
200% oversized PV, up to 110% AC overload output
Superior charging and discharging efficiency, up to 97.0
Integrated shadow tracking function
Economical
16 A DC input current, compatible with high-power solar panels
Up to 150% PV input
Store excess PV energy in the battery
Low starting output voltage for longer operating time
Safety
IP65 protection
Integrated SPD
Intelligent
- Up to 150% EPS output for 10 s
- Switching time < 10 ms
- Quick configuration with USB key
- Compatible with lithium-ion and lead-acid batteries
- CT-compatible, loads respond in 0.3 s
- Intelligent load management (e.g. heat pump)
- On-grid and off-grid parallel operation, up to 15 kW
- 5 operating modes, 2 charging periods available
- Ready for VPP, auxiliary service on the electricity market
Why
Fourth-generation SolaX inverter
Discover the unrivalled power of our advanced hybrid inverter, combining efficiency, safety and intelligence, with a simplified design for easy one-person installation. Benefit from exceptional features such as PV oversizing up to 200%, high charge and discharge efficiency and integrated shadow tracking. The inverter guarantees durability and compatibility, even in low-temperature environments, with IP65 protection and support for high-power solar panels. Store surplus energy effortlessly and benefit from intelligent load management. Enjoy seamless integration of solar power and storage with smart chargers for electric vehicles. Choose from versatile operating modes, including parallel on/off-grid and VPP preparation, opening up unlimited opportunities in the electricity market. Unleash the full potential of our local energy solution for a smarter, greener future.
X1-HYBRIDE-3.0-D G4.1
1 Item
Data sheet
- Inverter power
- 3000VA
- Storage temperature
- -40 °C ~+65 °C
- Phase
- Monophasé
- Width
- 482 mm
- Height
- 417 mm
- Thickness
- 181 mm
- Rated mains frequency
- 50/60 Hz
- Safety
- IEC 62109-1/-2
- EMC
- EN 61000-6-1/2/3/4, EN 61000-3-2/3/11/12
- Certification
- VDE4105/G99 /G98 / AS4777 / EN50549/ CEI 0-21 /IEC61727/RD1699/NRS 097-2-1/PEA/MEA/VFR2019/C10/11
- Type of cooling
- Natural
- Communication interfaces
- CT/ Counter (optional)/ Rs485 external control/(optional: Pocket WiFi/Lan/4G)/ DRM/ USB upgrade/ NTC
- THDi (Nominal power)
- Less than 2
- Battery Type
- Li-ion battery / Lead-acid battery (under development)
- Battery Voltage Range
- 80-480 V
- Protection Degree
- IP65
- Operating temperature range
- -35~+60 °C (derating above 45°C)
- Weight
- 24 kg
- Relative humidity range
- 0~100 %
- Maximum operating altitude
- Inférieur à 3000 m
- Max. PV input voltage
- 600 V
- Start-up output voltage
- 90 V
- Nominal input voltage
- 360 V
- MPP voltage range
- 70~550 V
- Number of MPP trackers / strings per MPP tracker
- 2(1/1)
- Maximum input current (input A/input B)
- 16/16 A
- Rated AC output power
- 3000 W
- Puissance apparente maximale de la sortie AC
- 3300 VA
- Maximum apparent AC input power
- 6300 VA
- Maximum AC input current
- 27.4 A
- Tension nominale AC
- 230/240 V
- Displacement power factor
- 0.8 ahead~0.8 behind
- Maximum continuous charge/discharge current
- 30 A
- Apparent peak power
- 3600 VA, 1h
- Max. continuous current
- 13 A
- Rated voltage; Frequency
- 230 V; 50/60 Hz
- Switching time [ms]
- Less than 10
- Parallel operation
- Yes
- Maximum efficiency
- 97.6 %
- Standby consumption @Night
- Inférieur à 3 W
- Maximum photovoltaic generator input power
- 4500 Wp
- Maximum AC output current
- 14.4 A
- Typical noise emission
- Below 30 dB
Specific References
- UPC
- 768563820212
- EAN13
- 0768563820212
New
