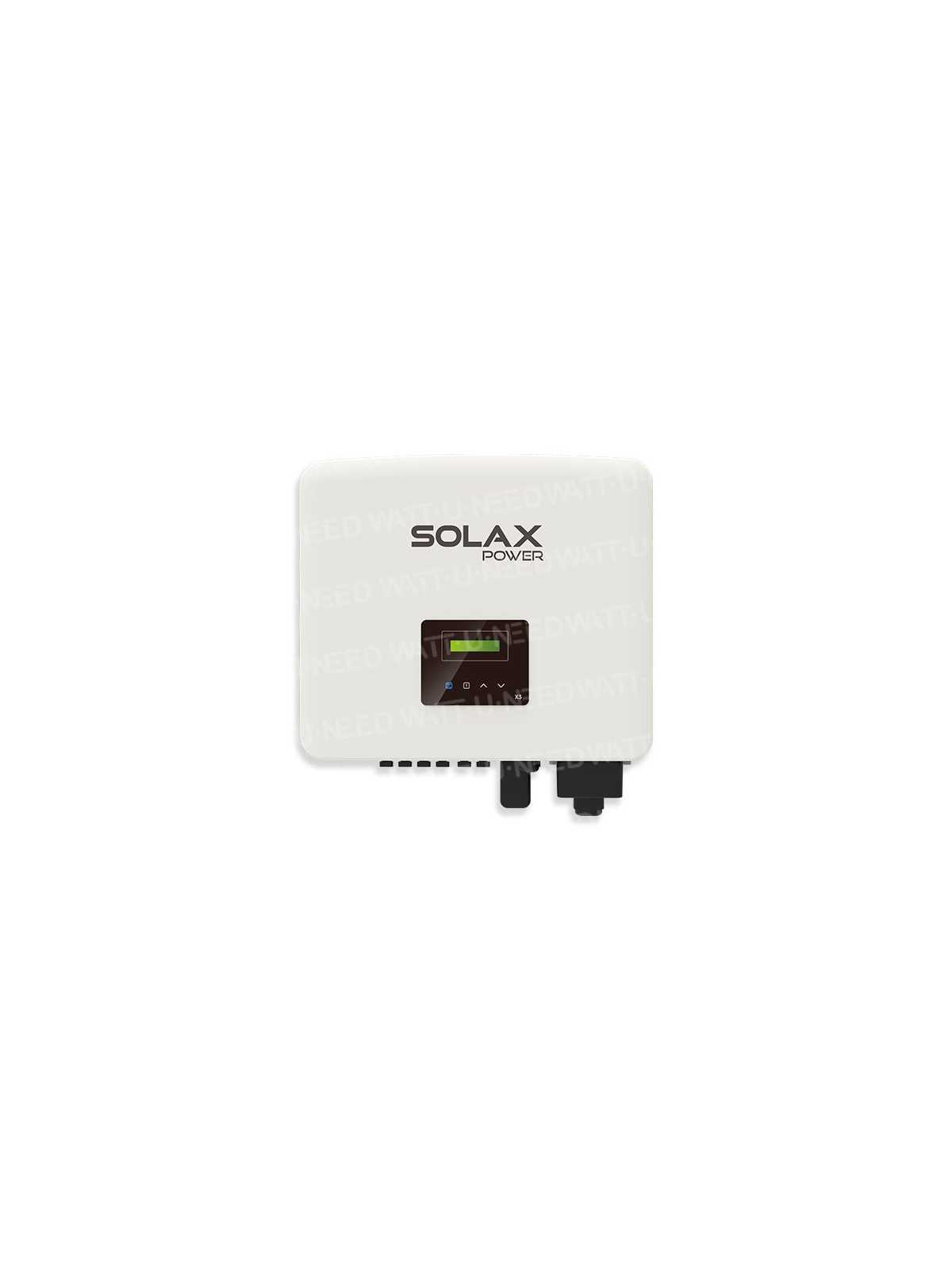

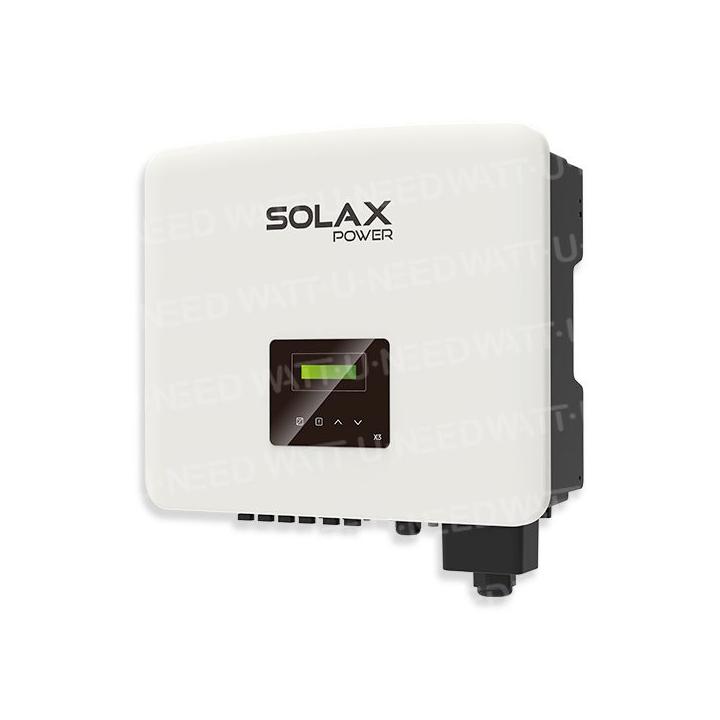

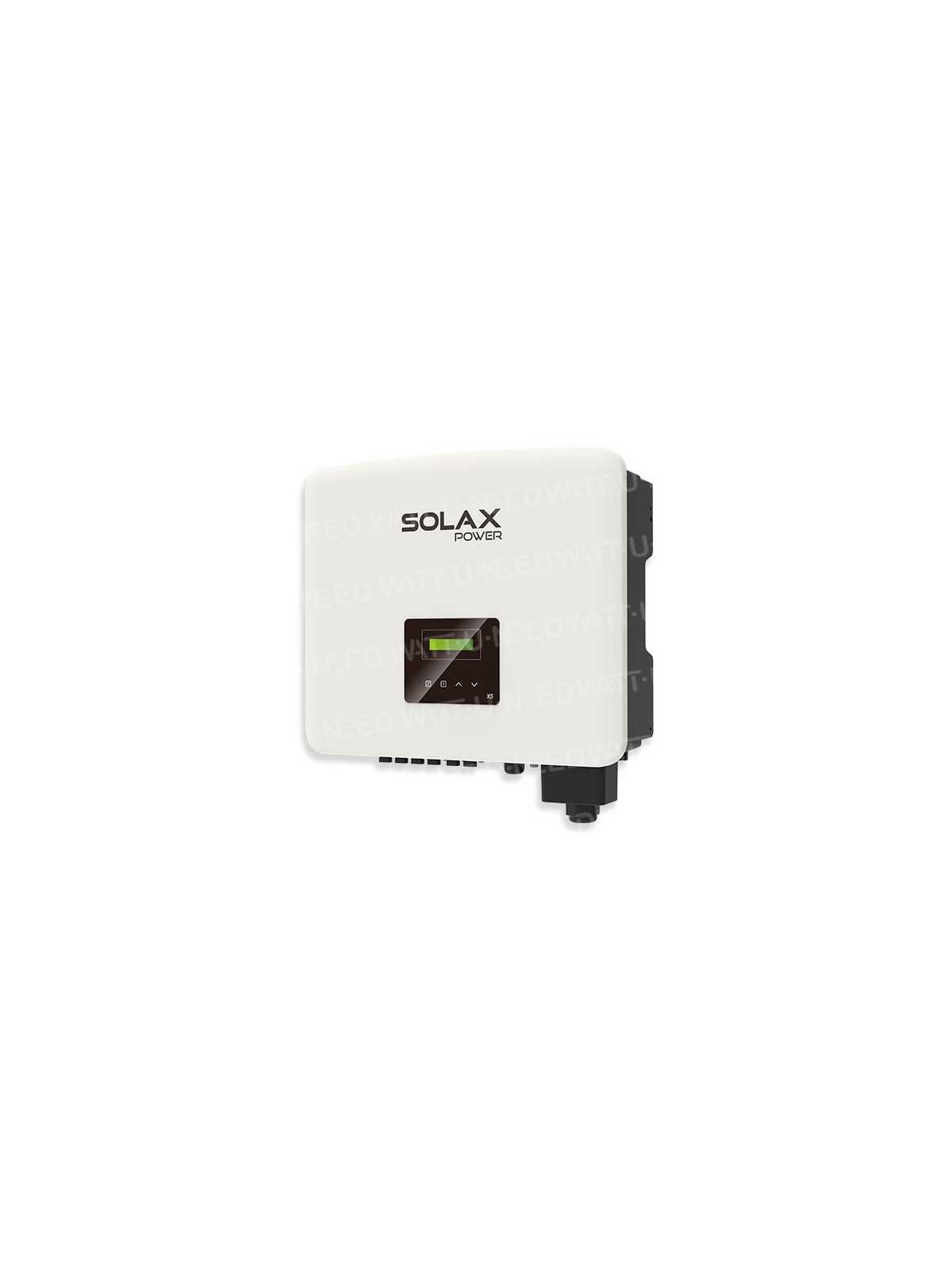

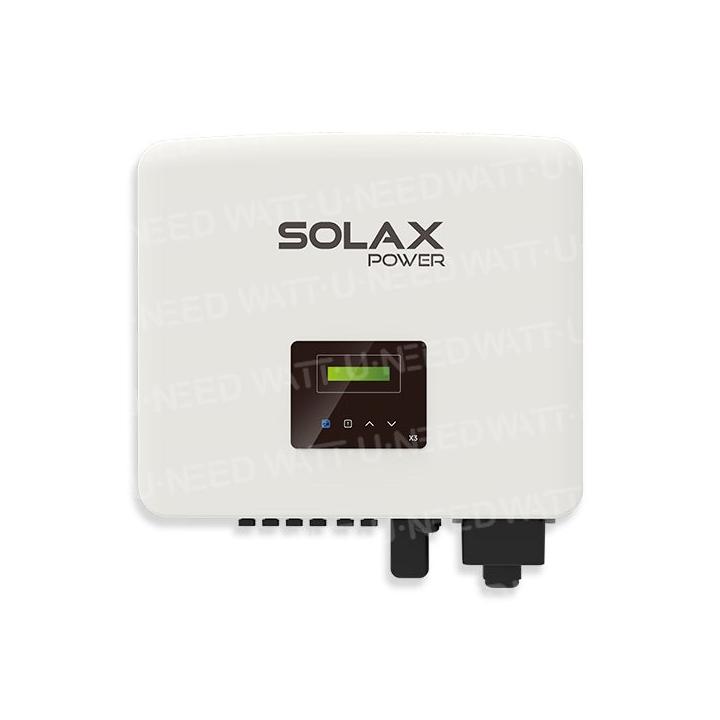

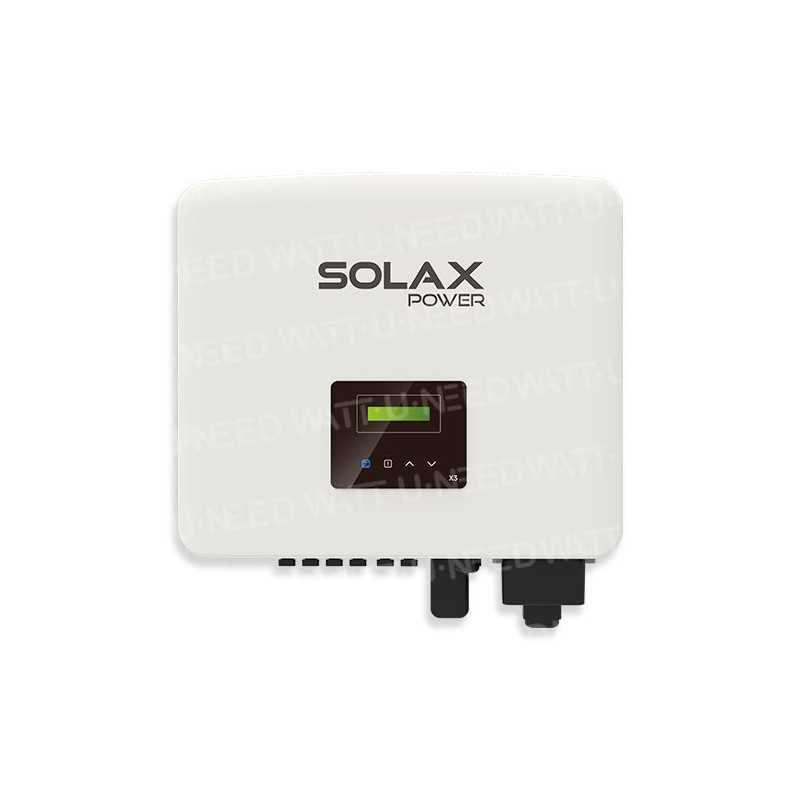

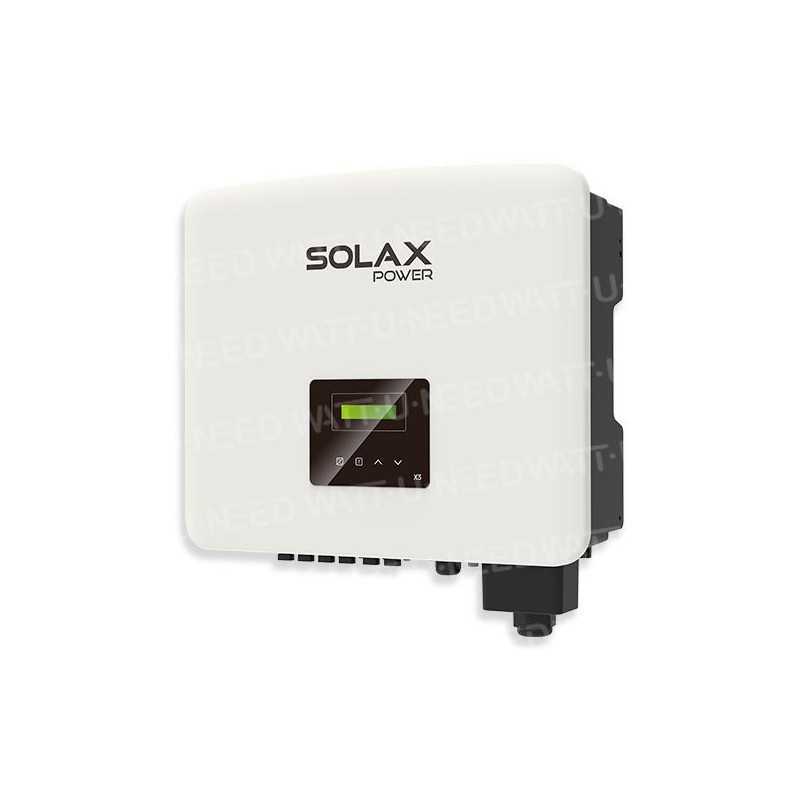

SolaX Three-phase X3 PRO 10K G2
SolaX has developed a range of three-phase inverters unrivalled in the industry for their quality, reliability and effectivity. SolaX three-phase inverters offer a wide MPPT voltage range for greater energy recovery, and have a maximum input voltage of 1100V, with a maximum efficiency of 98.5%. What's more, SolaX three-phase inverters are IP66-rated, have no internal fan and come with optional "plug & play" Wi-Fi.
Password to enter parameters: 2014
Perfect for residential photovoltaic panels
The X3 Pro G2 is the small solar inverter for professional or residential use, perfectly designed for buildings with solar panels on different sides of the roof. With 3 MPPT trackers and 2 strings per MPPT, the X3 Pro G2 can be connected to two separate panels. The X3 Pro G2 is also IP66-rated, meaning it can be installed outdoors.
Simple, reliable, efficient
The SolaX X3 Pro G2 is among the most efficient residential and commercial solar inverters available on the market today, with a massive 98.5% efficiency and a maximum PV input voltage of 1100V, you can be sure of making the most of your solar power.
Install indoors or outdoors
The SolaX X3 Pro G2 is IP66-rated, which means it can be installed indoors or outdoors, giving you the choice of where to install the system.
Features
| Max. power of photovoltaic panels (Wp) | 12000 |
| Nominal DC operating voltage (V) | 650 |
| MPPT voltage range (V) | 160 - |
| 980 |
| Max. input current per MPPT (A) | 32/32 |
| short-circuit current |
| circuit per MPPT (A) | 40/40 |
| Rated mains voltage (AC voltage range) (V) | 230/380, 230/400, 3/N/PE, |
| 3/PE |
| Nominal mains frequency/range (Hz) | 50/60 |
| Displacement power factor |
| .8 capacitive - 0.8 inductive |
| European efficiency (%) | 97.7 |
| Standby power consumption (night) (W) | <3 |
| Degree of protection (to IEC 60529) | IP66 |
| Operating temperature range (°C) |
| to + 60 (derating to 45) |
| Max. operating altitude. |
| (m |
| Typical noise level (dB) | < |
| 35 |
| Dimensions (L x W x D) (mm |
5
| Communication interfaces | USB
RS485
DRM
Pocket WiFi (optional)
Pocket LAN/4G |
| Protection against overvoltage and undervoltagevoltages | Yes |
| DC insulation protection | Yes |
| DC injection monitoring | Yes |
| Residual current detection | Yes |
| Anti-islanding protectionislanding |
| Overtemperature protection | Yes |
| SPD (DC/AC) | Type II / Type II |
| Arc fault circuit breaker (AFCI) | Optional |
| Auxiliary power supply AC (APS) | Optional |
| Safety | IEC/EN 62109-1, |
| IEC/EN 62109-2, NB/T 32004 |
| Certification |
| , EN50549, AS4777.2, VDE4105, IE 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530, NB/T 32004 |
