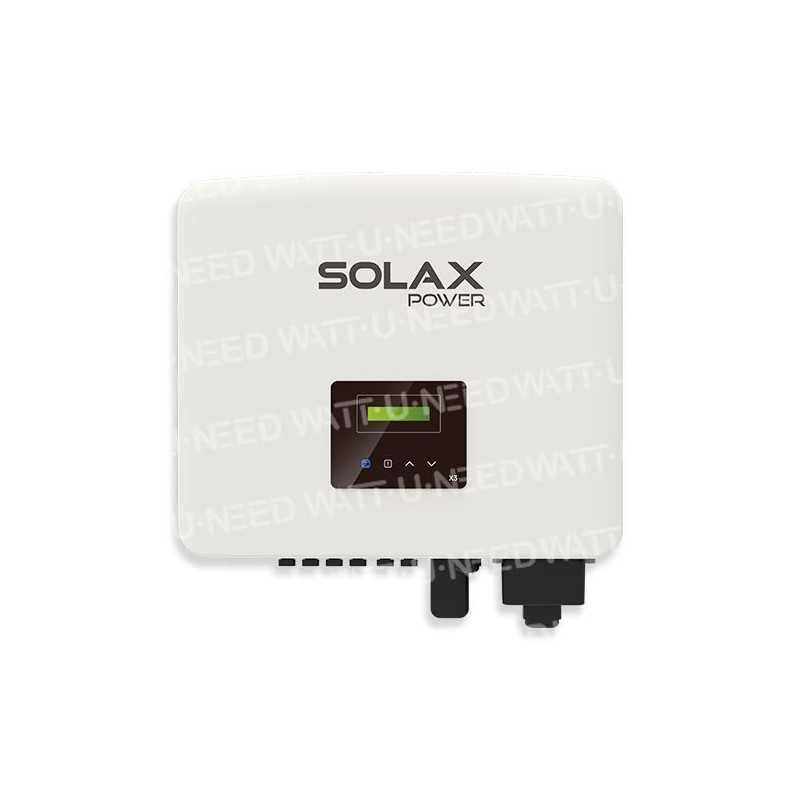

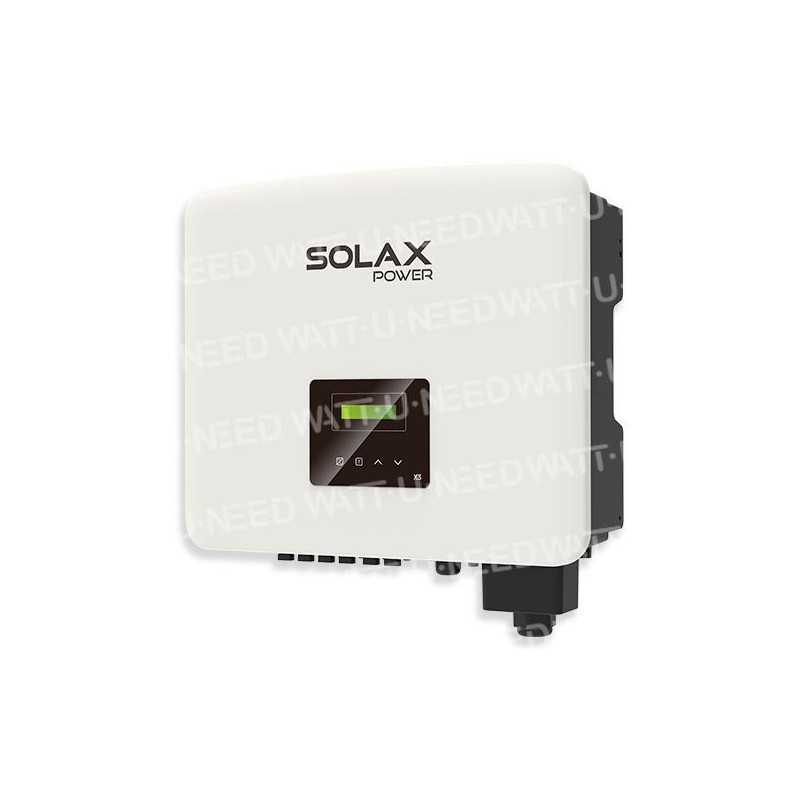

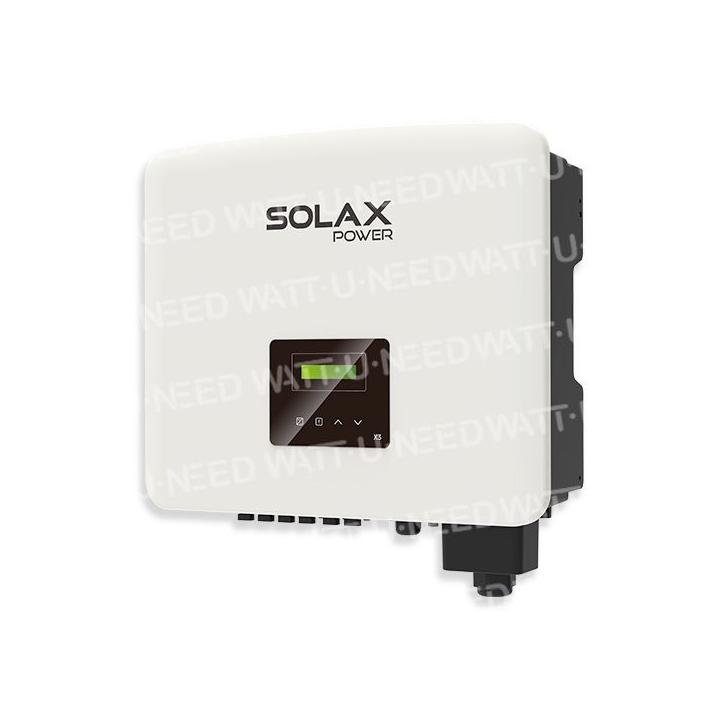

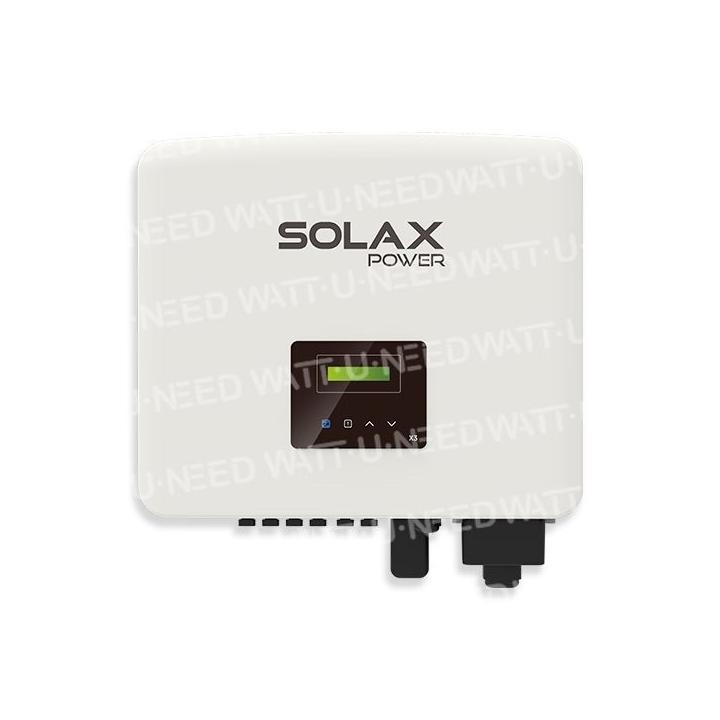

SolaX X3-PRO-15K-G2 three-phase inverter
€2,013.68
Tax included
X3-PR0-15K-G2
0768563819889
The SolaX X3-PRO-15K-G2 three-phase inverter is the ideal solution to maximize your solar energy production. With its exceptional efficiency of 98.5% and robustness, it guarantees maximum and reliable solar energy production.
Why choose SolaX X3-PRO?
- Maximum efficiency: With a wide MPPT voltage range and smart shadow management, this inverter captures the maximum solar energy.
- Reliability and durability: Designed to operate in tough conditions, it offers long-lasting performance and stability.
- Easy installation: Its compact and lightweight design, along with IP66 classification, allows for simple installation, both indoors and outdoors.
- Smart monitoring: Monitor your installation’s performance in real-time with the intuitive interface.
Key advantages:
- Flexibility: Perfectly adapts to different roof configurations with its 2 MPPT trackers and 2 strings per MPPT.
- Robustness: Weather-resistant IP66 design.
- Simplicity: Quick and easy installation thanks to its compact design.
SolaX X3-PRO: The high-performance solution for optimized solar energy production.
1 item(s) left in Stock!
Maximise your solar production: SolaX 15 kVA inverter, 98.5% efficiency
SolaX has developed a range of three-phase inverters unrivalled in the industry for their quality, reliability and effectivity. SolaX three-phase inverters offer a wide MPPT voltage range for greater energy recovery, and have a maximum input voltage of 1100V, with a maximum efficiency of 98.5%. What's more, SolaX three-phase inverters are IP66-rated, have no internal fan and come with optional "plug & play" Wi-Fi.
Password to enter parameters: 2014
Perfect for residential photovoltaic panels
The X3 Pro G2 is the small solar inverter for professional or residential use, perfectly designed for buildings with solar panels on different sides of the roof. With 2 MPPT trackers and 2 strings per MPPT, the X3 Pro G2 can be connected to two separate panels. The X3 Pro G2 is also IP66-rated, meaning it can be installed outdoors.
Simple, reliable, efficient
The SolaX X3 Pro G2 is among the most efficient residential and commercial solar inverters available on the market today, with a massive 98.5% efficiency and a maximum PV input voltage of 1100V, you can be sure of making the most of your solar power.
Install indoors or outdoors
The SolaX X3 Pro G2 is IP66-rated, which means it can be installed indoors or outdoors, giving you the choice of where to install the system.
Features
| INPUT | |
| Max. power of photovoltaic panels (Wc) | 22500 |
| Max. DC voltage (V) | 1100 |
| Starting voltage (V) | 200 |
| Nominal DC operating voltage (V) | 650 |
| MPPT voltage range (V) | 160 – 980 |
| Number of MPPT trackers | 2 |
| Chains per MPPT tracker | 2 |
| Max. input current per MPPT (A) | 32/32 |
| Max. short-circuit current per MPPT (A) | 40/40 |
| AC OUTPUT | |
| Nominal AC power (VA) | 15000 |
| Max. AC power (VA) | 16500 |
| Nominal AC current (A) | 22.8 / 21.8 |
| Max. AC current (A) | 24.2 |
| Nominal grid voltage (AC voltage range) (V) | 230/380, 230/400, 3/N/PE, 3/PE |
| Frequency/nominal grid range (Hz) | 50/60 |
| Power factor displacement | 0.8 capacitive – 0.8 inductive |
| THDi, nominal power (%) | <3 |
| SYSTEM DATA | |
| MPPT efficiency (%) | 98.3 |
| European efficiency (%) | 97.8 |
| Standby consumption (night) (W) | <3 |
| Protection degree (according to IEC 60529) | IP66 |
| Operating temperature range (°C) | -30 to +60 (derating at 45) |
| Max. operating altitude (m) | 4000 (derating at 3000) |
| Humidity (%) | 0 to 100 |
| Typical noise level (dB) | < 55 |
| Storage temperature (°C) | -90 |
| Dimensions (L x W x D) (mm) | 482 x 417 x 181 |
| Weight (kg) | 26 |
| Cooling type | Natural |
| Communication interfaces | USB RS485 DRM Pocket WiFi (optional) Pocket LAN/4G |
| PROTECTION | |
| Surge and under-voltage protection | Yes |
| DC isolation protection | Yes |
| Grid monitoring | Yes |
| DC current injection monitoring | Yes |
| Residual current detection | Yes |
| Anti-islanding protection | Yes |
| Overheat protection | Yes |
| SPD (DC/AC) | Type II / Type II |
| Arc fault circuit interrupter (AFCI) | Optional |
| Auxiliary AC power supply (APS) | Optional |
| STANDARD | |
| Safety | IEC/EN 62109-1, IEC/EN 62109-2, NB/T 32004 |
| EMC | IEC/EN 61000, NB/T 32004 |
| Certification | VDE4105, EN50549, AS4777.2, VDE4105, IE 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530, NB/T 32004 |
X3-PR0-15K-G2
Data sheet
- Inverter power
- 15000VA
- Phase
- Triphasé
- Number of MPPT
- 2 MPPT
