Sofar HYD-TL-3PH : Adapt your energy to all your needs
Three-phase hybrid inverter - the perfect solution to enable energy storage in your PV installation with on-grid and off-grid functions.

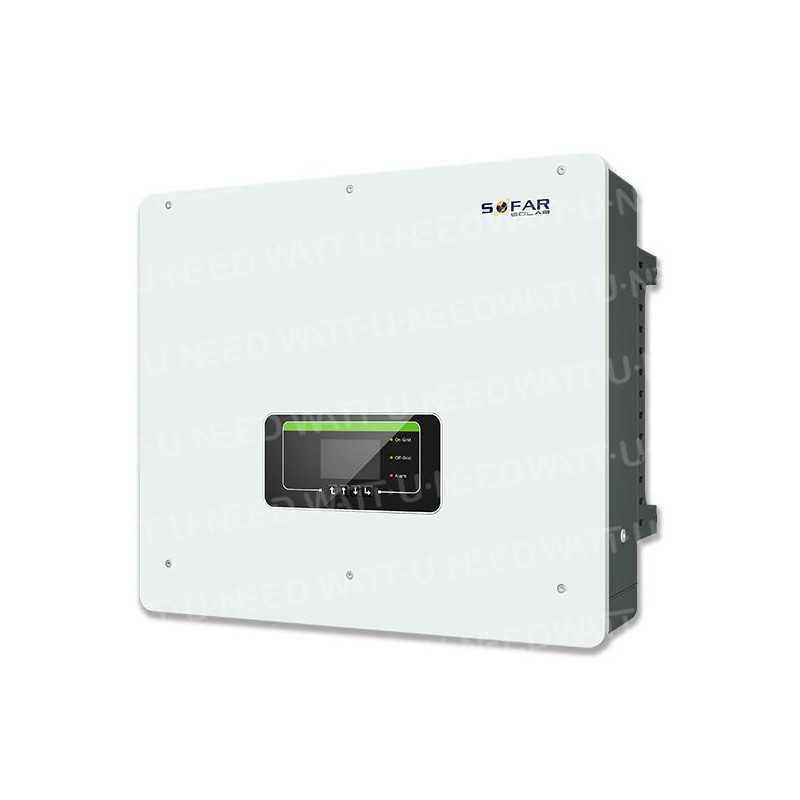

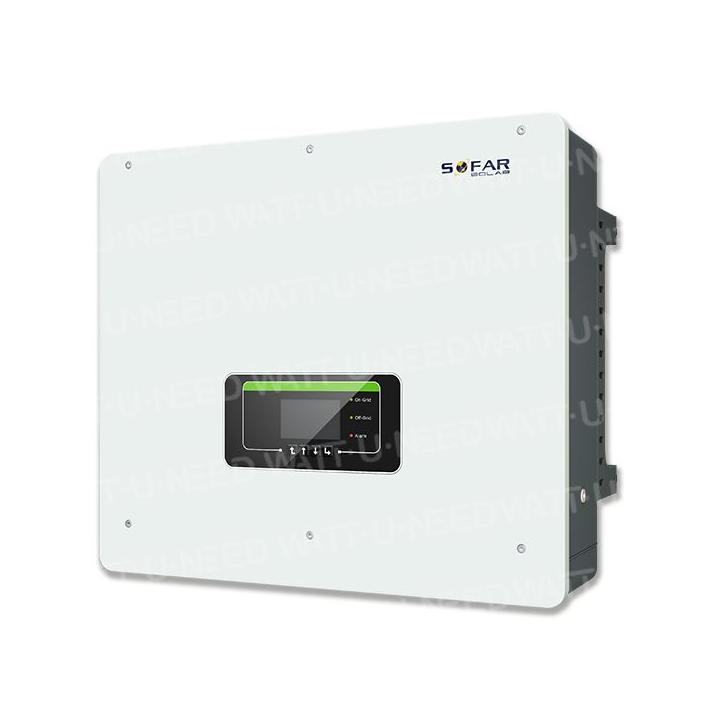

The HYD 15K...20KTL-3PH is a versatile three-phase hybrid inverter for solar and storage applications. During grid failures, it can provide up to 20 kW of unbalanced three-phase emergency power supply (EPS) in 10 ms thanks to its integrated EPS port.
Two MPPTs and two independent battery ports (on models 15K to 20KTL) enable multiple battery capacity configurations in 2.5 kWh steps.
Up to 10 inverters can be connected in parallel on the EPS and AC port, making this device ideal for microgrid installations (on or off-grid).
The integrated energy management system features several user-friendly modes, optimizing the user experience, including an automatic self-use mode. Users can also define different time and/or date ranges, or rules for the day of the week.

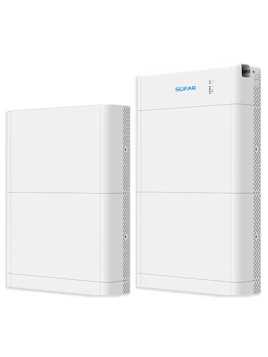

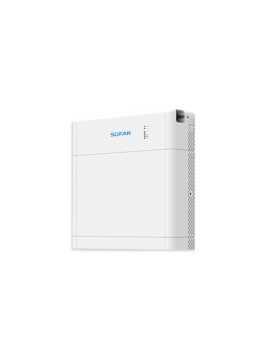

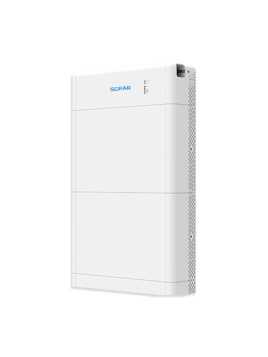

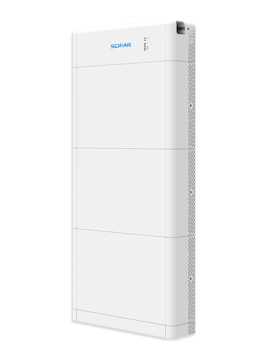

All modes can be easily configured on the large LCD display. In particular, this inverter is compatible with SofarSolar's AMASS Store high-voltage battery unit (GTX 3000-H). A WiFi stick is supplied with the inverter, for easy connection to the Sofar monitoring portal.
INTEGRATED INVERTER WITH THREE-PHASE ENERGY STORAGE
- Different operating modes for optimum performance
- Off-grid output can be connected to an unbalanced load, separate three-phase output is supported.
- Up to 2 MPPT, allowing flexible configuration.
- Multiple parallel systems, more flexible system solutions
- Up to two battery inputs
- Fully digital operation, allowing greater control accuracy
Features
| Battery type | Lithium-ion, Lead-acid |
| Battery voltage range | 180 - 800 V |
| Full-charge battery voltage range | 300 - 800 V |
| Nominal charge/discharge power | 15000 W (7500 / 7500) |
| Max. |
| Charge/discharge current | 50 A (25 / 25) |
| Peak charge/discharge current, duration | 70 A (35/35), 60s |
| BMS communication mode | CAN (RS485) |
| AC output data (on mains) |
| Max. |
| AC power output to mains | 16500 VA |
| Max. power output |
| AC power from mains | 30000 VA |
| Rated output current | 21,7 A |
| Rated output current AC output current to mains | 24 A |
| Max. current |
| AC current from mains | 44 A |
| Rated mains voltage |
| / N / PE, |
| 230 / 400 Vac |
| Mains voltage range | 184 Vac - 276 Vac |
| Nominal mains frequency | 50 / 60 Hz |
| Mains frequency range | 45 Hz - 55 Hz / 55 Hz - 65 Hz |
| Output power factor |
| default (+/- 0,8 adjustable) |
| Output THDi (at rated output) | <3% |
| Nominal output power | 15000 W |
| Peak output power, duration | 22000 A, 60s |
| Peak output current, duration | 32 A, 60s |
| Rated output voltage |
| / N / PE, 230 / 400 Vac |
| Rated output frequency | 50 / 60 Hz |
| Max |
| Battery charging and discharging efficiency | 97. |
8
| Reverse polarity protection PV | Yes |
| Output overcurrent protection | Yes |
| Output overvoltage protection | Yes |
| Anti-islanding protectionislanding |
| Residual current detection | Yes |
| Insulation resistance detection | Yes |
| SPD | PV : Type II standard, AC: |
| Type III standard |
| Reverse battery protection | Yes |
| AC mains terminal | 5P connector |
| AC standby terminal | 5P connector |
| Display | LCD & |
| Bluetooth + APP |
| Communication | RS485, CAN2.0, WI-Fi,
Optional : |
|
E
| Dimensions (W * H * D) | 571.4 x 515 x 264.1 mm |
| Inverter topology | Transformerless |
| Standby power consumption | < |
| 15 W |
| Operating temperature range |
| -+ 60°C |
| Installation method | Wall-mounted |
| Maximum number of parallel units | 10 |
| Operating altitude | < |
| 4000 m |
| EN 61000-6-1, EN61000-6-3 |
| Safety standards | IEC 62109-1, |
| IEC 62109-2, IEC 62040-1 |
| Network standards |
| V 0124-100, V0126-1-1, VDE-AR-N 4105, CEI 0-16 / CEI 0-21, EN 50549, G98 / G99, UTE C15-712-1 |
