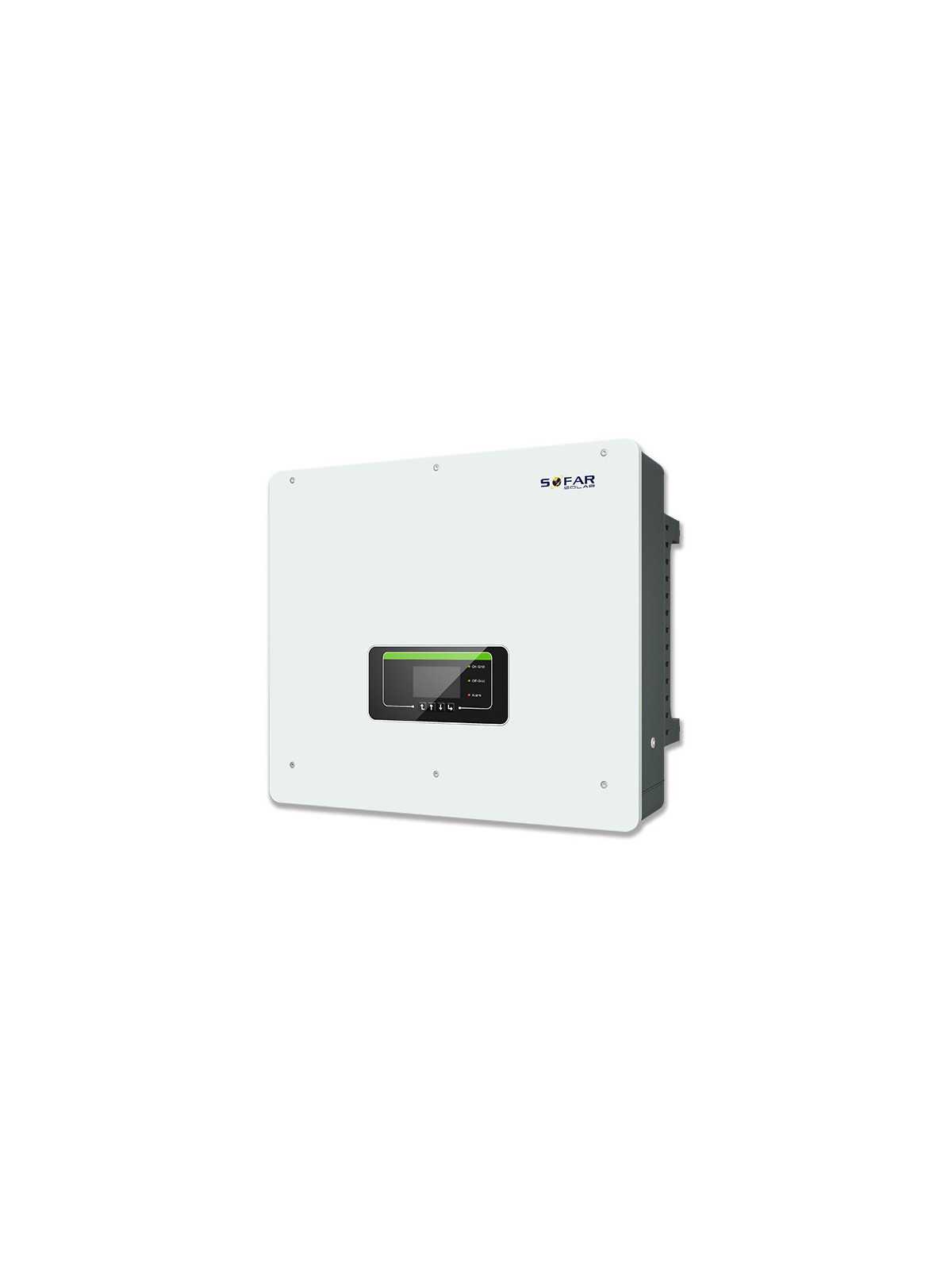

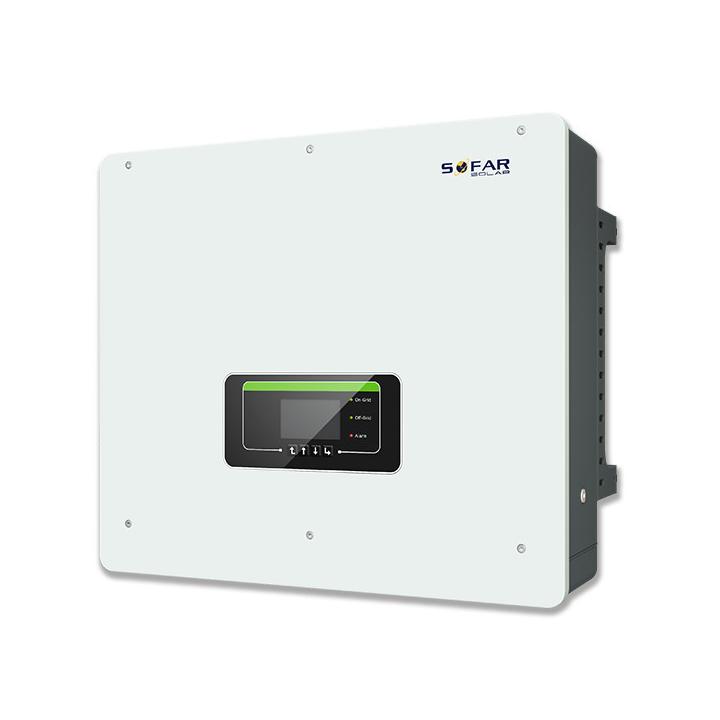

Three-phase hybrid inverter Sofar Solar HYD 6KTL-3PH
THREE-PHASE INVERTER WITH ENERGY STORAGE
Three-phase hybrid inverter
the perfect solution to enable energy storage in your PV installation with on-grid and off-grid functions.
The HYD 5K...20KTL-3PH is a versatile three-phase hybrid inverter for solar and storage applications. During grid failures, it can provide up to 20 kW of unbalanced three-phase emergency power supply (EPS) in 10 ms thanks to its integrated EPS port.
Two MPPTs and two independent battery ports (on models 10K to 20KTL) enable multiple battery capacity configurations in 2.5 kWh steps.
Up to 10 inverters can be connected in parallel on the EPS and AC port, making this device ideal for microgrid installations (on or off-grid).
The integrated energy management system features several user-friendly modes, optimizing the user experience, including an automatic self-use mode. Users can also define different time and/or date ranges, or rules for the day of the week.
All modes can be easily configured on the large LCD display. In particular, this inverter is compatible with SofarSolar's AMASS Store high-voltage battery unit (GTX 3000-H). A WiFi stick is supplied with the inverter, for easy connection to the Sofar monitoring portal.
Features
Model
HYD 6KTL-3PH
Battery input data
Battery type
Lithium
,
lead acid
Number of batteries
Battery voltage range for full charge (V)
180 - 800
Batte
ry voltage range (V)
240 - 800
Nominal charging/discharging power (W)
6000
ent (A) 25 (A)
2
5
Peak charge/discharge current, duration (A, s)
40,
60
Battery charging strategy
Self-adaptation to B
MS (batt
ery management system)
Communic
ation
interfaces
CAN (RS485)
PV string input data
PV input power max.
(Wp)
(6600 / 660
0)
Max. dir
ec
t voltage (V) (V)
1000
S
t
art-up operating voltage (
V)
200
MPPT voltage range (V)
180 - 960
Nominal DC
voltage (V)
600
Full MPPT power in
voltage range (V)
320 - 850
Max. i
put current (A) 12.5 / MP
60 Nominal DC vo
(A)
12.5 / 12.5
Max. short current (A)
15 / 15
Number of MPP trackers
Number of strings per MPP tracker
AC output data (to grid)
Rated AC power (W)
6000
Max.
AC output to mains (VA)
6600
Max. power from mains (VA)
12000
Max. AC current output to mains (A)
10
Max. AC current.
from mains (A)
17
Rated mains voltage
/ N / PE,
230 / 400
Mains voltage range
184 - 276 Vac
Nominal mains frequency
50 / 60 Hz
Mains frequency range
45 - 55 Hz / 55 - 65 Hz
Output power factor
default (+/-0.8 adjustable)
THDi output (at nominal output)
< 3%
Available backup power
Nominal output power (W)
6000
Max. output power.
(VA)
6600
Pe
ak output power, du
ration (VA, s)
12000, 60
Nominal output current (A)
,7
(A)
10
Peak output current, duration (A, s)
16, 60
Rated output voltage
/ N / PE, 230 / 400
Rated output frequency
50 / 60 Hz
THDv output (at rated output)
<
%
Switching time
< 10 ms
MPPT efficiency
99.9%
Euro efficiency
97.5%
Max. efficiency
98.0%
Max. battery charge/discharge efficiency
97.6%
Protection
DC switch
Optional
Reverse polarity protection of PV modules
yes
Output overcurrent protection
yes
overvoltage
yes
Islanding protection
yes
Residual current detection
yes
Insulation resistance detection
yes
Overvoltage protection
PV:
Type II standard, AC: Type II standard
Battery inversion protection
yes
General data
Dimensions (mm)
571.4*515*264.1
Weight (kg)
33
UPS topology
Transformerless
Standby power consumption (W)
<
15 W
Operating temperature range
- 60℃
Relative humidity
- 100%
< 45 dB
Operating altitude
<
4000 m
Cooling
Natural
Degree of protection
IP65
Features
DC terminal
MC4
AC network terminal
Connector
5P
Backup AC terminal
5P connector
Display
LCD
Control interfaces
Yes
Parallel operation
Standard warranty
years, optional :
up to 20 years
Certifications &
Standards
(electromagnetic compatibility)
EN 61000-6-1, EN 61000-6-3
Safety
IEC 62109-1, IEC 62109-2,
IEC 62040 - 1
Grid
V 0124-100, V0126-1-1, VDE-AR-N 4105, CEI 0-16 / CEI 0-21, EN 50549, G98 / G99, UTE C15-712-1
